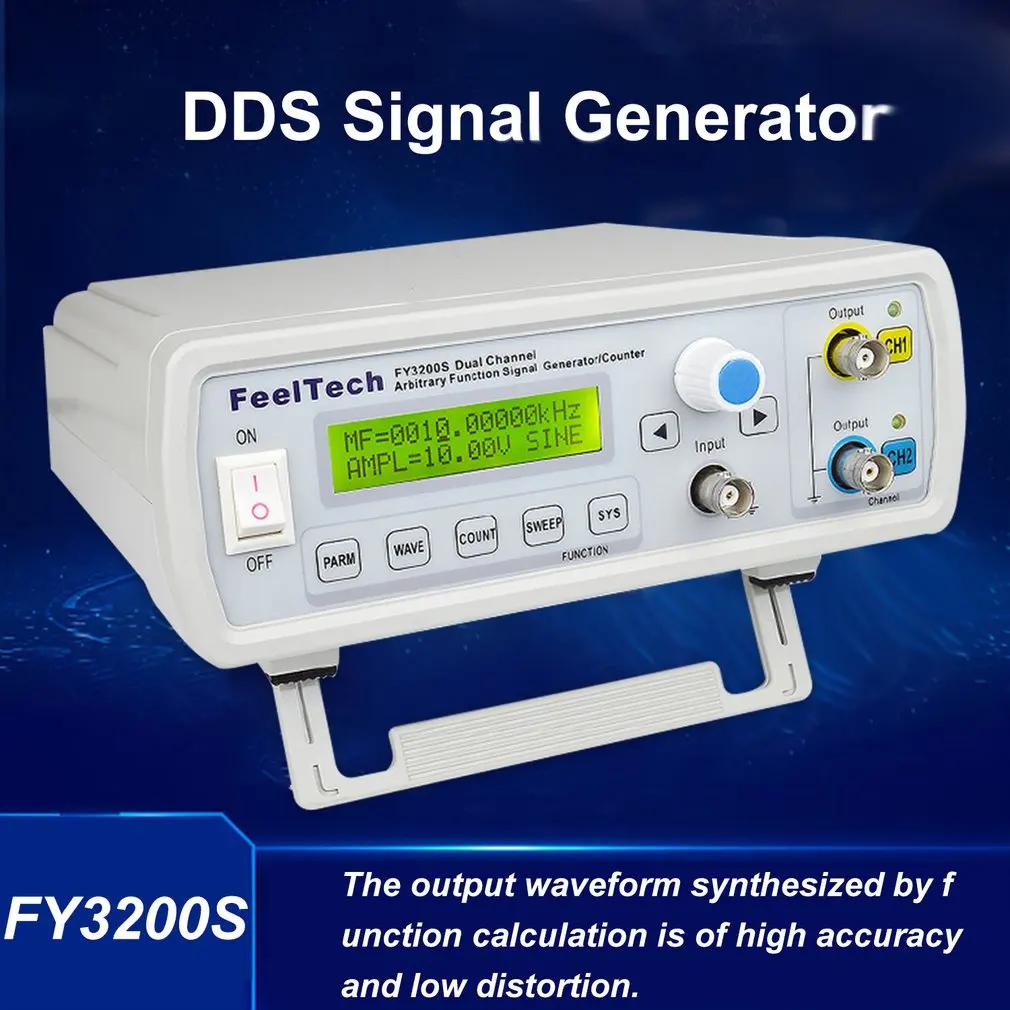

Features:
1.Sampling rate up to 250 MSa/s.
2.Built-in arbitrary waveform with 250 MSa/s sampling rate.
3.4 downloadable 2048 dots arbitrary waveform memories.
4.With 12 bit wide waveform generator, the output waveform can be more delicate with low distortion.
5.Fully numerical control. It can display and numerical control amplitude, offset, frequency, duty cycle of current signal output and phase difference of two channels. And dual-channel arbitrary integer multiples of the frequency output when no phase error signal phase drift.
6.Each function can be adjusted by host computer.
7.Preinstalled 17 common waveforms.
8.High frequency accuracy: magnitude 10－6.
9.High resolution: Full range frequency resolution can be 10 mHz.
10.Both main and subsidiary wave duty cycle are adjustable separately (0.1%~99.9%).
11.All range continuously adjustable, digital directly setting.

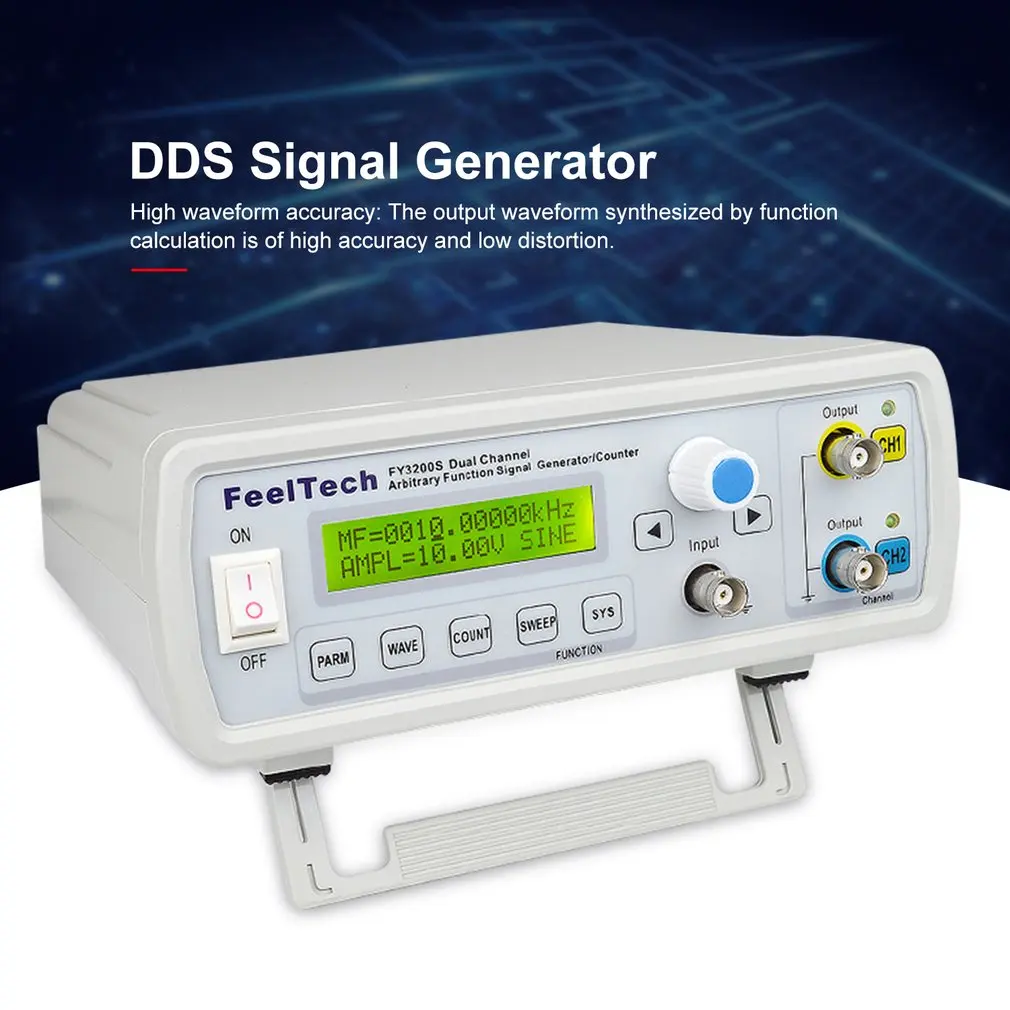

12.High waveform accuracy: The output waveform synthesized by function calculation is of high accuracy and low distortion.
13.Arbitrary waveform: User can load arbitrary waveform according to the need.
14.Sweep Function:Linear sweep and Logarithmic sweep. Starting and stop points can be set optionally.
15.Save function: 20 sets of parameters defined by the users can be saved and loaded anytime.
16.Operation mode: Button and knob controlled with LCD1602 display, digital set directly or knob adjusted continuously.
17.Highly reliable:Large scale integrated circuit, Surface mounting technology, reliable and durable.
18.Frequency measurement:Frequency of internal / external signal can be measured through built-in 100MHz frequency meter.
19.Follow function: Built-in parameter follow function covering frequency, amplitude, offset, duty cycle, waveform etc. for user's convenience.
20.Trigger output function: User can choose manual trigger, external trigger or CH2 trigger to control the main output to output waveforms of specified periodicity. This periodicity can also be defined by the user.
21.FSK frequency shift keying and ASK amplitude shift keying signal output.

Descriptions:
1.The instrument adopts large scale CMOS integrated circuit and high speed microprocessor. The internal circuit adopts active crystal oscillator as benchmark.
2.It has Dual-channel DDS signal output, includes Sine wave, Square wave, Triangle wave, Sawtooth wave and user-defined waveform.
3.It's the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.

Specifications:

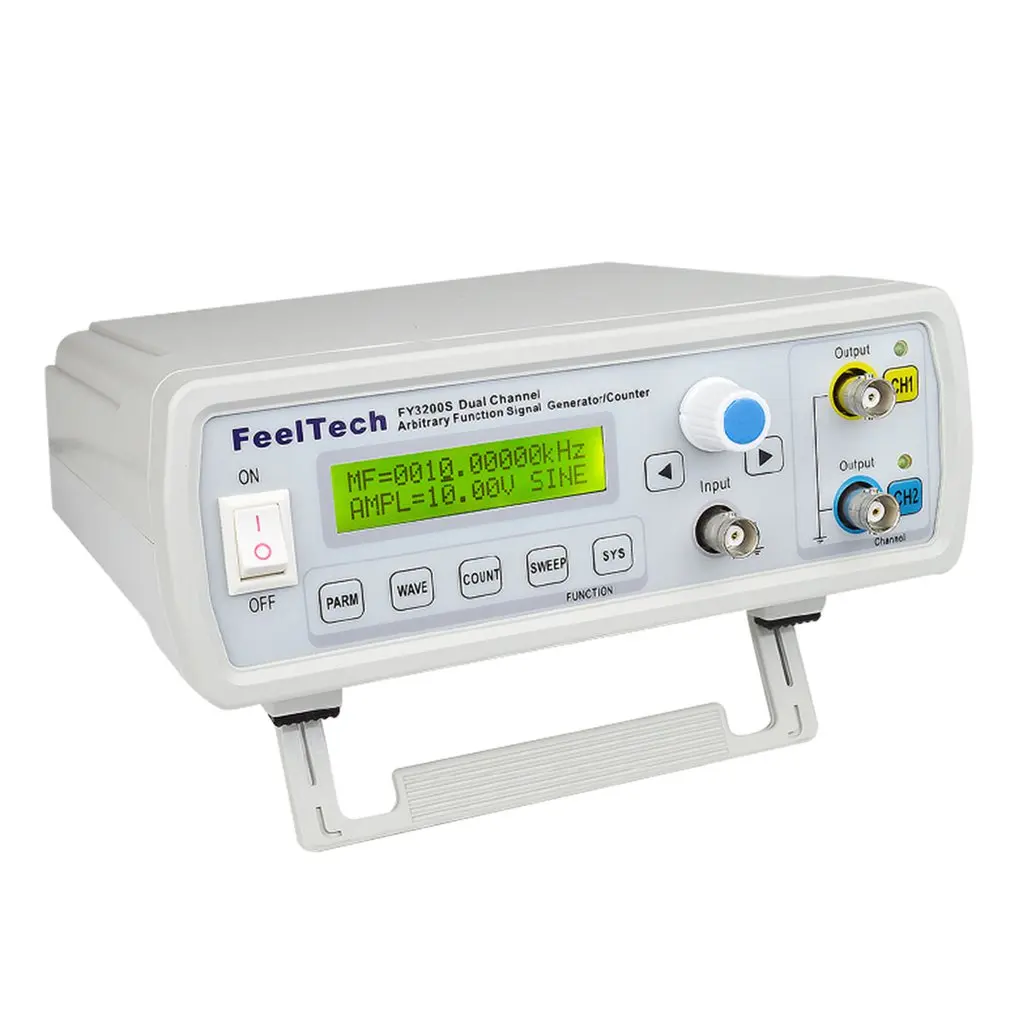

Brand: FellTech
Model: FY3200S
Material: Plastic+Metal
Color: White

Technology Indexes
Sine wave frequency range: 0Hz~20MHz
Square wave frequency range: 0Hz~6MHz
Triangle wave frequency range: 0Hz~6MHz
Arbitrary wave frequency wave: 0Hz~6MHz

Parameters of signal output
Output channel:CH1andCH2 dual channel high speed output separately.
Output waveform:Sine wave, square wave (duty cycle adjustable), triangle wave, sawtooth wave, arbitrary wave, common pulse, noise, electrocardiogram, AM, FM etc.
Output amplitude:≥20Vp-p(No load)
Output impedance:50Ω±10%
DC offset:±10V
Resolution:0.01Hz(10mHz)
Frequency accuracy:±5x10-6
Frequency Stability:±2x10-6/3h
Sine wave distortion:≤0.8%(reference frequency 1kHz)
Triangle linearity:≥98%(0.01Hz~10kHz)
Rise or fall time of square wave:≤30ns
Square wave duty cycle range:0.1%~99.9%
Pulse wave width range:10nS~1S
TTL output:Dual-channel TTL electric level synchronize with CH1 and CH2. Phase differences are adjustable.
Electric level range:>3.3Vp-p
Fan-out:>20 TTL(Load)
Level rise fall time:≤20ns

Frequency Counter function
Counter range:0-4294967295
Frequency meter range:1Hz~100MHz
Input Voltage Range:2Vp-p~20Vp-p
Sweep function:Only CH1 has this function
Sweep mode:Linear sweep, Logarithmic sweep
Frequency setting range:Starting and stop points can be set optionally.
Sweep range:fM1 (pre-set)  ~  fM2 (pre-set)
Sweep speed:1s~999s /step-by-step

Other features
Display mode:LCD1602in English
Save and load:M0-M19(Default:M0)
Buzzer warning tone:Can be turned On/Off by setting
Wide working voltage range:AC85V~AC260V
Plug Type: US plug

Production technology
Surface mounting technology, large scale integrated circuit, reliable and durable
Operating: Buttons controlled & knob adjusted continuously.
Work condition: Temp:0~40° Humidity:<80%

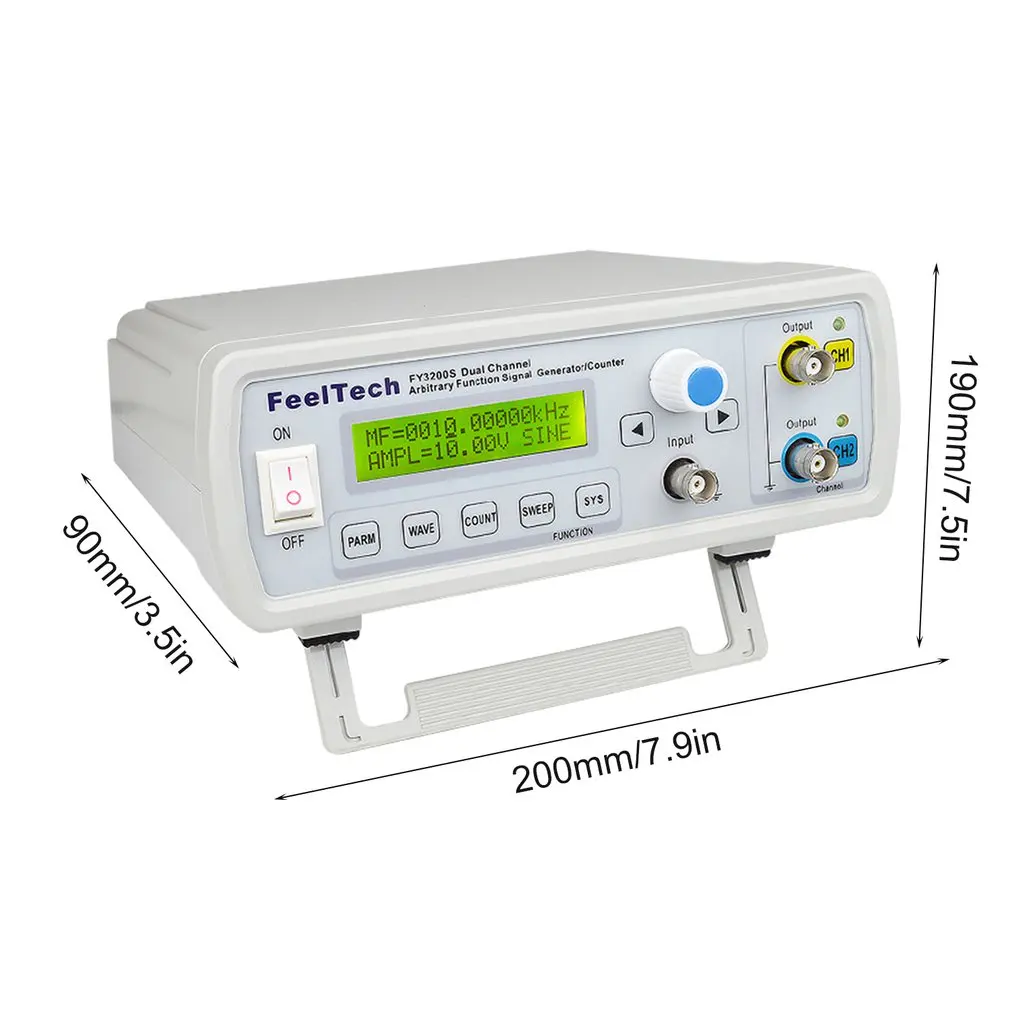

Dimension: 200*190*90mm/7.9*7.5*3.5in
Weight: 930g/32.8oz

Package Information:
Package Size: 250x210x100mm/9.75x8.19x3.9in
Package Weight: 1000g/2.2lb
General Box Package

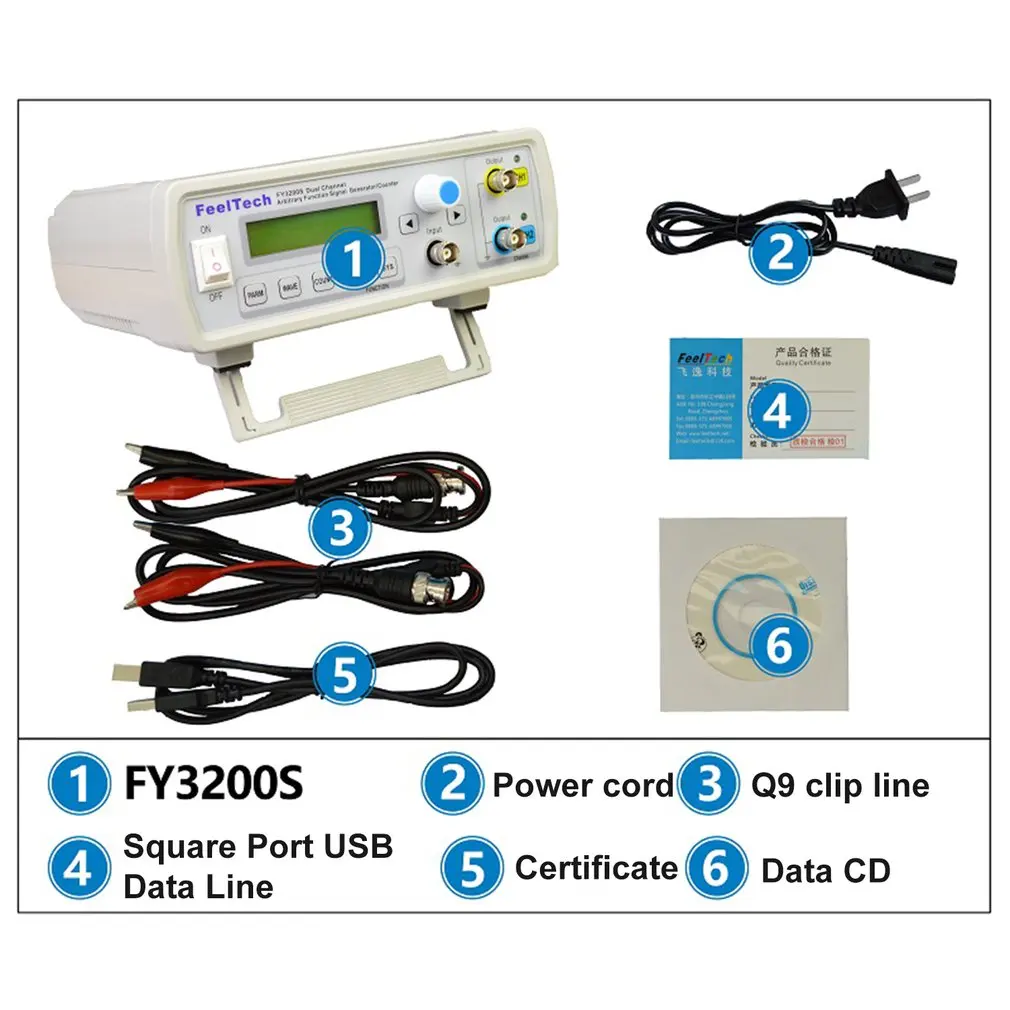

Package Included:
1 x FY3200S( Dual-channel)
1 x Power Cable
1 x USB-B Data Cable
2 x BNC-Clip Cable
1 x Resource CD (including the User's Manual)
