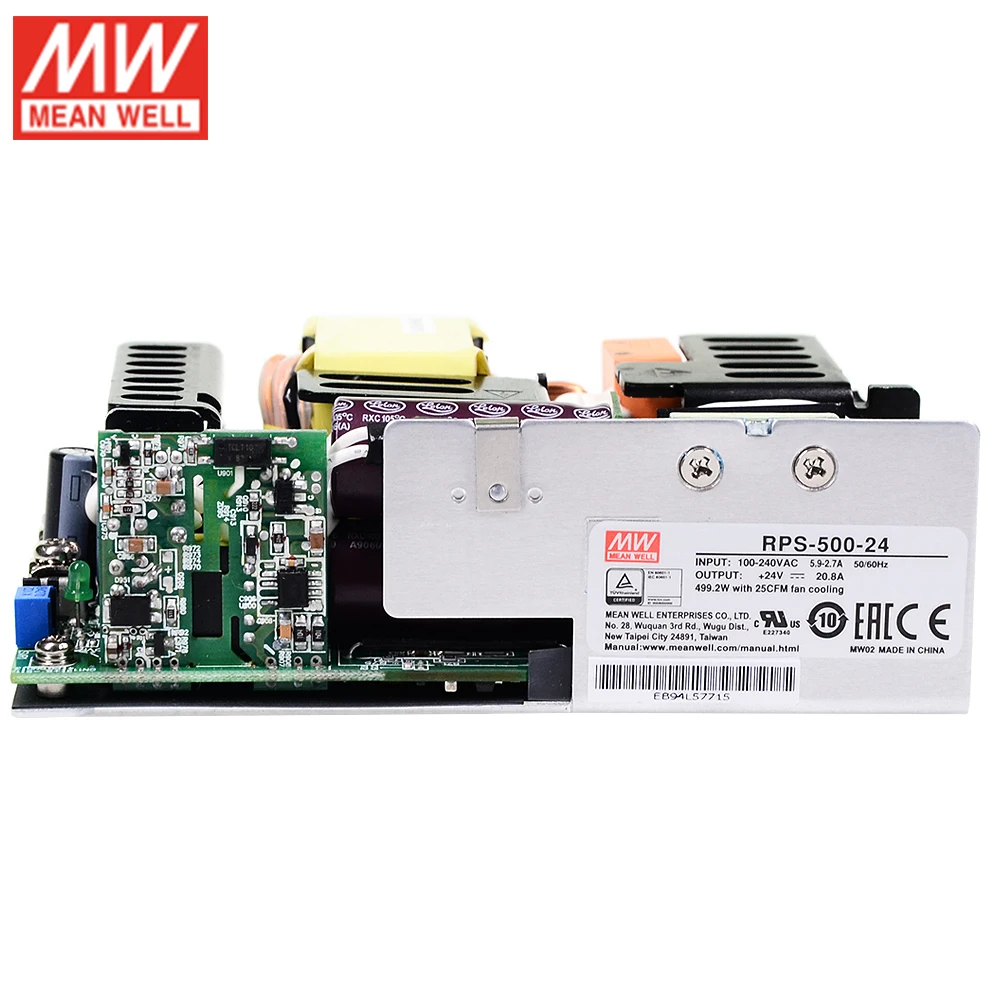

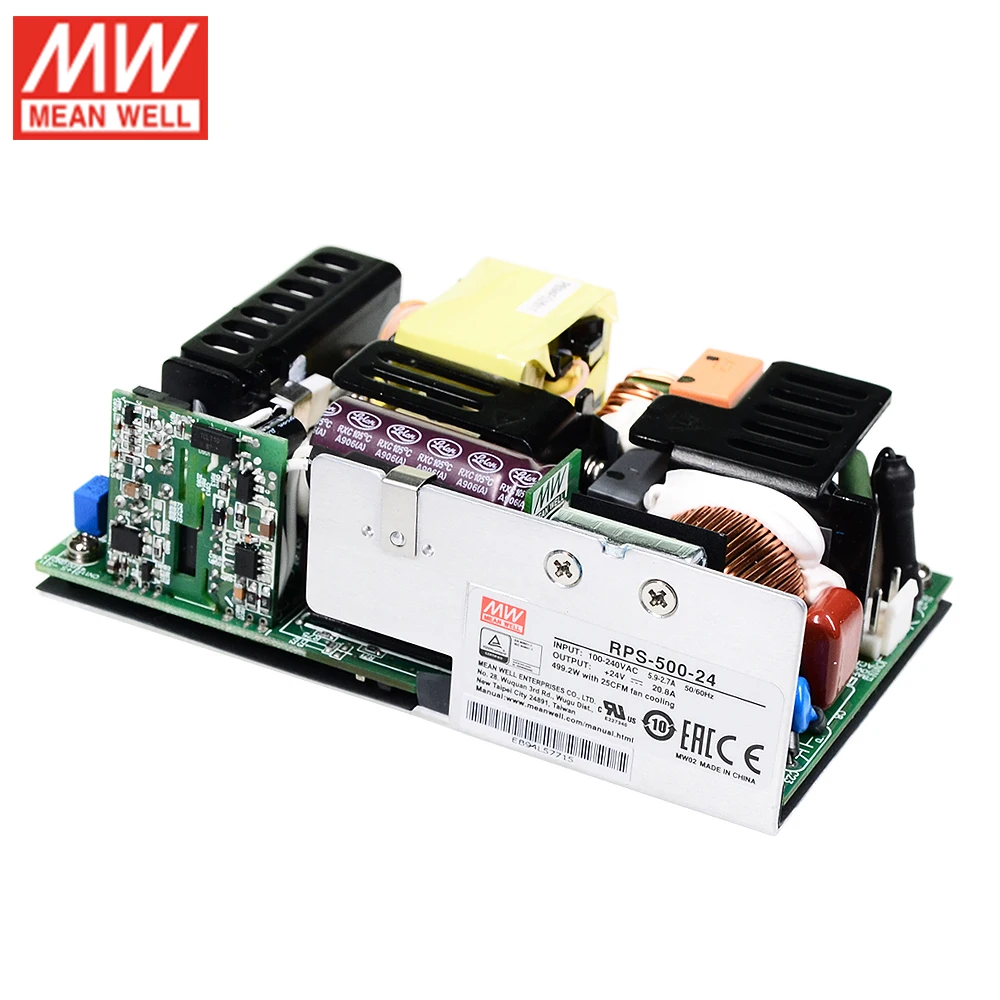

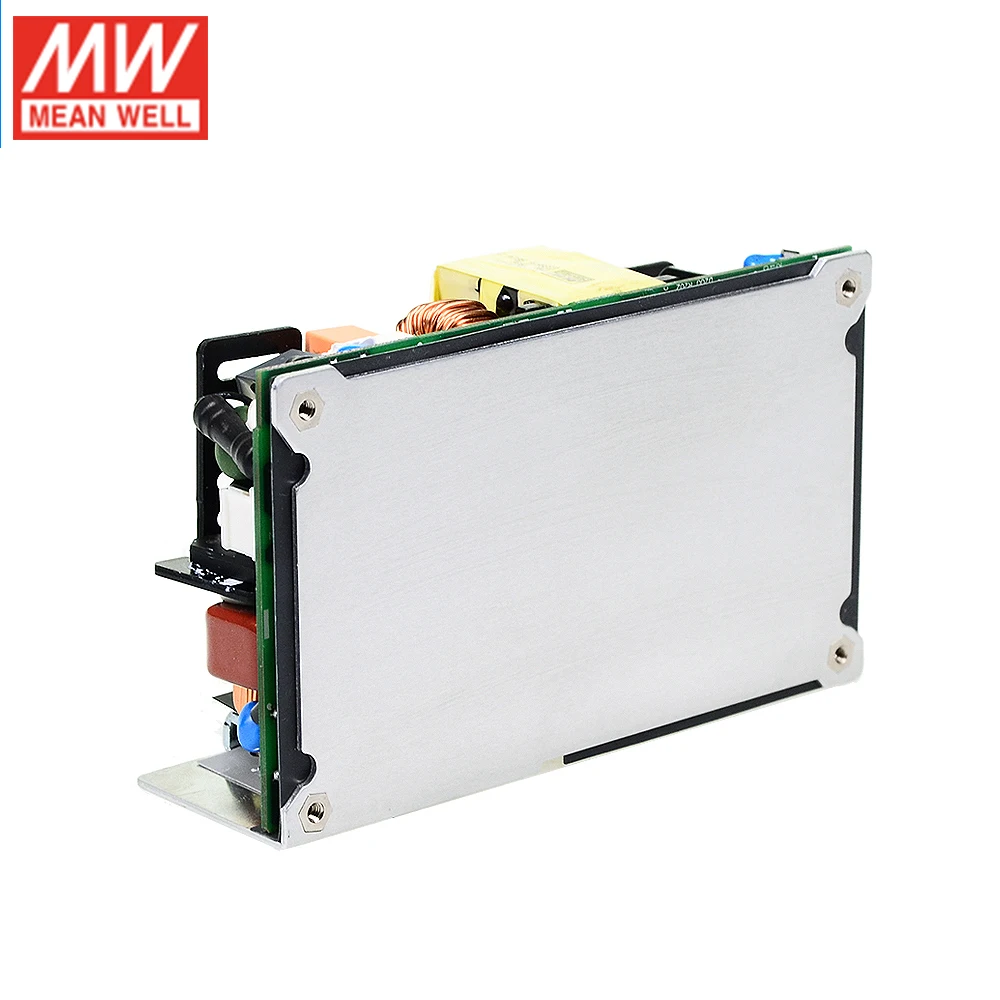

MEAN WELL RPS-500-24 20.8A 24V 500W Medical Grade Open Frame Power Supply PCB power unit PSU Blank type | Обустройство дома

MEAN WELL RPS-500-24 20.8A 24V 500W Medical Grade Open Frame Power Supply PCB power unit PSU Blank type | Обустройство дома

If you are not sure whether it is real Meanwell or not, please follow the steps below to check the validity of our products.

If you have more quantities or technical questions, please feel free to contact me for details, we will try our best to solve any problem. Step1: Open the official website of MeanWell at www.meanwell.com Step2: Click on the "Service" button at the top of the page and find the "Quality Control Inspection Report" Step3: Enter the serial number and click search

Features

5”x 3” high-power miniaturized design 2xMOPP isolation level, ultra-low leakage current < 190μA, suitable for use in BF type medical applications Full range 80~264VAC input with built-in PFC function 320W with cooling by free air convection and 500W with 25CFM forced air, 550W peak load (3 seconds) Suitable for installation in Class I (with FG) or Class II (no FG) systems No load power consumption < 0.5W High efficiency up to 94% -30～+70℃ wide operating temperature range Operating altitude up to 4000 meters Protections: short circuit/overload/over voltage/over temperature Additional functions: 5Vsb and 12Vdc/0.5A auxiliary power, voltage compensation, P.G. and P.F. signals UL/cUL/TUV/EAC/CB/CE medical safety approved LED indicator for power on Dimensions (LxWxH): 127x76.2x40mm 3 years warranty

Introduction

With optimism about the rapid development of the medical industry and increasing demands for standard power supplies, MEAN WELL is releasing the new 500W high power density RPS-500 series in order to fulfill the demands for higher power open frame solutions for medical electronics. In addition to the already released 30/45/60/65/75/120/160/200/300/400W products within the RPS product family, the RPS-500 expands MEAN WELL’s 5”x3” medical grade product offering up to 500W. RPS-500 series comes with options for multiple form factors, including bare PCB (RPS-500), fanless covered (RPS-500-C), as well as chassis mount with built-in fans (top fan: RPS-500-TF; side fan: RPS-500-SF). With the various optional offerings, MEAN WELL is able to provide new standard power solutions for many different medical applications. The RPS-500 variants are all certified to the latest medical safeties such as IEC60601-1, ANSI/AAMI ES60601-1, and TUV EN60601-1. With 2xMOPP isolation level and ultra-low leakage current (
