Features:
Dual display window,be able to display measured temperature and set temperature at the same time.
Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels,and 11 kinds of alarm mode.
Uses it in Heating Control as well as for Cooling control.
Auto-tune function can find the best PID parameter automatically.
Displays temperature in Celsius  (°C)
Uses it for Kiln,Furnace,Oven,Incubator temperature control.
It is used in various industries to control and monitor process temperature

Specifications:
Material: ABS
Input Type:
     Thermocouple: K, E, S, R, J, T, B
     RTD: Pt100, Cu50( The User can set the input signal type according the           requirement. )
Input Range: 0 ~+1372°C  K (this is the default setting. User can set the temperature range which you wanted.)
Display: Two lines, Four digits in Celsius °C.
Display Resolution: 1°C, or 0.1°C if Pt100 input
Accuracy: +/-0.5% or +/-1 unit of full input range
Sampling Period: 3 times per second
Control Mode: PID, ON/OFF
Control Output: Relay contact: 3A at 240 VAC.
Alarm: Alarm 1 ( Upper-limit bias alarm,User can change to be other Alarm Mode.)
Power Consumption: <2 Watt
Power Supply: 100~240V AC, 50/60Hz.

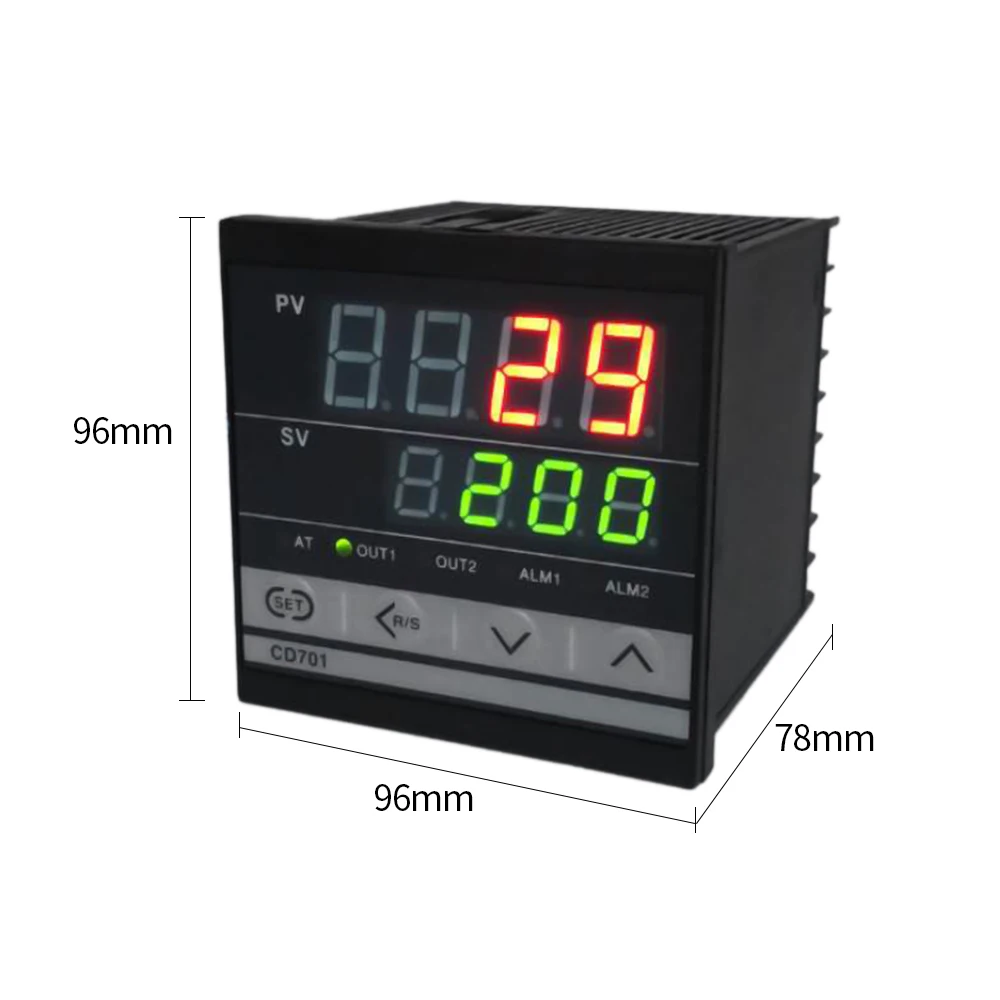

Item Size: 96*96*78mm / 3.8*3.8*3.1
Package Weight: 200g / 7.1oz
Package Size: 122*83*83mm / 4.8*3.3*3.3in

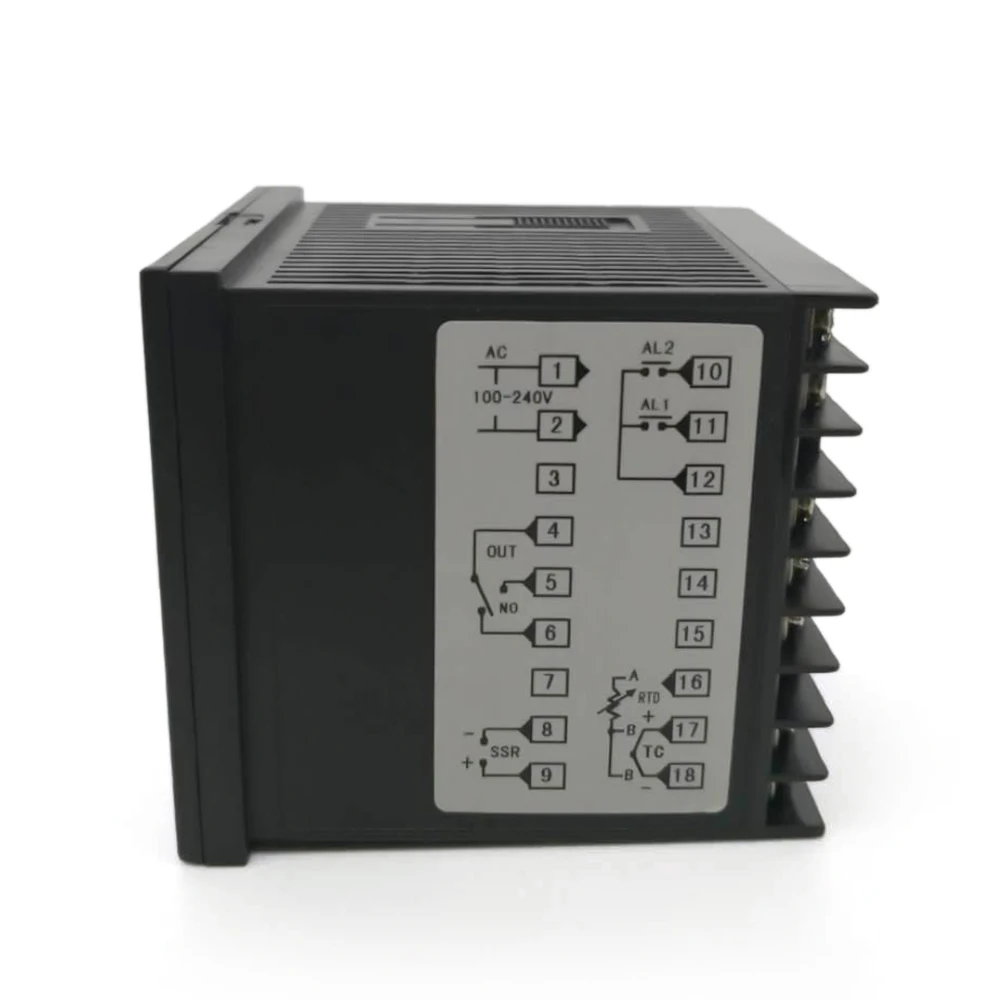

Note: Wiring is subject to actual instrument wiring.

Package List:
1 * Digital Temperature Controller
1 * User Manual
