Xintai Touch 2PCS 50 Inches160P Controller&USB | Компьютеры и офис

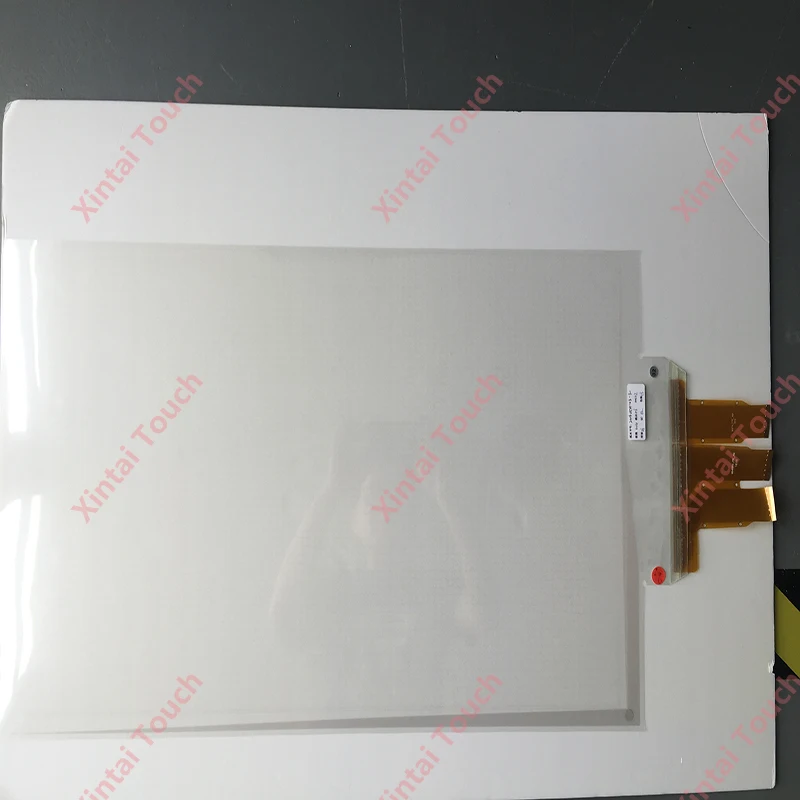

Attached Touch Foil to Glass Video Xintai Touch 2PCS 50 Inches160P  Controller&USB

Specification :

Item Parameter Touch points 2 points to 10 points Size range 15-120inch Touch deviation le2mm Sensor quantity 4224pcs Point rate 80-120point/ms Power 0.5W-2W Driver type Driver free Plug&Play Arm Reject Support Customize support Irregular size, irregurar FPC tail Film thickness le100um Light transmittance 93% above Supply Voltage 5V USB Transmission method USB2.0, USB3.0 Transmission distance le50m adding USB signal amplifiers etc Safty distance 2mm Distance between LCD screen and touch film Working Temperature -20deg to +70deg Working humidity 0 to 95% Environment light Whole angle anti-glare Touch support Click, drag,zoon in, zoom out, rotation Sense distance(glass thickness) le12mm Calibration way make calibration automatically System support Andriod①.Linux②.Windows7/8/8.1/10(32bits/64bits)③ Program level Standard HID-USB equipment Certification EN 55022:2010/AC:2011,EN 55024:2010 IEC62321:2008 Remark ①For Android,open HID-USB, switch off Report Rate Description, input value of Android's VID(Vendor ID) and PID( Product ID) into IC advanced settings.
②Linux support, pls confirm the Linux version first.
③Win 7/8/8.1/10
Home Edition of Windows only supports single touch
Multi touch works on Windows Professional/Enterprise/Ultimate Edition



Product Size DataSheet List:



Applications:

bull POS
bull ATM / Airport
bull Desktop touch monitor
bull Education Display
bull Indoor/outdoor kiosk
bull Ticket machine

bull In-vehicles and transportation

bull Medical instrument
bull Industrial control systems

Warranty:



We offer 1 year free warranty for hardware.



Tax and Duties:



1. For customers from South America Market, we need you provide Tax Number before shipment.



Brazil-CNPJ/CPF, Chile-RUT number, Argentina-CUIT number, Colombia-NIT number, Peru-IVA number, Venezuela-RIF number



2.The goods price is not



including the destination tariffs Different coutries have different customs tariffs, it is buyer's responsibility.



Shipment and Payment:



1.For Payment---------we accept Western Union, TT, Paypal.



2. BY DHL/FEDEX/UPS------(It's commonly Takes 5-7 working days to deliver to destination if everything go well



without customs clearance problem).



3. By EMS --------(normally takes 7-15 working days ------------It's shipping to Russia and Ukaine).



4. By Russia-Line--------(It will take about18-25 days shipping to Russia).



5. In commonly Country (except russia,Ukaine,Brazil)------- below 43 inch (including 43 inch) we will choose DHL to



deliver the package;above 43 inch will choose fedex or ups,please kindly know.



6. Brazil Customer --------



① Brazil customer should provide CPF/CPNJ tax number to us,then shipment can be arranged,It's used for



customs clearance



② Brazil customer should tell us what value should be decalred for customs clearance



As brazil customs clearance problems.



Shipping Method:

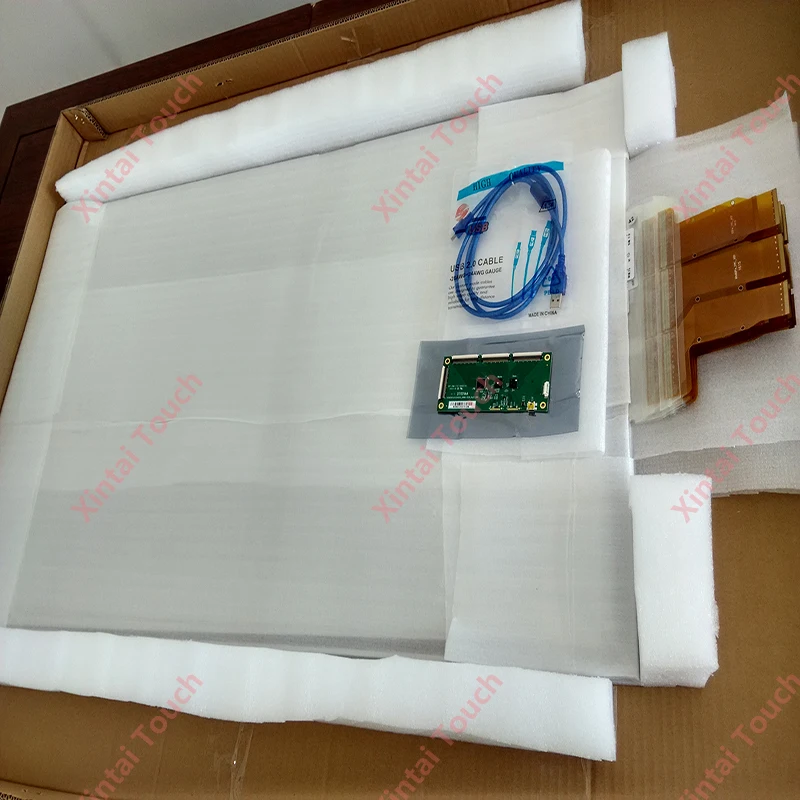

We ship in tube package to protected the glass We also can ship it with glass as well. Please Contact us.

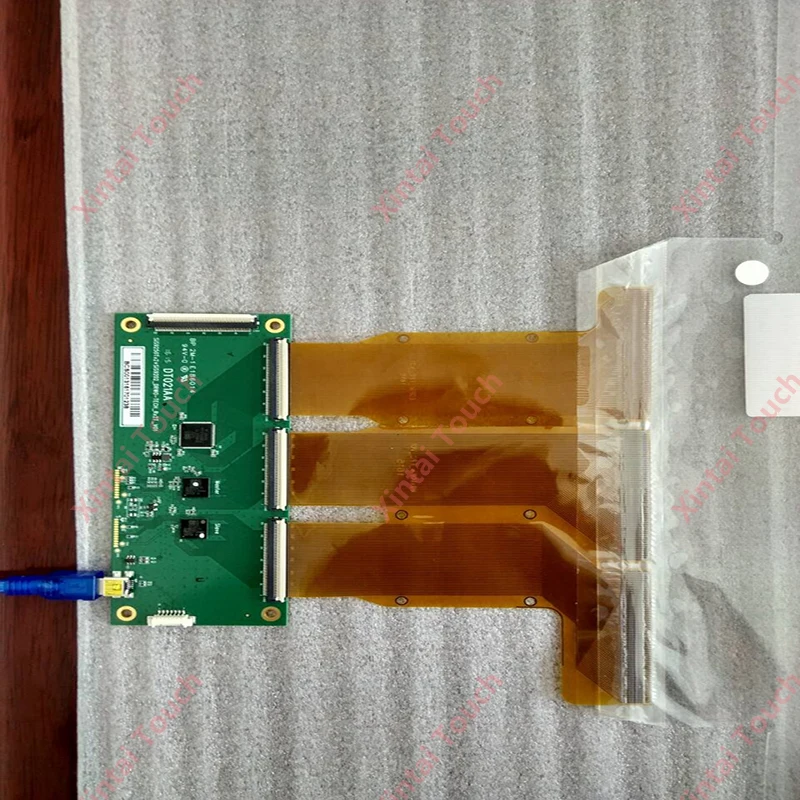

1. 1pcs foil + 1pcs usb cable +1pcs controller

2. Without Glass

3. In tube Package Shipping

Facotry Produced and High Quality Guarantee
