Precision Mist Coolant Lubrication Spray System with 1.5m Flexible Pipe and Check Valve Metal Cutting Engraving Cooling Machine |

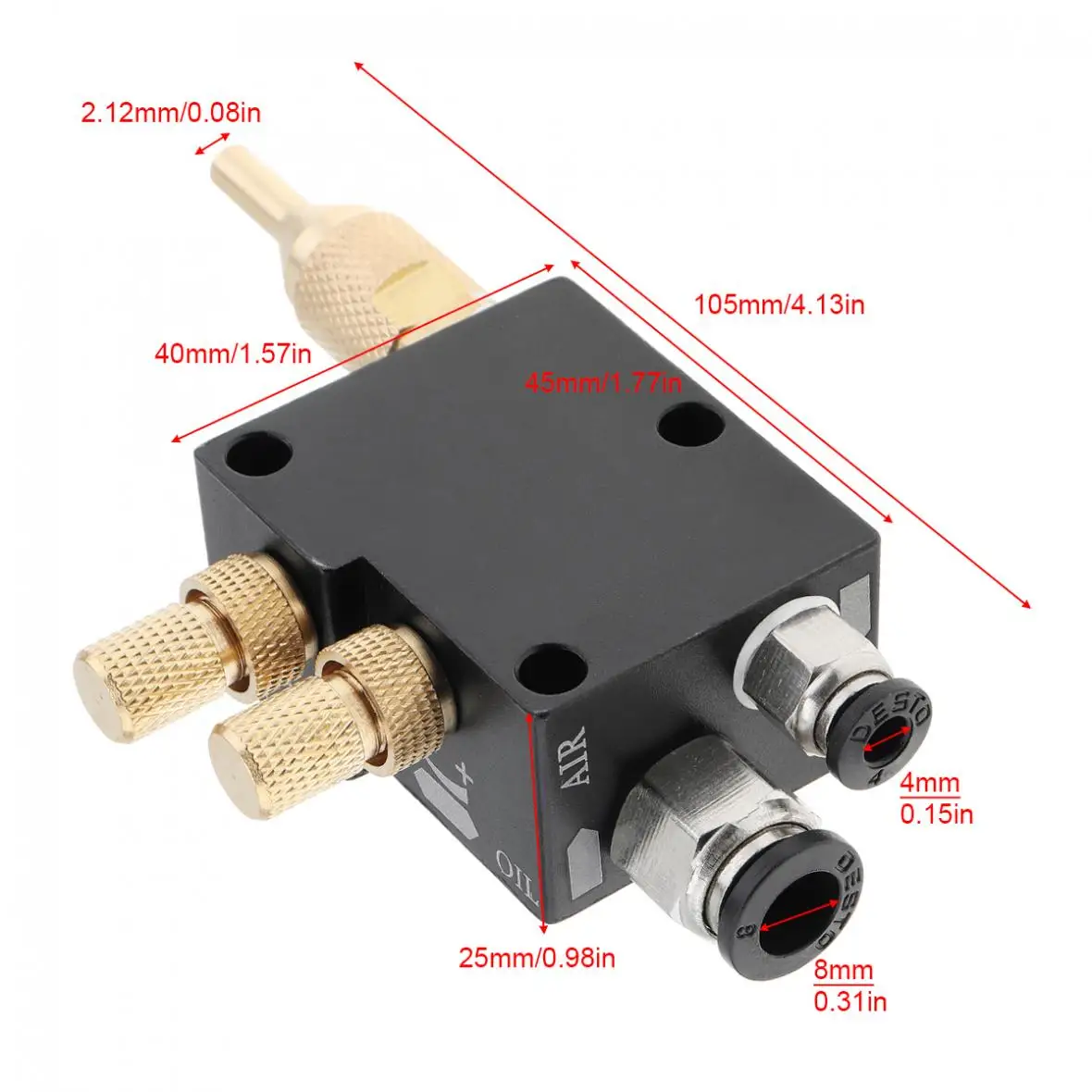

Description Cooling Pipe Length：105MM / 4.13385Inches PU Tube Length：1.5M / 4.9212Inches Oil Outlet Port Size：8MM / 0.31496Inches Air Inlet Port Size：4MM / 0.15748Inches Material：Metal Product Name: Mist Coolant Lubrication Spray System Model: SKB-D-8-4-1.5 Air Pressure: 5-7kgt/cm² (the atomization effect is related to gas volume and oxygen pressure) Applicable Liquid Viscosity: 0-68cSt Copper Nozzle Inner Diameter: 2.12mm Internal Spray Nozzle Inner Diameter: 1mm Installation Method: Internal Thread Connection Application: Lathe, drilling machine, milling machine, grinder, tapping machine, tool grinder, CNC machine tool, weighing machine, sawing machine, woodworking machinery, feeding machine, etc. Feature:
- Cooling, lubricating and blowing out the iron layer can be completed at one time during the processing.
- It can increase processing speed, save processing time and cost, and reduce tool wear.
- It is helpful to ensure the processing-quality and the best use effect of cutting tools.
- Processing alloys or superhard materials can also achieve a smooth and high-precision surface.
- Increasing the sealing method can avoid internal leakage and prolong the service life.
- Brass Flexible Pipe is more resistant to high temperatures.
- Save 60-80% lubricants compared with the oldest lubrication tube. Steps of Operation:
- Insert the liquid tube.
- Insert the air tube.
- Put the filter into liquid.
- Open the air sourceBy using two valve toadjust inlet air/liquidflow rate toget suitableoutlet mist andimpulsive force. Note:
- Clean liquid must be used.
- Do not use corrosive liquids. Package include 1 x Mist Coolant Spray System
