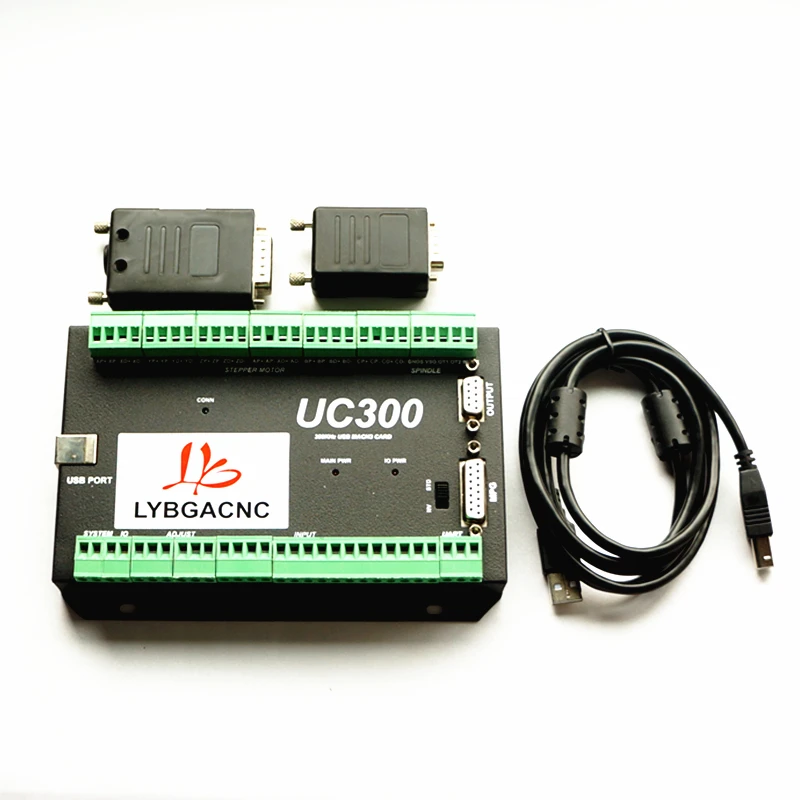

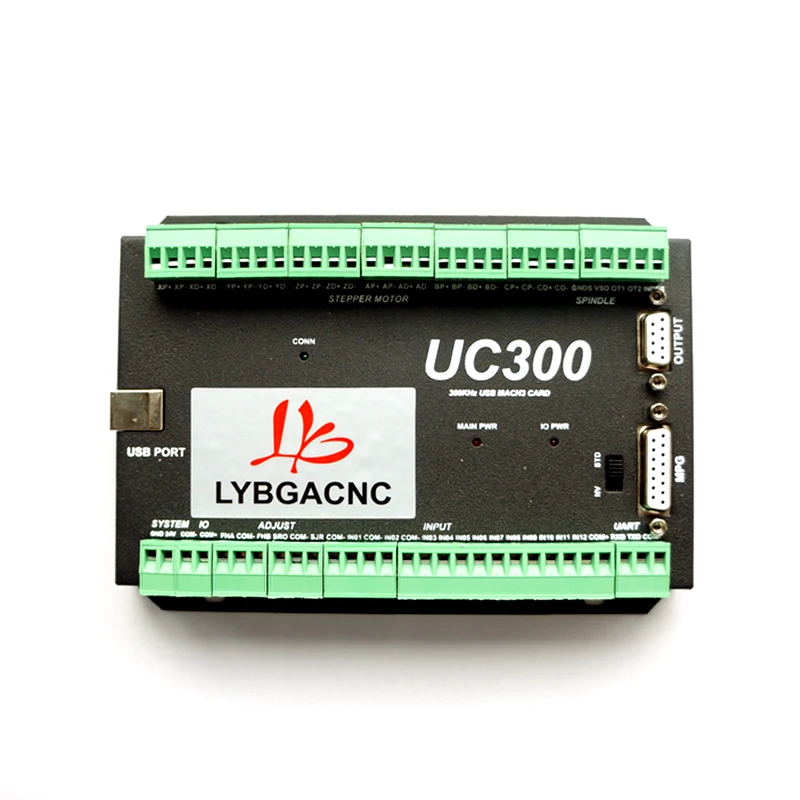

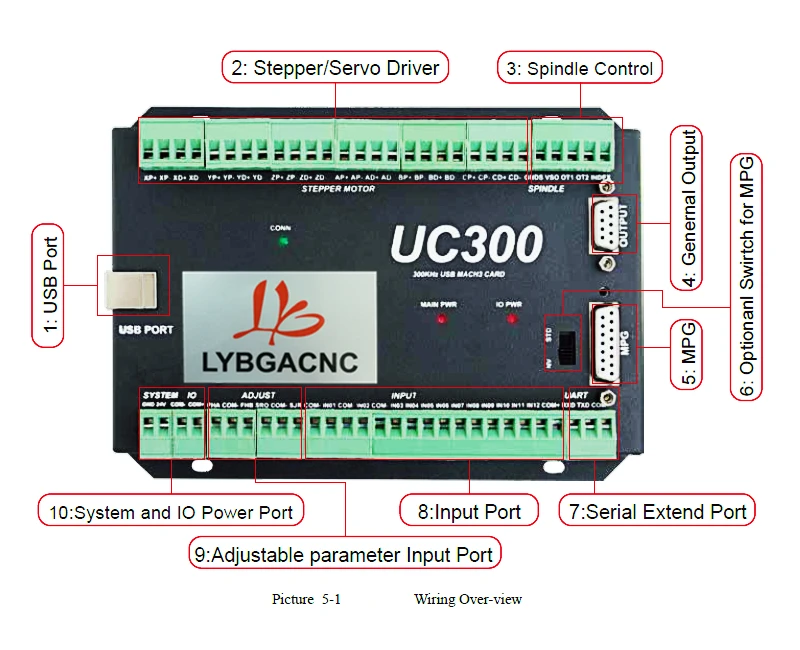

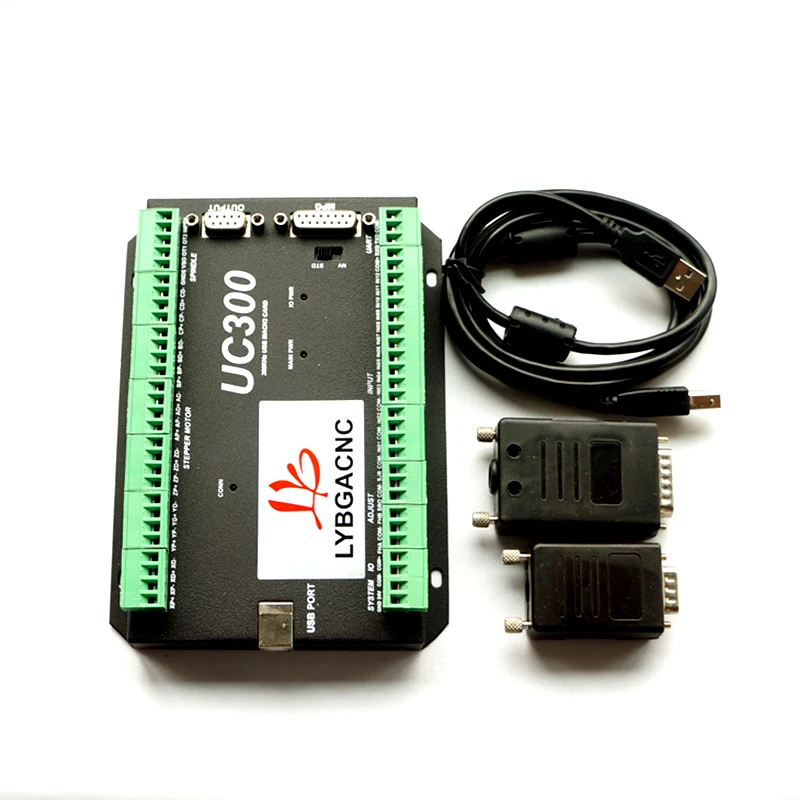

  NVUM upgrade Mach3 USB Control Card UC300 CNC router 3 4 5 6 Axis Motion Control Card Breakout Board The UC300 is a high-performance external motion controller for Mach3, with USB port communicated Mach 3 software, supporting standard MPG and Digital Dream MPG. The device can communicate with a connection to a control computer's network. The network connection can be built with direct connection or via router/Switch devices.    Features: Motion control 3-6 Axis(X, Y, Z, A, B, C) for option, max frequency output 300 KHz/Axis; USB Communication with Mach 3 Software; Main power supply 24VDC, Current should higher than 1A; IO Power is 24VDC power supply input, current should higher than 1A (By the IO power supply, system already supply the power for IO ports. So no need the external power supply for IO port anymore.); 12 opto-isolated digital input ports, 10 opto-isolated digital output ports; 1 analog output port of 0-10V adjustable speed for spindle (can change to PWM output port); ARM motion control chip, Two Relay output; It is Compatible with Standard MPG and Digital Dream MPG.   Specification: Options: 3/4/5/6 Axis Power supply: 24VDC >1A Max output frequency: 300kHz/Axis Dimensions: 171*106*32mm  Weight: Approx. 778g   Package list: 1 x Motion Control Board 1 x Connection Cable 2 x Terminals
