Industrial terminal type RF power meter, support peak and RMS detection, use USB interface configuration parameters, data can be through the CAN bus or 485 bus access to industrial control system. Used in industrial microwave ovens, industrial microwave production lines

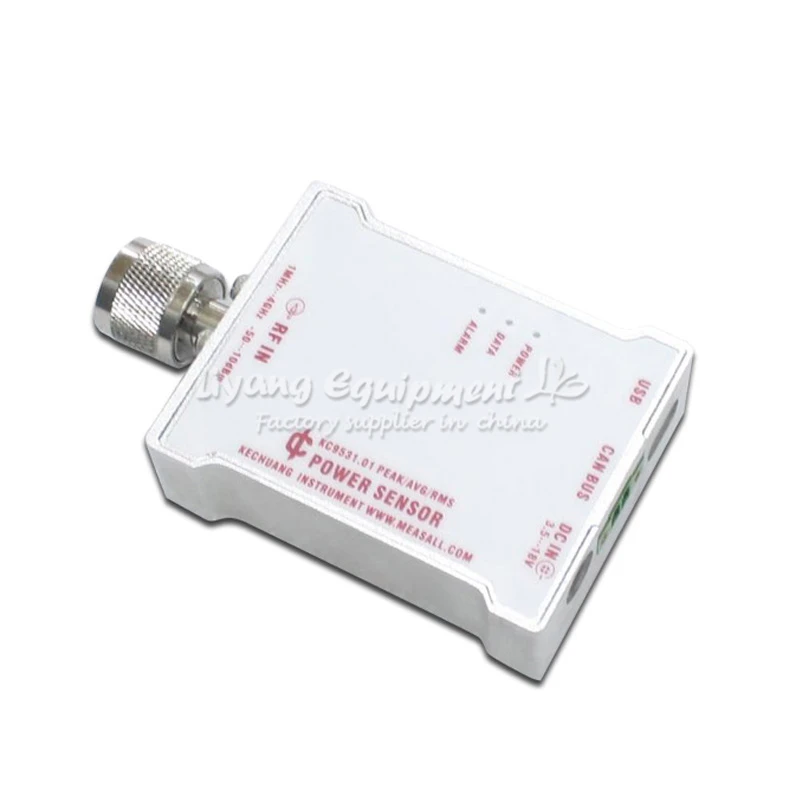

Power sensor KC9531 is a range of products developed by our bureau to meet the needs of industrial radio frequency applications..KC9531.01/02 is a 4GHz range sensor that supports different data bus specifications

The KC9531 has a USB2.0 interface and a data port that conforms to the CAN2.0A/B or RS485 protocol and executes the M-bus specification

The USB interface for users to set relevant parameters (such as: measuring frequency, CAN/RS485 baud rate, CAN identifier and detection mode) and real-time display of the measured data, and support logarithmic units and linear units. When the user has configured CAN/M-BUS working parameters, it can be added into the bus to built a measuring network consisting of a plurality of sensors. Commonly used to monitor in large-scale continuous production line.

KC9531 can adapt to the harsh environment of the industrial field, and can correctly measure the large unstable magnetron power source, providing peak, average value or RMS results. In 150KW microwave power monitoring application, after 1 years of continuous assessment, it has been proved that the reliability of the measurement.

1. Product applications

2. Measuring range

3. Product features

4、Tool software support

HX9531_V1.0.exe User Edition；Work on WindowsXP/Win7/8/10

5、Technical parameter（KC9531.01/KC9531.02）

order number

Items

Min

In genaral

Max

Unit

Remarks

RF index

Frequency range

1

4000

MHz

Frequency range （Note1）

-50

10

dBm

Detection mode

Sampling (peak value, average, RMS）

the minimum pulse width

1

μs

Uncertainty 100~3500MHz，25℃，-40~0dBm

0.2

dB

After the known frequency is corrected

1.5

dB

Long-term stability 1y

0.5

3

dB

re-testing period

2

year

Power supply

Supply voltage

Using USB power supply

4.5

5.5

V

Independent power supply

3.5

18

V

supply current

Using USB power supply

300

mA

Independent power supply

＜100

＜400

mA

Output parameters

USB port

serial data

CAN bus

Standard CAN protocol（KC9531.01）

RS485

RS485,M-BUS（KC9531.02）

Environmental parameter

Operating temperature range （Note2）

-20

60

℃

Storage Temperature Range

-40

85

℃

Relative humidity

0

90

%

Interface

N type -J positive

RF port DC withstand voltage

15

V

Absolute rating

Interiorinput power

20

dBm

Supply voltage

18

V

Mechanical parameter

Size (length*width*height)

100

60

24

mm

Including RF port

Weight

300

g

Acceleration of vibration（Note3）

5

g

1h

Note1：Select the proper coupler, attenuator. If the field electromagnetic environment is too bad, the power cord, CAN or USB cable should be installed on the appropriate magnetic ring
Note2：The uncertainty increases when the temperature is above the range of 10~45℃
Note3：In vibration environment, the mounting bolts on the sensor body shall be used and the flexible cables shall be used. When no vibration is available, the radio frequency interface can be used only
