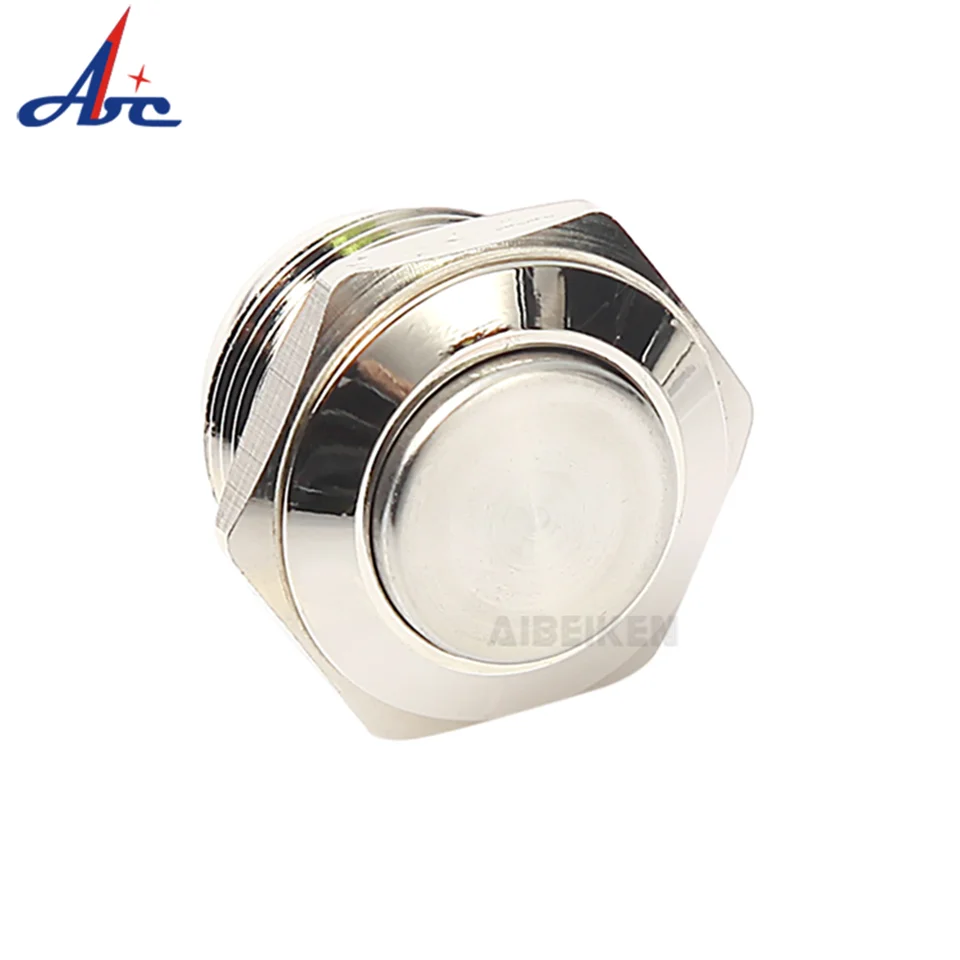

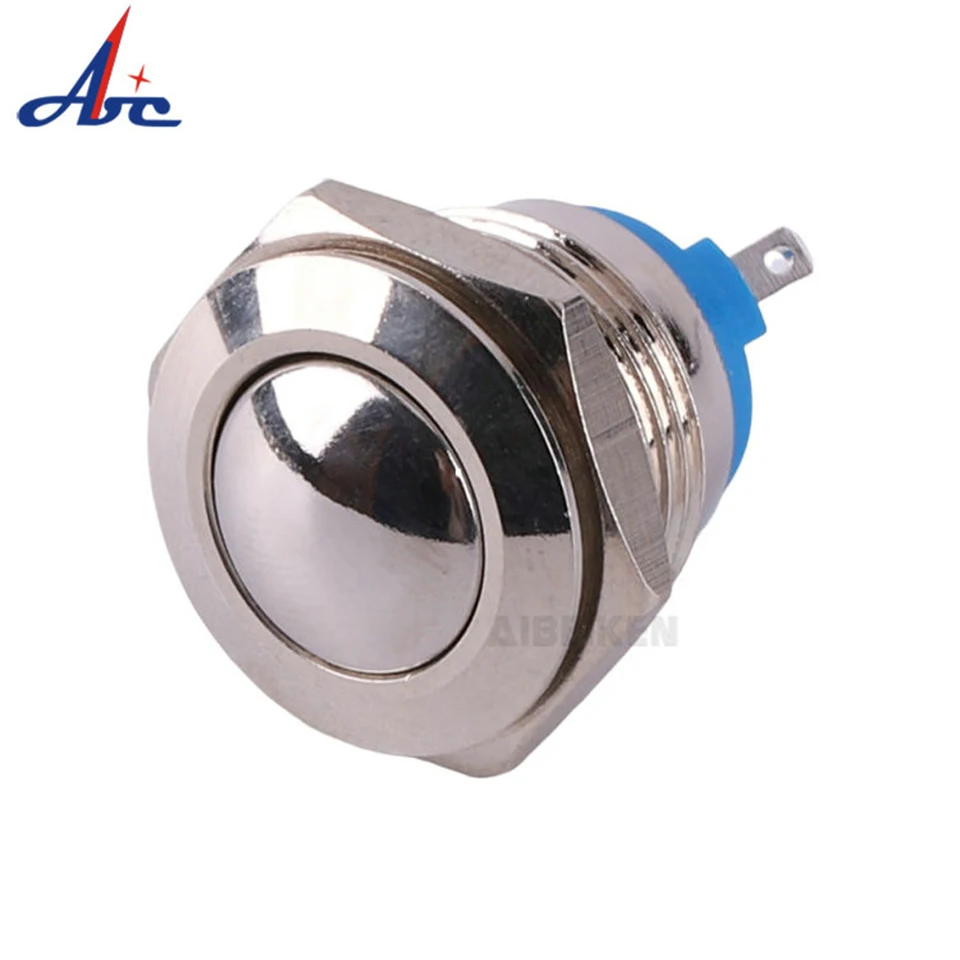

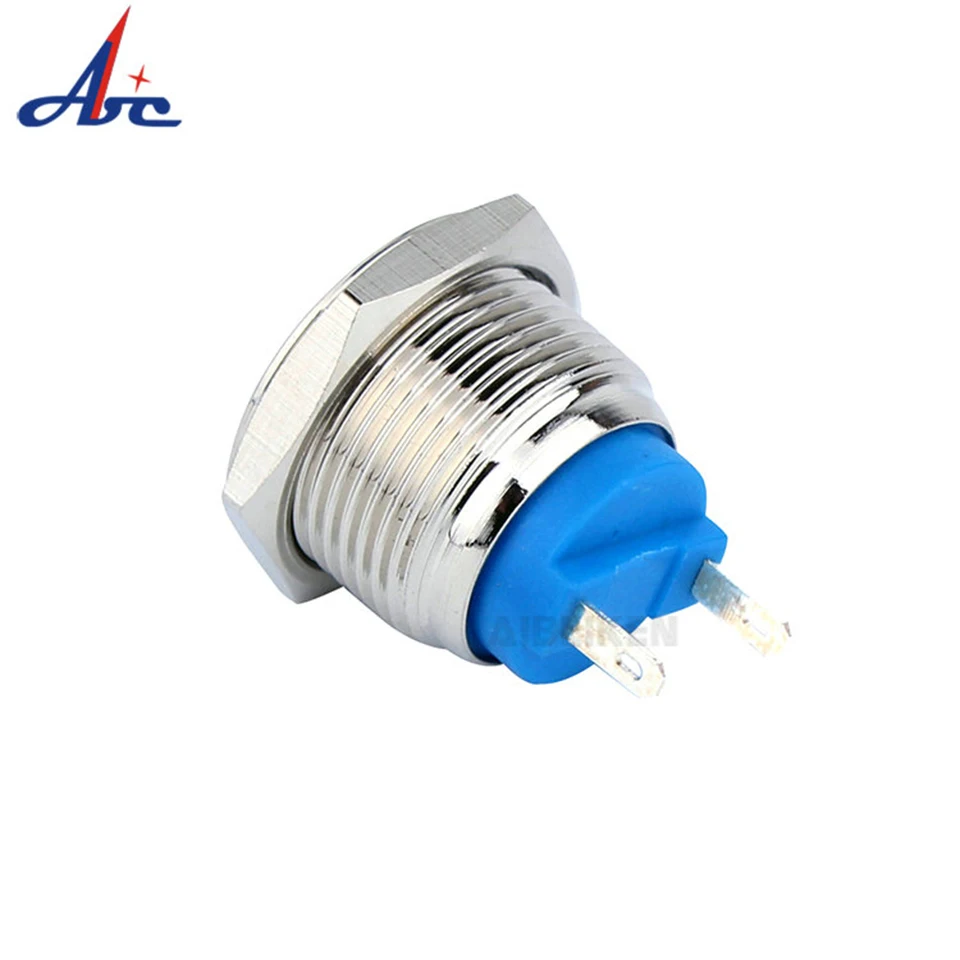

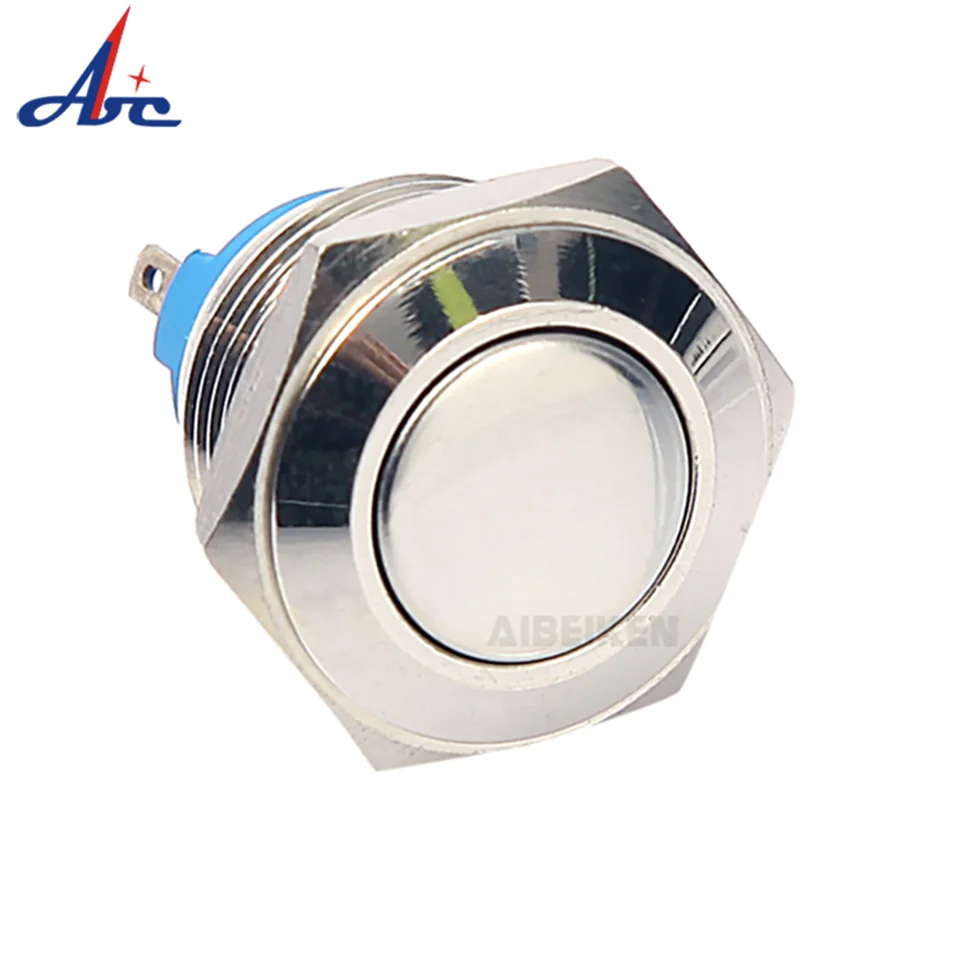

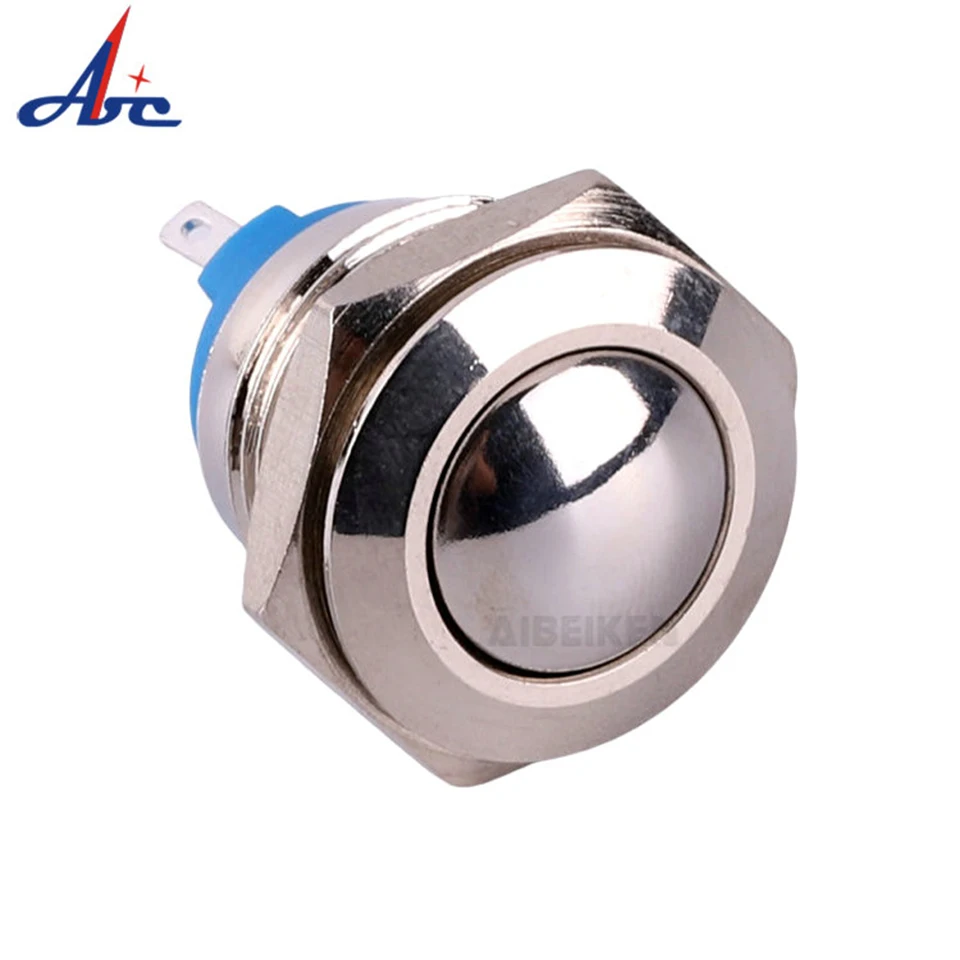

Round Raised SPST 1 NO 3A 250V 2pins 16mm Momentary Electrical Button Switch

· Momentary Type: Push & Hold - ON, Release – OFF

· Mounting Hole Size: Diameter 16mm, Switch Rating: 2A/36V DC ,3A250VAC , Switch Contacts: 1NO

· Easy to Install: Screw type terminals, don't need to solder

· IP65 Waterproof & IK10 Protection: Rustproof, can be used in wet or dust environment

· Widely Application : Great for Box Mod, Car Boat Vehicle push button switch12V , Kill Switch ,Horn Button Switch, PC Power    Switch or any circuit controls ,electronic DIY equipment

Features:

Easy to install, waterproof, shockproof, durable

The switch will be on when you push button, and it will be off when you undo button

This switch can be used for circuit control in electromagnetic starter, relay and other electric circuits.

Product Name

Push Button Switch

Model

IB16A-10Y/N

Mounting Hole

16mm

Operation Type

Momentary (Reset)

Switch Combination

1NO

Actuator Shape

Flat Round Head

Terminal type

Pin Terminals

Illuminated or not

/

Led Voltage

/

Led Color

/

Illuminated Type

/

Enclosure Material

Nickel Plated Brass

Delivery Days

1-7 days

 Contact Resistance

50MΩ max

Insulation Resistance

1000MΩ Min

Dielectric Intensity

2000VAC

Operating Temperature

-20°C ~+55°C

Customized symbol,colored housing or Connector

Acceptable and with fast shipping

Accessories

Nut, Rubber Waterproof O-ring,Resistor inside

What You Get

1X Push button switch:

16mm, 1NO,Screw Terminals
