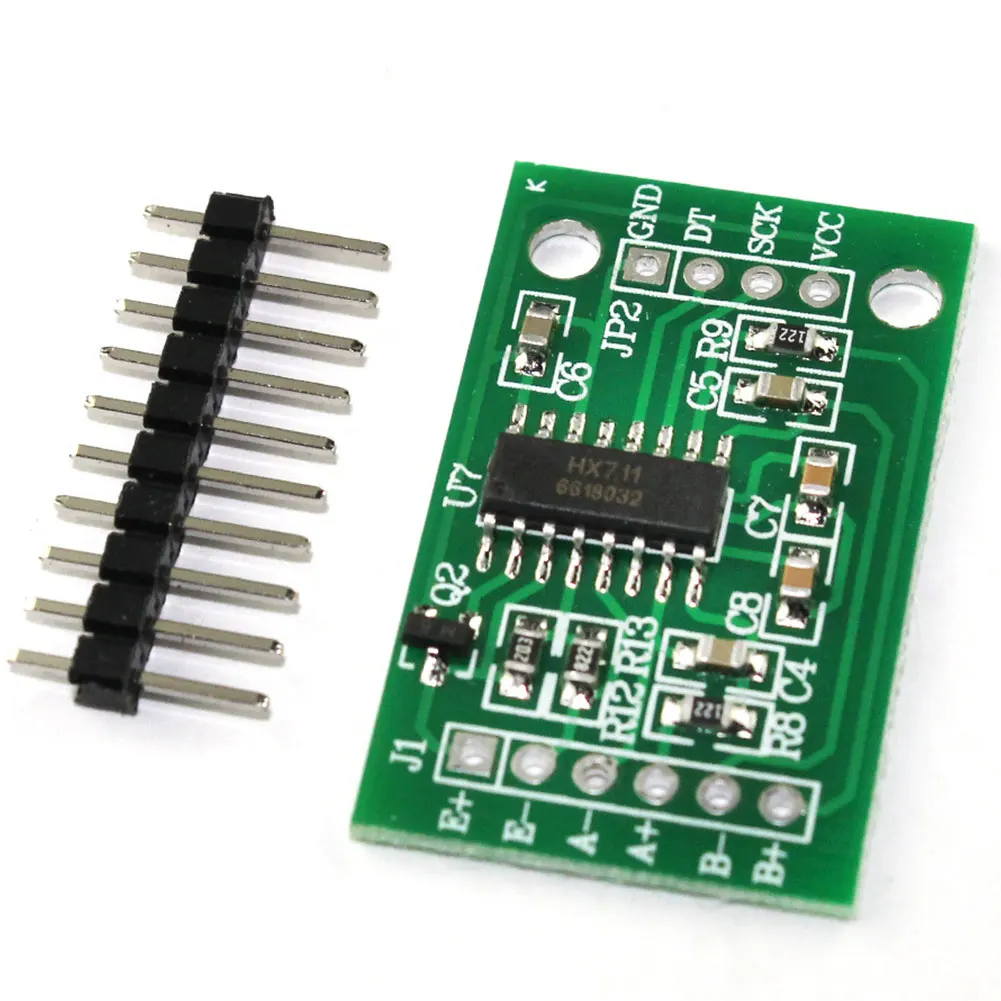

Weighing Sensor AD Module Dual-channel 24-bit A/D Conversion HX711 Shieding | Электроника

Weighing Sensor AD Module Dual-channel 24-bit A/D Conversion HX711 Shieding | Электроника

Features:

Two selectable differential input channels

On-chip active low noise PGA with selectable of 32, 64 and 128

On-chip power supply regulator for load-cell and ADC analog power supply

On-chip oscillator requiring no external component with optional external crystal

On-chip power-on-reset

Simple digital control and serial interface: pin-driven controls, no programming needed

Selectable 10SPS or 80SPS output data rate

Simultaneous 50 and 60Hz supply rejection

Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA

Operation supply voltage range: 2.6 ~ 5.5V

Operation temperature range: -40 ~ +85℃

Package includes:

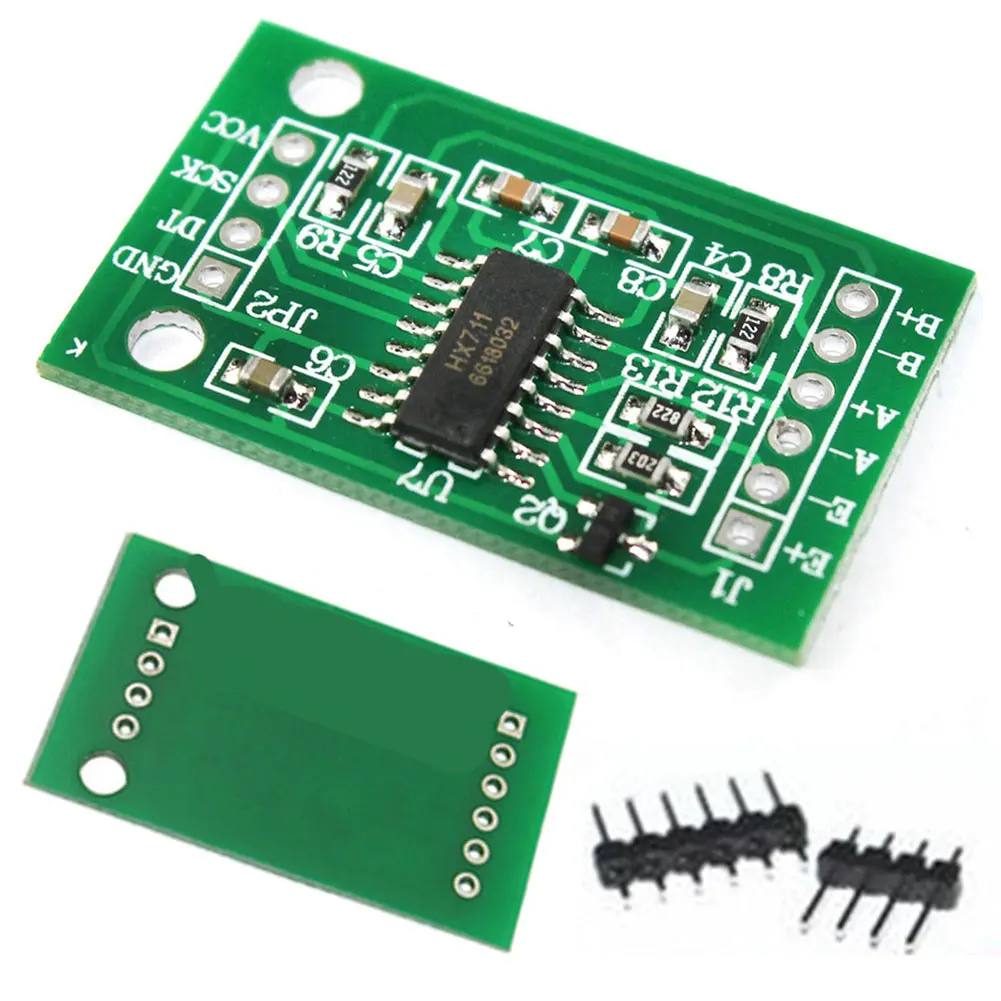

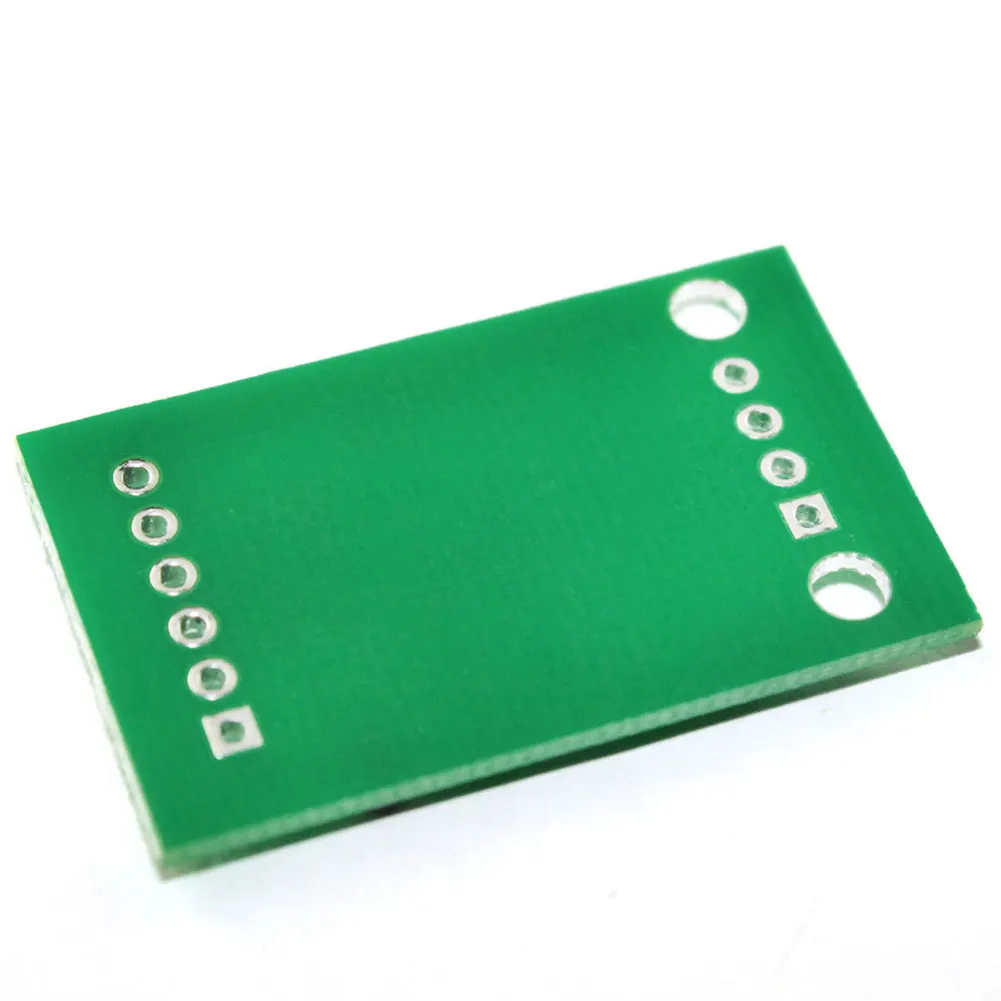

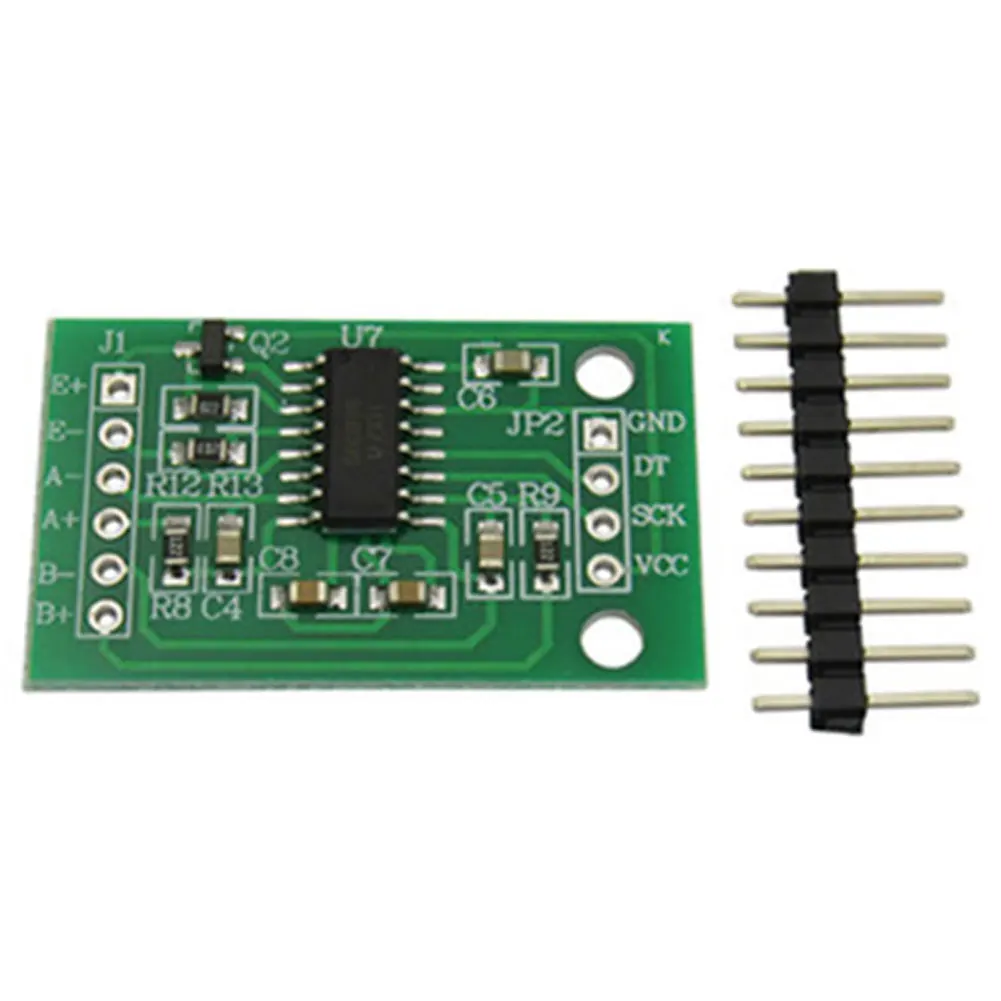

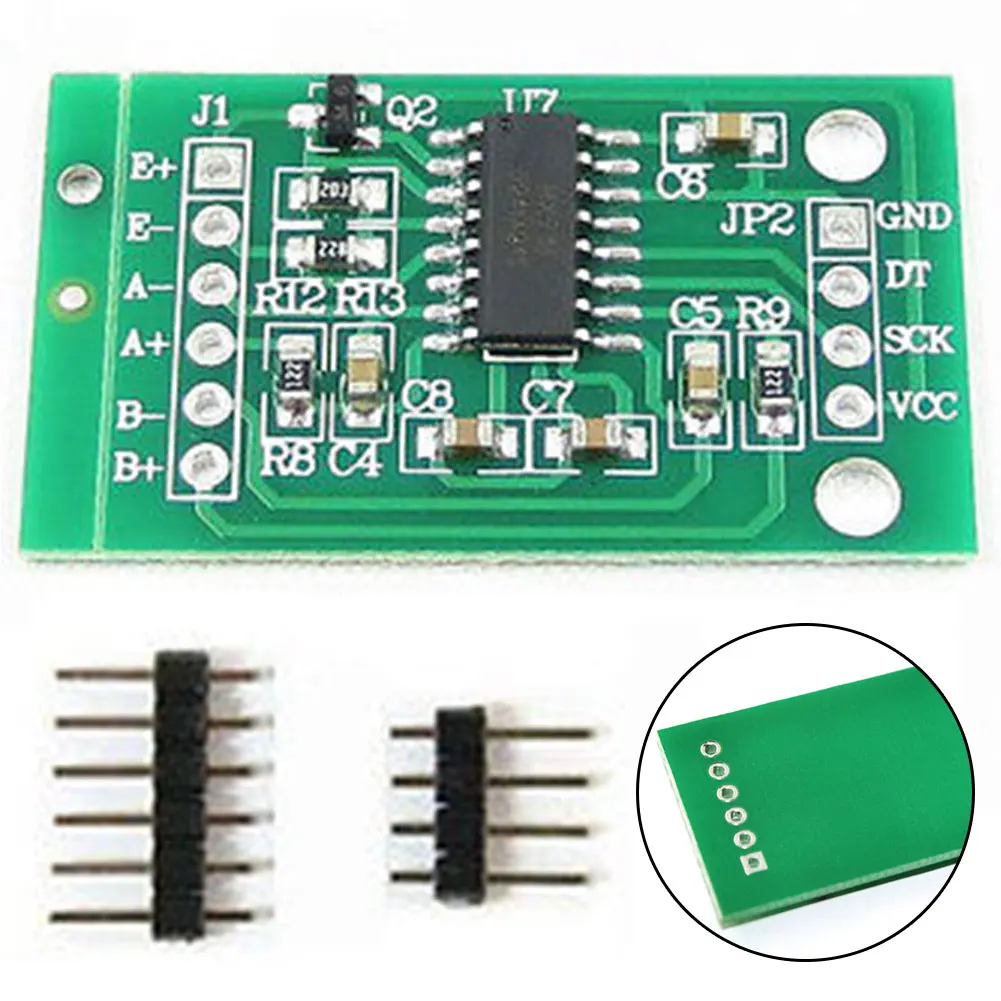

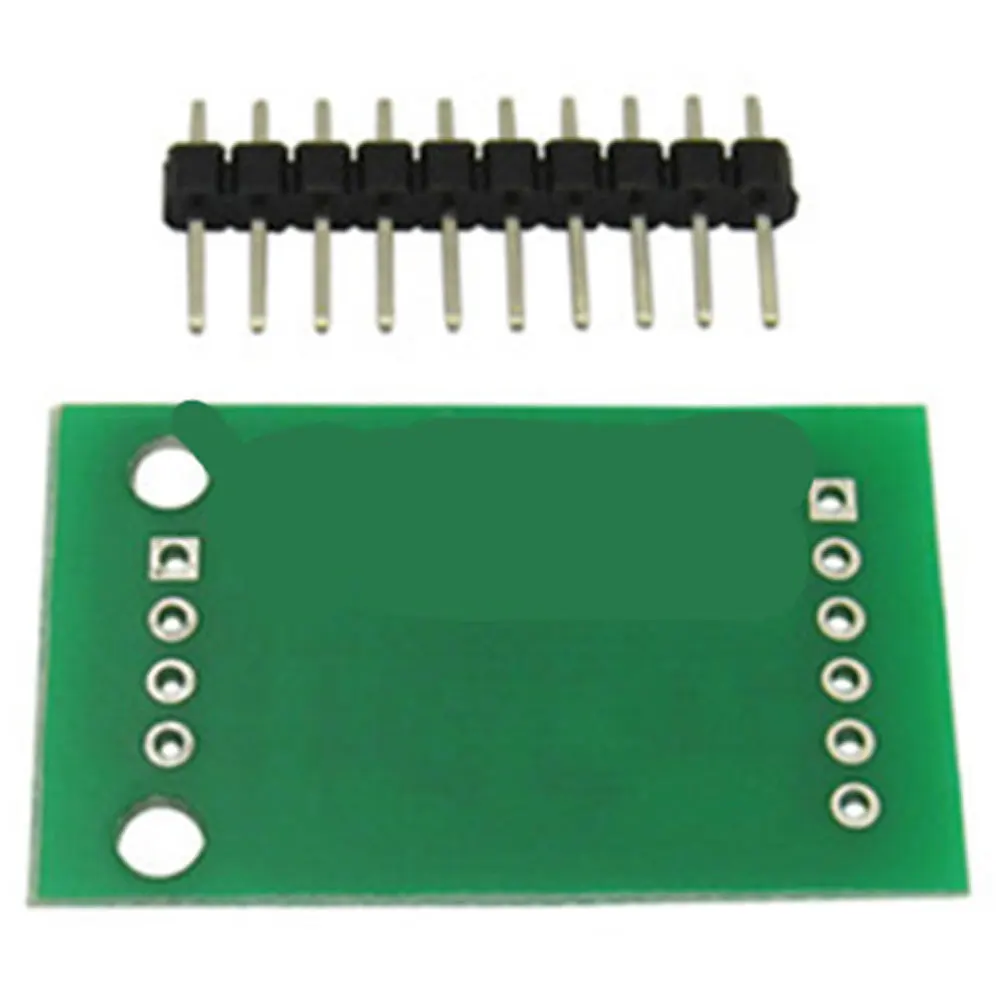

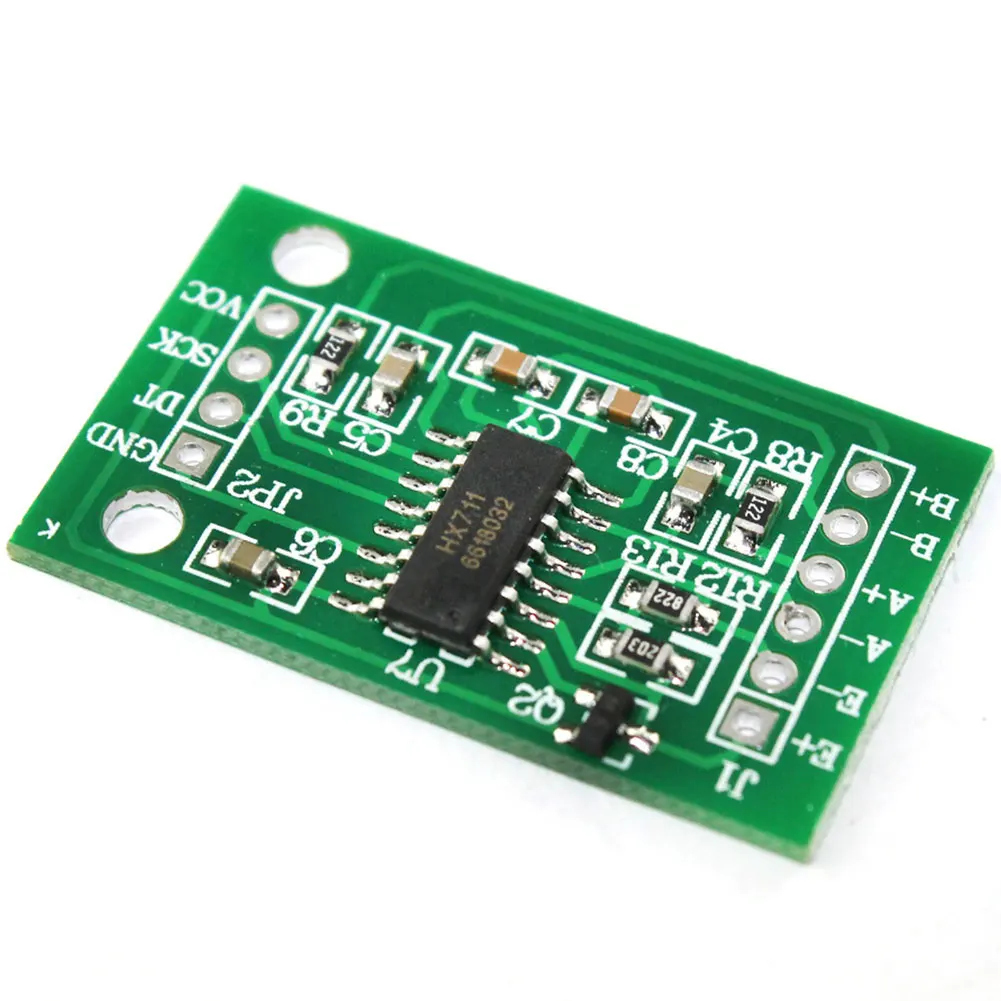

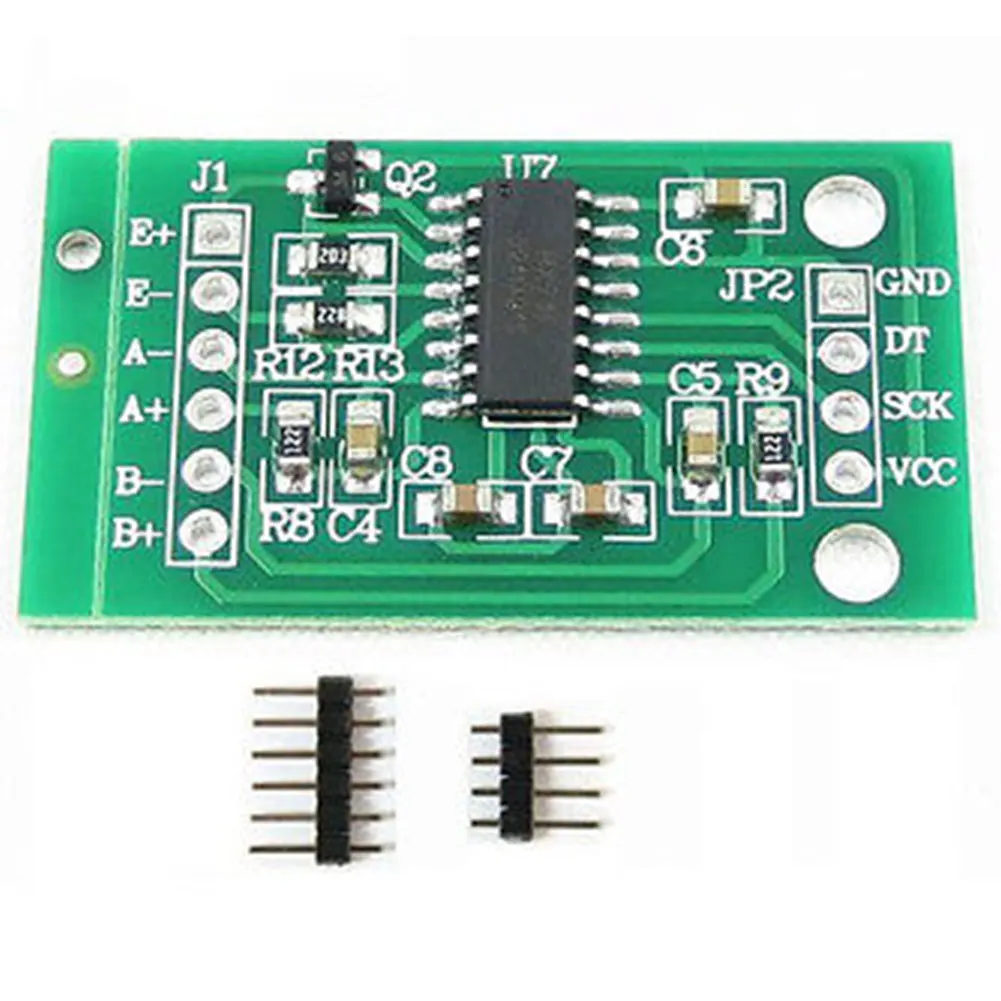

1*Weighing Sensor AD Module
