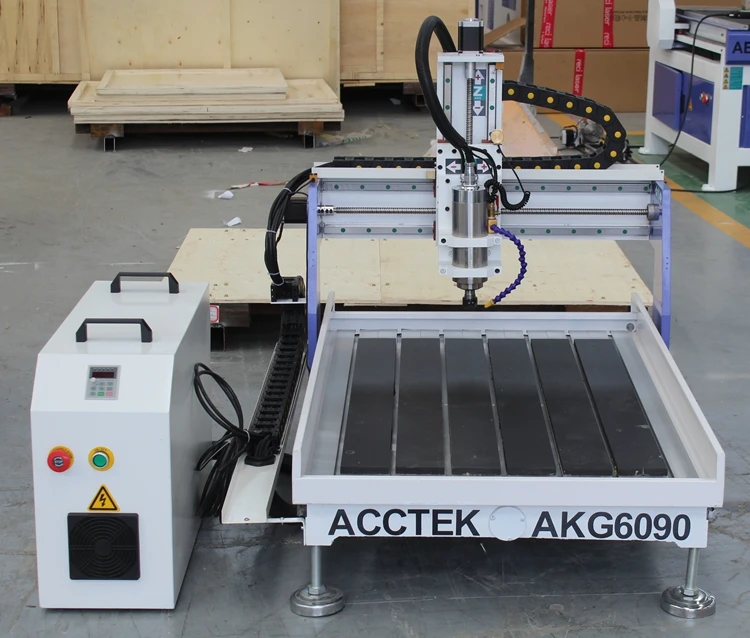

Water cooling spindle cnc router engraving machine AKG6090 for stone plastic foam wood

1.Integral cast iron frame,more durability.

2.Inported all steel linear guide with high precision,ensure machine frame much stability and dutability.

3.High accuracy rolling ball screw from Gemany,assure machine frame of better precision.

4.Handle controlling,not occupying computer resource,one computer can control several equipments.

5.Be compatible with various CAD/CAM software as TYPE3/Artcam/Casmate/Artcut etc.

NO.

Description

Parameter

1

X,Y,Z Working Area

600x900x200mm

2

Table Size

890X1200mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z repositioning Positioning Accuracy

±0.02mm

5

Table Surface

T-slot Extrusions

6

Frame

Cast Steel

7

X, Z Structure

Taiwan TBI Ball Screw

8

Y Structure

Hiwin Rail Linear Bearings and Ball Screw

9

Max. power Consumption

0.8Kw

10

Max. Rapid Travel Rate

6000mm/min

11

Max. Working Speed

4000mm/min

12

Spindle Power Motor

                 1.5 Kw spindle

13

Spindle Speed

0-24000RPM

14

Drive Motors

Stepper system

15

Working Voltage

AC220V/50/60Hz

16

Command Language

G code

17

Control  System

  Mach3  (DSP is optional)

18

Interface

USB

19

Flash Memory

128M(U Disk)

20

Collect

ER11

21

X,Y Resolution

<0.01mm

22

Software Compatibility

Type3 software, (Option: Artcam software)

23

Running Environment

Temperature: 0℃~45℃

Relative humidity: 30%~75%

24

Packing Size

 1400*1050*1130mm

25

Net Weight

230KG

26

Gross Weight

260KG

Suitable Materials:

AKG6090 CNC router is the perfect choice for the home shop Machinist, Sign maker .Artist, Engraver, Panel maker.metal and stone industry. or Educational institution who needs an affordable CNC router with 2D& 3D CAD/CAM machining capabilities. The AKG6090 CNC router is small enough to fit into almost any work space.

Jinan AccTek Machinery Co.,Ltd specializes in manufacturing CNC Router and Laser machines.

Since 2005 we have been based in the Industrial Zone of Jinan City, Shandong Province south of Beijing.

Our main products are AccTek CNC Routers and Laser engraving and cutting machines. Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control.

These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few.

Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence.

Now we own two workshops,one for cnc router and another for laser machines. Which covers 3000,00 square meters. There are 40 members in manufacturing and 21 members for marketing and service.

Payment:

*1yearsquality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

*Lifetime maintenance free of charge.

*Free training course at our plant.

*We will provide the consumable parts at an agency price when you need replacement

*24 hours on line service each day, free technical support.

*Machine has been adjusted before delivery.

*Our staff can be sent to your company to install or adjust if necessary.
