Note: please read the instruction carefully before you place the order!!!

Product brief introduction:

1) This product is mainly applicable for keyboard and mouse to be operated for playing games on P4/P3/X-1/X-360/N-Switch game consoles by wired connection, especially suitable for playing FPS games.

2) Support original gamepads for P4/P3/X-1/X-360/N-Switch to be connected to the corresponding game consoles by wired connection through this converter.

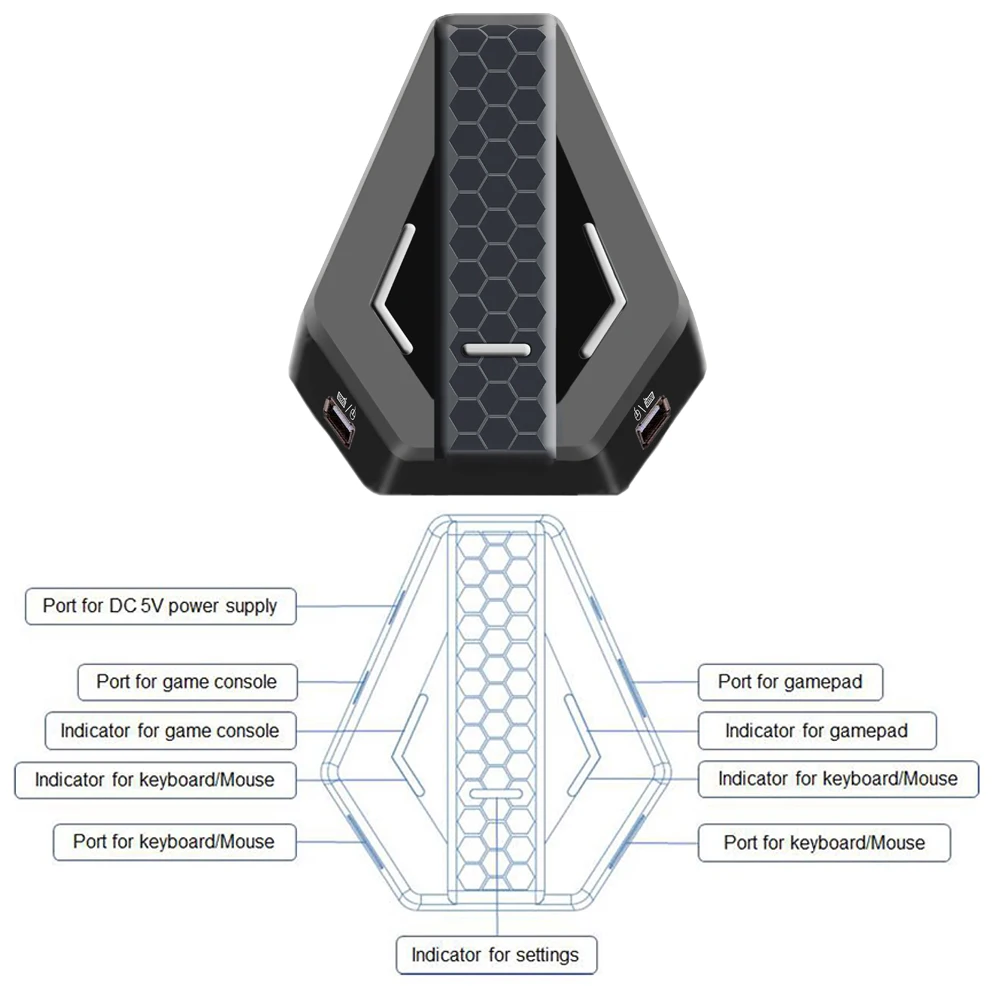

3) The first micro USB port is for DC 5V power supply input, it can be used when a keyboard with colorful LED required, other devices needn't to be connected to power supply.

4) The second micro USB port is for connecting to the USB port of a game console through USB data cable.

5) The USB port labeled with a gamepad is for connecting to an original gamepad by wired connection, wired connection is must.

6) The USB port labeled with Keyboard/Mouse is for connecting a keyboard/mouse to this converter.

7) Simple operation, plug and play, needn’t install driver, LED corresponding to port is solid bright after successful connection.

Connecting instruction:

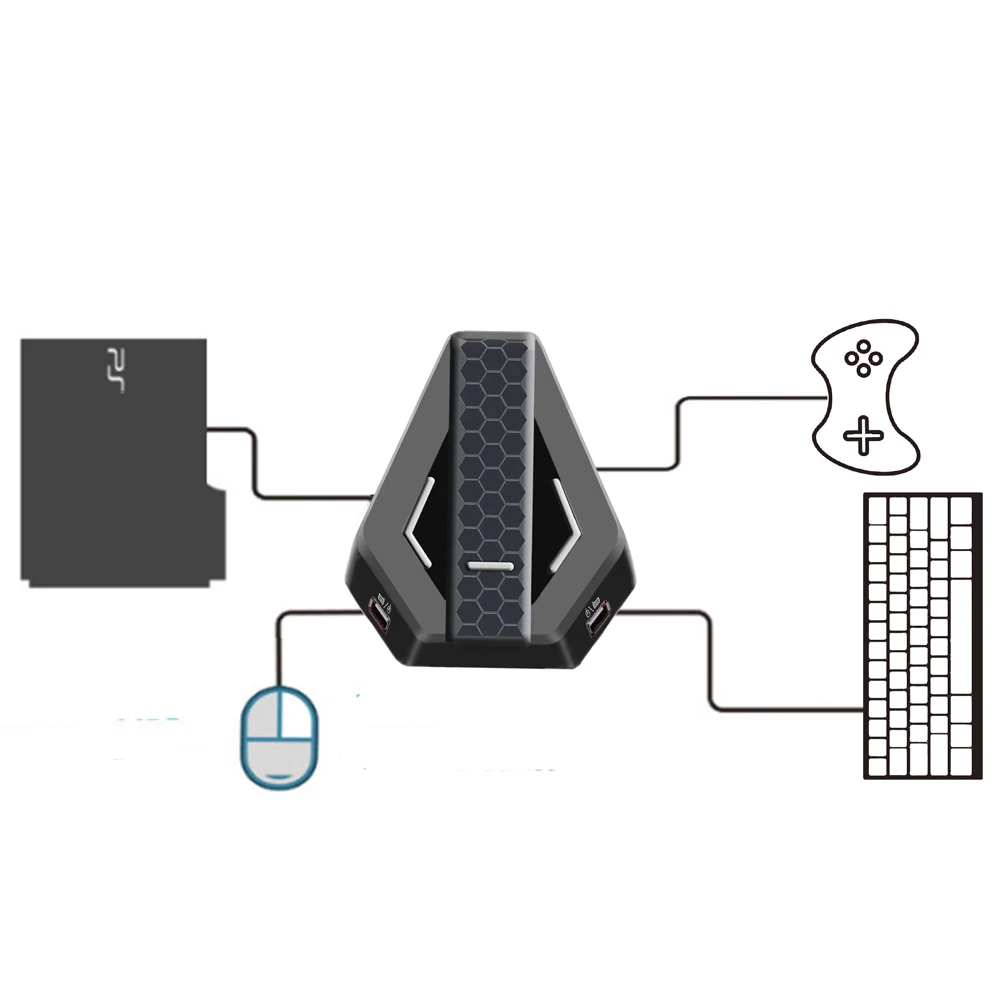

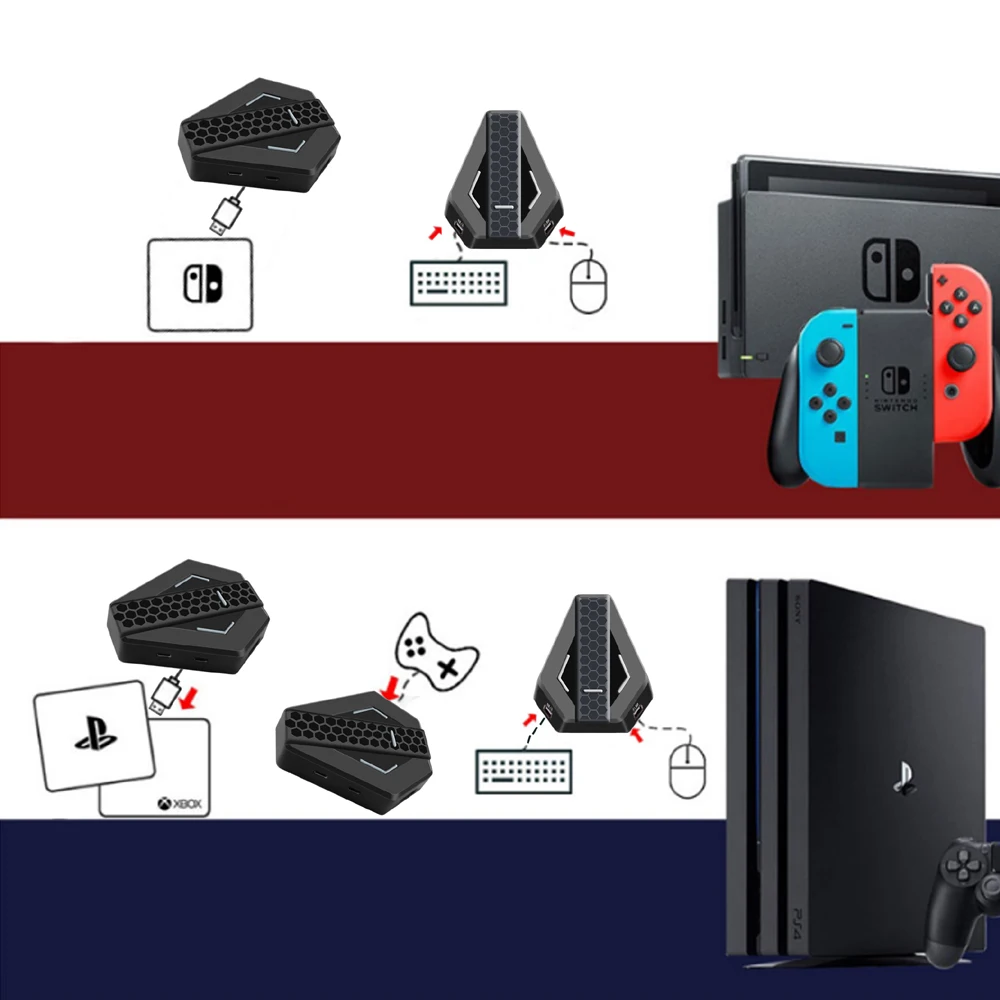

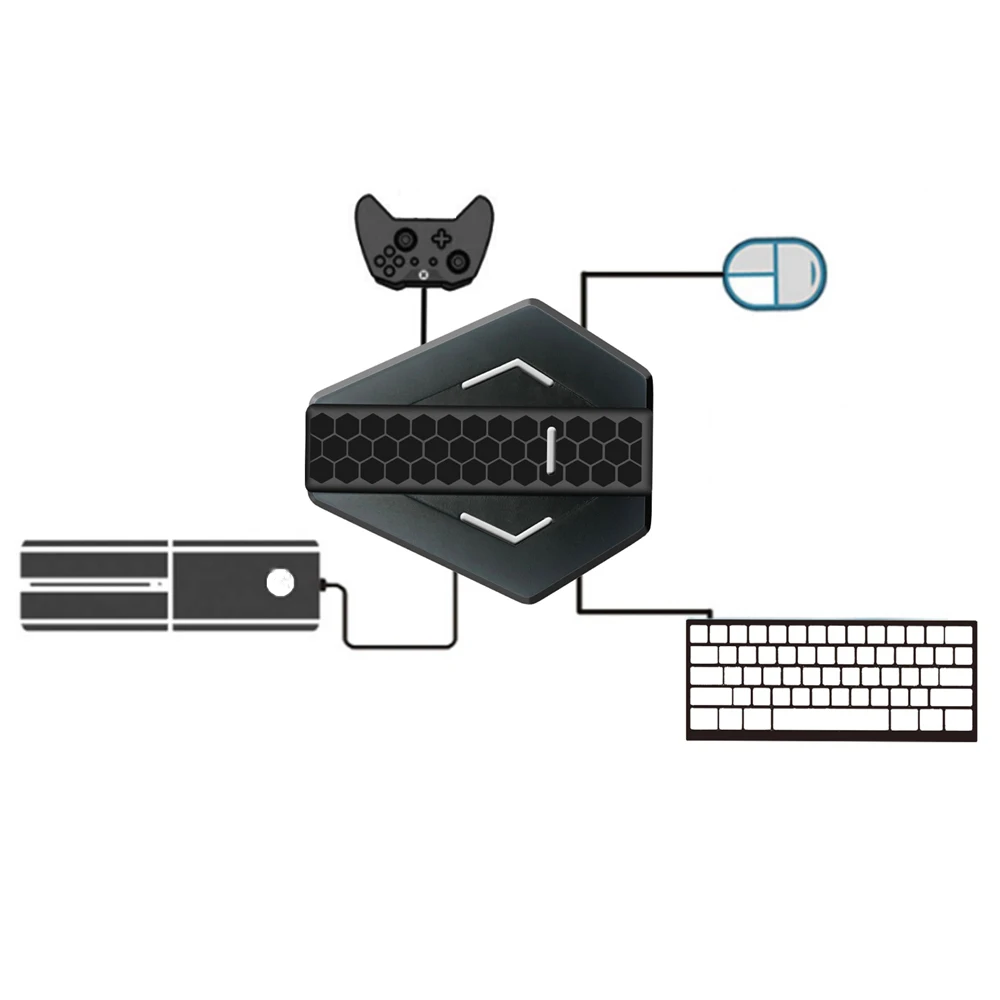

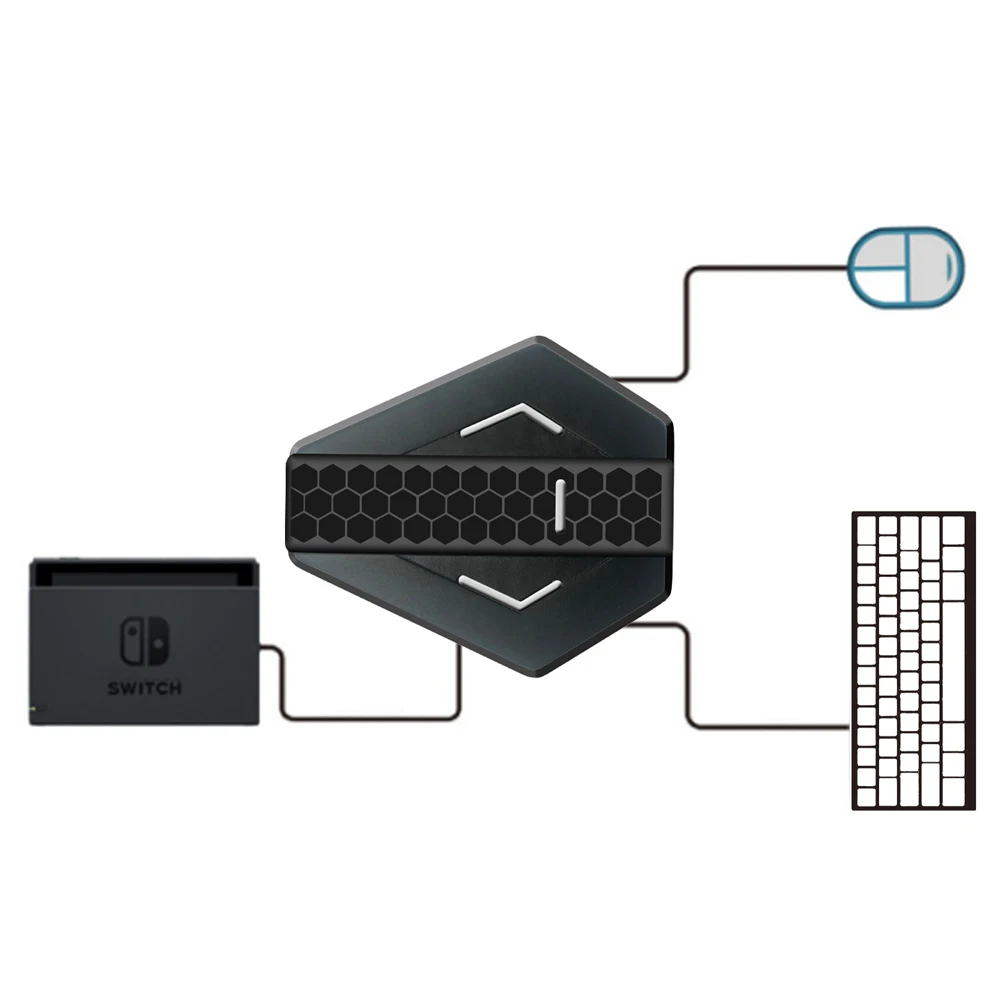

1) Connecting to a game console: Connect a USB data cable between the second micro USB port of this converter and the USB port of a game console, the corresponding LED of the converter will be solid bright.

2) Connecting to an original gamepad: Connect an original gamepad for the game console to the USB port labeled with a gamepad, the corresponding LED will be solid bright after successful connection.

3) Connecting to a keyboard/mouse: Connect a keyboard/mouse to the port labeled with keyboard/mouse, the corresponding LED will be solid bright after successful connection.

4) Connecting to a power supply: When required, a DC 5V power supply can be connected to the first micro USB port of the converter for power supply.

Gamepad leading operation instruction

1) An original gamepad is required to be connected to the converter according to the corresponding game console as lead so that a keyboard/mouse can be used normally.

2) For P4 game console, USB connection is required to be on. Method: Setting – Peripherals –Connection Method – Use USB cable.

Default key values comparison table for keyboard keys and gamepad keys/sticks

Keys are mainly defined for CF games as default, if modification is required, please enter keyboard setting mode to reset.)

Default key values comparison table for mouse keys/cursor and gamepad keys/sticks

Mouse function are mainly defined for CF games as default, if modification is required, please enter mouse setting mode to reset.)

Keyboard setting mode

Keyboard key function can be reset consistently with the corresponding gamepad key/stick function.

1) Press F11 plus F12 simultaneously once on keyboard to enter setting mode, the LED indicator for setting is lit up and keeps on in the converter;

2) Press and hold a key on a connected gamepad which you want to set its function to a key on the keyboard, meanwhile press the key on the keyboard once, then release the key of the gamepad (Support one-to-one correspondence only on key function) (For 3D stick function to be reset to a key on keyboard, please push 3D stick to a direction terminal);

3) Press F11 plus F12 simultaneously once again, the LED indicator for settings will be off, the key setting is done.

4) Reset other keys of the keyboard accordingly.

Note: If you do not press and hold a key on a connected gamepad during setting process then the original key function setting of the keyboard will be cleared up.

Mouse setting mode

Mouse function can be reset according to the corresponding gamepad 3D stick function.

1) Press F11 plus F12 simultaneously once on a connected keyboard to enter setting mode, the LED indicator for settings is lit up and keeps on in the converter;

2) Push a 3D stick of a connected gamepad (Left 3D stick or right 3D stick) to a direction terminal and hold on, then slide the mouse to the corresponding direction and stay there, then release the 3D stick (Mouse support the corresponding functions of left 3D stick or right 3D stick only);

3) Press F11 plus F12 simultaneously once again, the LED indicator for settings will be off, the direction setting is done for the mouse, the mouse can be moved after the setting.

4) Reset other directions of the mouse accordingly.

Note: Mouse sensitivity options: Combination key “F12 plus 1” is for the lowest sensitivity, combination key “F12 plus 9” is for the highest sensitivity. 1 to 9 keys are the digital keys above the English alphabets on keyboard.

Combination keys for setting modes

1. Keyboard and mouse setting mode: Press F11 plus F12 simultaneously.

2. Mode 1 back to default key values: Press and hold F12 plus F10 plus F1 simultaneously for 3s.

3. Mode 2 back to default key values: Press and hold F12 plus F10 plus F2 simultaneously for 3s.

4. Mode 1 and Mode 2 back to default key values simultaneously: Press and hold F12 plus F10

plus F9 simultaneously for 3s.
