SDI Switcher 2x1 Multimedia Split Intelligent Switch Extender 2 To 1 Converter for 3G HD SD Monitor Security Camera CCTV Video |

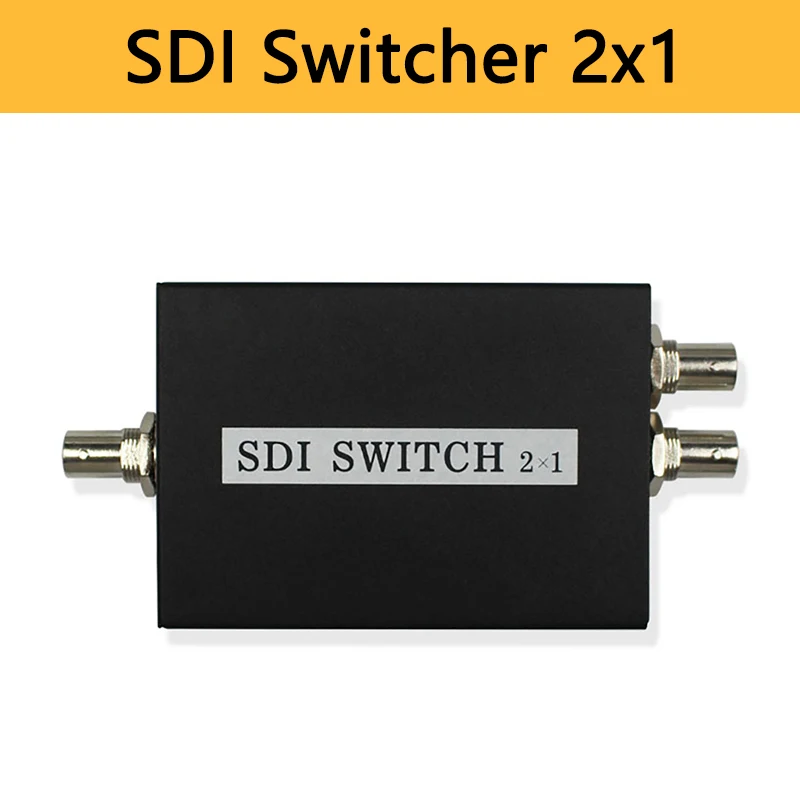

  ​SDI Switcher 2x1 Multimedia Split  Intelligent Switch Extender 2 To 1Converter for 3G HD SD Monitor Security Camera CCTV Video   Introductions:   This product is a SDI(Serial Digital Interface) switcher, allows any one of two high-bandwidth (3G/HD/SD)SDI sources to be switched to a single output without switching delay or loss of signal quality.Ideal for cutting equipment costs in the studio by enabling shared signal routing. This broadcast-quality switcher supports source resolutions up to 1080p and has convenient switching methods.   Safety warning: 1.Please keep away from moisture,high temperature,dust,corrosive and oxidizing gas environment. 2.All the parts should avoid strong vibration,please don’t crash,knock,or break down. 3.Please hold on the head of the power adapter when you pull off the power adapter instead of pull the power cable. 4.Please turn off the power when the machine is not in use(please pull off the power adapter when you will not use it in a long time). 5.Please don’t open the products yourself and don’t touch the parts inside. 6.Please use the original power adapter which provide from the manufacturer or the reliable power adapter.   Features:

Power adapter

Range：DC5V~30V  Power：＜2W

Power port diameter：2.1mm    Standard：5V/1A  power adapter

SDI input port

BNC SDI×2

SDI output port

BNC SDI×1

SDI standard

Compatible  SMPTE 424M,SMPTE 292M and SMPTE 259M-C

SDI signal format

SD-SDI  HD-SDI  3G-SDI

SDI speed

143-2970MB/S

SDI resistance

75Ω

SDI input resolution



480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60HZ/1080P@24@25@30@50@60Hz/

SDI output resolution

480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080p@24@25@30@50@60Hz

SDI signal output range

800mVp-p

Net weight

205g/340g

Size（L×W×H）

105×62×24(mm)/170×68×24(mm)

Temperature

0℃~60℃



Connection:

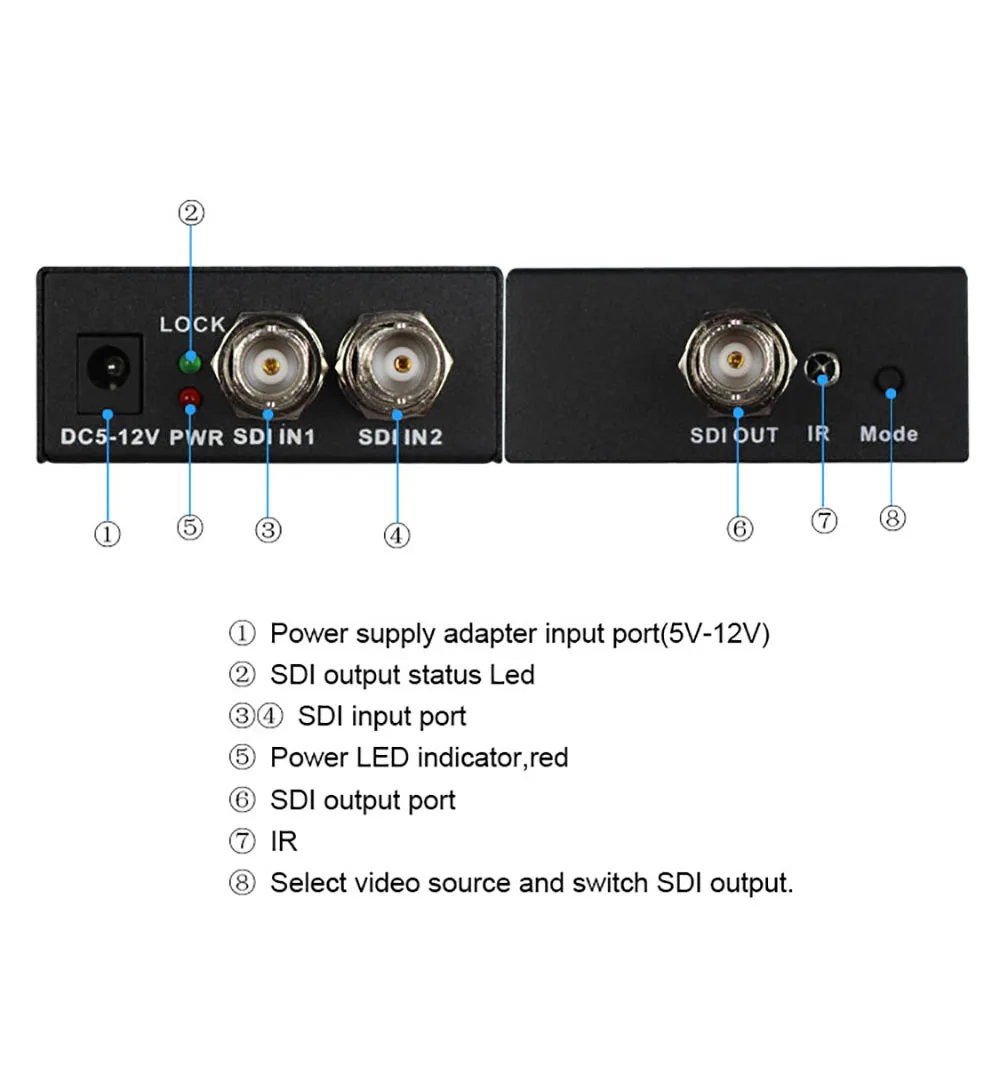

①Connect the SDI signal source with the SDI input port  ②Connect the device which support SDI signal input with the SDI output. ③Power on,the product will run. ④Press the button or the remote control to switch the signal channel ⑤You can use your PC to switch the channel via RS232(support parts of types)     package:   1* Main unit 1* Power adapter(EU or au or us or uk ) 1* User Manual
