Description:
1. The learning code wireless coding technology is adopted, which has no directionality and the switches do not interfere with each other.

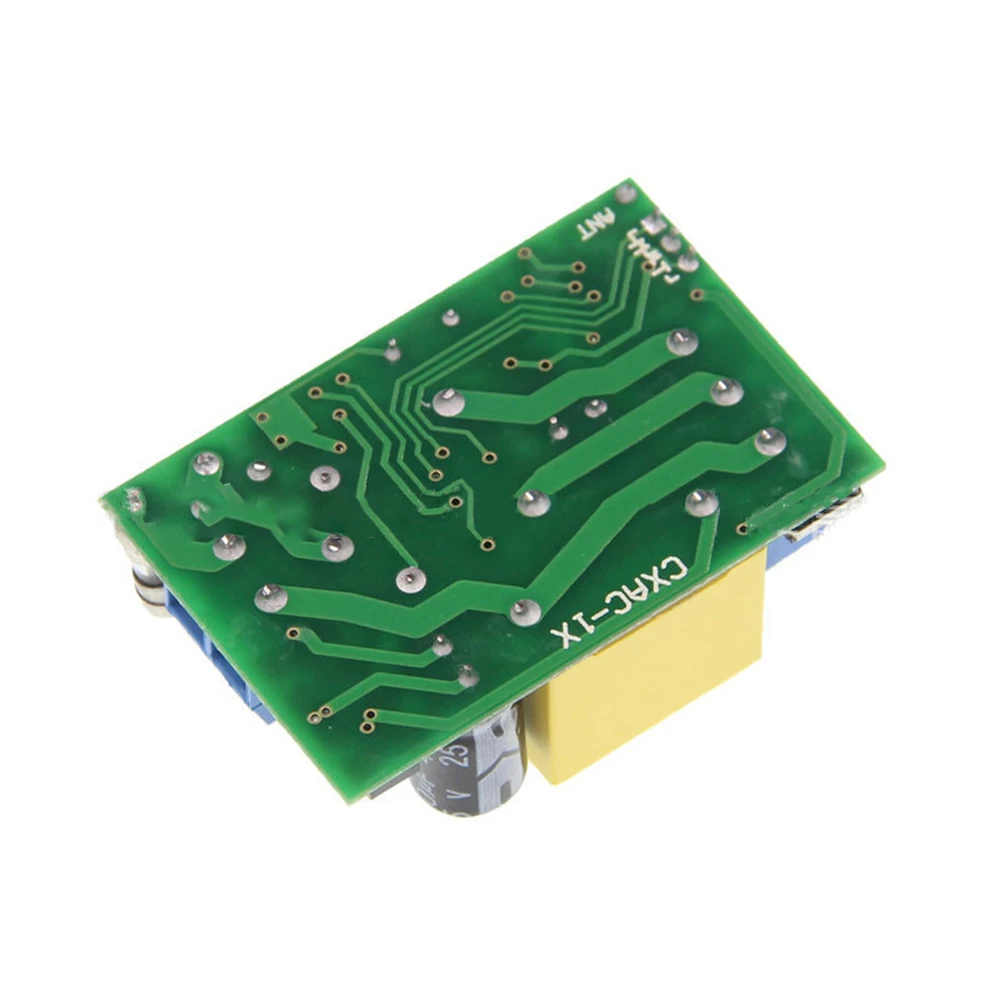

2. It adopts double-sided PCB switch circuit component and  professional power supply management chip and  transformer rectification, stable performance and low power consumption.
3. Four 10A current relays are used as switches, and the output is a four-way switch signal, which can drive alternating current load or DC load. The receiving board can withstand up to 7A.
4. In order to extend the life of the receiving board, it is recommended to control the power within 1500W (resistive load); 800W (motor-like inductive load).
5. The output mode can be set to jog, self-lock, and interlock, which can replace various manually controlled switches.
6. Mainly used in motor switches, equipment remote control switches, light control switches, household products switches, industrial control and security industry.

Specifications:
Color: as shown
Material: aluminum alloy
Remote distance: about 20-200m
Working voltage: alternating current 220V
Feature: wireless remote control

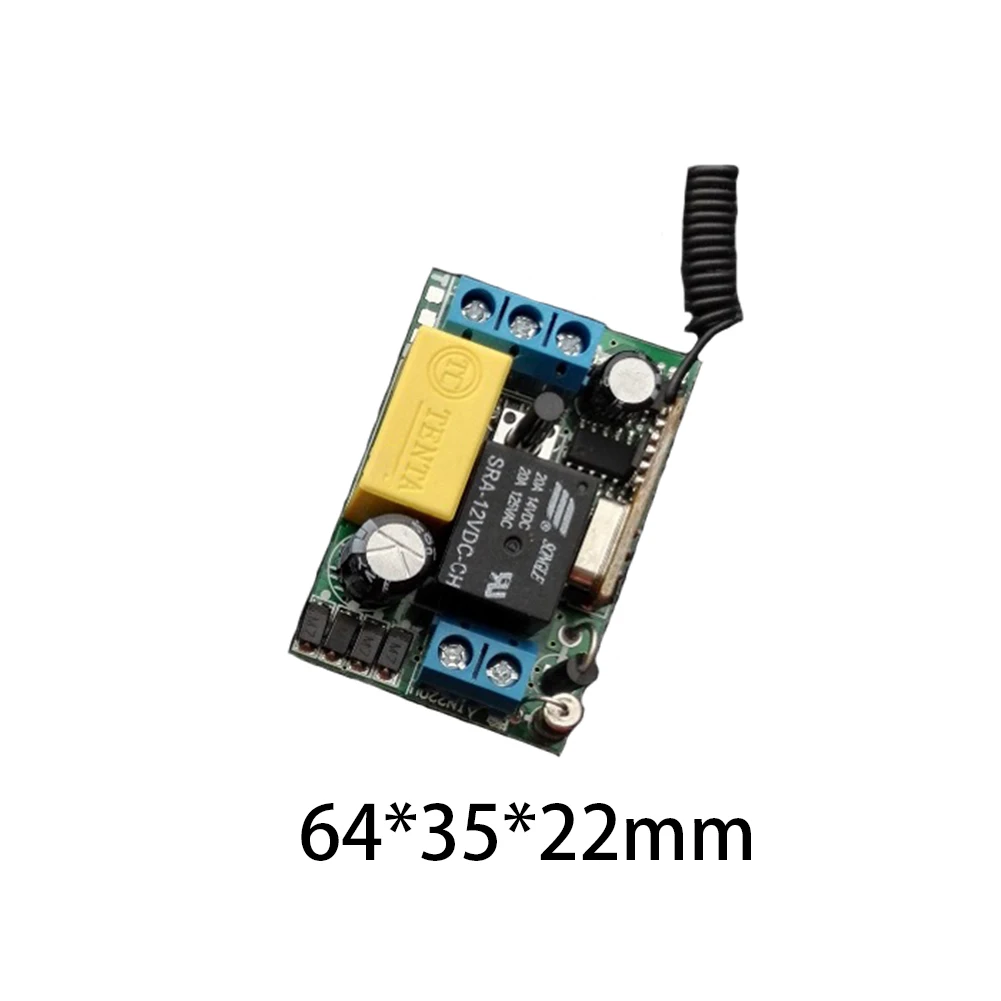

Size(approx.): 64 X 35 X 22mm
Frequency deviation: 0.2mhz
Working temperature: - 20 ℃ to + 60 ℃
Sensitivity: -95dbm
Output mode: dry contact
Maximum load: 800 watts
Battery: built-in button battery
Output status: self-lock, inching, interlock
Encoding: MCU decoding, through the button and remote control pairing

Package Included:
1PC * Switch Panel
1PC * Relay

Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
