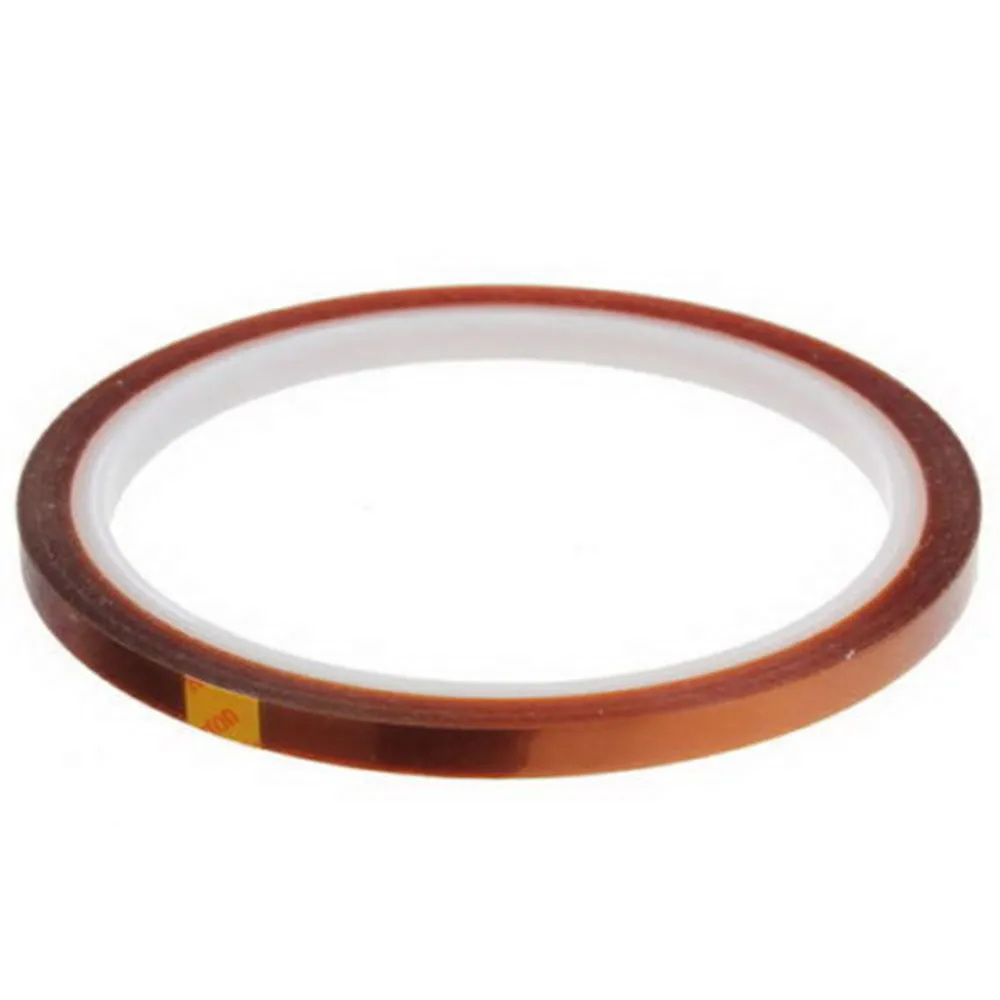

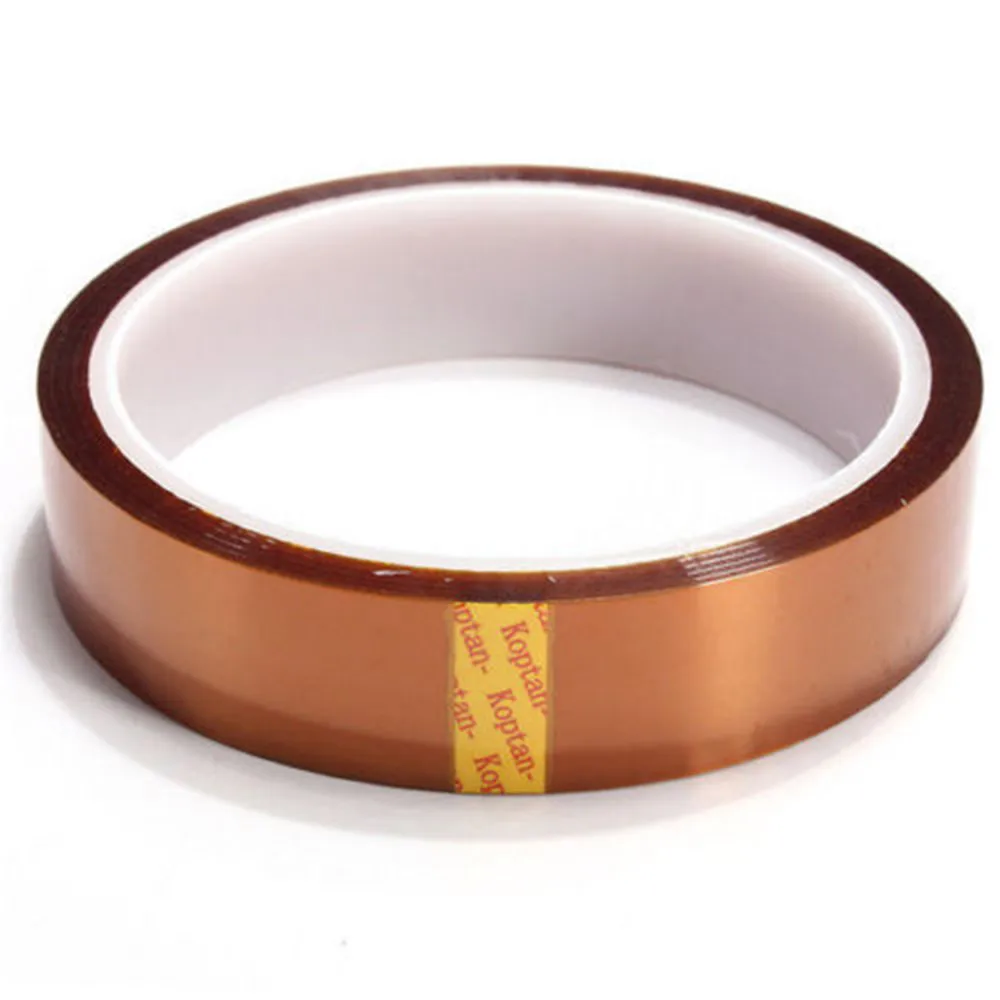

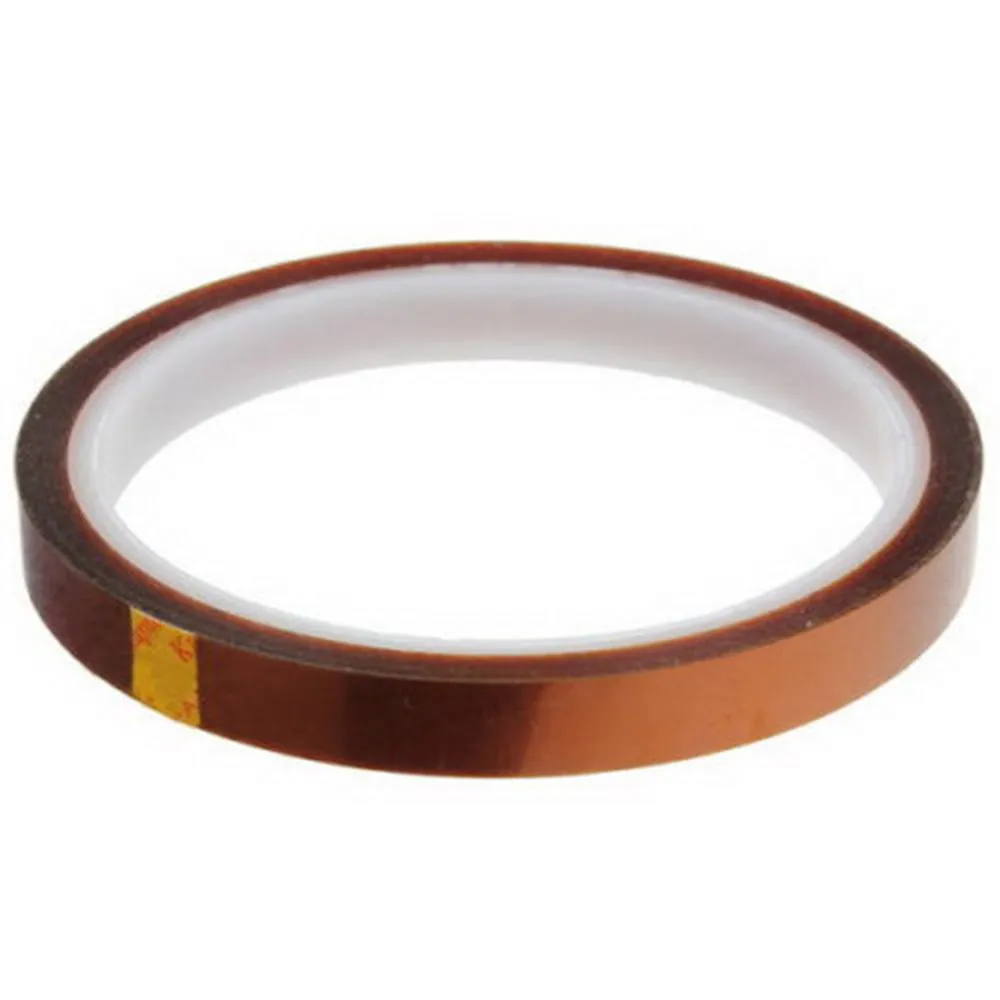

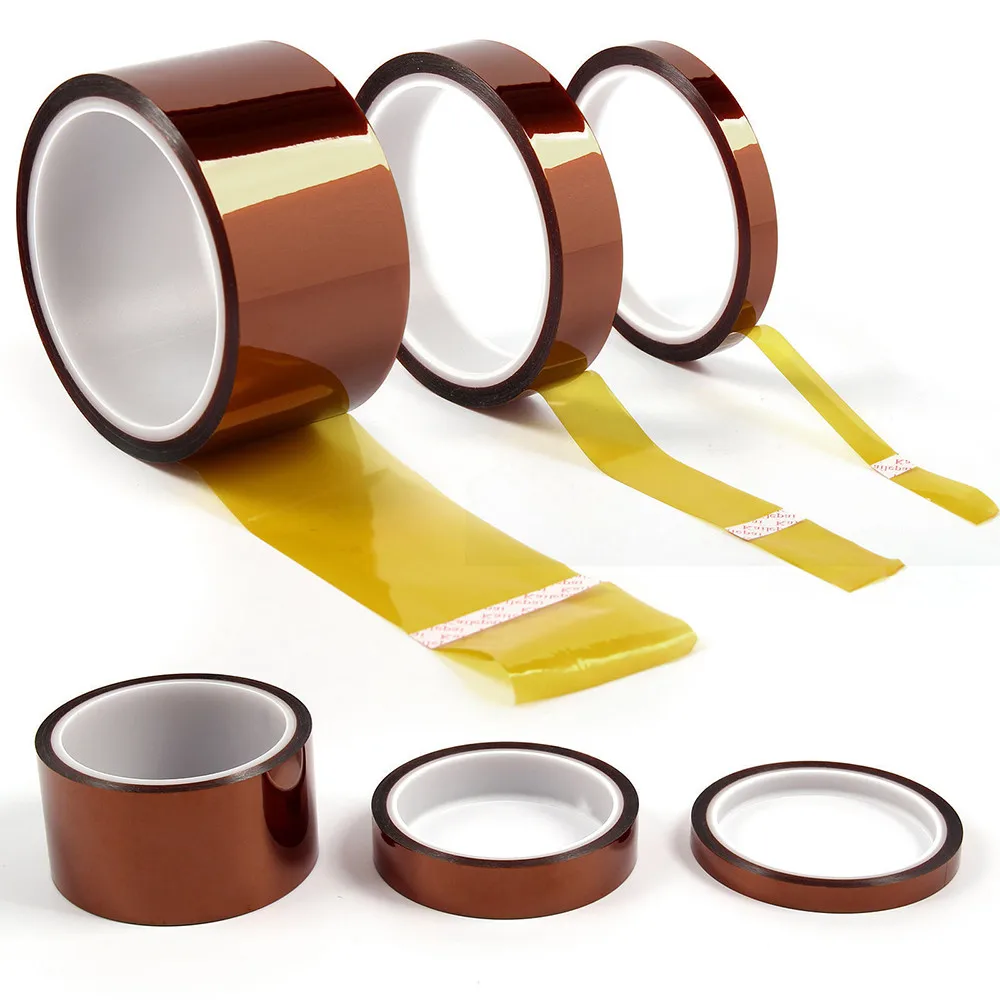

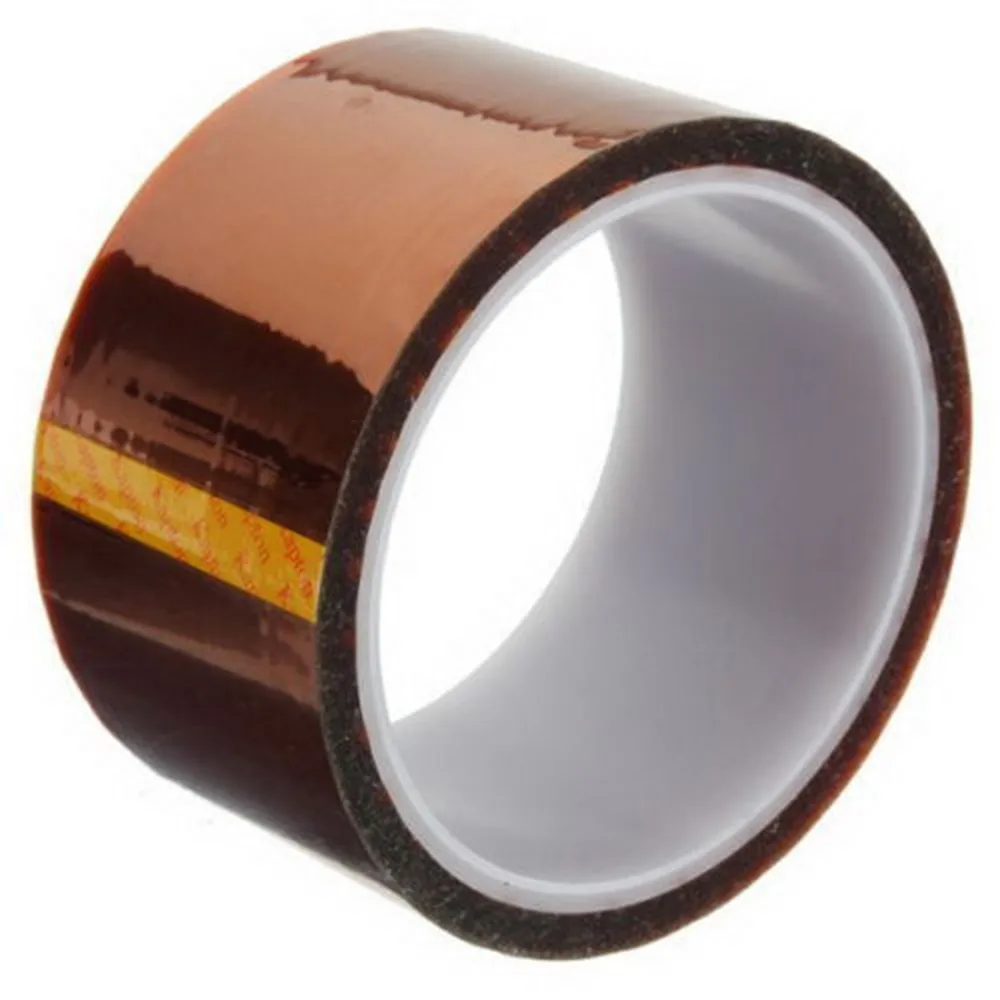

5/10/20/30/50mm100ft Heat Resistant High Temperature Polyimide Kapton Tape 33M

Description:

100% Brand New and High Quality

Gold finger tape is made of polyimide film coated with high-temperature resistant silicone. The color is brown (amber). Gold finger tape has good adhesiveness, good applicability, high temperature resistance, solvent resistance, no tin penetration, no Residues, products with excellent electrical properties

High insulation, high temperature, low temperature, acid and alkali, low electrolysis, good mechanical properties, abrasion resistance, tear resistance;

Special adhesive treatment, strong adhesion, torn off after the masking surface without leaving a residue.

Mainly used for painting, baking, sealing, footwear, packaging, construction and decoration industries;

Widely used as high-temperature insulation windings in transformers, motors, coils, capacitors and variable frequency power supplies in the electronics industry;

Applicable to printed circuit board (PCB), SMT tin furnace, wave shield during protection process gold finger;

High-grade electrical insulation protection and lithium battery positive and negative fixed role;

Suitable for welding protection;

Lithium batteries for mobile phones are made in bundles.

Material: Polyimide

Color: Metallic Brown

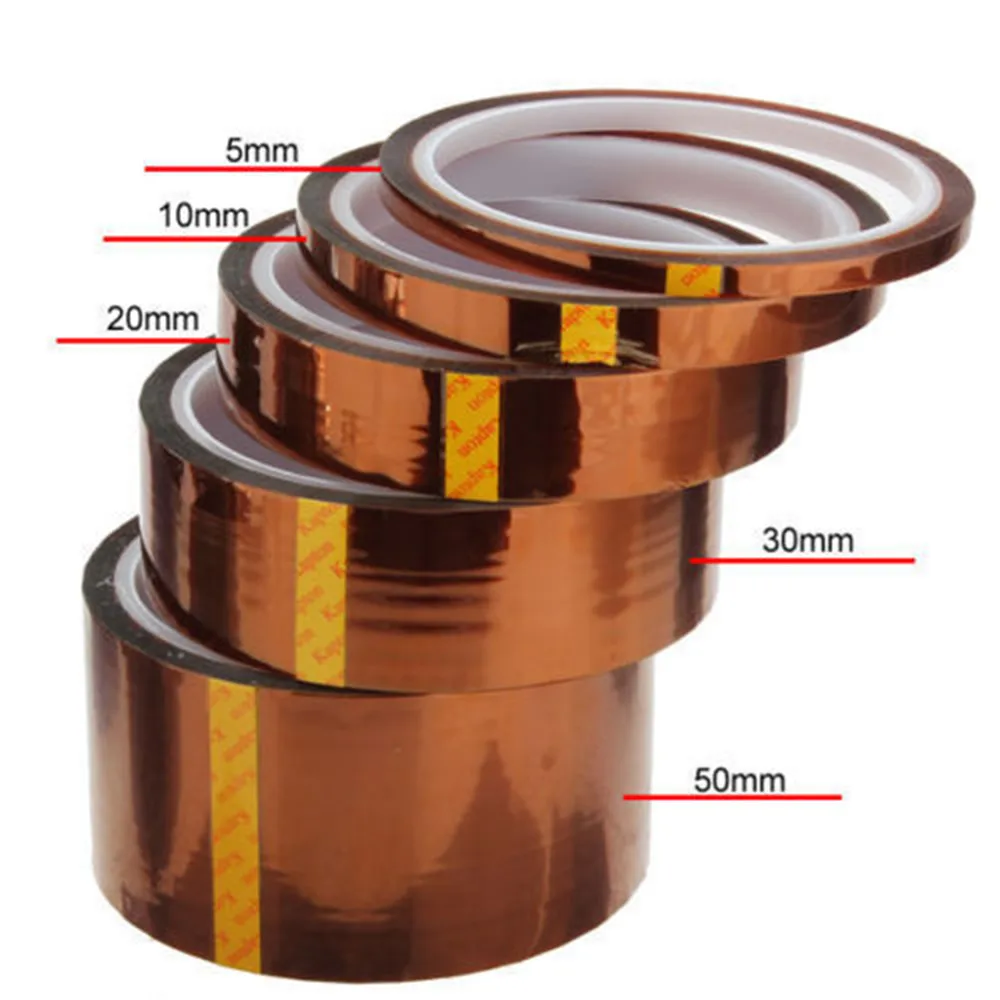

Width: approx. 5/10/20/30/50mm According to your purchase selection

Length: approx. 33m

Weight: approx. 12.5g/25g/55g/85g/140g The corresponding size is: 5/10/20/30/50mm

Size:5/10/20/30/50mm According to your purchase selection

Thickness: 0.055mm

Elongation: 50%

Tensile force: 42N/25mm

Peeling force: 26N/25mm

Initial adhesion: 24#

Sticky force: 48H

Long-term temperature:200 C degrees

Short-term temperature: 220 C degrees.

Notice:

Please allow 1-2cm error due to manual measurement.

Pls make sure you do not mind before you bid.

The colors may have different as the difference display,pls understand.

If you have any problems, please contact us before open the dispute or give negative feedback,we will try our best to help you,thank you!

Quantity:

1x Roll of Tape Adhesive High Temperature Heat Resistant Polyimide5/10/20/30/50mm According to your purchase selection
