802.11ac 2.4GHz 5G In Wall Wireless AP 750M Wi-Fi Access Point 86 Socket Wifi Router Repeater |

802.11ac 2.4GHz 5G In Wall Wireless AP 750M Wi-Fi Access Point 86 Socket Wifi Router Repeater |

Descriptions

M780 is an 11ac wall mount style wireless access point with Qualcomm Chipset, upgrade to the latest wireless-AC technology, fast data rate (433Mbps in 5G and 300Mbps in 2.4GHz) and dual band allowing content to download faster, large video or music files to sync more quickly and stream seamlessly. Embed PoE, work in hotel, school, hospital mainly for a stable wireless networking. Then work with Access Controller System and cloud management system, easy in central configuration, meet with different advertisement and multi authentication requirement.

11ac Technology and 750Mbps High Data Rate

Comply with 802.11ac/b/g/n MIMO Technology, 750Mbps high data rate to supply abundant bandwidth; The 2.4GHz and 5GHz dual band, less frequency interference to supply a stable wireless coverage. 2.4GHz Wi-Fi for smart home devices/phone/laptop, etc. 5.8GHz Wi-Fi for phone, HDMI TV Box or game device access which need large data flow.

Fat/Fit AP together, supply the most stability wireless coverage

Fit AP: Centralized managed by WLAN controller, plug and play, supply the simple but most stable Wi-Fi coverage solution for hotel, school, hospital... FAT AP: with AP, Repeater, Gateway operation mode, users can choose different operation mode based on application and environment to supply the seamless Wi-Fi coverage

Smart Roaming and Load Balance Technology

Integrated smart core algorithm, end user will seamless switch to wireless AP with better signal strength, load balance with better performance.

Power over Ethernet(PoE)

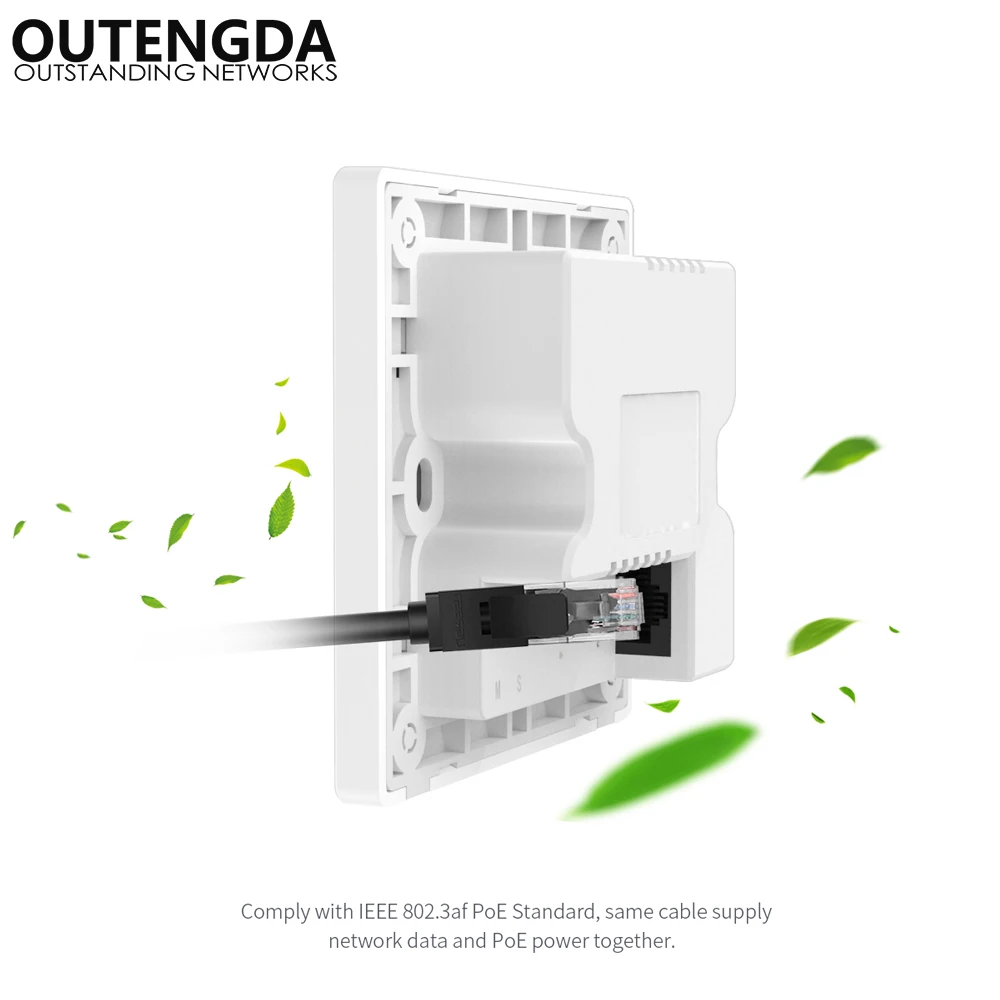

Integrated IEEE 802.3af Power over Ethernet (PoE), work with standard PoE switch, plug and play, installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

Build in Wi-Fi Channel Analysis Tool for best channel

Build in Smart Channel Analysis Tool, help to select the less Wi-Fi Interference channels, ensure the stability wireless signal

Multiple SSID and Tag VLAN Support

It support multiple SSID up to 8, different SSID can banding different VLAN ID to achieve user isolation and data security.

Work with WLAN Controller

It is centralized configured and managed by WLAN Controller, plug and play.

Specifications

Hardware

Wireless

802.11ac, 750Mbps  MIMO Technology

Interface

1*10/100Mbps WAN Port, 1*10/100Mbps LAN Port

1* Reset Button to restore factory default

1*Wi-Fi/LED switch button

Antenna

Dual band 2dBi antenna

Power

PoE: IEEE 802.3af, 48V

Size

86mm*86mm*35mm

Data Rate

2.4G 300Mbps, 5G: 450Mbps

Firmware

Operation Mode

Gateway, Repeater, Wireless AP

Network Protocol

IEEE 802.3(Ethernet)

IEEE 802.3u(Fast Ethernet)

IEEE 802.11ac/n/g/b

Wireless Setting

Wireless Analyzer

Distance Control 802.1xACK Time output

Multi SSID up to 8

BSSID

Wireless Security

WEP Encryption-64/128/152 bit

WPA/WPA2 Personal Encryption (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise Encryption (WPA-EAP using TKIP)

High SSID

System Setting

Web-based configuration (HTTP/Telnet)

Firmware Upgrade

Upgrade firmware via web browser or TFTP

Administration Management

Admin User name/Password can be configured

System Monitoring

Device and Networking status statistic

System Log

Support local log, host log, log file exporting

Reset

Reset to factory defaults

Backup

Backup device configuration, then restore this configuration if need

Operating Environment

Temperature

Operating Temperature: -20°C~55°C

Storage Temperature: -40°C ~ 70°C

Humidity

Working Humidity 5%~95%  RH No condensation

Storage Humidity 5%~95%  RH No condensation

Package contents

1x M780 wall wifi ap

1x screws

1x English user manual
