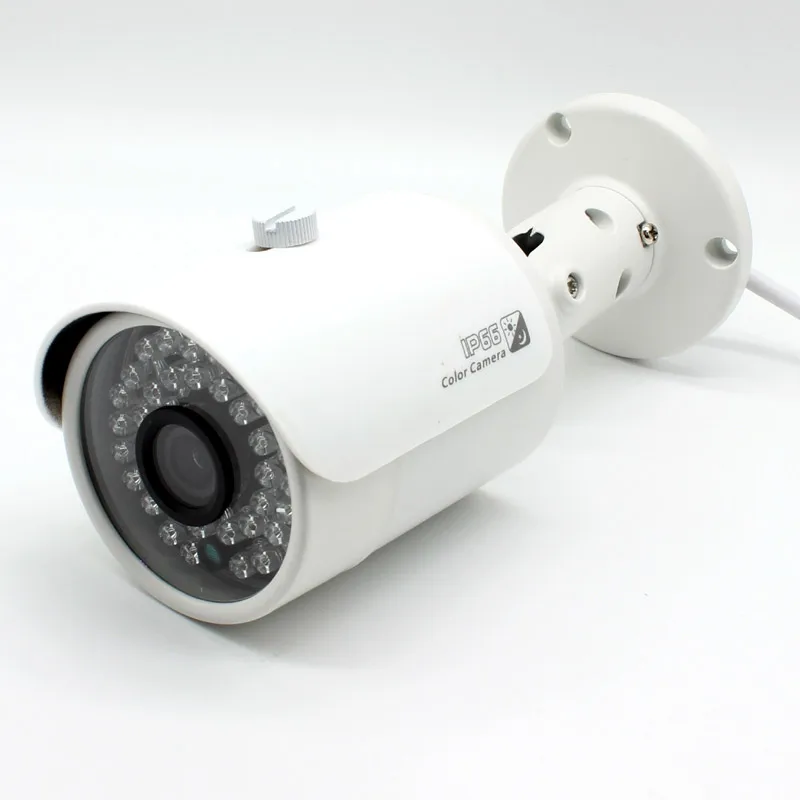

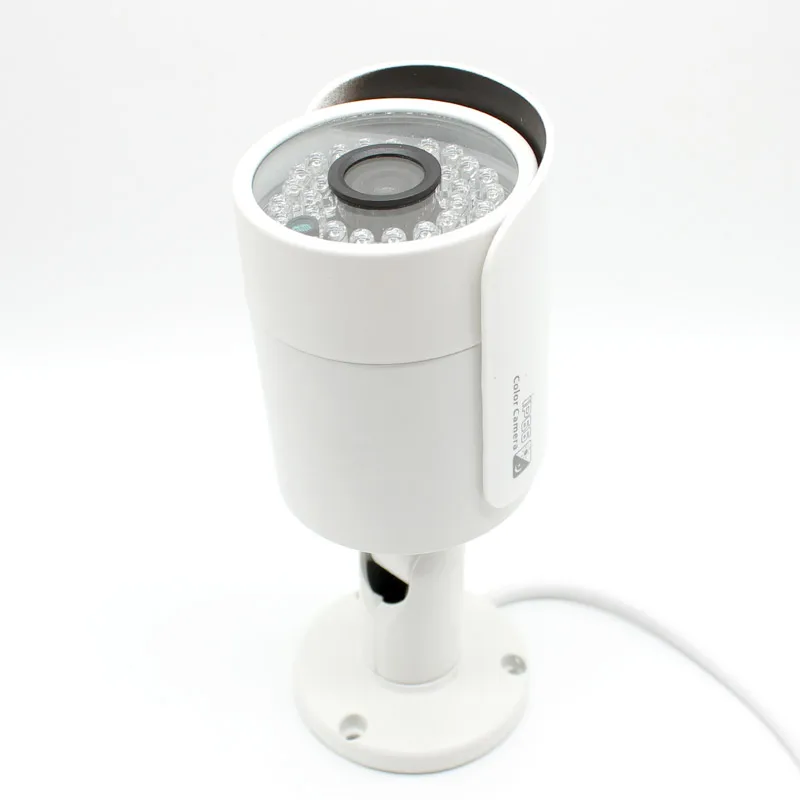

HD 2688*1520 NVP2475+OV4689 4.0MP 4in1 AHD TVI CVI CVBs Metal Outdoor Security cctv camera Waterproof | Безопасность и защита



HD 4MP AHD Coaxial high-definition 4in1 CCTV Camera Outdoor

4MP AHD Camera MUST be used with 4MP or 5MP AHD DVR

It Cannot work with standard 2MP AHD DVR

Please make sure your AHD DVR supports 4MP AHD camera before purchasing.

Default signal is HD AHD, How to shift AHD/CVI/TVI/CVBS Signal by OSD?
 UP: AHD   Down: CVI    Left: TVI    Right: CVBS
 (Press button in different direction for 5 seconds to be related signal)
 PAL/NTSC in one: Set on OSD menu

 * This camera have 4 MODE for video output:   1080p AHD, 1080p CVI, 1080p TVI and CVBS
 * Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR.

Feature:

 * 1/3" 4MP use OV4689 4million progressive scan CMOS Sensor,

 * Resolution: 2688(H)*1520(V)

 * TV system: NTSC / PAL in one

 * Video Output: HD-AHD (1080p), (AHD, TVI, CVI, CVBS)

 * Capture moving images, AHD Excellent performance, with clear and bright image

 * Illumination: 0.01Lux/(F1.2,AGC ON), 0LUX with IR

 * D/N Switch: support IR-CUT switch, CDS external control

 * Support OSD menu control, Suitable for user-defined Settings.

 * Support DWDR. Support UTC function

 * Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR

 * 36IR Leds

 *Material: Metal

 * Weatherproof: Yes

 * Power supply: DC12V/1A (don't include), if you need, please buy this power supply.



​* Lens: M12 Lens, Optional: 2.8mm/3.6mm/4mm/6mm/8mm/12mm   4.0MP TVI / CVI / AHD / CVBS 4 in 1 Security Camera 1080P HD, Compatible with HD-AHD/CVI/TVI/CVBS DVR. Default signal is HD AHD. If you are using other DVR, you need to switch to other signal firstly.

If you buy bulk quantity, please contact us.

Specifications:

Sensor 1/3" NVP2475+OV4689  Format

PAL/NTSC

 Effective Pixel 2688(H)*1520(V)
FPS: 1080P/25fps, 1080P/30fps Illumination 0.01Lux/(F1.2, AGC ON), 0LUX with IR Shutter AUTO D/N Mode EXT (Default) /AUTO/COLOR/B/W Synchronously Internal  Video Output AHD/TVI/CVI/CVBS switch  Exposure Shutter/AGC/Brightness/DWDR White Balance ATW/MWB D/N Mode Infrared/Internal AUTO/Color/B&W  Adjust Sharpness/Display Screen/Edge DPC/Output mode Language CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG Operation Temperature -20℃  to  60℃ Working Humidity Relative humidity less than 90 % Power DC 12V / 1A Weight 0.4kg



Packaging included:   1x HD 4mp AHD TVI CVI CVBS 4 in 1 Outdoor CCTV Camera

Warranty Term:  One Year Warranty
