12V 180W 24Pin Mini PicoPSU DC-ATX Power Supply High Inline Module For Integrated POS Set-top Boxes Web Servers | Компьютеры и офис

12V 180W 24Pin Mini PicoPSU DC-ATX Power Supply High Power Inline Power Module For Integrated, POS, Set-top Boxes, Web Servers

Features:

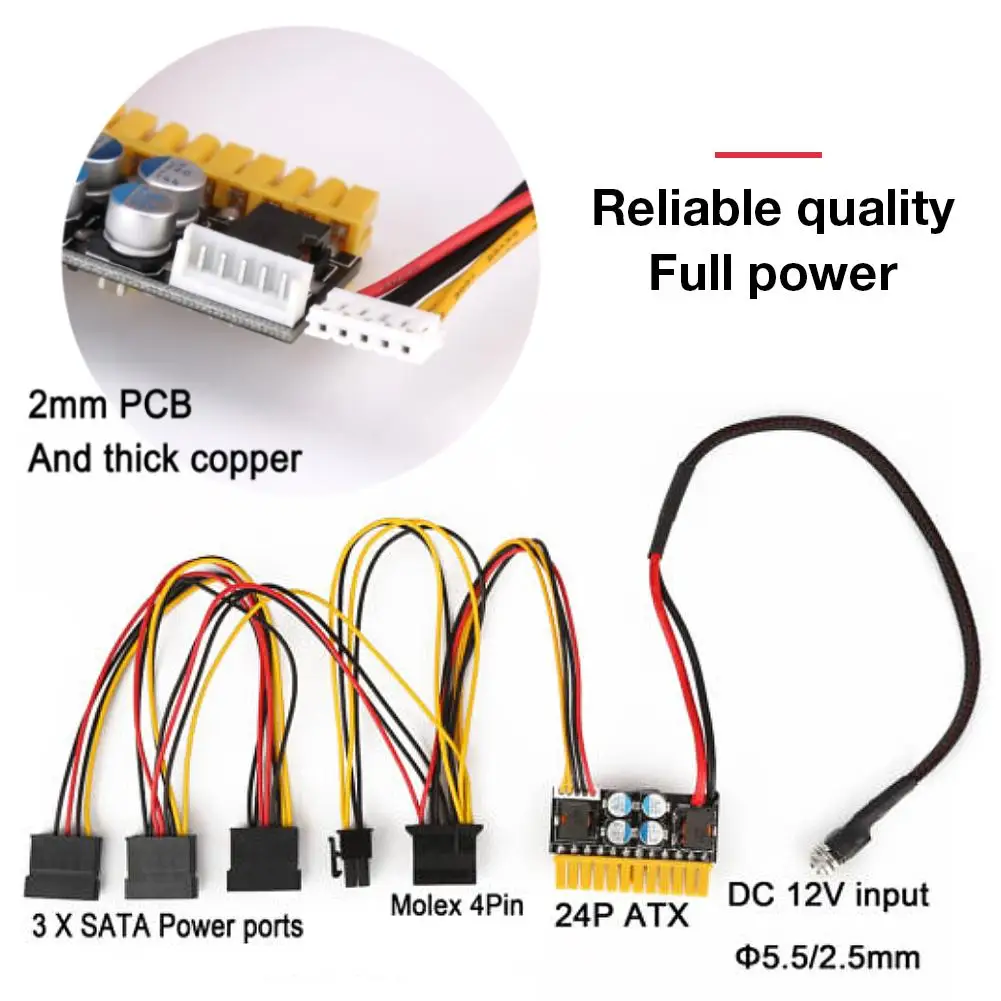

1.Reliable quality, full power, can be equipped with a discrete video card, but the premise is 12 volts, 20 amperes or more.
2. It is a fully ATX-compliant PSU, making it ideal for any quiet, fanless and small 12V DC-DC ATX PC power supply project.
3. The DC-DC ATX power supply operates only at 12V and provides 180 watts of power. The pico PSU provides sufficient power for the CPU and the entire range of peripherals (via ATX connectors and HDD harnesses).
4. Very small, can build a compact PC chassis and ultra-thin server chassis.
5. Suitable for any motherboard with 24-pin ATX connector.
6. Low power Intel Core Duo and all VIA for all mini motherboards (17cm x 17cm size).

Specification:
Input voltage: 11.4-13V
Maximum input current: 20A
Output current:
12V: 8A
5V: 8A
3.3V: 8A
+5VSB: 8A
-12V: 0.1A
Appearance size: about 55*13*35mm/2.17*0.51*1.38inch
Machine efficiency: >92%
Operating temperature: 0 ° C -40 ° C
Storage temperature: -20 ° C -80 ° C
Applications: MINI computers, integrated computers, POS machines, digital set-top boxes, ITX chassis, etc., web servers, advertising machines, bank terminals.

List:

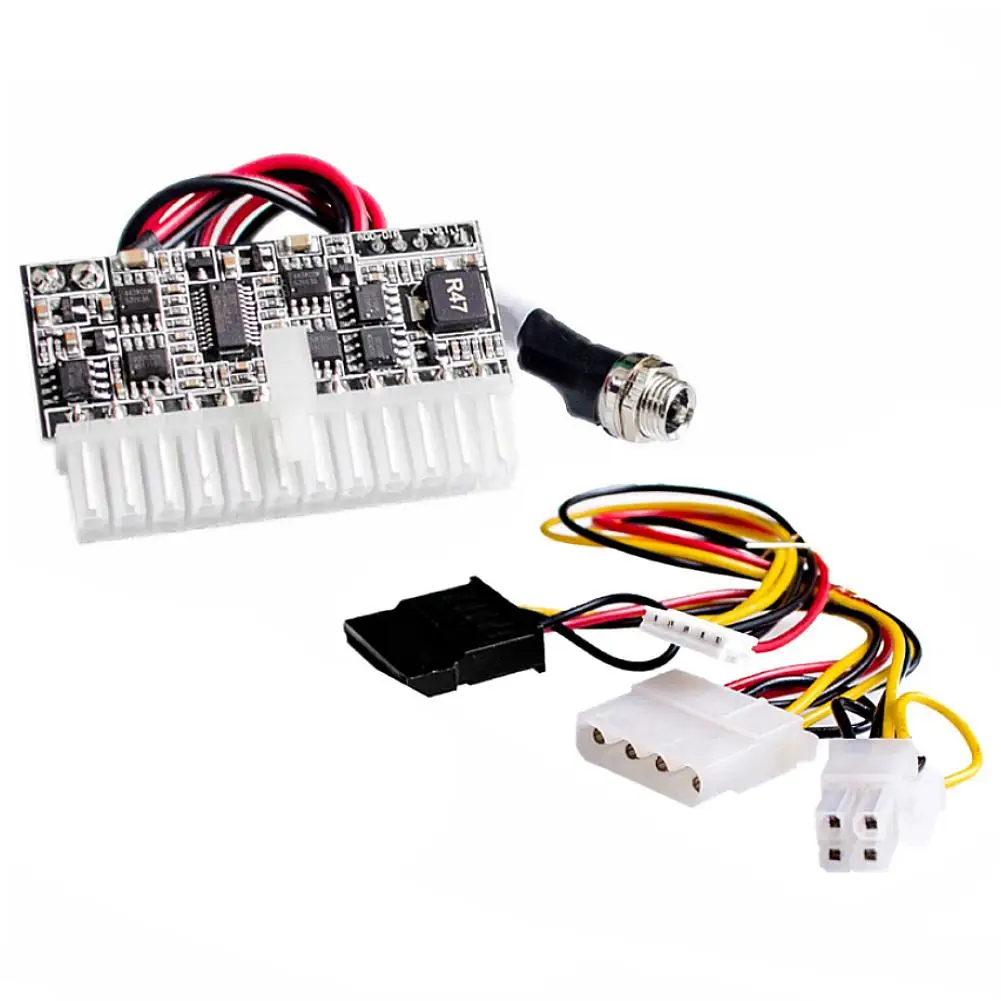

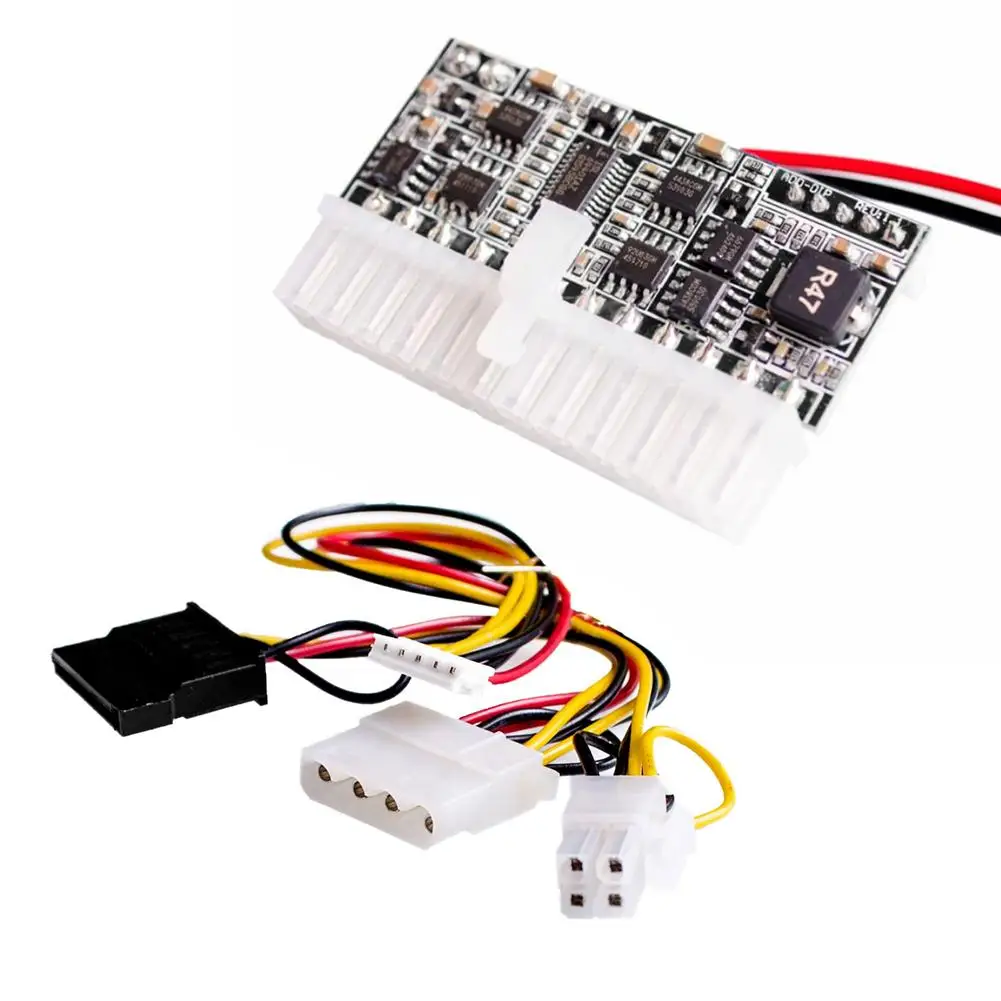

1x DC-ATX power supply

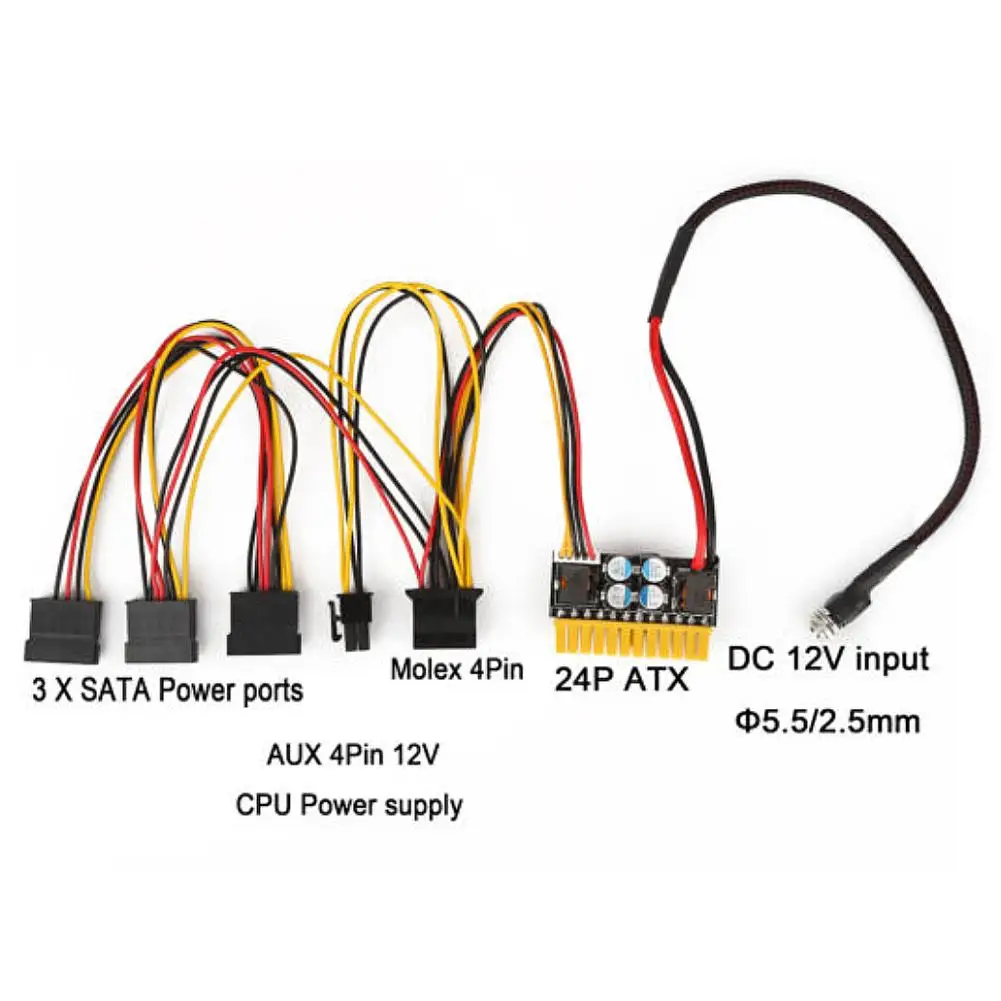

1x output connection cable kit

---
