�� The Controller must works with Standard Light Link ZigBee Hub (Required),Compatible with Hue Bridge,Gateways Lightify Hub and Amazon Echo Plus �� Directly Works with Alexa Echo Plus,Voice controlled your led strip light by speaking to Amazon Alexa,you can turn on/off,change the color,dim/brighten the LED light �� For RGB and RGB+CCT( cold white and warm white)LED Strip Lights DC12-24V (The package only Zigbee Smart LED Controller,This controller is the 1 SSID version） �� Works with Philips Hue APP: Control your LED lights from anywhere;You can make the lights lighting with the rhythm of music in your Smart Phone, You also can control multiple controllers(strip lights) at the same time on 1 app by setting up groups. �� Timer Controlled:You can set the led light to power on with the morning sun, gently waking you, or to turn on and off as you leave or arrive home.       Product Description

Remarks：The Zigbee Strip Controller works with ZigBee Light Link Gateways/ like "Hue",Lightify Hub,Homee,Smart Friends and Amazon Echo Plus,But this zigbee strip controller don't compatible with Wi-Fi Device of the 2nd Gen Echo dot and the 3nd Gen Echo,They must be Link to the Zigbee Hub (Hue Bridge and Lightify Hub)

Package include:

1 x Zigbee Strip Controller

(No Power adapter and LED light strip included)

1 x instruction book

  Specification:

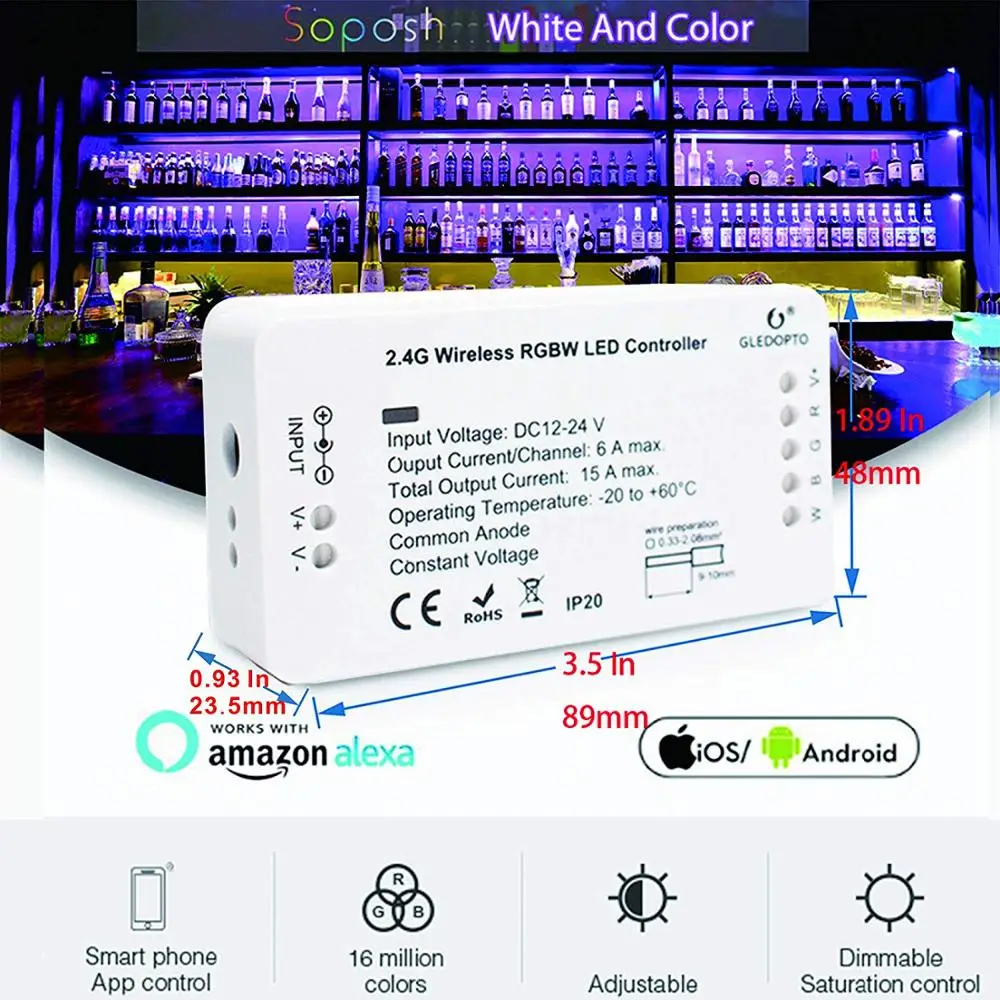

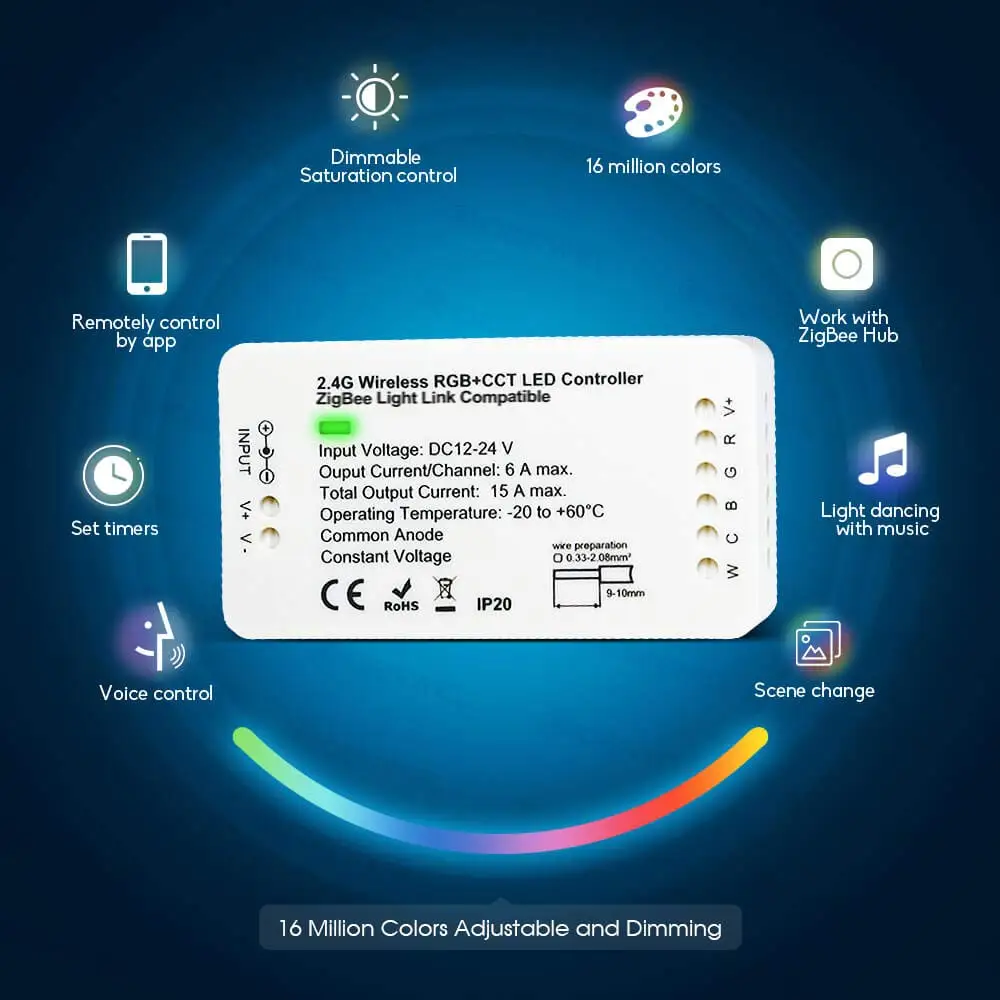

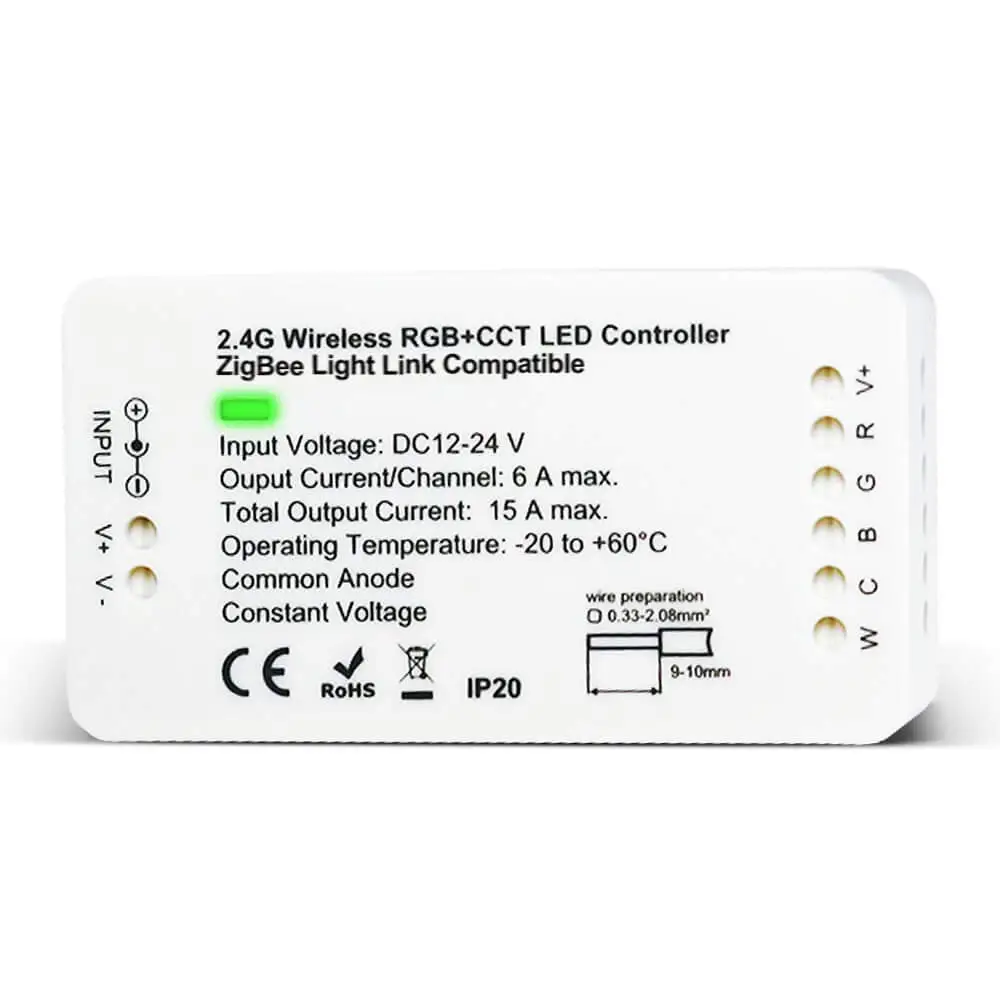

Input Voltage: DC12V-24V Output Max Current: 6A/CH Total Output Current: 15 A Max Load Power:180W(12V) / 360W(24V) Remote Distance:10~15 meters Connecting mode: common anode Controled Method:ZIGBEE ZLL Connection Mode:APP Control/Voice control Static Power consumption: <1W Size: L3.54 in*W1.9 in*H0.98 in Material:ABS



  Connection with Gateway:

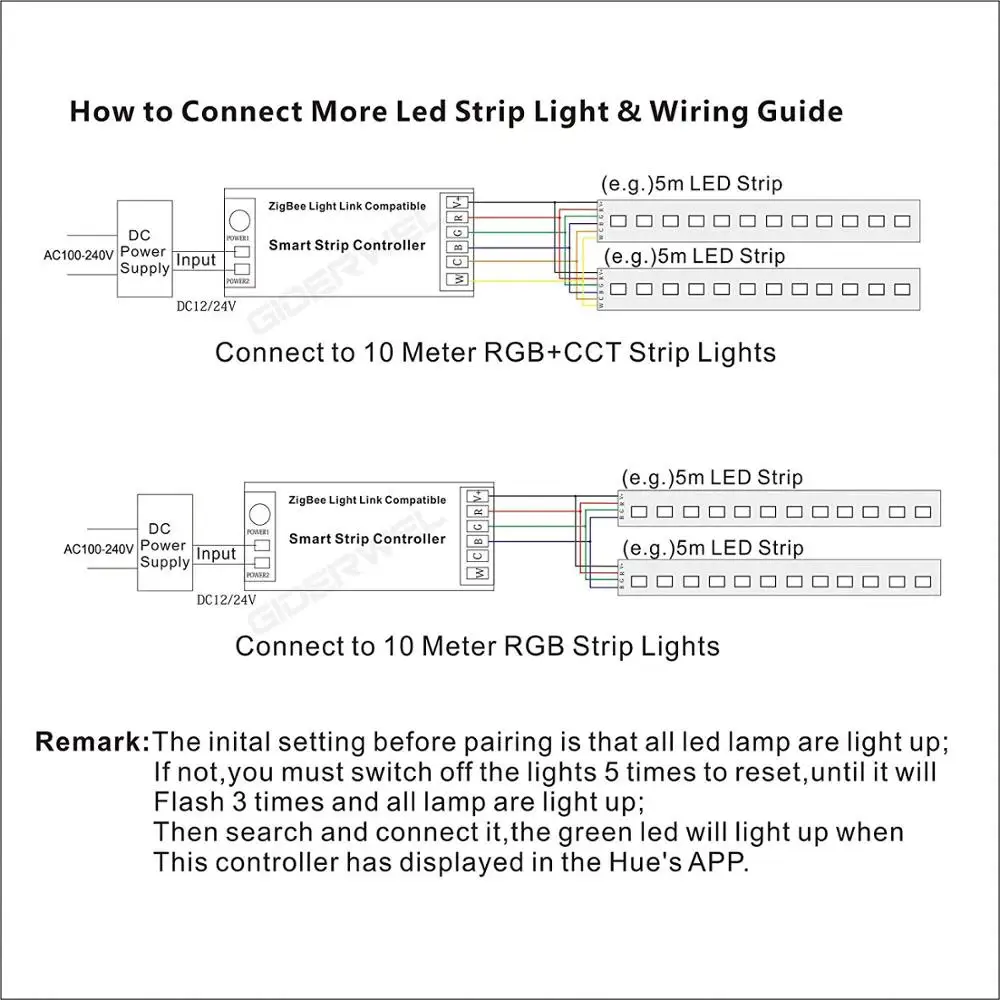

Connect the LED product to the controller; Start the device searching on the ZigBee Light Link Gateway, it could take some time.(If the Gateway does not find the device, plug power off/on or make a reset.) The Gateway found your device and you can assign it to the different rooms/zones/groups. Now you can use the device.



Reset:



Switch on your device. Now switch off and on within 2 seconds. Repeat off/on four times. Reset is done when the device is switched on in the fifth time and the light stays on after blinking 4 times.



For RGBW/RGBW devices you will find two SSIDs. One for white/warmwhite, the other for RGB. **The Osram Gateway supports only one SSID, with the RGBW/RGBWW device it find only RGB.

Timer Fution

Set the light to turn on/off at the time you want.

Remotely Control

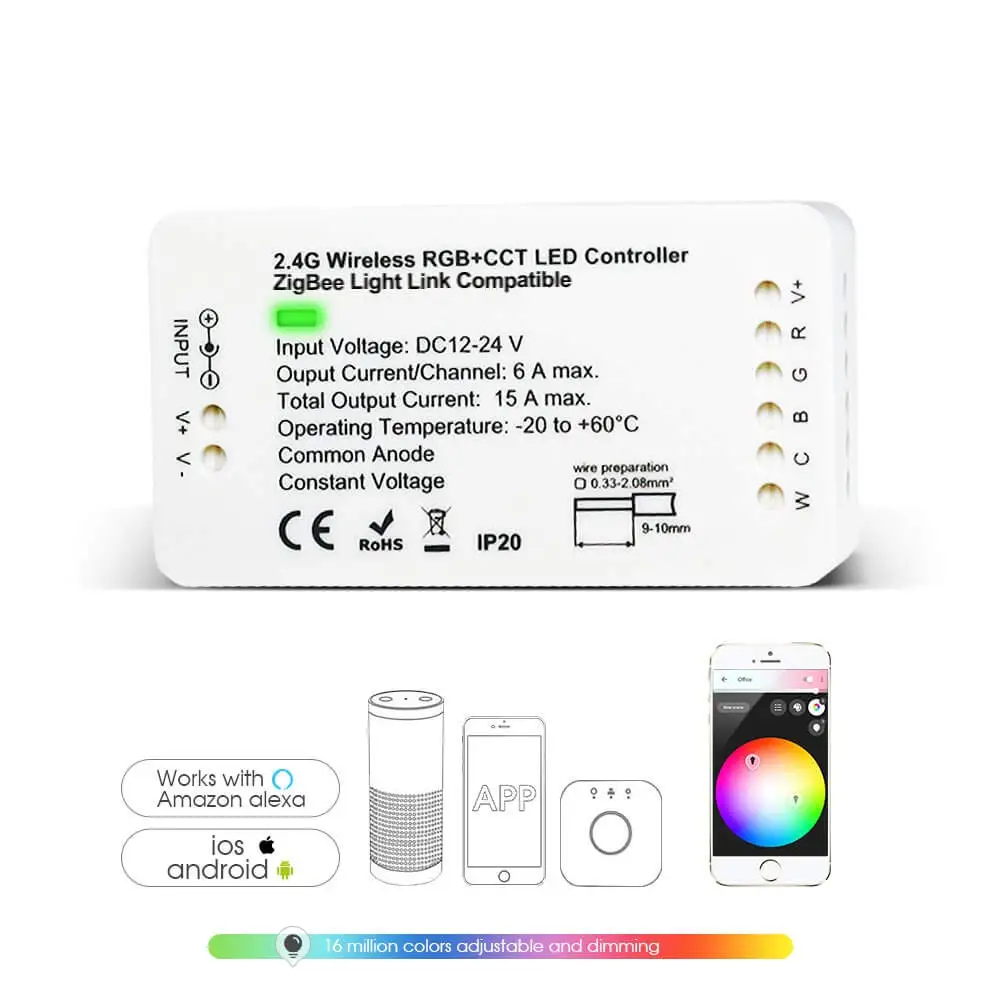

Works with Philips Hue APP Control,Take full control of your lights from anywhere anytime in the world.

Great for Party/Color Light Design

You can turn any room into a ballroom or create a relaxed and serene atmosphere. This is the best way to relax.
