MFRC522 RC522 RFID модуль считывания и записи карт IC с радиочастотным индукционным диапазоном 13,56 МГц малого размера мини.

MFRC522 RC522 RFID модуль считывания и записи карт IC с радиочастотным индукционным диапазоном 13 56 МГц малого размера мини.

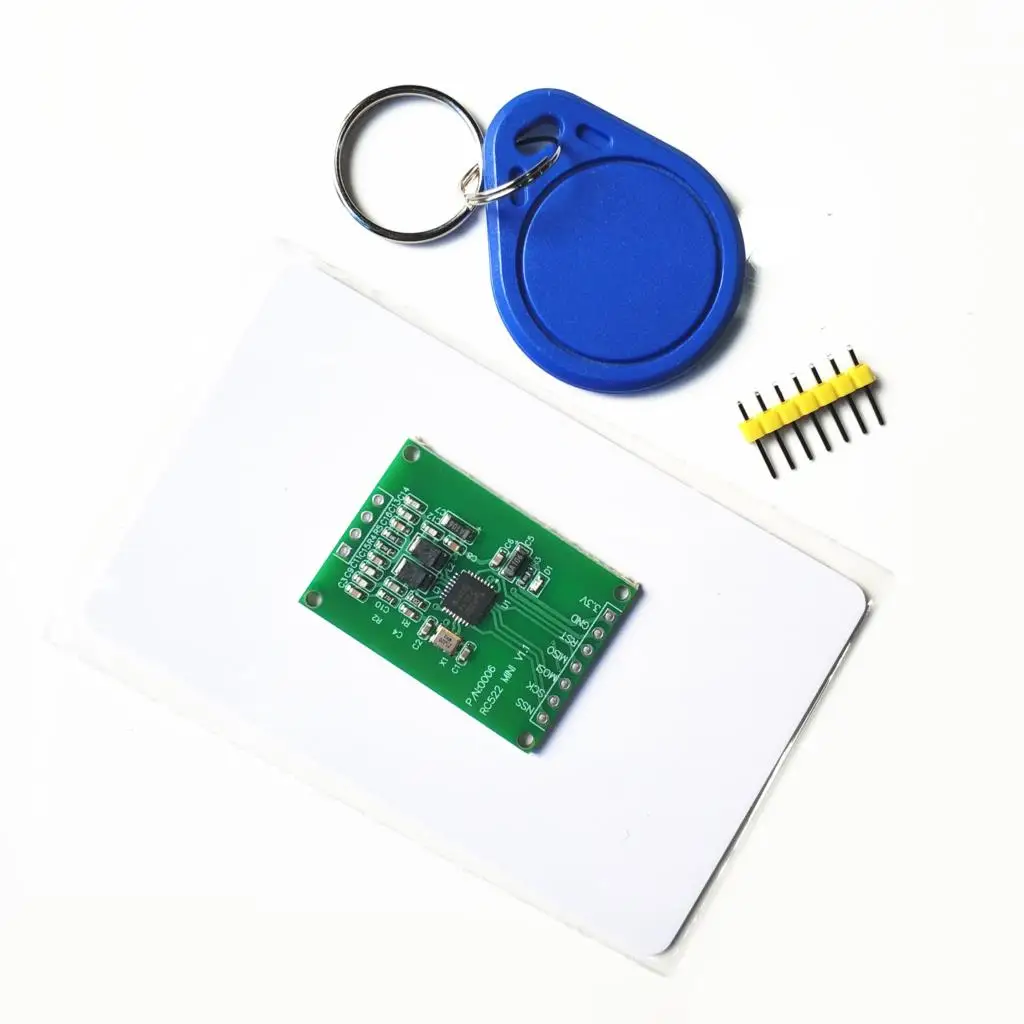

【Shipping list】
1. One RC522 mini version module;
2. One standard S50 blank card;
3. One S50 shaped card (the shape of the keychain as shown);
4, 7P pin header;

Module description:
The RC522 module is a Mifare card reader module based on NXP's NXP RF base station chip. The module operates at 13.56MHz and is ISO14443A compliant. It supports Mifare1 S50, Mifare1 S70, Mifare Light, Mifare UltraLight, and Mifare Pro. The module is easy to use, highly reliable, and small in size, which helps customers to easily and quickly apply non-contact cards to the system.
Interface pin definition and module parameters
  Module size: 3.5MM*2.5MM, ultra-small size for easy embedding in your system
  Working frequency: 13.56MHz
  Working voltage: 2.5~3.6V
  Operating current: Use program routine to find card current 20mA (3.3V power supply)
  Support Type: MIFIRE1 S50 S70 UltraLight Pro
  Working temperature: -25~+85 degrees
