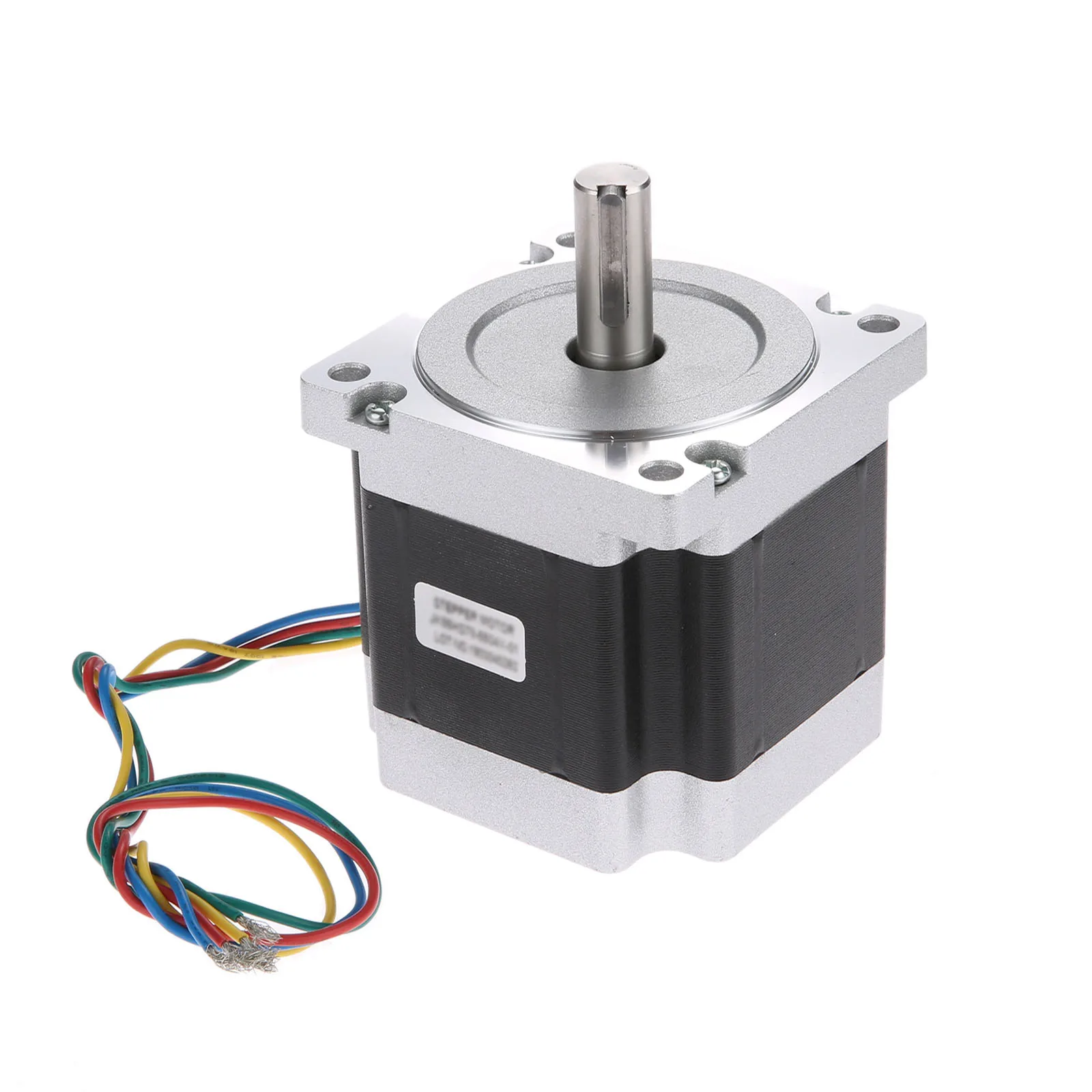

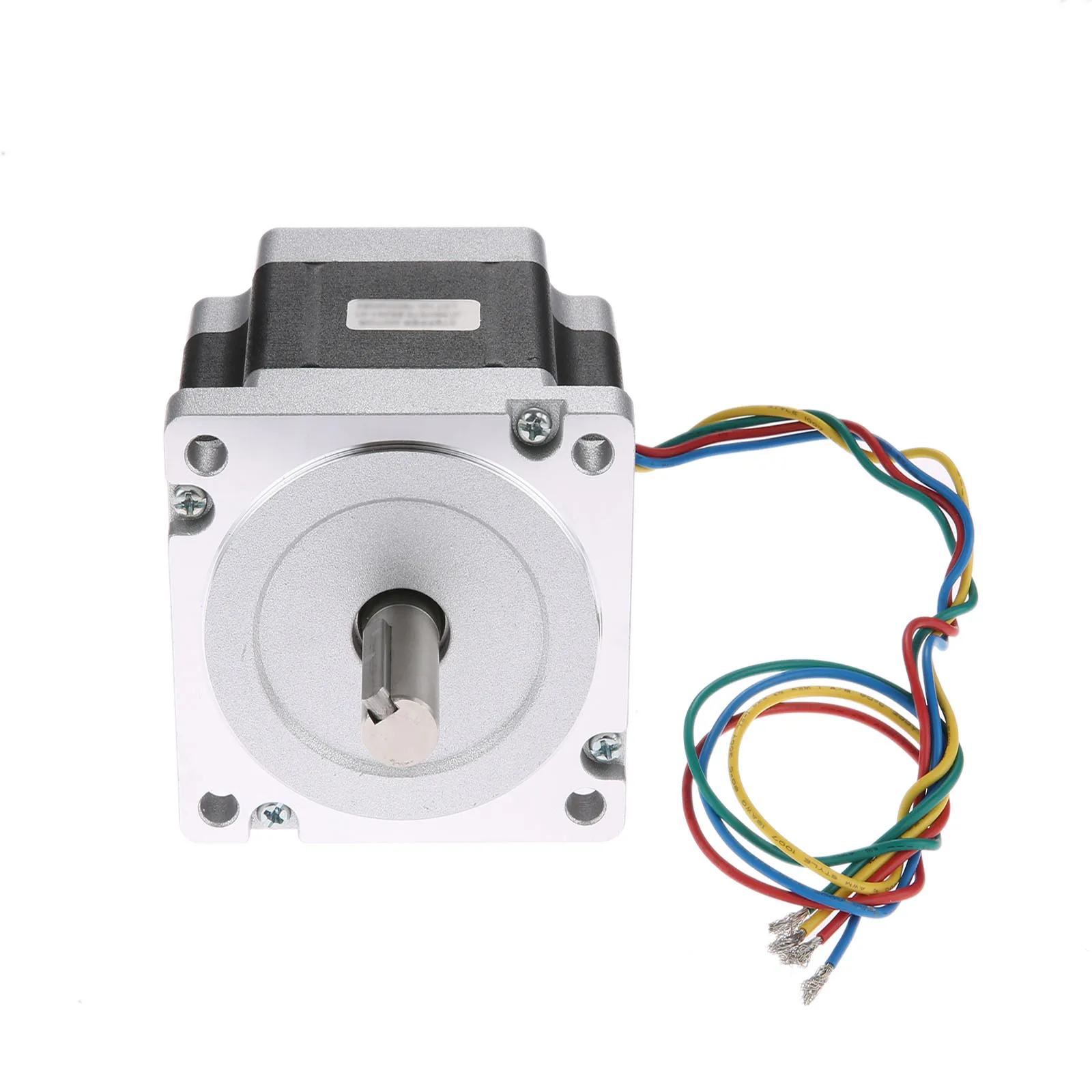

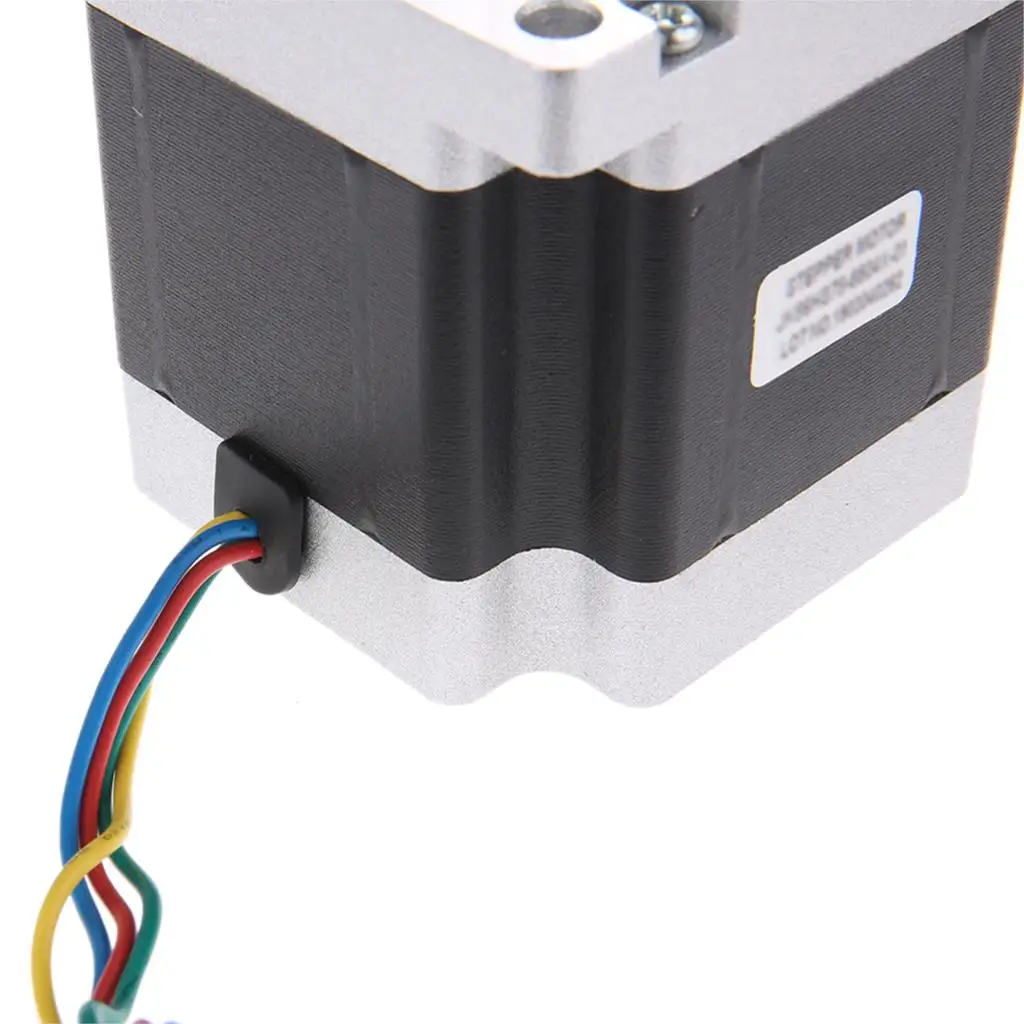

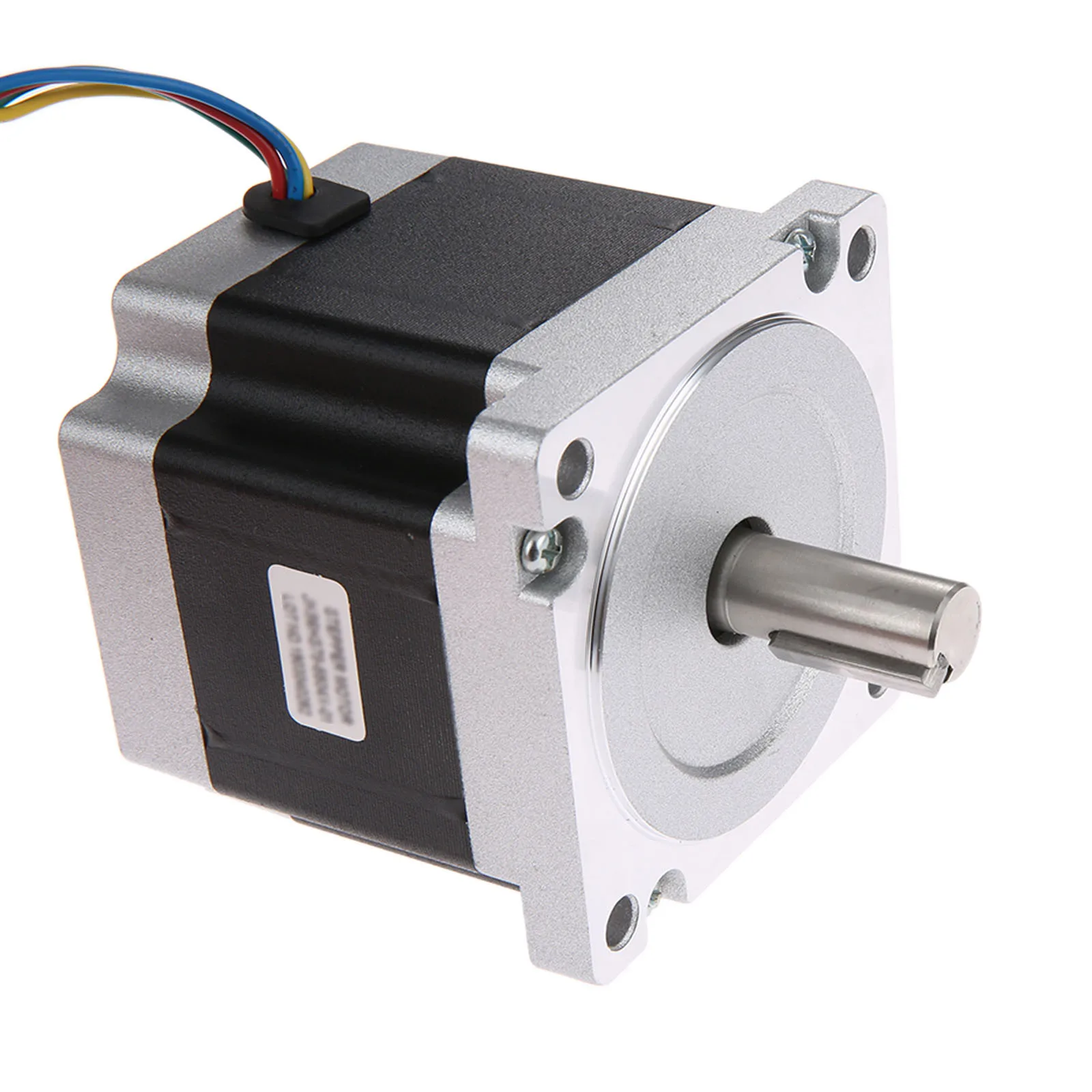

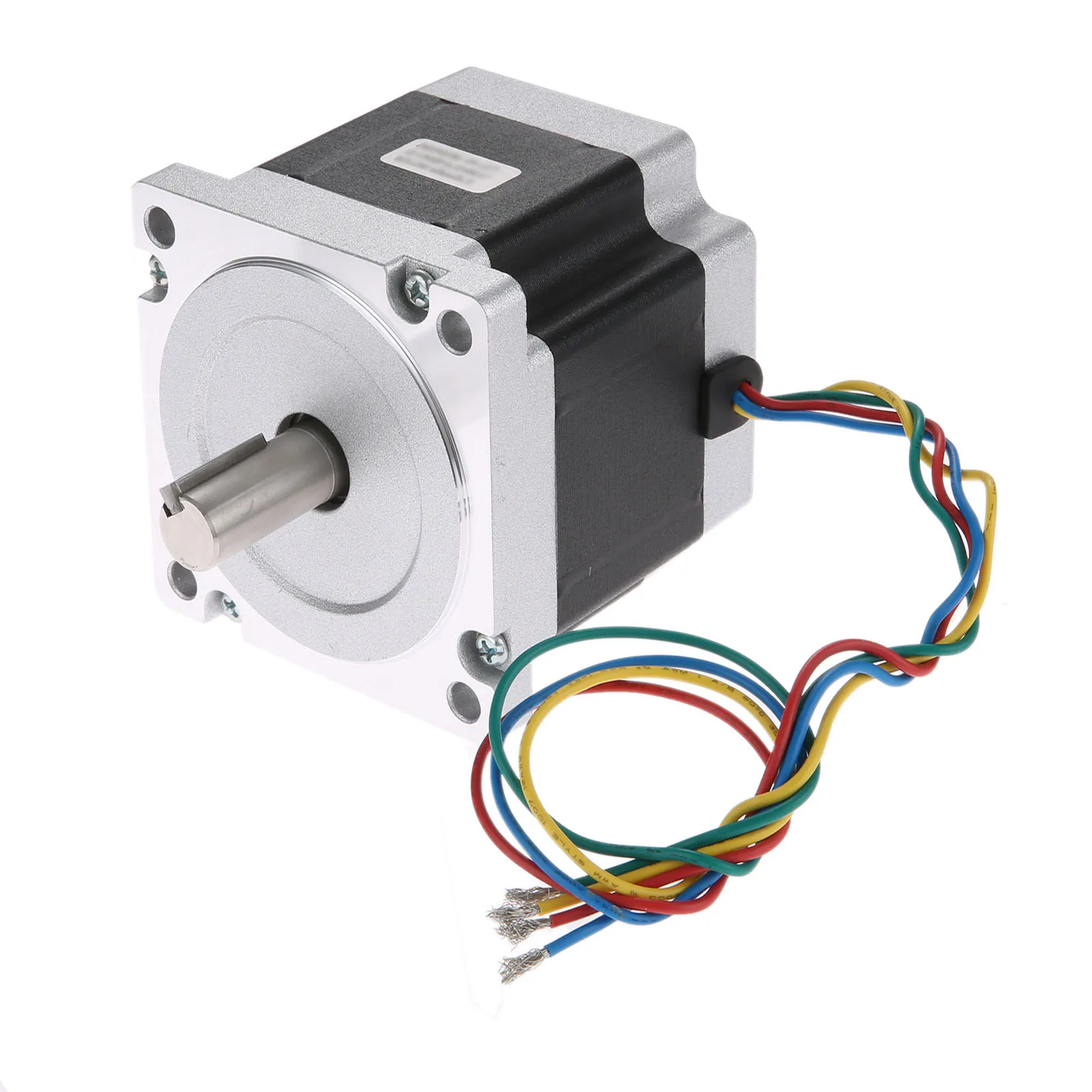

Nema 34 Stepper Motor 86mm 1.8 Degree 2 Phase 6A 3V 4-lead 14mm Shaft 8.7N.m Hybird For CNC 3D Printer | Обустройство дома

Nema 34 Stepper Motor 86mm 1.8 Degree 2 Phase 6A 3V 4-lead 14mm Shaft 8.7N.m Hybird For CNC 3D Printer | Обустройство дома

Because of different production batches, some details of actual items may different from the pictures. But the size, quality and performance of the product are completely unaffected. If you mind please don't buy it.

Features:
100% brand new and high quality.
1.8° 2 phase Nema 34 CE and RoHS approved Hybird Stepper Motor.
Widely used in engraving machine, printer, medical equipment, embroidery machine, stage lighting, textile automation, printing, packaging and other industries automation equipment
Fits for 3D printers, monitor equipment, medical machinery, textile machinery, stage lighting and so on.

Electrical Specification:
Temperature Rise:80° max.
Ambient Temperature:-20°~+50°.
Insulation Resistance:100 MΩ Min. ,500VDC.
Dielectric Strength:820VAC for 1 minute.
Shaft Radial Play:0.02Max. (450g-load).
Shaft Axial Play:0.08Max. (450g-load).
Max. radial force:220N (20mm from the flange).
Max. axial force:60N.
Manufacturer Part Number:86HS115-6004;
Motor Type:Bipolar Stepper;
Step Angle:1.8°;
Current/phase:6.0A;
Voltage:3V;
Phase Resistance:0.6ohms;
Inductance/phase:6.5mH±20%;
Holding Torque:8.7N.m/1225.4oz.in;
Detent Torque:2400g.cm/23.52N.cm/33.1oz.in;
Rotor Inertia:2700g.cm2.

Physical Specification:
Frame Size: 86mm x 86mm/3.4in x 3.4in.
Motor Length: 115mm/4.6in.
Shaft Diameter: Φ14mm.
Front Shaft Length: 30mm.

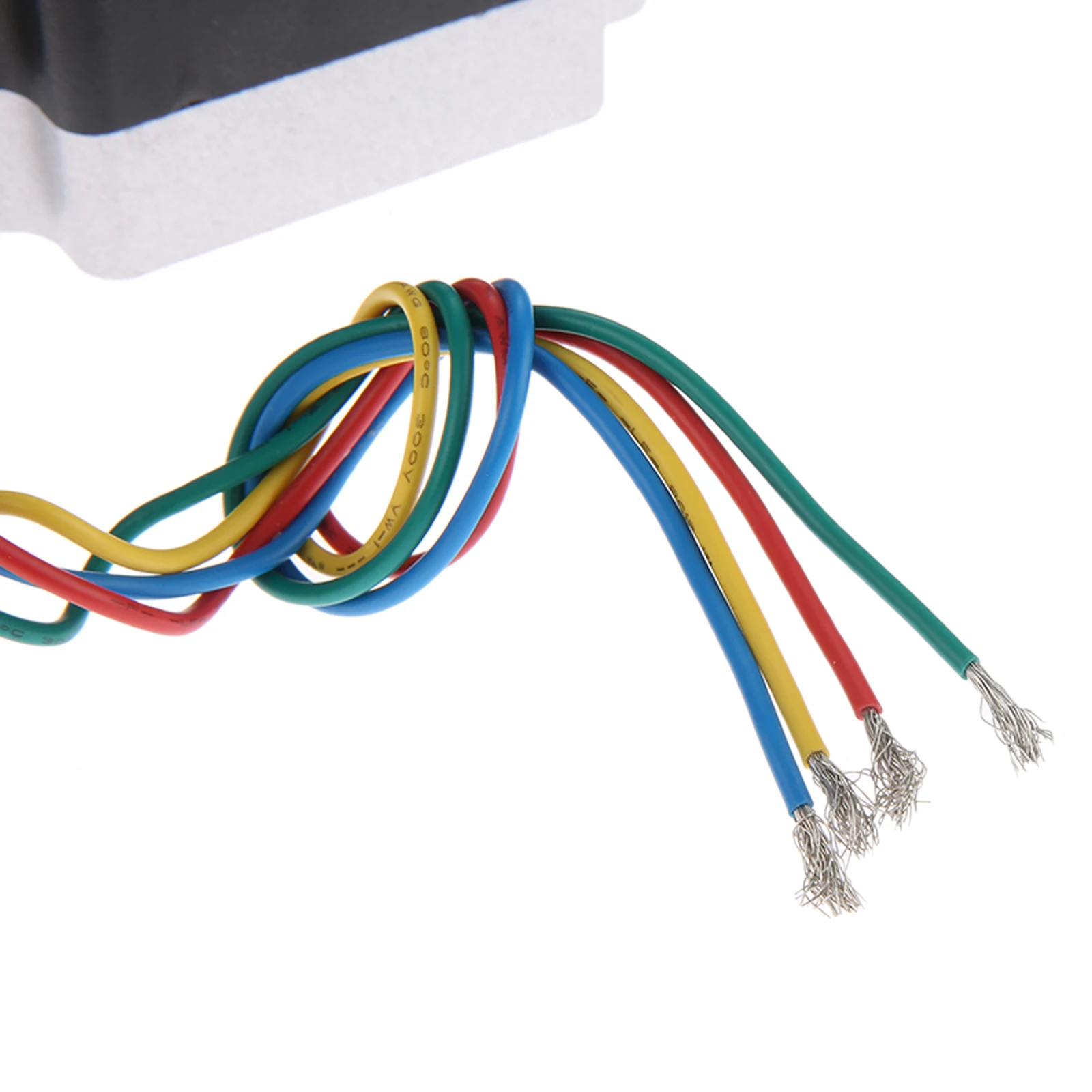

Number of Leads: 4.
Cable length: 300mm/12in min..

Package List:
Stepper Motor with cable x 1
