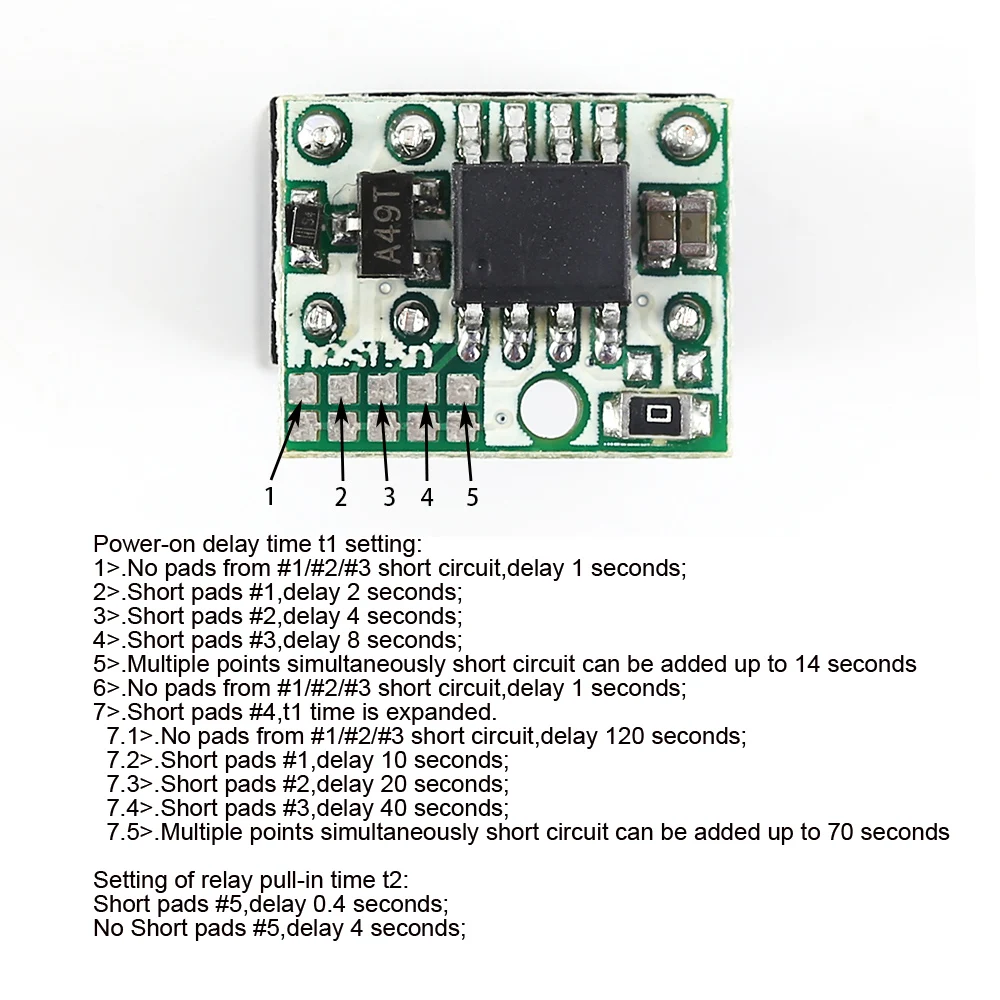

Function: After power-on, delay for a period of time, then the relay is closed for 1 time and then disconnected, and then remains disconnected. Specific function description: 1>.After the power is turned on, the relay does not move. After the time t1, the relay is closed, and after the time t2, the relay is disconnected and kept; 2>.The delay time t1 can be set to 1 second - 120 seconds; 3>.The suction time t2 can be set to 0.4 seconds or 4 seconds. Power-on delay time t1 setting: 1>.No pads from #1/#2/#3 short circuit,delay 1 seconds; 2>.Short pads #1,delay 2 seconds; 3>.Short pads #2,delay 4 seconds; 4>.Short pads #3,delay 8 seconds; 5>.Multiple points simultaneously short circuit can be added up to 14 seconds 6>.No pads from #1/#2/#3 short circuit,delay 1 seconds; 7>.Short pads #4,t1 time is expanded. 7.1>.No pads from #1/#2/#3 short circuit,delay 120 seconds; 7.2>.Short pads #1,delay 10 seconds; 7.3>.Short pads #2,delay 20 seconds; 7.4>.Short pads #3,delay 40 seconds; 7.5>.Multiple points simultaneously short circuit can be added up to 70 seconds Setting of relay pull-in time t2: Short pads #5,delay 0.4 seconds; No Short pads #5,delay 4 seconds;
