32 inch TV LED Light Bars For Samsung UE32EH5300WXXN UE32EH5300WXZF UE32EH5300WXZG Backlight Strips Kit 12 LED Lamp Lens 2 Bands

Bran New 2 piece LED backlight strip / Kit,

Applicable TV model

If you have not opened the TV, we recommend that you compare the TV model. The model number of the TV is on the nameplate on the back of the TV. As shown below
UE32EH5300WXXN
UE32EH5300WXZF
UE32EH5300WXZG

Special Attention

The TV models listed above may use different light strips. We recommend that you unpack the TV case to compare the information below.
The screen model corresponding to this light bar:
CY-DF320BGLV1H
CY-DF320BGLV3H

Light strip information

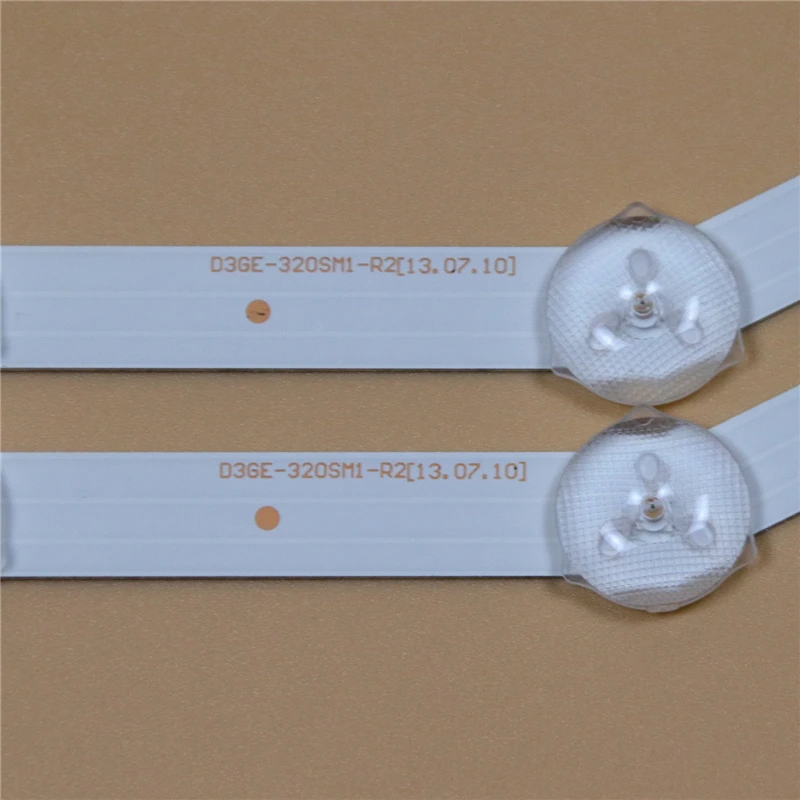

If you have already opened the TV, we recommend comparing the light bar code or screen code. You could find these numbers in the light bar or screen panel. As shown below, Or you can refer to the data we provide.
BN96-28763A
D3GE-320SM1-R2
2013SVS32_3228N1_B2_12_REV1.7_131015
LM41-00001S

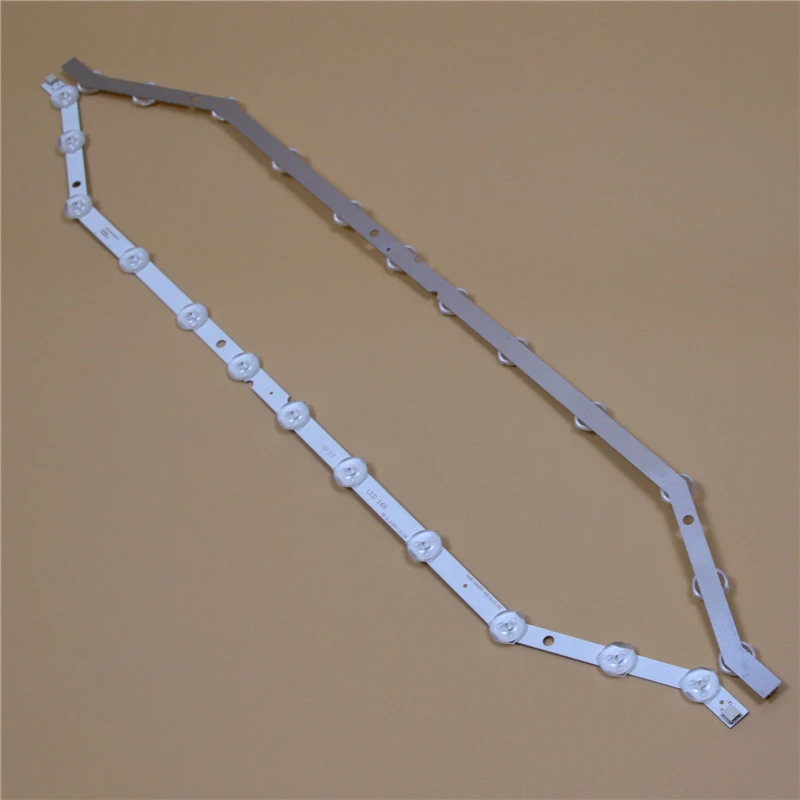

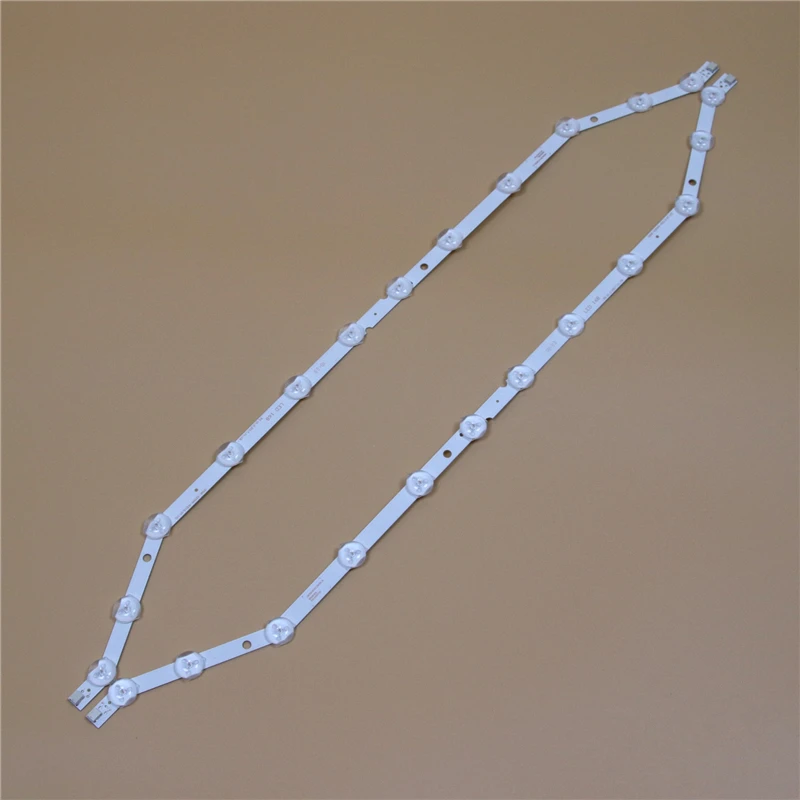

The LED Backlight Lamp Strip Features:

1.Consistent with the original, Brand New, no need to modify it, easy to install
2.Long operating life, typically lasting over 100,000 hours
3.Brightness is consistent with the original

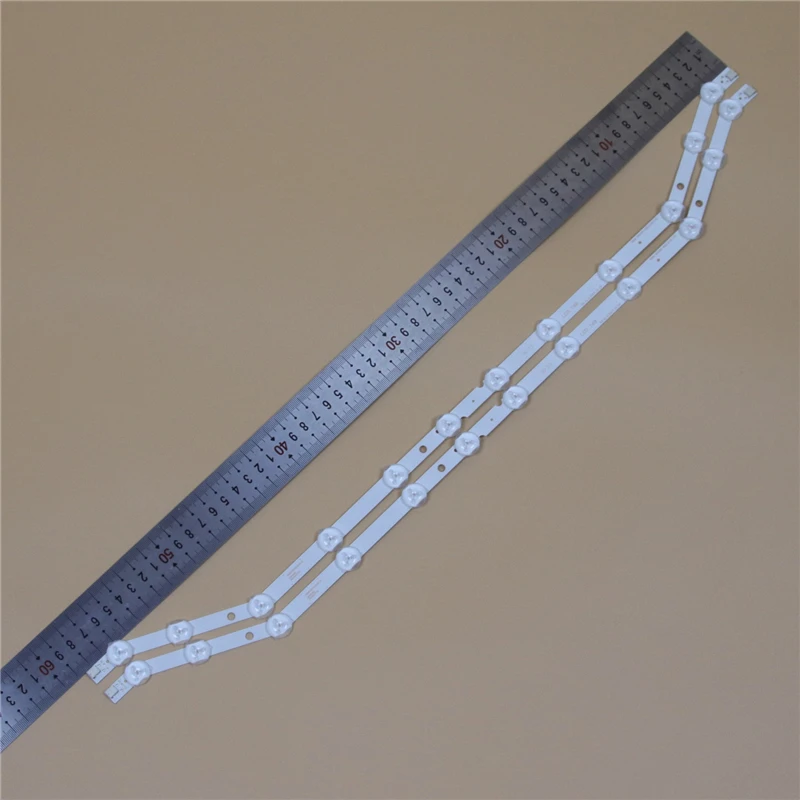

4.Product length:
A Strip 585 mm ( length) * 11 mm (width) * 1.0 mm (height) 12 LED Lamps
5.The aluminum substrate makes it easier to dissipate heat. High quality lamp beads for longer life.
6.Voltage: 0-94V, brightness up to 700 nits

Packaging Information

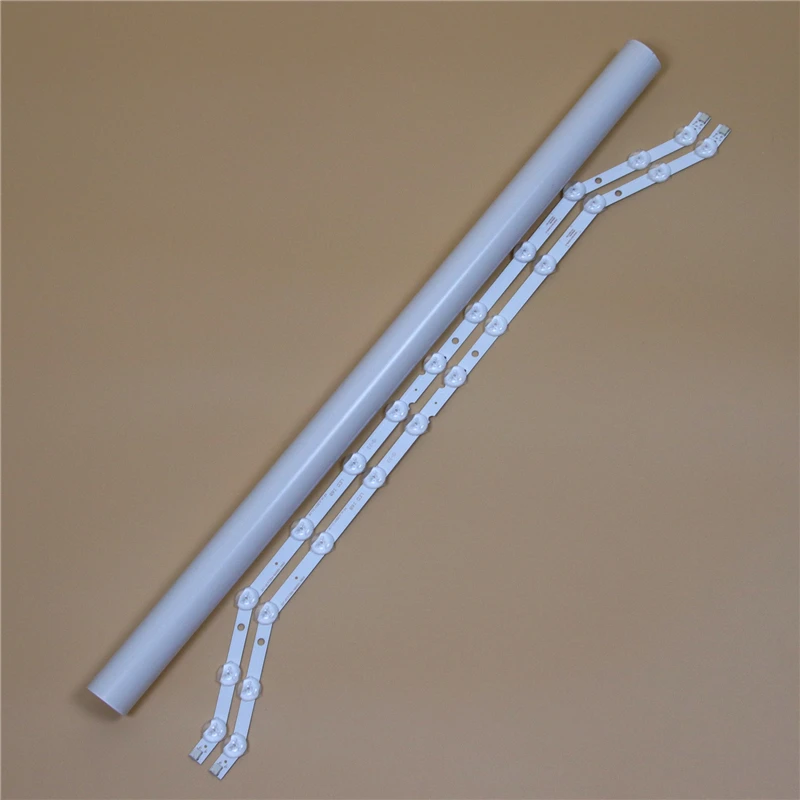

1. Package: PVC Plastic pipe (it will be safer during transportation)
2. Product contains: 2 piece backlight Strips , 2 piece / Set ,
3. Logistics information could be tracked

Precautions for buyers before buying

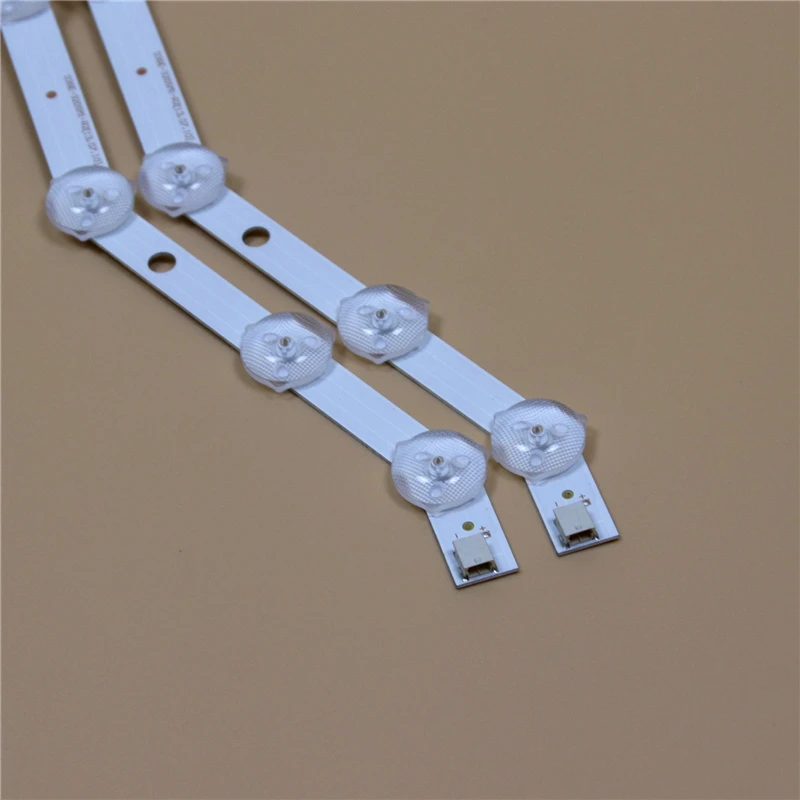

1.The connector, the length (spacing) and the LED quantity all in our description, please sure our LED Strip suitable for your TV befor buying. If not , contact us first, thanks!

2.Because the product will be upgraded, there would may be a little difference between the picture and the goods that you received. But we promise the connector and function will the same as our description.

3.Please contact us if you have any questions.

4.the price is for the set, in order to avoid the color difference of the display after replacement (because the brightness of the old Backlight Lamp strip will be reduced), we recommend that you purchase a complete set.

5.You could always contact us if you have any uncertainty or you want to get more offers.

6. Warranty: 90-Days Warranty

7.We recommend that lowering your TV's "brightness" or "backlight" setting by 20-25% before installation to reduce risk of repeat failure.

Precautions & FAQ:

Q1: What are the common symptoms of LED Backlight failure?

A1: Symptoms can include but are not limited to: Sound but no picture, Faint image on the screen (can be seen with a torch) , Flashing / pulsating screen, Flashing standby light, Tripping, Dark / light patches on screen and/or Rings on screen. Other parts within the tv can cause similar faults but these are the common ones we see.

It is advised to get your TV diagnosed properly by a trained professional before ordering any parts. Power supplies can also cause a no backlight fault!

Q2: How do I test my LED Bars?

A2: D.C. voltage can be used to test most LED strips on the test points. Alternatively, we stock a specially designed LED tester which requires no electronics experience to use


Q3: What should I do if my product is not suitable for my monitor / TV?

A3: We could resend the correct product to you if it is caused by our mistakes. However, you need to pay attention to whether your model is the same as the model for this product. We recommend that you contact us if you are not sure if the product is suitable for your monitor. As long as the part has not been fitted, we accept returns. Return postage will be at the buyers cost

Q4: Do you offer trade discount?

A4: Yes, please contact us about trade benifits
