T8 8mm 500mm Lead Screw Rod with Nut Pillow Block Mounted CNC Set For 3D Printer | Parts & Accessories

Brand NamesemoicModel Number3D Printers AccessoriesItem TypeMechanical Kit/Hardware PartsMeasurement unitpiece/piecesEach pack1

Unavailable in Russian Federation

Description

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } T8 8mm 500mm Lead Screw Rod with Nut Pillow Block Mounted CNC Set For 3D Printer Screw mainly used in stepper motor, Machine Tool, and other equipment.
Screw without processing, direct connected to bearing.
Suitable for Industrial automation equipment, stepper motor rails; such as 3D printers; engraving machine; XYZ module; slider; lifts etc.
color: gold+silver

Lead screw:
Material: stainless steel
Diameter: 8mm
spacing: 2mm
Total Length: 500mm

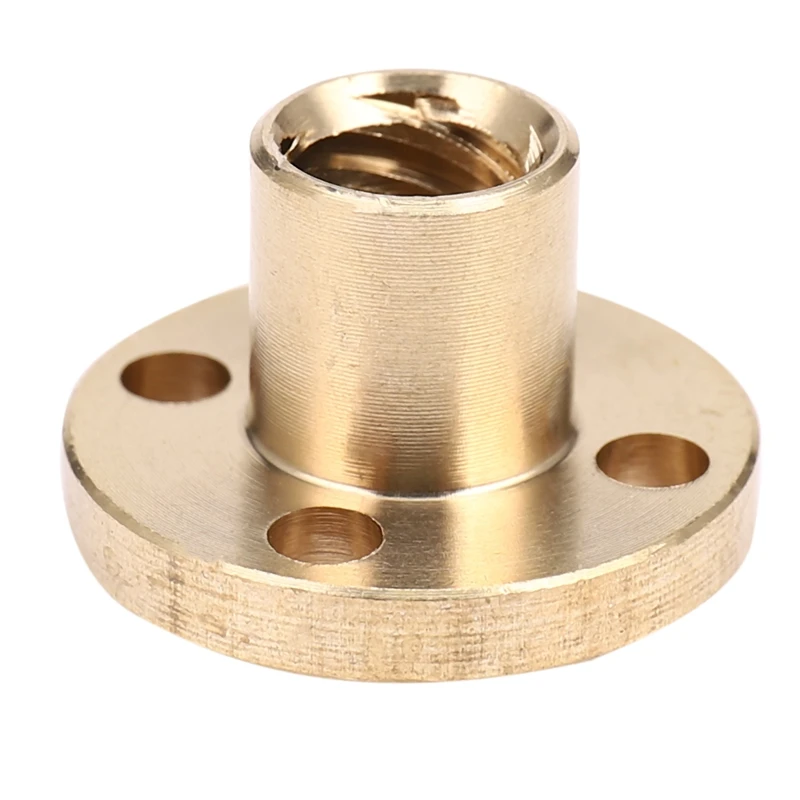

Screw nut:
Material: brass
Diameter: 8mm

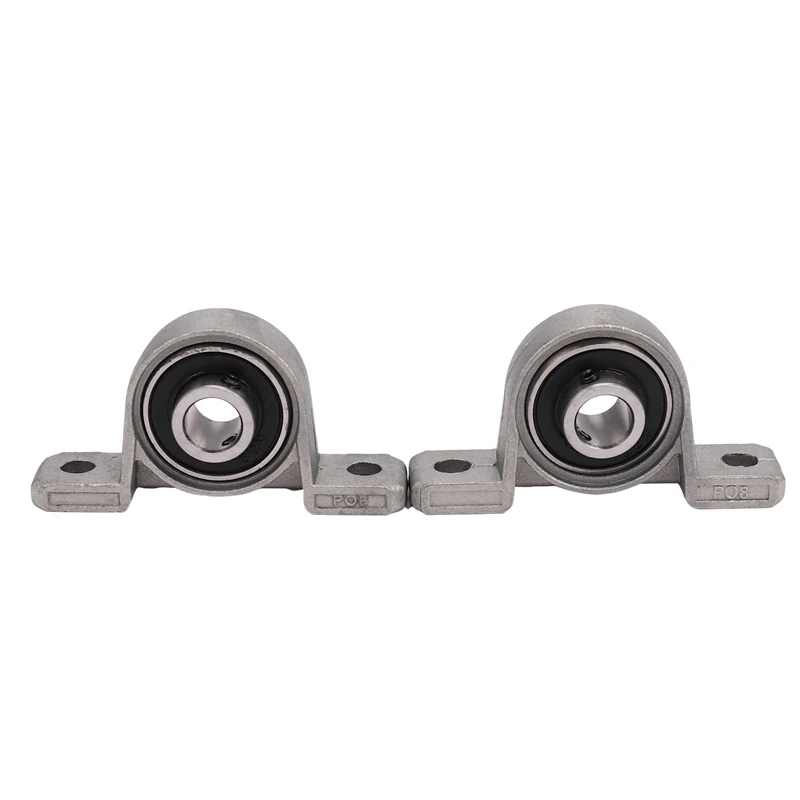

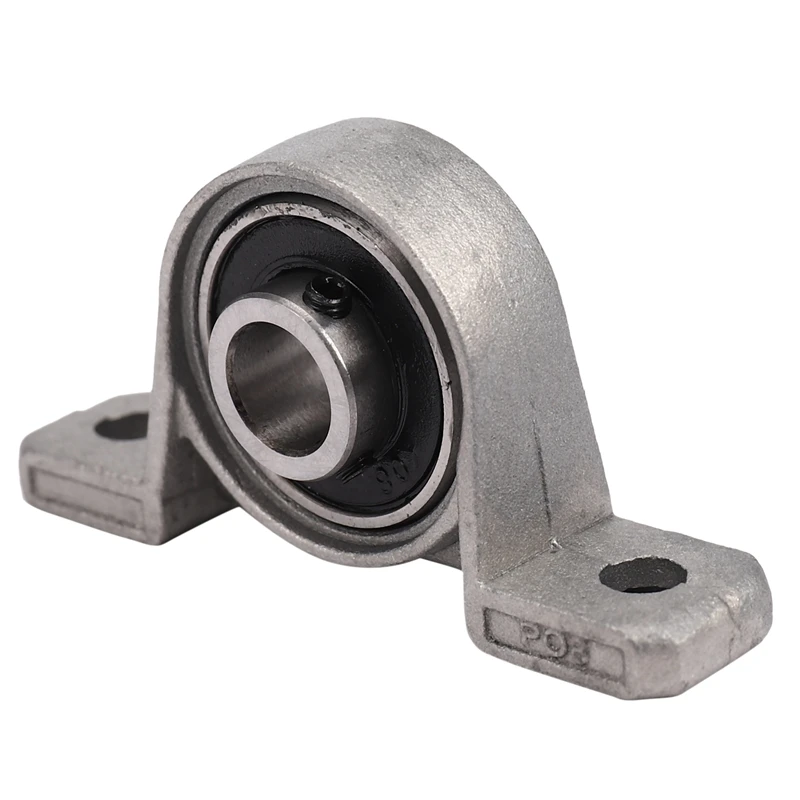

Mounted ball bearing:
Material: zinc alloy
Bore diameter: 5mm
Hole diameter: 8mm
Total length: 55mm
Height: 29mm

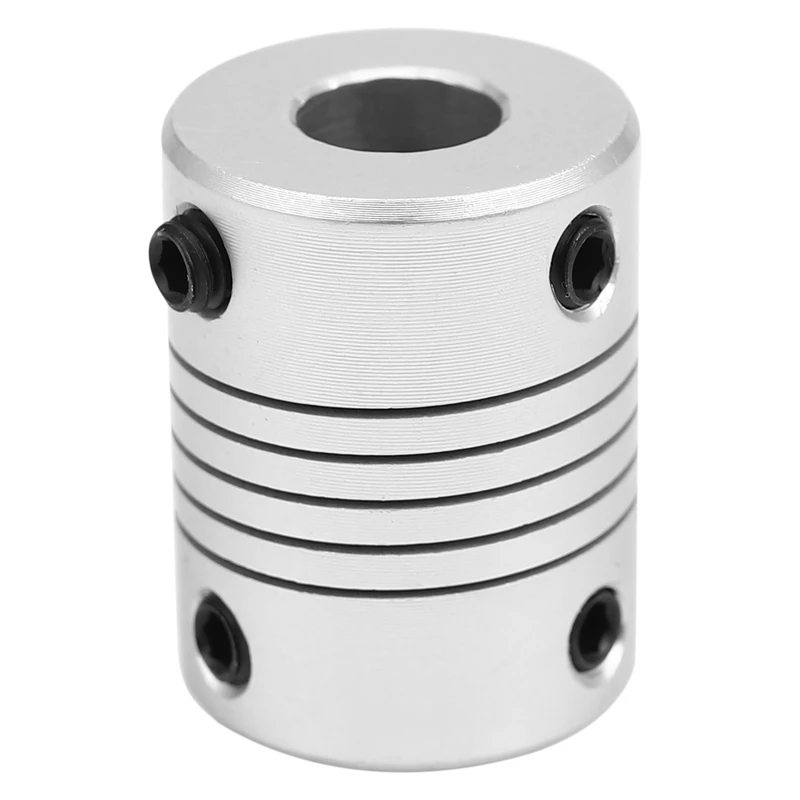

Shaft coupling:
Material: aluminium
Shaft: 6.35 x 8mm
Length: 24mm
Diameter: 18mm
How to install:
1. Pls put screw nut into the Lead screw
2.Then the 2 Mounted ball bearing separately install at both ends of the Lead screw
3. According to the size of you need to adjust the distance between the nut and Mounted ball bearing
4. Put shaft coupling into the Lead screw beside the Mounted ball bearing

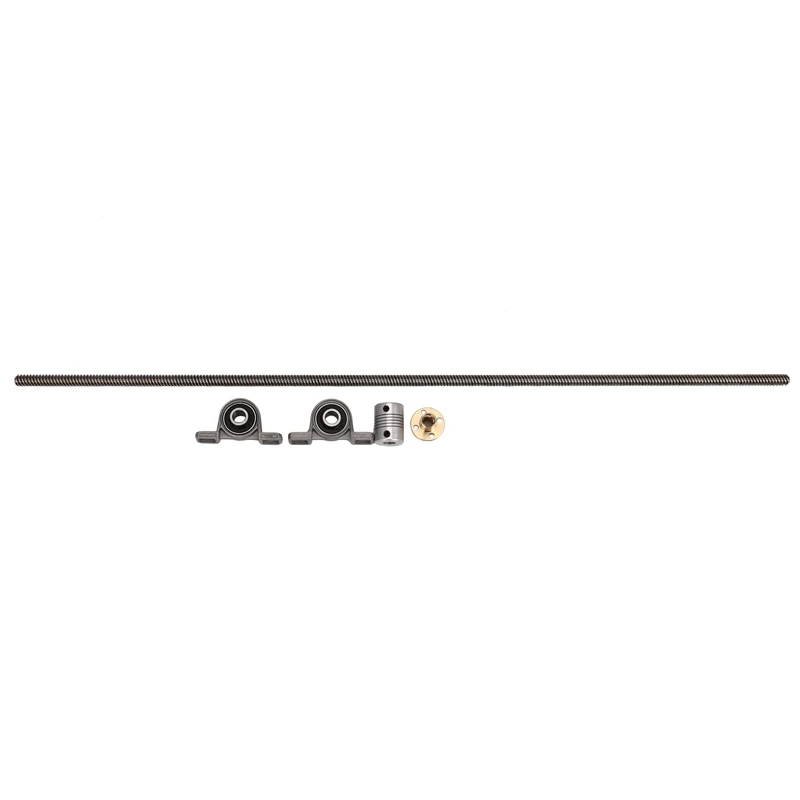

Package Contents:
1x Lead screw
1x Screw nut
2x Mounted ball bearing
1x Shaft coupling

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
