2.4G RGB RGBW LED strip controller touch remote control RF wireless DC12V-24V For RGB /RGBW LED Strip

Product Description----------------------------------------------------------------------------------------------------

Technical Parameters

>>>Receiver Parameter:
Input Voltage: DC12V-24V
Max Current Load: 12A
Max Output Power: 144W(12V)/288W(24V)
Working Temp: -20℃~60℃
Dimensions: L85 x W45 x H23(mm)
Weight(N.W.):88g

>>>Remote Parameter:
Working Voltage: 3V
Working Frequency: 2.4GHz
Working Temp: -20℃~60℃
Dimensions: L108 x W63 x H14(mm)
Weight(N.W.)40g
Total Weight(G.W): 161g

>>>Package includes:

1pc * LED RGB/RGBW Controller

1pc * LED remote controller

1pc * Manual user

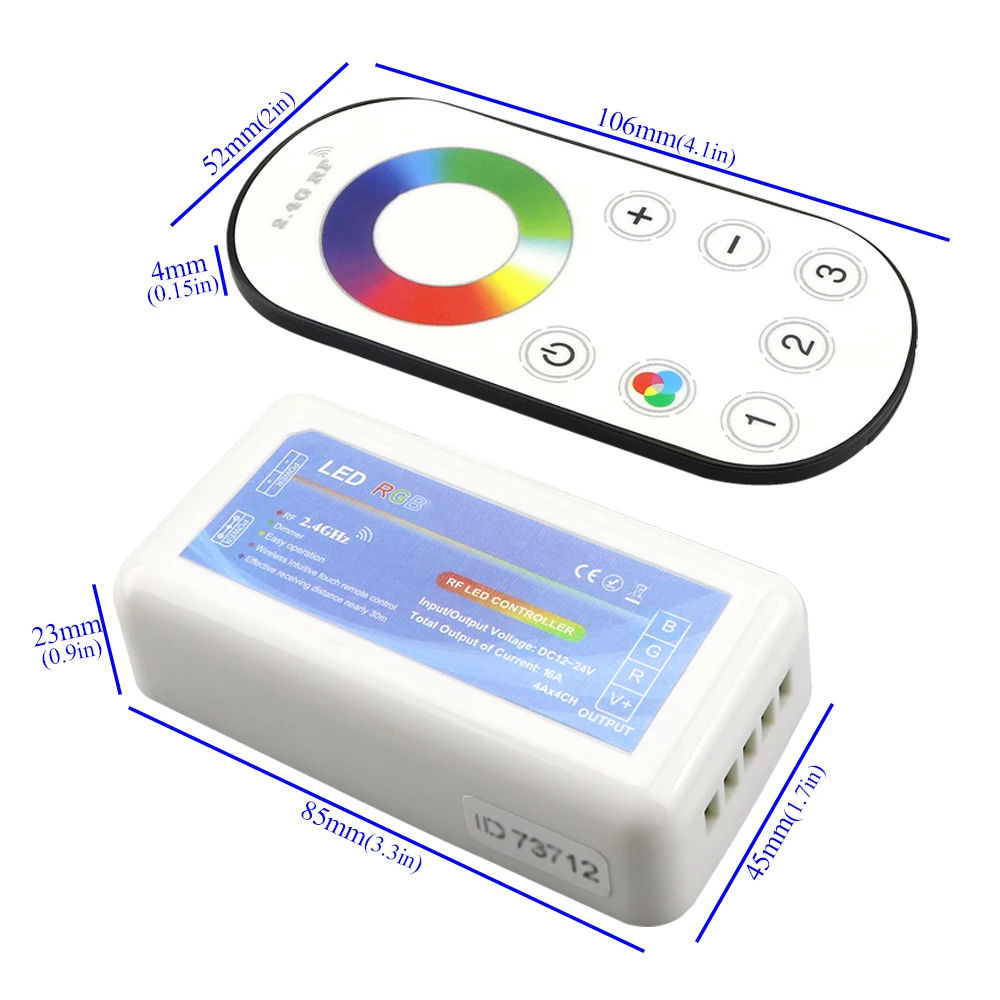

External dimension

Receiver and Remote size

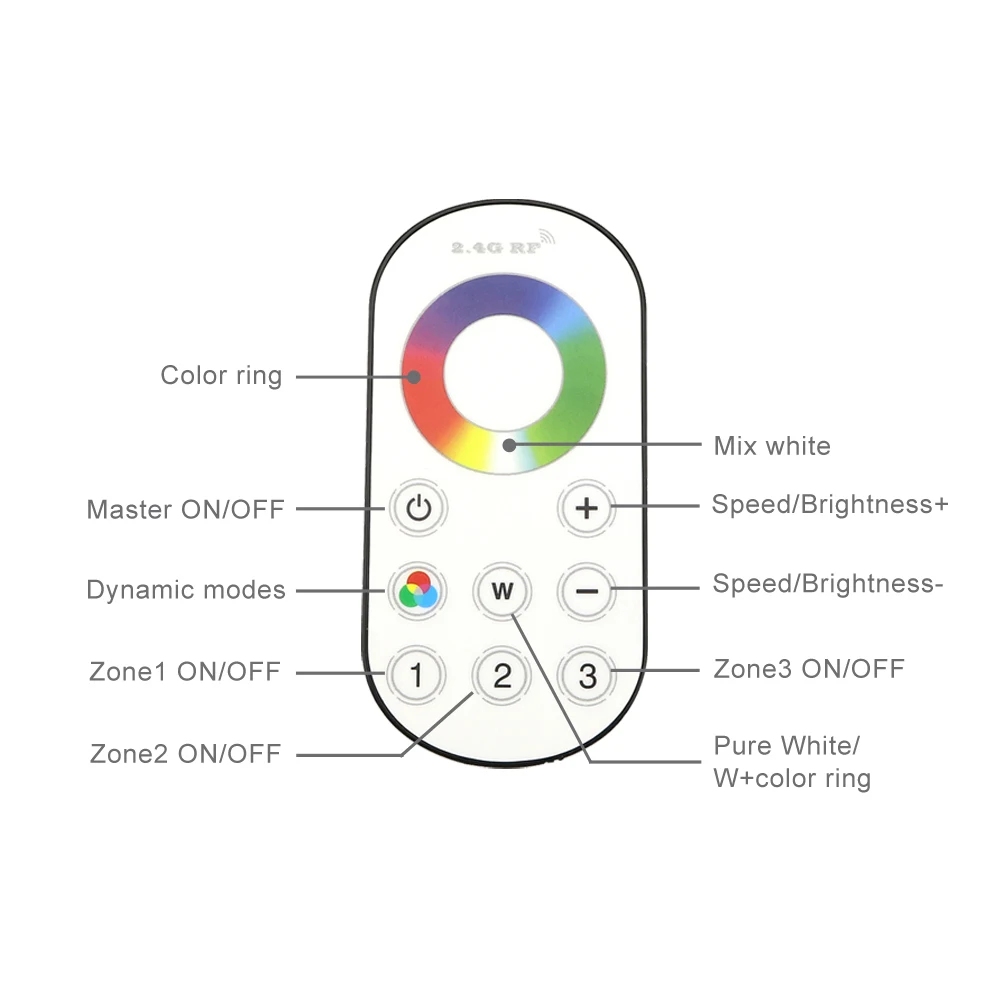

2.4G 3 Zone Touch Remote RGBW Controller

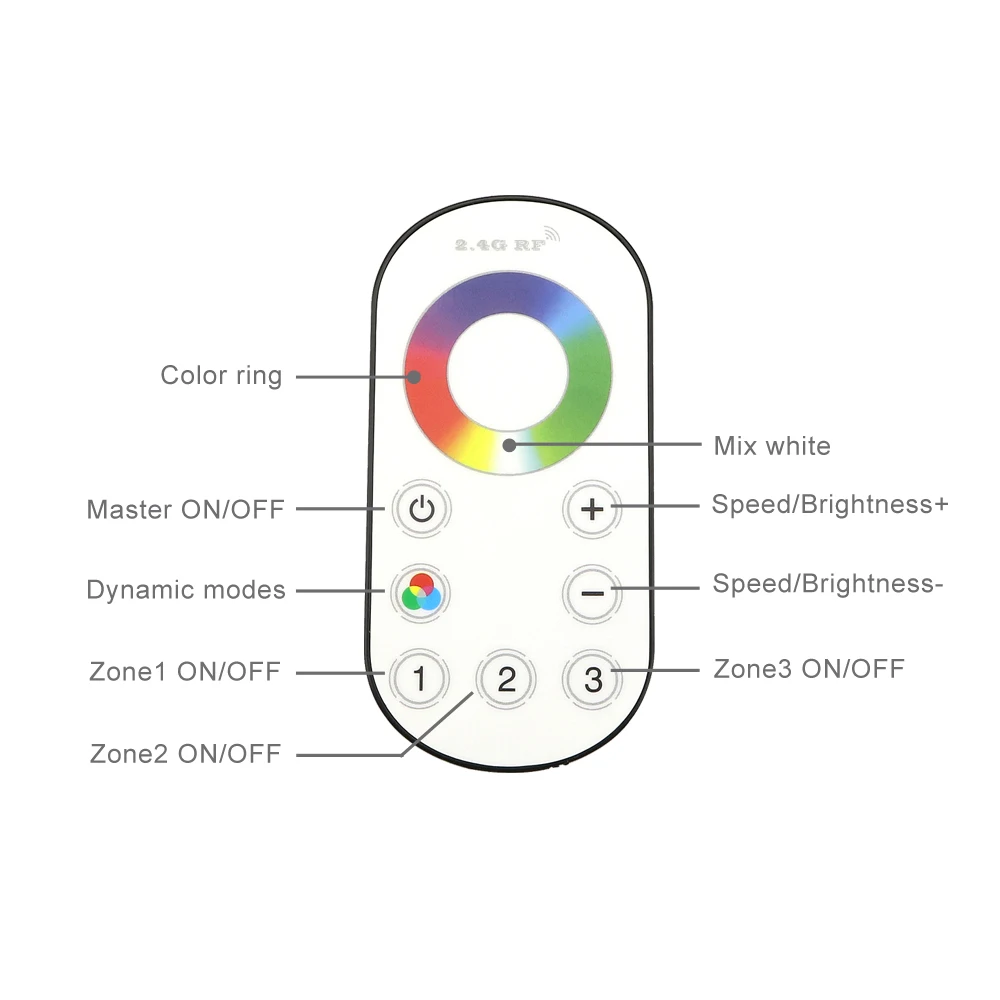

2.4G 3 Zone Touch Remote RGB Controller

Cautions

1, This products Input voltage is DC12-24V,other input voltage are not allowed. 2, Lead wire should be connected correctly,according to the wire color and the connecting diagram offers； 3, Overload are prohibited. 4, In order to promote the touch sensitive of the color wheel, please don’t touching the touch color wheel when installing the battery to the remote, if sensitive are low, please remove the battery and re-install it again. 5, Please do not used the controller around a wide range of mental area or do not used nearby strong electromagnetic wave area, otherwise, it will seriously affect the remote distance.
