Features:

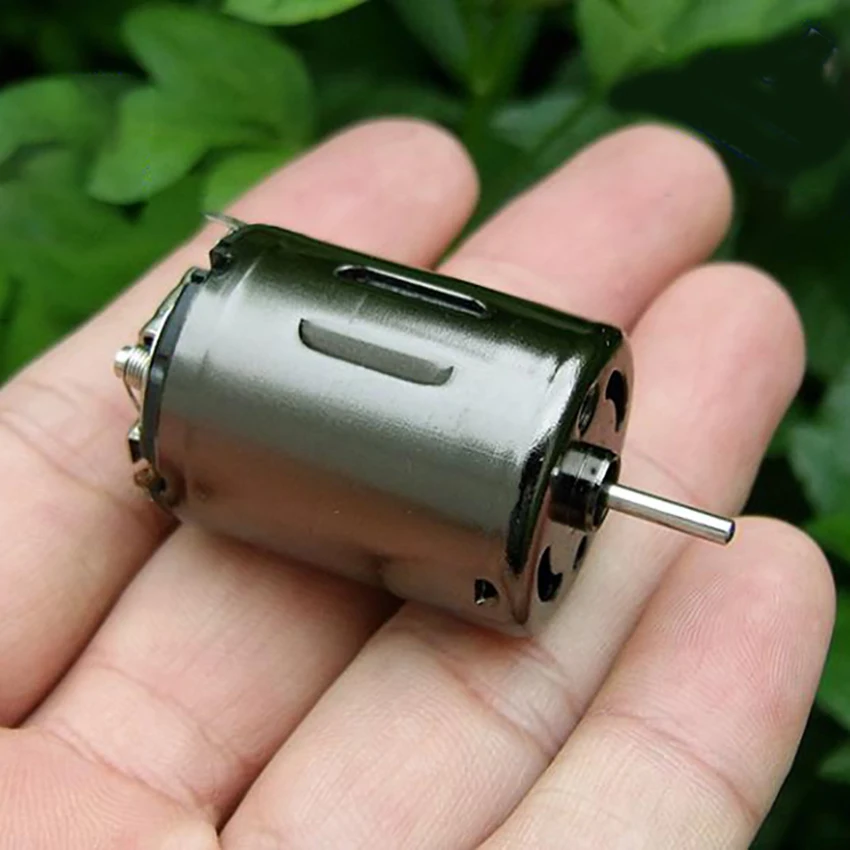

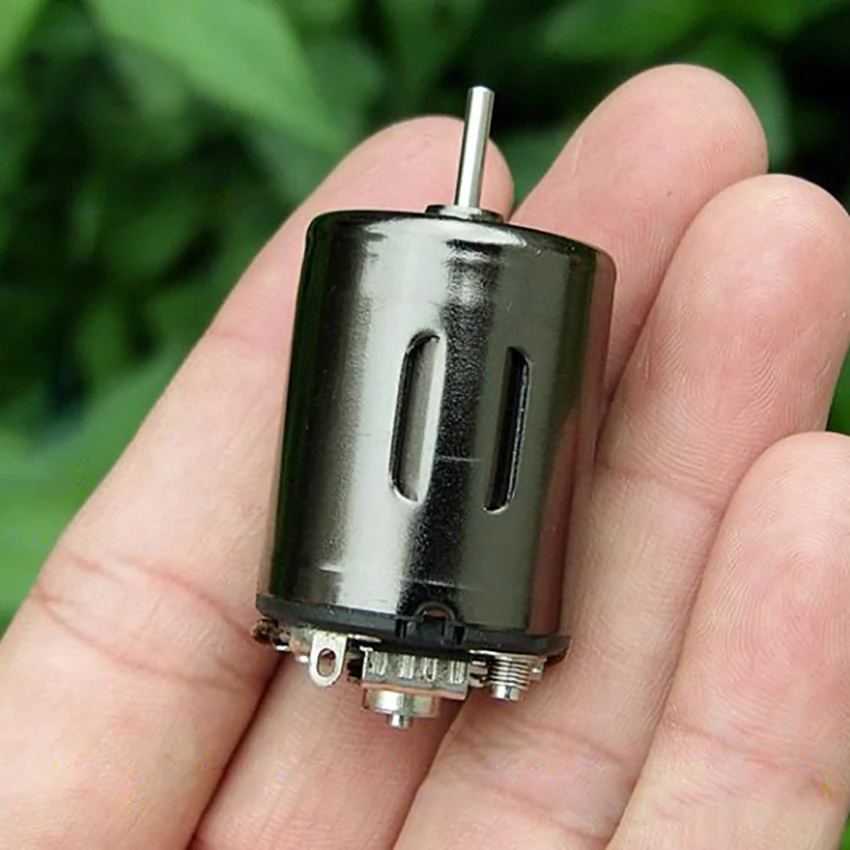

*outer diameter of motor: 24.6mm      height of motor: 35.2mm

*diameter of output shaft: 2mm      length of output shaft: 11mm

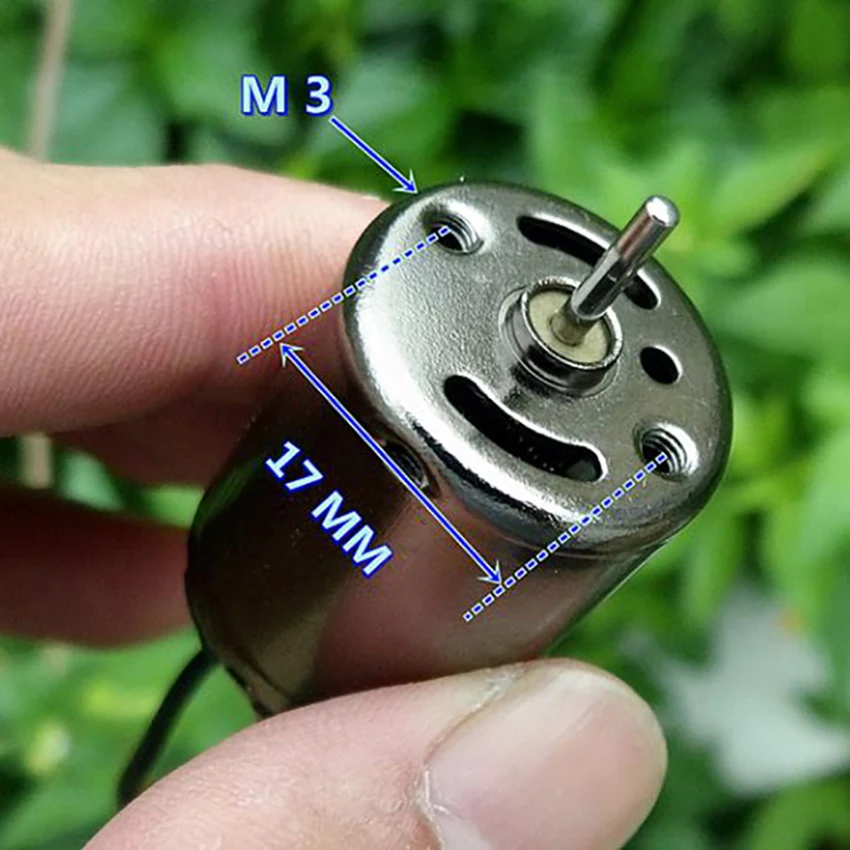

*screw hole:M3     distance of screw hole: 17mm

*rated voltage: 9.6v, no-oad current: 1.1a, rotating speed: 37500rpm

*voltage: 6v, rotating speed: 21800rpm, current: 1a

             7.2v, rotating speed: 27000rpm, current:1a

             11.1v, rotating speed: 43800rpm, current: 1.4a

*The magnet of this motor is obviously enlarged and thickened, so the magnetic force of this motor is strong, the magnetoresistance of the motor is strong, and the compensation type carbon brush is several times longer than the ordinary carbon brush.

*Note: This kind of motor needs a large current. If the power supply is not a lithium battery, but other power supply, the current of the power supply should not be less than 8A. The bigger the better, if the current is too small, it will affect the power and torque of the motor.

Package include: 1PC * DC Motor
