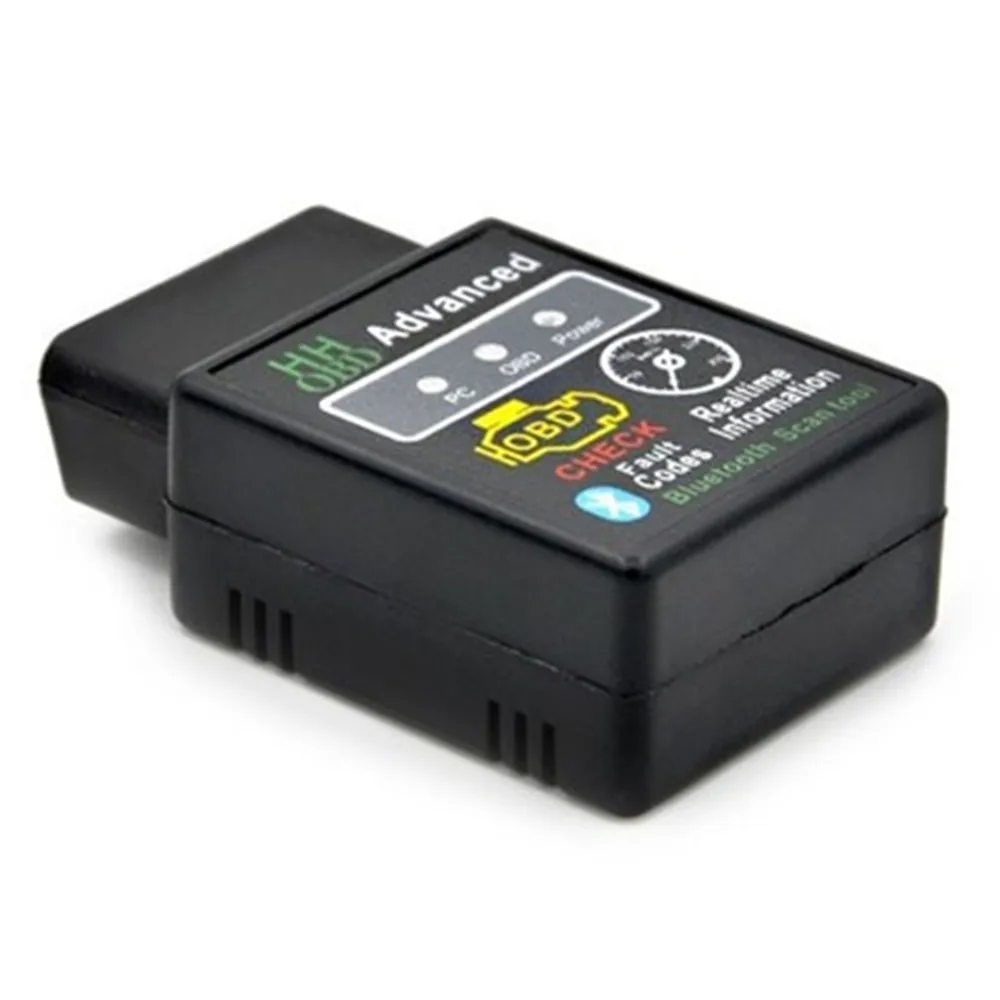

Mini ELM327 Scanner V2.1 OBD2 Easy to Diagnose Car Code Reader Android Torque BUS Check Engine Professional Automotive Scanner

1.This is a vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.
2.OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.
4. To uninstall the program, simply ｄｅｌｅｔｅ the entire contents of the folder ｗｈｅｒｅ the program resides.
5.The software supports four platforms - For DOS/Windows/Android. This product is a non-oem, generic product.
Notice: This device can't work with IOS system.

Mini Bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols:

bull Works with all OBD-II compliant vehicles
bull Wireless (Bluetooth)
bull Software included for Palm, PDA
bull Software included for Windows PC
bull Software included for Windows Smartphone
bull Supports ISO 9141, KWP2000
bull Supports SAE J1850
bull Supports CAN bus

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Specification:

Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM
SAE J1850 PWM (41.6 kbaud)
SAE J1850 VPW (10.4 kbaud)
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
Device type: Car bluetooth read interface scanner
Interface type: Auto ELM327 V1.5 interface

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Free Software:

1. Scantool.net
2. GM Mode 22 Scan Tool by Terry
3. OBD Gauge for PalmOS and Pocket PC by Dana Peters
4. OBD Logger by Jonathan Senkerik
5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
6. obd2crazy.com
7. OBD2 Scantool by Ivan Andrewjeski
8. OBDII for ELM322 by David Huffman
9. pyOBD by Donour Sizemore for MacOSX and Linux
10. RDDTC by Pete Calinski
11. Real Scan by Brent Harris
12. ScanTest for Pocket PC by Ivan Ganev aka a-ser
13. OBD by WDT

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others

Package Including:

1pc x ELM 327 OBD HH Mini Bluetooth V2.1
1pc x CD Driver
