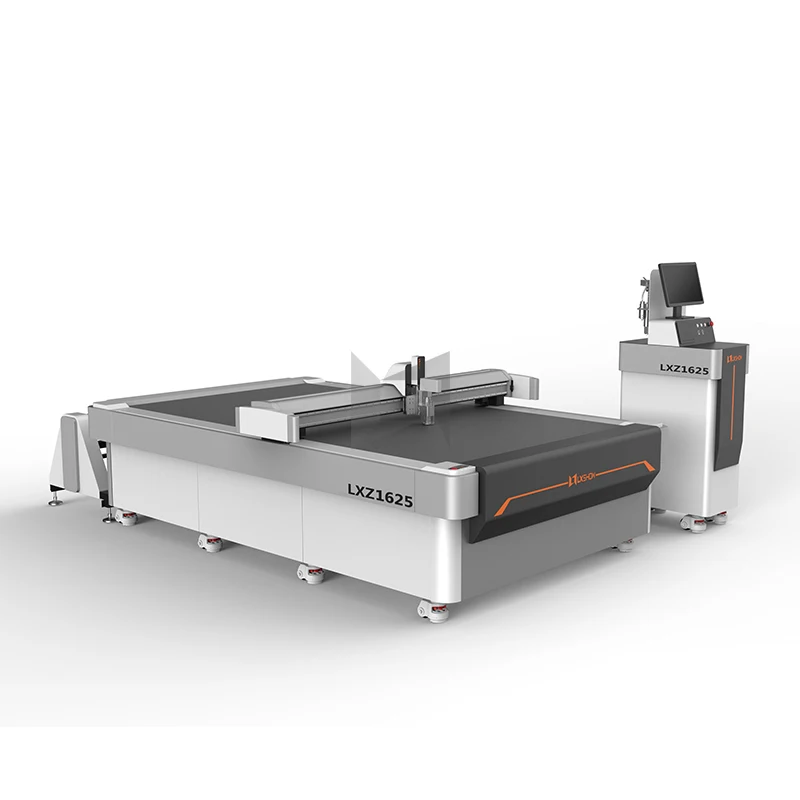

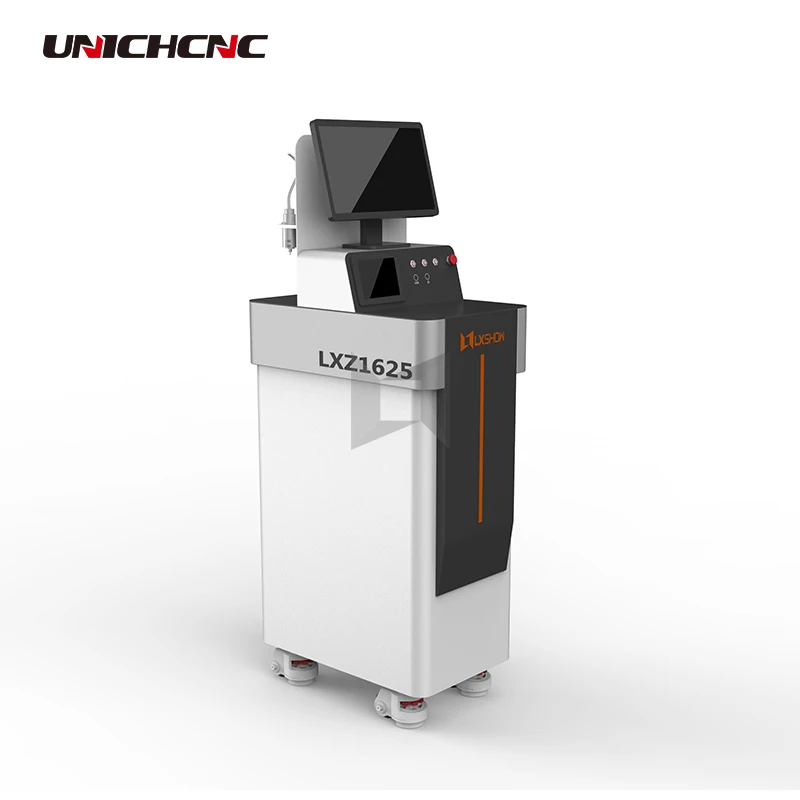

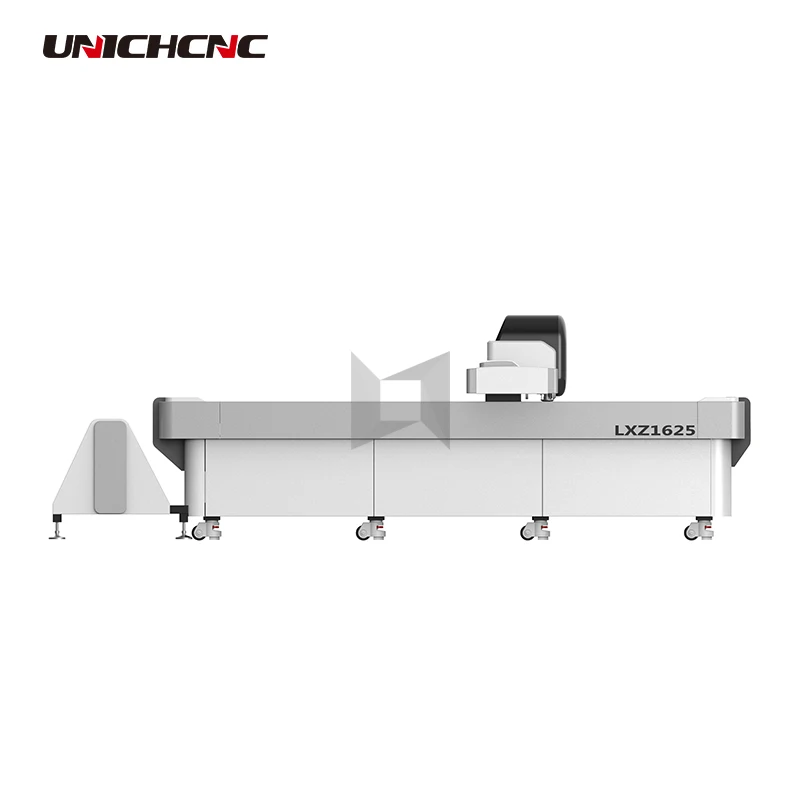

  Cross red light positioning 1625 1816 1625 knife cutting machine cnc vibrating

Digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam board,rubber, cloth, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Features :

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

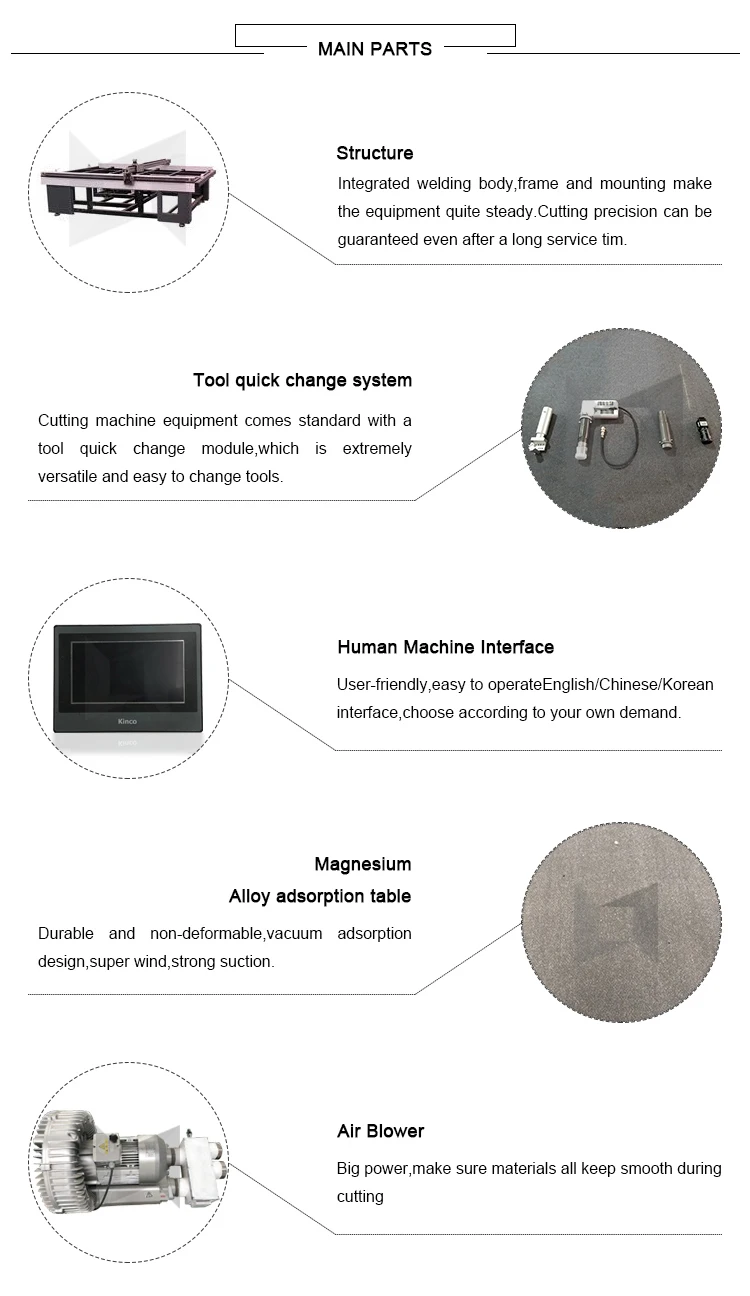

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

Model

LXZ1625

LXZ1816-A

  LXZ1625-A

Working area

1600×2500mm

1800*1600mm

    1600×2500mm

Machine size (mm)

2150*3500*1350

2400*2150*1350

2200*3500*1350

Rated power

11KW

11KW

    11KW

Fixed mode

flat plate table

flat plate table

Auto feeding type table

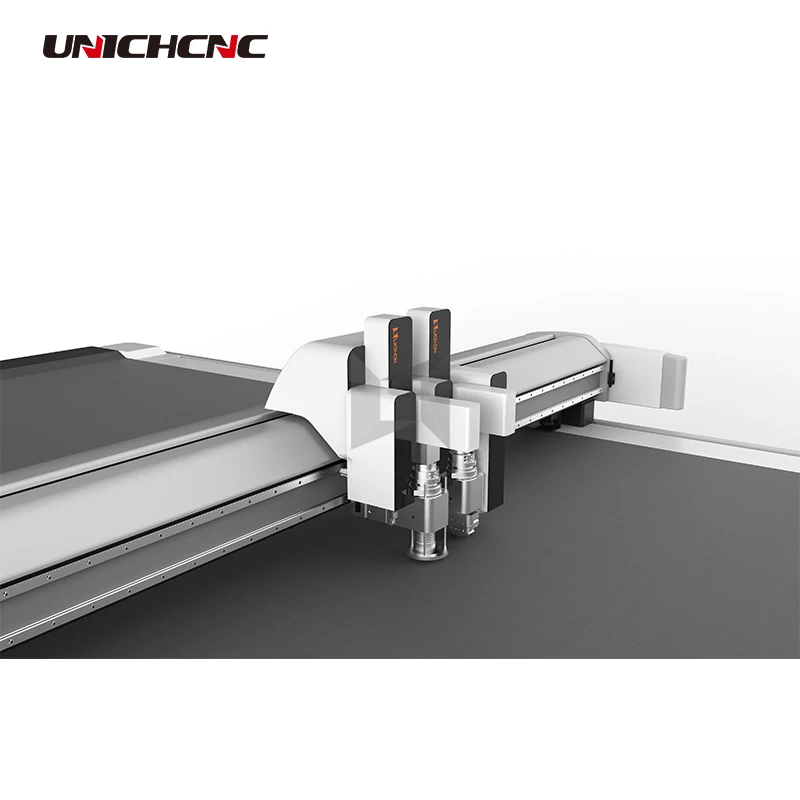

Multifunctional head

Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.

Tool configuration

Multiple cutting knives

Safety device

 Using infrared sensors,  responsive, safe and reliable.

Translational

 velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

≤22mm(according to different cutting materials)

Cutting materials

Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber

 Repeated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Digital servo motor, linear guide, synchronous belt, ball screw)

Instruction system

HP-GL compatible format

Voltage

380V±10%

Other configuration

Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump

(We can customized machine production as your requirements)

Machine Weight:KG

1600

1600

1800

JINAN UNICH MACHINERY CO.,LTD

Is established in July 2004 ,owns more than 500 square meters of researching and office space,

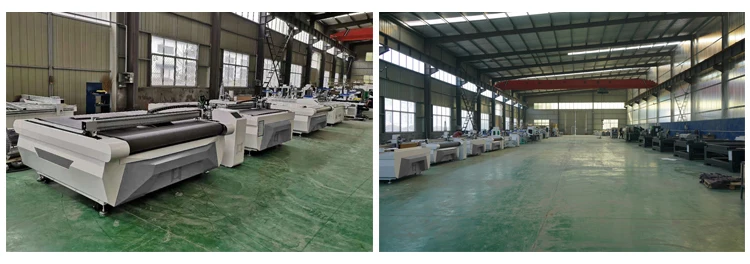

more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,American FDA certificate and are certified to ISO 9001. Products are sold to USA, South

east Asia,Europe,Canada, Australia,  Africa etc,more than 120 countries and areas, and supply

OEM service for more than 30 manufactures.

Our Products includes All kind of

1. Cnc oscillating knife cutting machine.

2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.

3. Fiber cutting machine.

4. Plasma cutting machine.

5. Cnc router machine.

6. Co2 laser machine and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

1).Q: I am not sure if this machine suitable for my work?

A: Don't worry, just tell me your working materials, max working area and
cutting thickness, then I will recommend you the most suitable machine for you.
2).Q:I am worrying about the service and operation of your machine?
A: Don't worry, if there is anything wrong with your machine within the
guarantee time, we will change a new one for you. And we will provide with the
English operation manual and video for your reference.
3).Q: How much will it cost shipping to my country?
A:Please tell me your nearest port or your location,then i will confirm to our forwarder.
Then I can tell you how much it will cost.
4).Q: Are you factory or trading company?
A:We are factory, which manufactures, with 14 years experience in this area.
Welcome to visit our factory whenever.
