300W DC-DC Converter Step-down Buck Boost Power 20A Adjustable Charger DU55 |

body,td,th { font-family: Verdana, Geneva, sans-serif; font-size: 12px; color: #636363; } body { margin-left: 0px; margin-top: 0px; margin-right: 0px; margin-bottom: 0px; } a{ color: #636363; text-decoration: none; } a:hover { text-decoration: none; color: #636363; } a:active { text-decoration: none; color: #636363; } em { color: #BD1A1D; font-style: normal; font-weight: 700; } 300W DC-DC Converter Step-down Buck Boost Power 20A Adjustable Charger DU55 Features:
Scope of application: high power LED constant current drive, battery charging (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, battery pack charging, solar panels, wind turbines
Input voltage: 6-40VDC
Output voltage: continuously adjustable (1.2-35VDC) for longer than 32V (applicable for applications where the input voltage is higher than the output voltage cannot be boosted)
Output current: maximum 20A for 15A for a long time (power tube temperature exceeds 65 degrees, please add fan cooling, high voltage output, please derate)
Current limiting range: 0.2-20A (adjustment) module over 65 degrees, please add a fan.
The lowest voltage difference: 3V
Working frequency: 150KHZ
Conversion efficiency: up to about 96% Efficiency is related to pressure difference and usage environment
Output ripple: Ripple around 50mV (no noise) 20M bandwidth (for reference only) Input 24V measured
Working temperature: -10 to +75 Celsius) (Please pay attention to the power tube temperature for actual use. If the temperature is too high, please use heat dissipation or derating)
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
Output short circuit protection: There is (instantaneous protection) constant current (current constant current value cannot be short-circuited for a long time)
Input reverse connection protection: none,
Output anti-reverse perfusion: None, for the load self-charged or inductive load requires an external diode,
Wiring method: terminal block

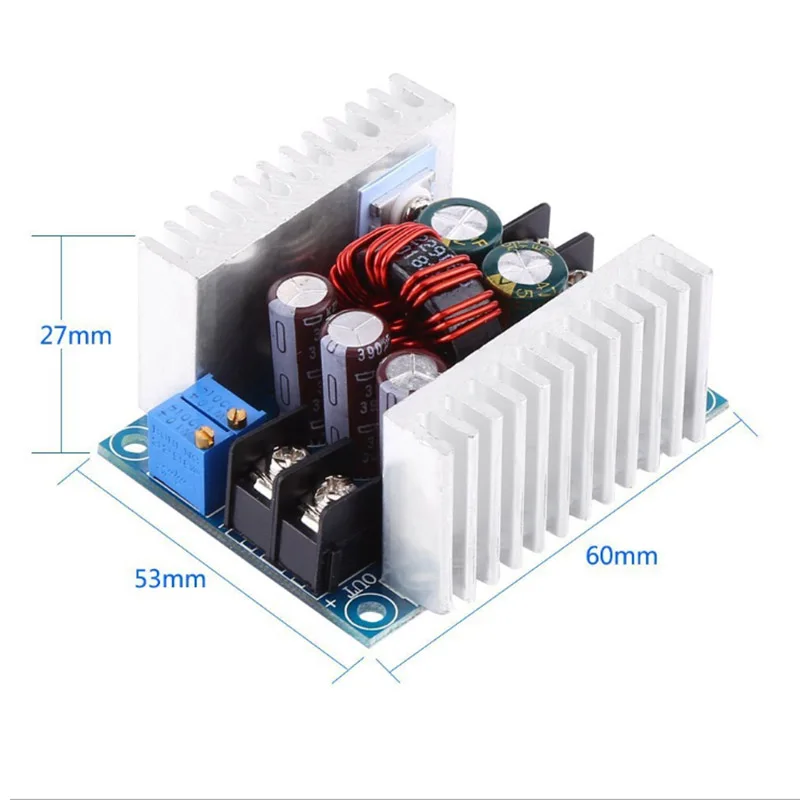

Module size: 60*53*30MM



1 x Module
