According to the provisions of China’s national standard GB2470-81, the capacitor named product model generally consists of the following four parts:

Part I: The letter represents the name, the meaning of C is a capacitor.
Part II: with letters material.
Part III: numerical classification.
Part IV: The digital serial number.

For example: “CBB65” Capacitor
C – meaning Capacitor
B – meaning the Dielectric is a non-polar organic film
B – meaning the Dielectric material is polypropylene
65 – meaning P2 Anti-explosion metal capacitor can motor run capacitor.

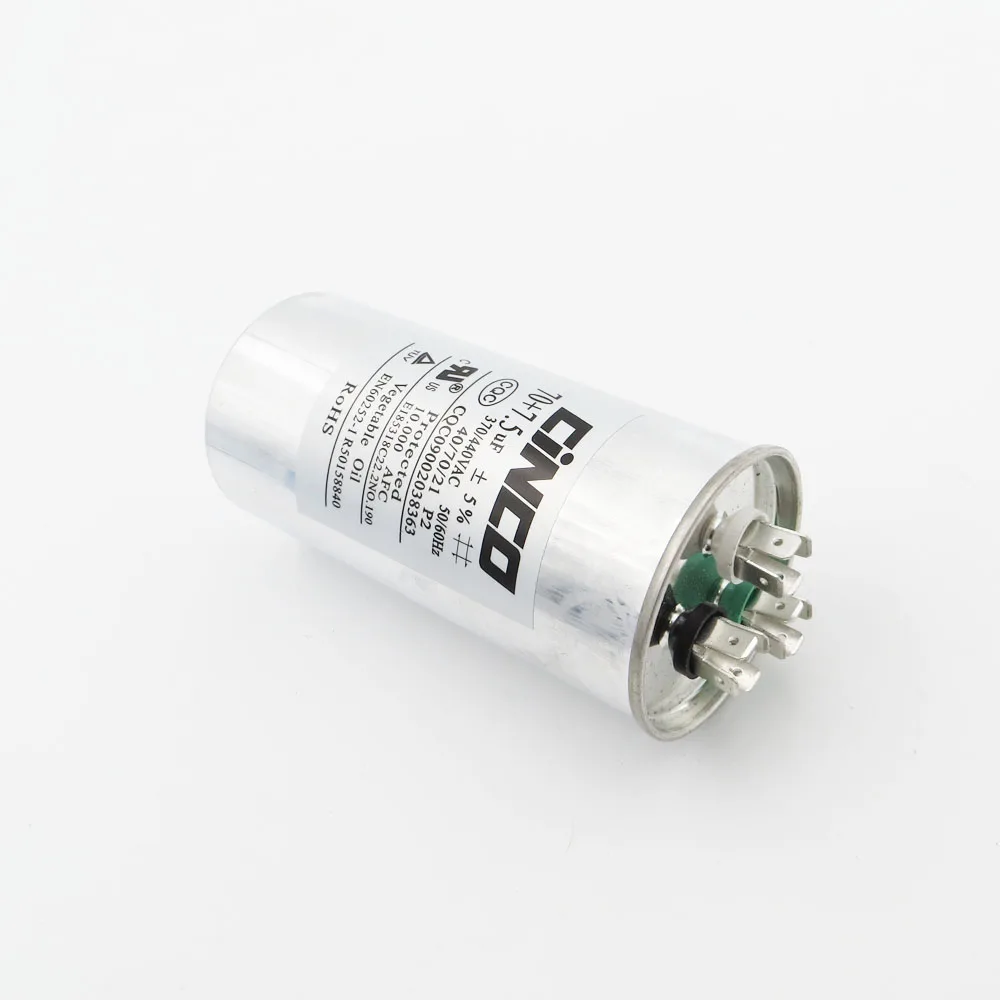

CBB65 Capacitor is type for Metallized Polypropylene Film Capacitor, Metal Case P2 Motor run capacitor Round Case or Oval case.CBB65 Capacitor is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healingcharacteristic and long life-span, it is widely used for air-conditioners, refrigerators, generators, compressor and HVAC system.

1) Dielectric: polypropylene film
2) Aluminum Round & Oval can
3) Oil filled capacitor
4) Self-heating properties
5) Low dissipation factor
6) Explosion proof device
7) Highest safety level P2 safety class to IEC 60252-1
8) High insulation resistance
9) Terminals
2+2 pins 6.35mm x0.8 250#
4+4+4 pins 6.35mm x0.8 250#
10) Mounting parts (optional) Threaded stud at bottom of can (M8, max.torque=5 Nm)

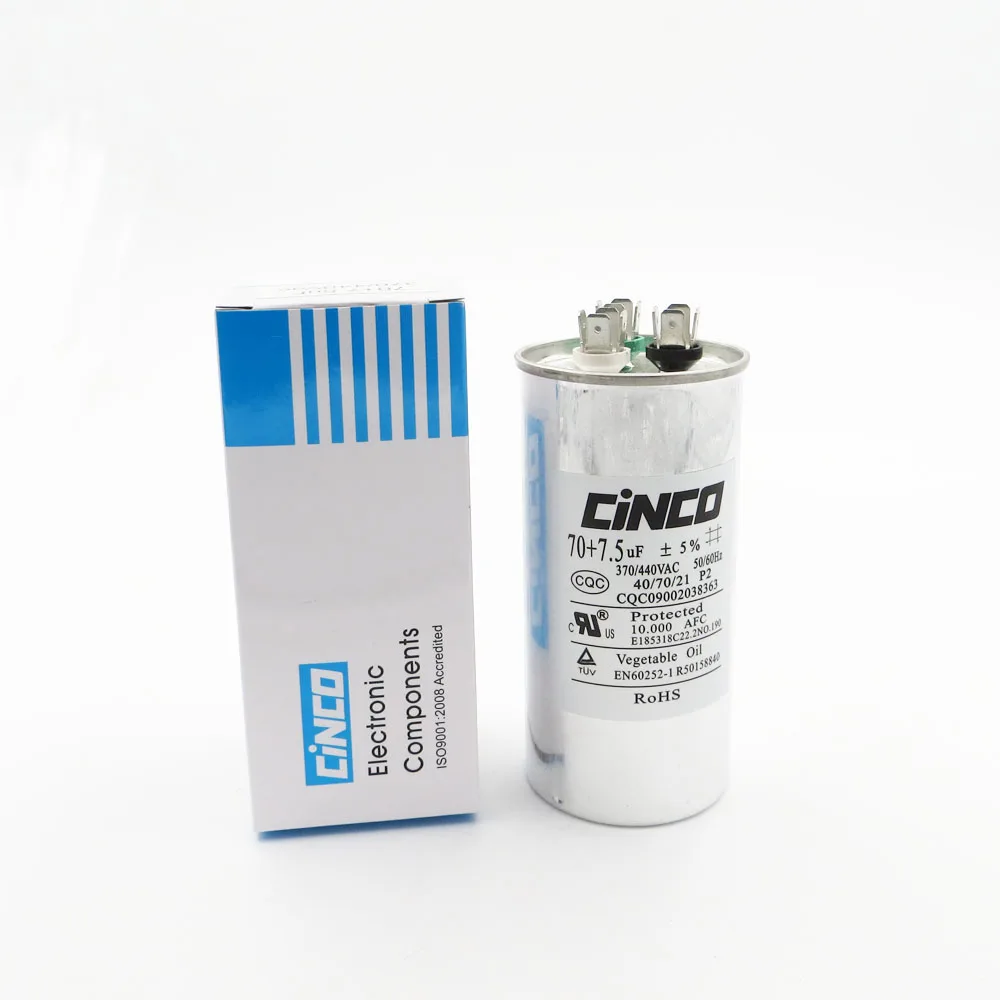

1pc x 70+7.5uF 370/440V CBB65 Motor Run Capacitor with color box
