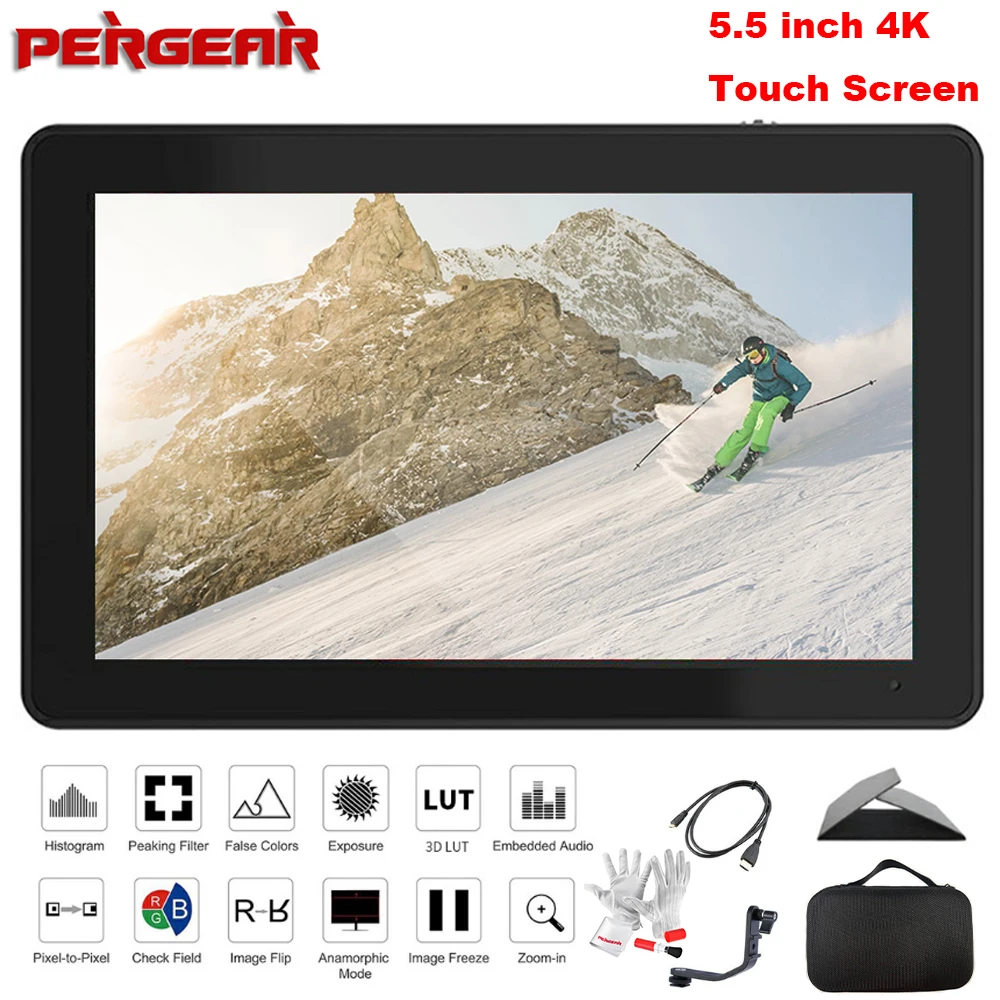

PERGEAR A6 PLUS 5.5" 4K HDMI In & Out Capacitive Touchscreen LCD On-Camera Monitor with 3D LUT

Description:

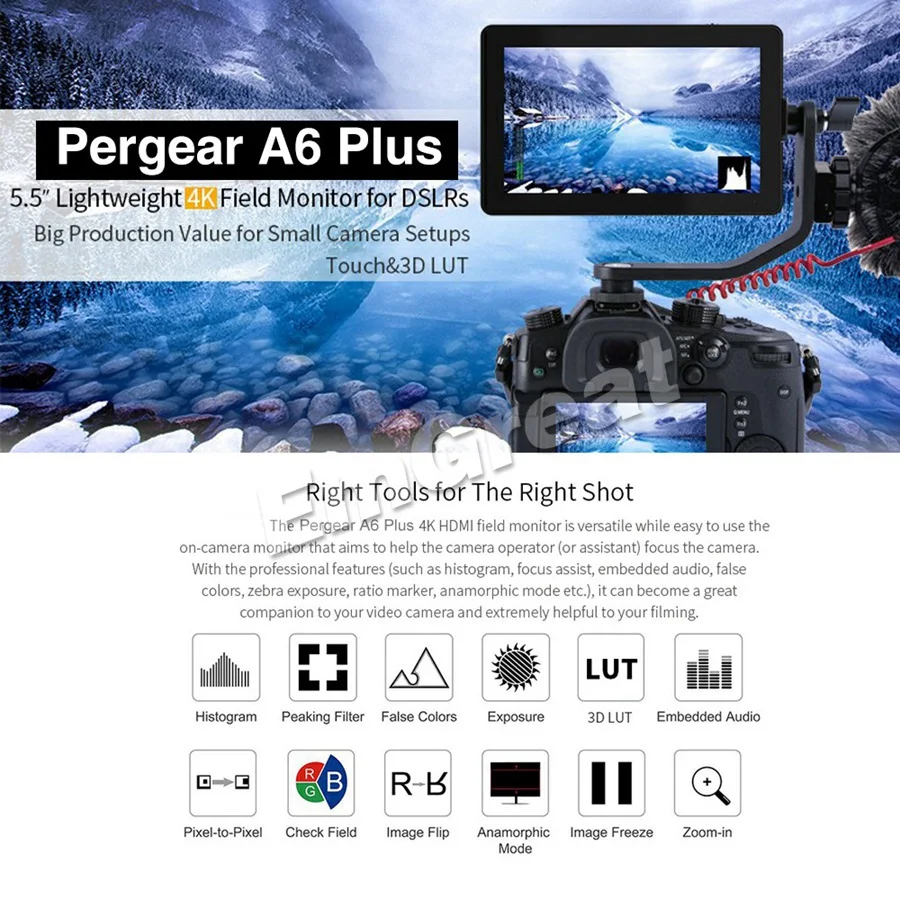

PERGEAR A6 PLUS 5.5" 4K HDMI field monitor is versatile while easy to use the on-camera monitor that aims to help the camera operator (or assistant) focus the camera. With the professional features (such as histogram, focus assist, embedded audio, false colors, zebra exposure, ratio marker, anamorphic mode etc.), it can become a great companion to your video camera and extremely helpful to your filming.

Features:

1. OCR Fully Fitted Screen Design

PERGEAR A6 PLUS with OCR full-fit technology, High-strength, scratch-resistant, impact-resistant glass.

2. Custom 3D LUT Import

Allows you to load 3D-LUT files on NLE software (such as Davinci Resolve) via USB flash drive and display your LUT on PERGEAR A6 PLUS Once the LUTs are synchronized in the display, you can change them in production easily.

(The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency.)

3. 1920X 1080, Bright and Vibrant Images Anywhere

PERGEAR A6 PLUS is a highly compact 5"monitor at a 16: 9 aspect ratio. The Full HD1920 x 1080 panel on the PERGEAR A6 PLUS is amazingly clear, packing 440 pixels per inch. The high-resolution LCD display shows bright, clear images-making it an ideal monitor for the discerning DSLR user. It also features 450cd/m 2 backlight and high 1000:1 contrast ratio, which facilitates the on-screen image to be a more vibrant, more accurate rendition of what the camera sensor sees.

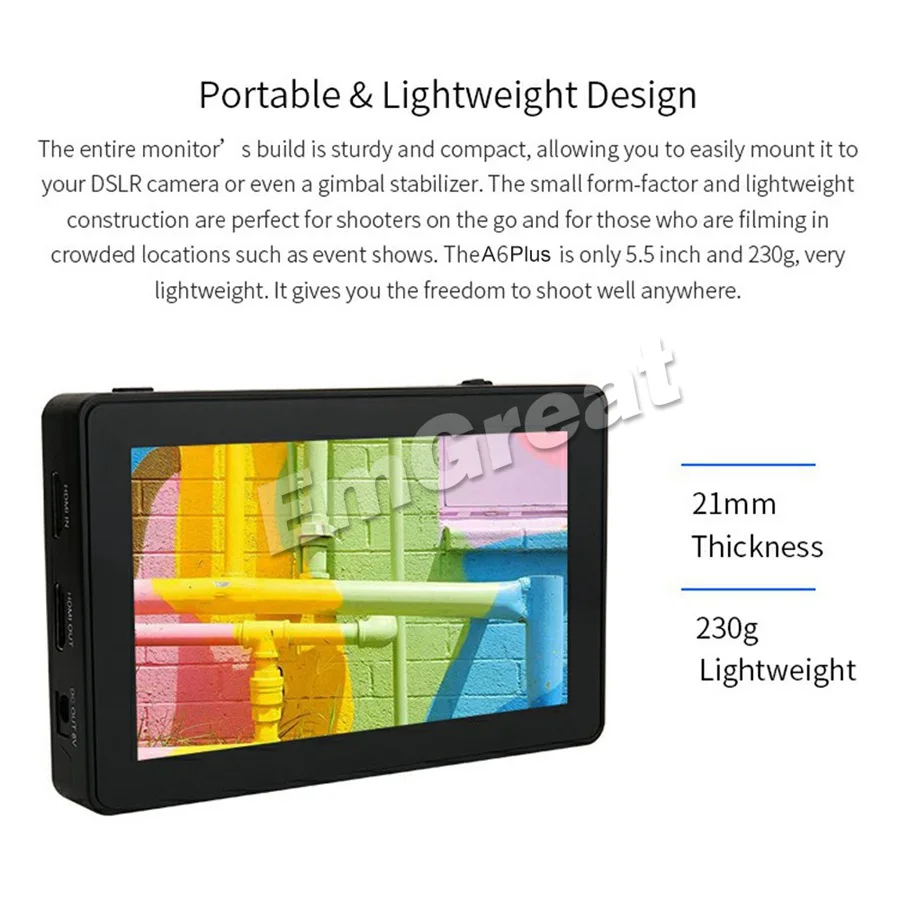

4. Portable Lightweight Design

The entire monitor s build is sturdy and compact, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer. The small form-factor and lightweight construction are perfect for shooters on the go and for those who are filming in crowded locations such as event shows. PERGEAR A6 PLUS is only 5. 5 inch and 230g, very lightweight. It gives you the freedom to shoot well anywhere.

5. IPS Pin-Sharp Picture Quality

With a stunning 160 degrees viewing angle, you can get the same vivid picture from wherever you are standing - great for sharing the video from your DSLR with the whole film crew.

6. Enjoy Full-Screen Touch Operation

With the touch screen and top knob design, PERGEAR A6 PLUS monitor allows you to operating easily without a button during busy shooting. Touch the screen to operate instantly, adjusting the monitor is no longer cumbersome and improves the efficiency of on-site shooting.

7. 4K HDMI Input Loop Output

PERGEAR A6 PLUS has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

4K HDMI Format Supports:4096X2160p24Hz/3840X2160p(30/29.97/25/24/23.98H2)

8. Multiple Install Way

To convenient the various angles monitoring, PERGEAR A6 PLUS features standard (3)1/4-20 mount points (top, bottom, &right side) for attaching it to cameras and rigs. Using the 1/4-inch hole, you can sit on a table using the built-in kick stand or securely attach it to the top of your camera as the ultimate HD viewfinder.

9. DC Output

Use PERGEAR A6 PLUS to power your DSLR or mirrorless camera. PERGEAR A6 PLUS is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the PERGEAR A6 PLUS provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the PERGEAR A6 PLUS extends camera run-time, while providing a more usable display. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

10. Flexible Dual-purpose battery plate

Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.

Specification：

PERGEAR A6 PLUS

Display

Screen Size:

5.5" IPS

Touch Screen:

Capacitive Touchscreen

Display Colors:

16.7M (8 bit)

Resolution:

1920x1080 pixels

Pixel Density:

440 PPI

Color Gamut:

90% NTSC, Rec.709 Color Calibration

Aspect Ratio:

16:9

Brightness:

500cd/m2

Contrast:

1000:1

Backlight:

LED

Adjustable Backlight:

YES

Viewing Angle:

85°/85°(L/R) 85°/85°(U/D)

Connectors

Input Signal:

HDMI v1.4

Outputs:

HDMI, DC output

Audio:

3.5mm Stereo Out (headphone)

HDMI Input Support Format:

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), DCI 4K 4096×2160p (24Hz)

Power

SD Card Slot:

SD Card for LUT Loading, Firmware Upgrades

Power Out:

DC 8V to power camera with a separately available DC coupler

Power Consumption:

≤ 10W

Input Voltage:

DC7 ～24V

Battery Plate:

Dual-Purpose Battery Plate (NP-F and LP-E6)

Power Connector:

DC (5.5mm outer, 2.1mm inner)

General

Operating Temperature:

-20℃ ～ 55℃

Storage Temperature:

-30℃ ～ 65℃

Mounting Points:

(3) ¼-20 thread points (top, bottom, & right side), Tilt Arm is included

Unit Size:

148Lx93Hx21D (mm)

Unit Weight:

235g

Package Content:

1*PERGEAR A6 PLUS

1*Micro HDMI Cable

1*Sunshade

1*Tilt Arm

1*Manual
