- Mobile gantry table sculpture, carved objects does not limit the size of the height, can be placed directly on top of the work
- Aluminum material and acrylic simultaneously produced on a more solid look tall
- The software is easy to use, free upgrades. Software support Windows XP, WIN 7, WIN 8, WIN10
- We have assembled the machine into 2 parts: the base and the arm, you just need to install two parts together, and connect the cables. Then it's ready to use
- Adjust laser power via software. You can adjust the laser power via the software according to different materials, which perfectly meet most requirements of laser engraving

Material: aluminum
Iput voltage: AC 100V-240V, 50 / 60Hz
working voltage: DC 12V 3A
Engraving area: 24 x 17 cm (maximum)
Laser power: 500mW / 1000mW / 2500mW / 5500mw / 10000mw
Support image format: jpg, bmp, PXIG, GIF, ICO, png, gcode, etc.

This laser engraving machine is not available for the following materials:
Metals (regardless of thickness), stone, ceramics, jewelry, reflective material, colorless, transparent materials, soft materials.

This laser engraving machine can engrave the following materials:
Wood, plastic, paper, bamboo, horn, part of the cortex (purse), plastic phone shell, rubber stamp, photosensitive chapter, sponges, paper.

- In the process of using, please wear professional protective glasses.
- Forbid children to play.
- Suggested that the laser light in the case of focus, the power is too strong, do not use strong light to illuminate the skin.
- Avoid using flammable solids or gases to avoid fire or explosion.
- Metal, ceramic, glass, and stone cannot be directly engraved. Can be lacquered and engraved, the depth of engraving is limited to the paint surface.
- Drag the text or image to be printed directly into the software, and then adjust it to engrave it, just as easy as using a printer.

Model

LYBOT-ARM 2417/4036

Support

All windows system

Machine stuff

High strength arylic+aluminum alloy

Engraving area

240*170mm 400*360mm

Max height

No limited

Power

0.5W/1W/2.5W/5.5W/10W

Laser lifetime

10K hours

Max resolution

2265*2665

Net weight

2.5KG

Gross weight

5KG

Machine size

370*360*140mm/600*470*145mm

Package size

440*285*135mm/641*323*140mm

Support file

JPEG,BMP,JPG,PNG

1.Unique one arm design

2.Open printing area,no limitation on item height

3.Smart software,easy to operate,power adjustable

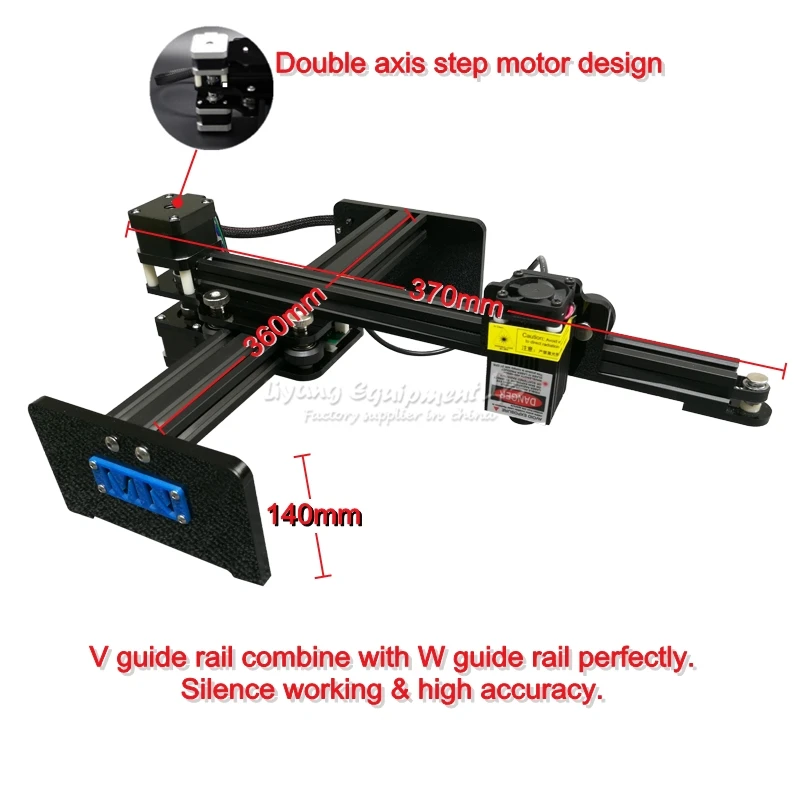

4.V guide rail with W guide rail,work silence,high accuracy

5.USB link,can coordinate deep or shallow

6.90% Assembled delivery,can use directly when got.(Just link 2 parts into 1 is ok)

Also can add rotary axis

If you have need you can contact me anytime
