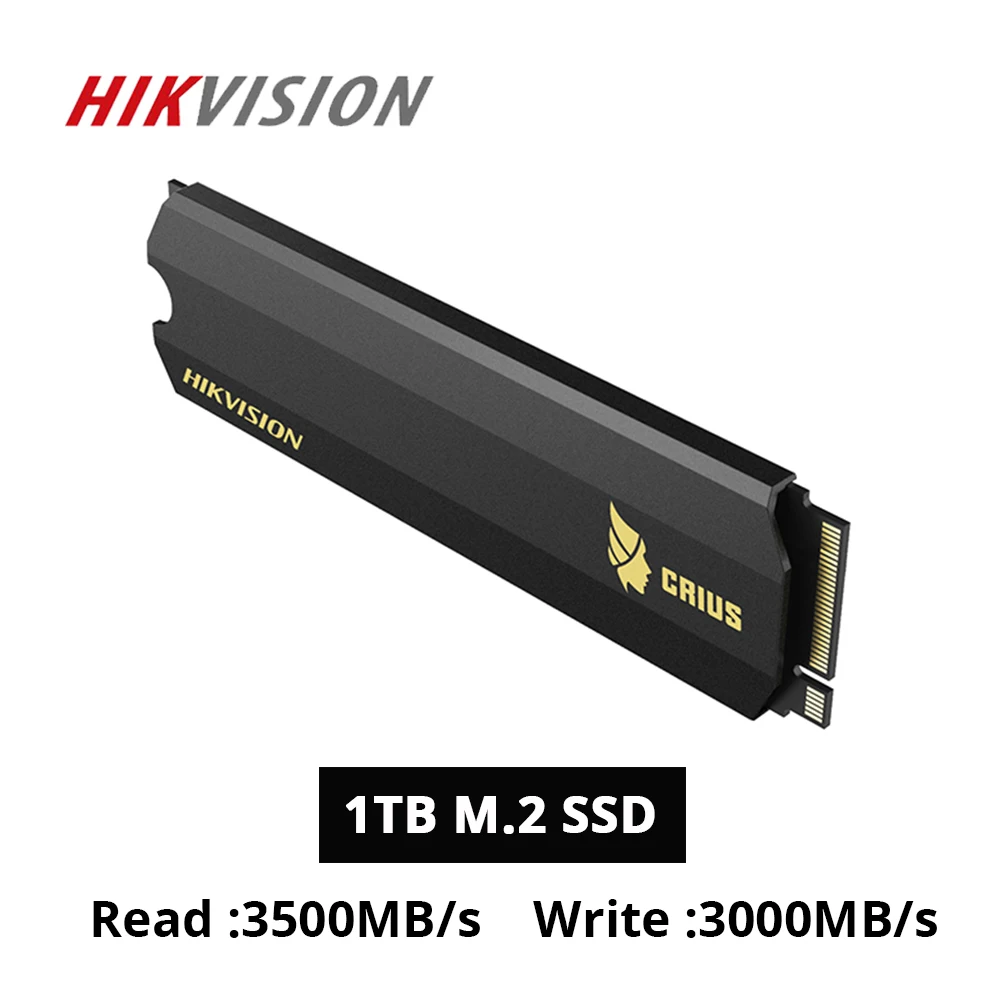

HIKVISION SSD M.2 1TB 512GB 3500mb/s For desktop laptop NVMe PCIe Gen 3 x 4 10 year warranty

Typical Application ● PC (laptop and desktop) ● Small-size proxy server Warranty ● 10 year warranty Features and Functions ● Supports M.2 NVMe PCI-e 3.0 X 4 ● Max. read speed up to 3500 MB/s Warm tips: ● HIKVISION M.2 SSD uses NVME protocol, PCI-e channel; please confirm whether the motherboard supports PCI-e 3.0 Nvme interface before purchasing this product. ● Windows 7 system does not have default NVMe driver , so win 7 system may unrecognized M.2 SSD. so need buyer to download and update the NVME driver installation on the Internet. ● We are recommend to install the Windows 10 operating system.

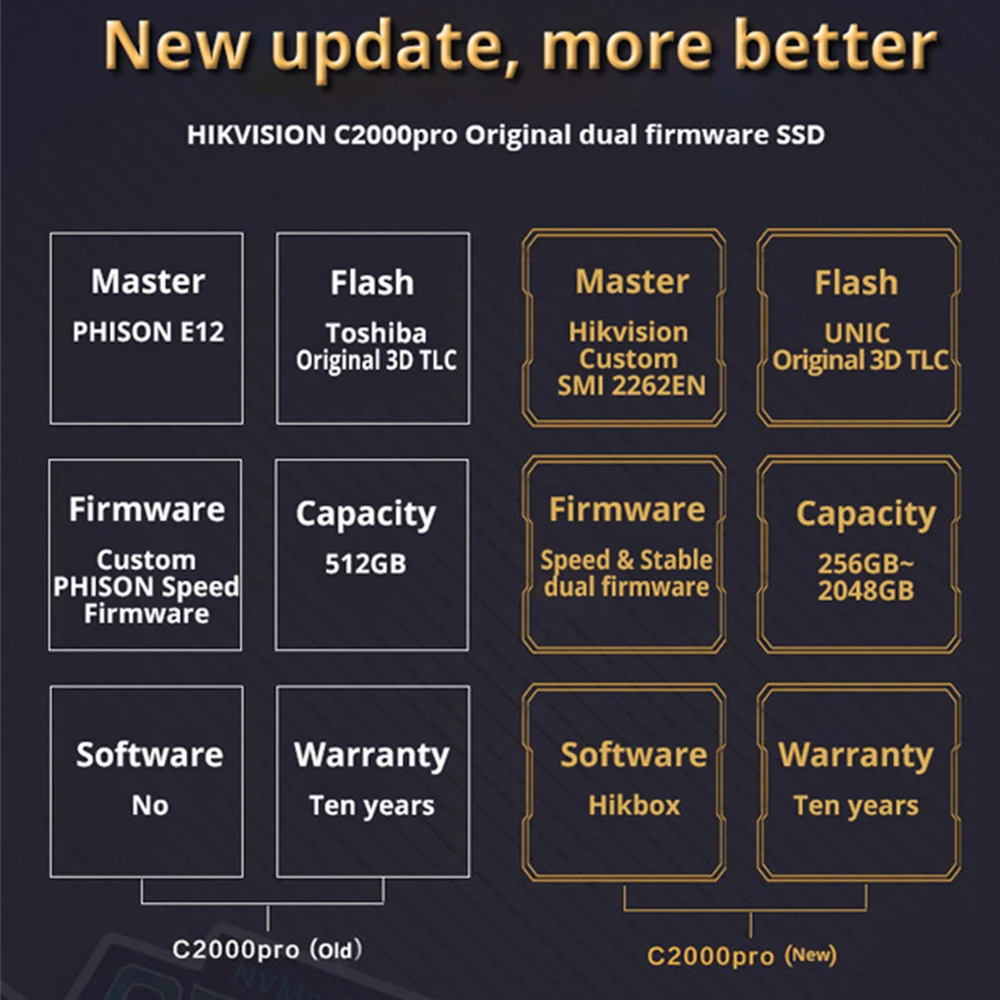

New update, more better

C2000 Pro(Old): Controller: Phison E12 Nand Flash : Toshiba Original TLC 3D NAND Firmware: Speed firmware Capacity: 512GB C2000 Pro(New): Controller: SMI2622EN Nand Flash : UNIC Original TLC 3D NAND Firmware: Speed & Stable dual firmware(Switch at any time) Capacity: 256GB 512GB 1024GB 2048GB

C2000 pro (new ) dual firmware

The firmware of the new C2000 PRO have two types, which the "FT" suffix is priority High-speed firmware and the "ST" suffix is priority stable firmware. The factory default is the priority speed firmware and can be replaced at will in the Toolbox. The process of brushing the firmware is about One Minute, no need to restart, the experience is very good.

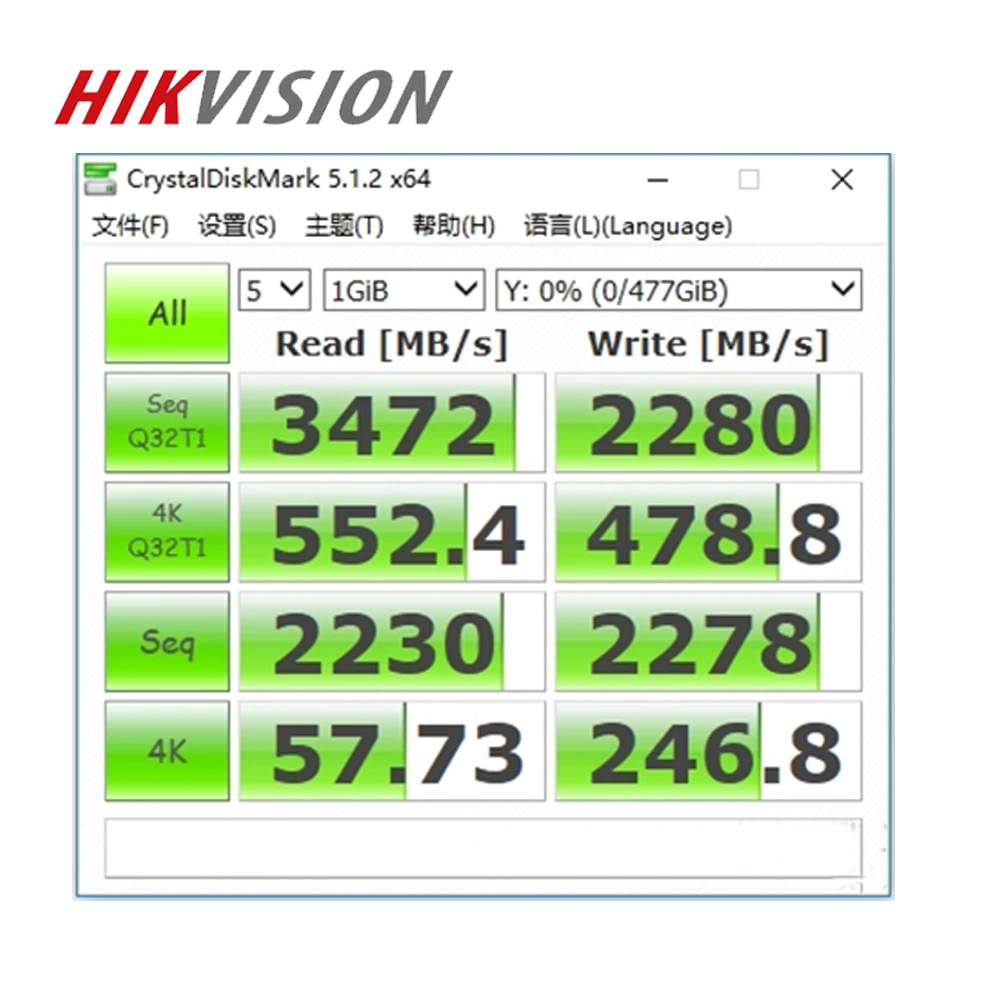

Test platform:

CPU: i7-8086k @5G Motherboard: ROG M10H Memory:Trident Z RGB DDR4 3200MHz First , test the C2000 PRO 2TB SSD with CrystalDiskInfo, it is runs normally on PCIe 3.0 X4, NVMe 1.3 standard

Reminder

The SSD test speed of laboratory is specific test in specific environment, and the test results may be a little different with the customers . Hope you can understand. The speed of the SSD not only depends with SSD itself, also will be effect by other softwares and configurations of the computer, such as the motherboard and CPU. . .

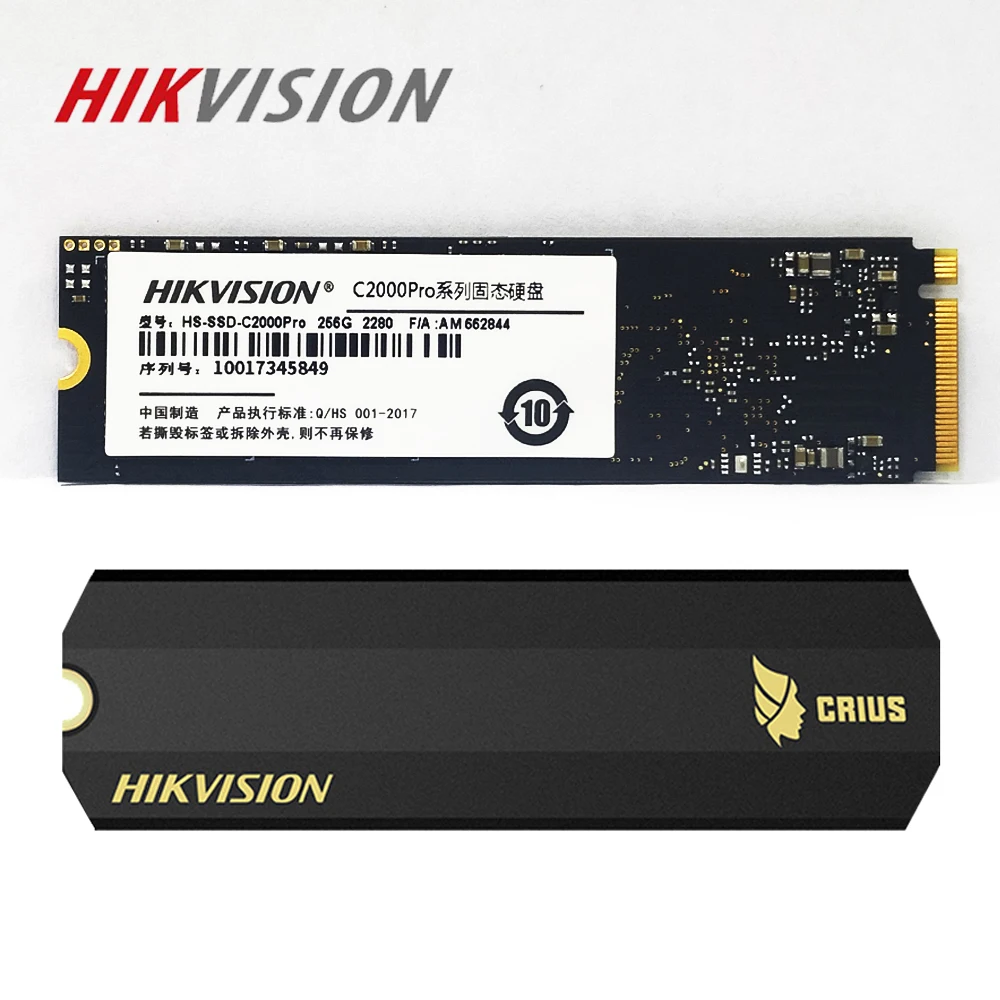

C2000 Pro (New) PCB board details

Control is SM2262EN Model; Flash is the UNIC Original TLC 3D NAND; DRAM is Nanya DDR3 particle.

UNIC 3D-NAND TLC

The C2000 Pro uses the UNIC original 3D TLC with Hikvision custom SMI2622EN master, which is powerful and stable. NVMe max read / write speed of 3400MB/s and 3100MB/s. Advanced LDPC technology brings better error correction for TLC NAND and greatly increases service life.

Master Control: Hikvision custom SMI 2262EN

The SMI2262EN is an 8-channel high-performance PCIe 3x4 control chip with low-power design that combines hardware and software to take full advantage of PCIe3.1 and NVMe 1.3 SSD technology. It is equipped with NANDXtend error correction technology to greatly enhance the durability of 3D NAND data protection reliability.

Protect data

NANDXteng ECC technology (including LDPC decoding and RAID protection), the overall increase of 2D / 3D TLC NAND Write / P / E cycle. Extend SSD life and ensure data integrity, advanced the 2KB LDPC engine provides greater efficiency, decoding efficiency and correction capabilities, providing superior experience.

Protect data

End-to-end data protection, using parity codes to prevent Soft errors, ensuring that data is safe from end-to-end data transfer from the host platform to the flash memory. At the same time, to ensure data security, the PS5012-E12 supports AES 256-bit hardware encryption

C2000 pro New version

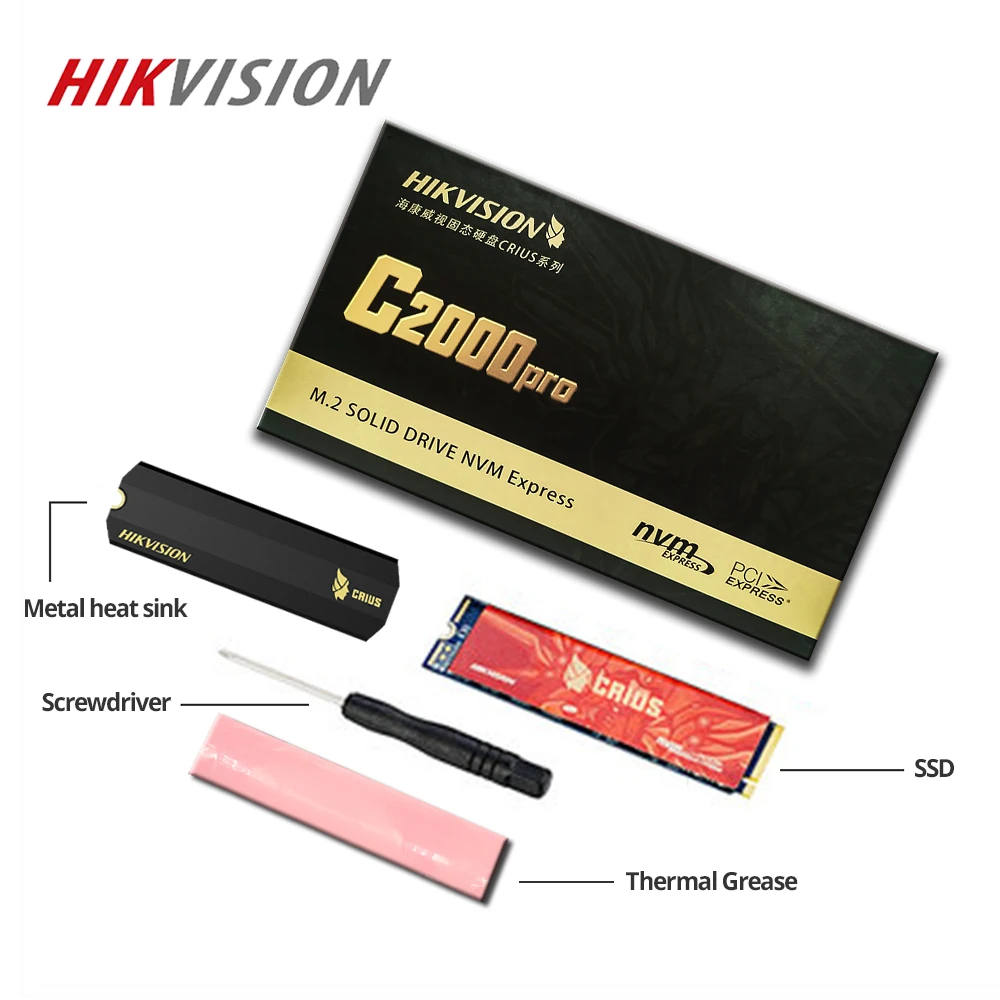

Consider that some buyers will be used to install on the laptop. HIKVISION M.2 SSD the metal cooling vest is not pre-installed,the advantage is that not necessary to remove the case and damage the SSD

FAQ

Q: Is the warranty period 10 years ? A: Yes ,10 years! Q: Can be use for desktop computer ? A: Yes. Can be used on desktops, laptops . Q: Is there have cache? A: Yes ,There have cache. Q: Can my laptop XXX model be use with this solid state? A: Need this laptop support nvme . Q: Can be use for Win 7 System ? A: Yes! C2000 Pro can be use for Win 7 . Windows 7 system does not have default NVMe driver , so need buyer to download and update the NVME driver installation . Q: Need remove the metal housing when installing? A: The original metal housing is separate and need the customer to decide whether it should be installed. Q: Does it have good heat dissipation with read/write speed so fast ? A: Yes. Our C2000 Pro SSD is equipped with a heat sink housing. Q:What is difference between C2000 pro old version and new version ? A: C2000 Pro(old): Controller: Phison E12 Nand Flash : Toshiba Original TLC 3D NAND Capacity: Only 512GB C2000 Pro(New): Controller: SMI2622EN Nand Flash : UNIC Original TLC 3D NAND Capacity: 256GB 512GB 1024GB 2048GB
