DC24V AC220V Linear Actuator Worm Gear Automatic Swing Gate Opener (photocells, lamp,button,gsm,keypad optional)

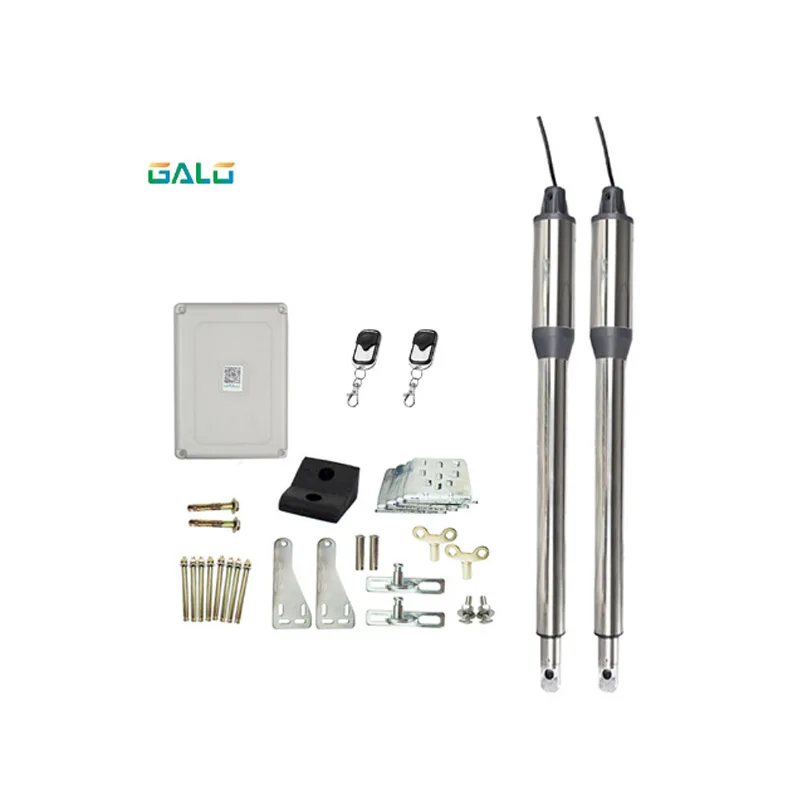

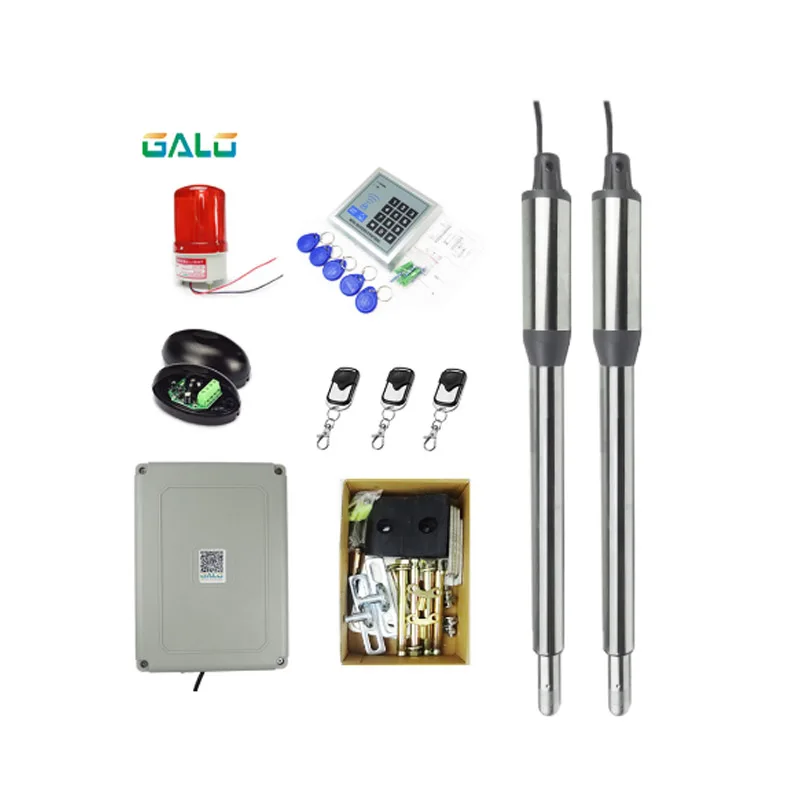

Purchase Notes:The price of the product determines the quality and service of the product. For the door of the home or factory, it is generally 200kg-400kg, so we choose the DC24V motor, which is a basic voltage. Of course, the input voltage is your home line. If you have any questions, I suggest to communicate with the seller first. packing list: kit 1:1 full set DC24V input motor with 2 pcs remote control kit 2:1 full set AC110~AC240V input motor with 2 pcs remote control kit 3:1 full set AC110~AC240V input motor with 3 pcs remote control kit 4:1 full set AC110~AC240V input motor with 4 pcs remote control kit 5:1 full set AC110~AC240V input motor with 5 pcs remote control kit 6:1 full set AC110~AC240V input motor with 6 pcs remote control kit 7:1 full set AC110~AC240V input motor with 7 pcs remote control kit 8:1 full set AC110~AC240V input motor with 8 pcs remote control kit 9:1 full set AC110~AC240V input motor with 9 pcs remote control kit 10:1 full set AC110~AC240V input motor with 10 pcs remote control kit 11:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp kit 12:1 full set AC110~AC240V input motor with 4 pcs remote control 1 sensor photocells 1 lamp kit 13:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp 1 Wired password keyboard 5ps tags kit 14:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp 1 Wired metal keyboard 5ps tags 1 Exit button kit 15:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp 1 GSM 5024 kit 16:1 full set AC110~AC240V input motor with 3 pcs remote control 1 sensor photocells 1 lamp 1 Wired password keyboard 5ps tags kit 17:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp 1 wireless password keyboard kit 18:1 full set AC110~AC240V input motor with 2 pcs remote control 1 sensor photocells 1 lamp 1 wifi Outdoor camera Produrct feacture： 1.Easy to install and operate,and easy to connect wired. 2.Open and close the gate by remote control and keypad. 3.Time promotation function.when open gate,speed is slow,then a little quick,and when close the door,speed is slow again. 4.In case of power failure,release the clutch easily,and can operate the gate manually. 5.Stop working when gate meets with obstacle. 6.Rod's max travel is 300mm. 7.Motor's Poweer : 24VDC 40W 8.Running Speed :1.6cm/s 9.Run travel : 300mm 10. Max single leaf gate width: 2.5M 11.Max single leaf gate weight: 300KG Standad kit components： ①2* Arms Gate Openers(drive motor) ②1* Control Box ③1* A set of Hardware Accessories ④1*Rubber stopper 2* Remote Control 1* Manual In some countries the cold climate, we add antifreeze oil inside the motor, It can work in cold environment.

Solar power system Solar panel, solar charge controller and back up battery can make your motor operate with out traditional power supply. Battery Capacity: 12V 5AH Soalr panel Max. Power 20.0W Max. Voltage 17.0V Max. Cureent 1.18A Open Circuit Voltage: 21.6V

Photocell Features 1. The photocells should be installed at height of more than 20cm above the ground. 2. The distance between transmitter and receiver should be more than 50cm. Wireless Keypad Touch Sensor Bottons or Digital keys Compatible With Most Of Fixed Codes&Rolling Codes Two Channel Output LED Indicator&Backlight Security Lockout IP Rating 53

2G/3G GSM Controller 1. No call charges 2. Multipleapplications. 3. Secure. 4. Can be operated from anywhere, no distance limit. 5. Add or remove users by Simple SMS Text command. 6. Up to 99 authorized phone numbers can be configured. 7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows. According to the color kit picture above to choose the necessary accessories Aany question or you need DIY by yourself,please contact seller.If you are the installer of the gate, or your local dealer, welcome to contact the seller for cooperation, we deal at the best price

Produect feacture: Digital LED Menu brings a easy setting ,plug and play Availble to set pedestrian mode Adjustable working time Adjustable resistance sensitiv Adjust auto-closing time Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc. Custom rolling code makes the system more secure, high anti-theft performance

SWING GATE OPERATOR 1. 2 SIDE terminal is used for connecting any external device that operates double gate 2. COM terminal is COMMON used for connecting the “ground” of external devices 3. 1 SIDE terminal is used for connecting any external device that operates single gate 4. Swipe Card terminal is used for connecting any external devices that will operate to open the gate 5. COM terminal is COMMON used for connecting the “ground” of external devices 6. Infrared terminal is used for connecting photo electric sensor 7. 12V DC output is used for connecting photo electric sensor (Continuous output current
