10W Charging DIY Over-temperature Wireless Charger Module Circuit Board+Coil Mobile Phone Ultra-thin Fast PCBA Qi Standard | Мобильные

10W Charging DIY Over-temperature Wireless Charger Module Circuit Board+Coil Mobile Phone Ultra-thin Fast PCBA Qi Standard | Мобильные

Description:
100% brand new and high quality!

Specifications:

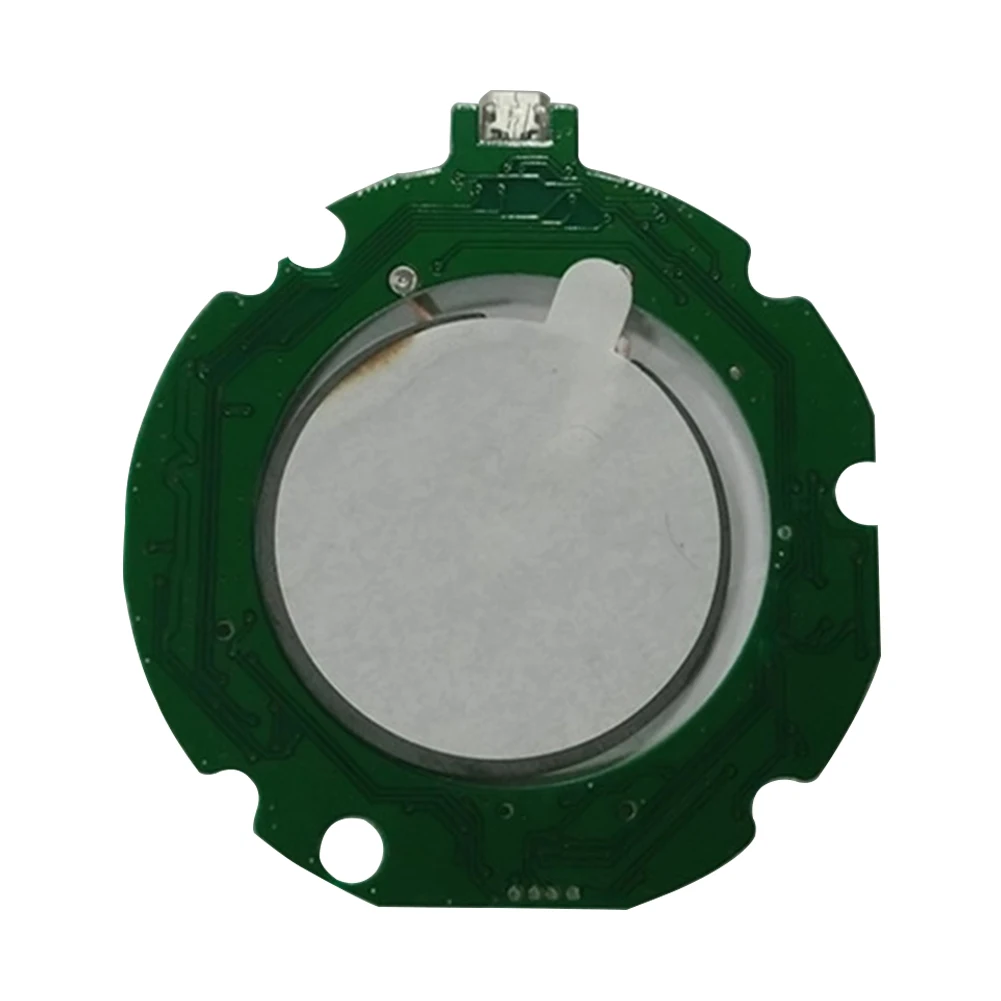

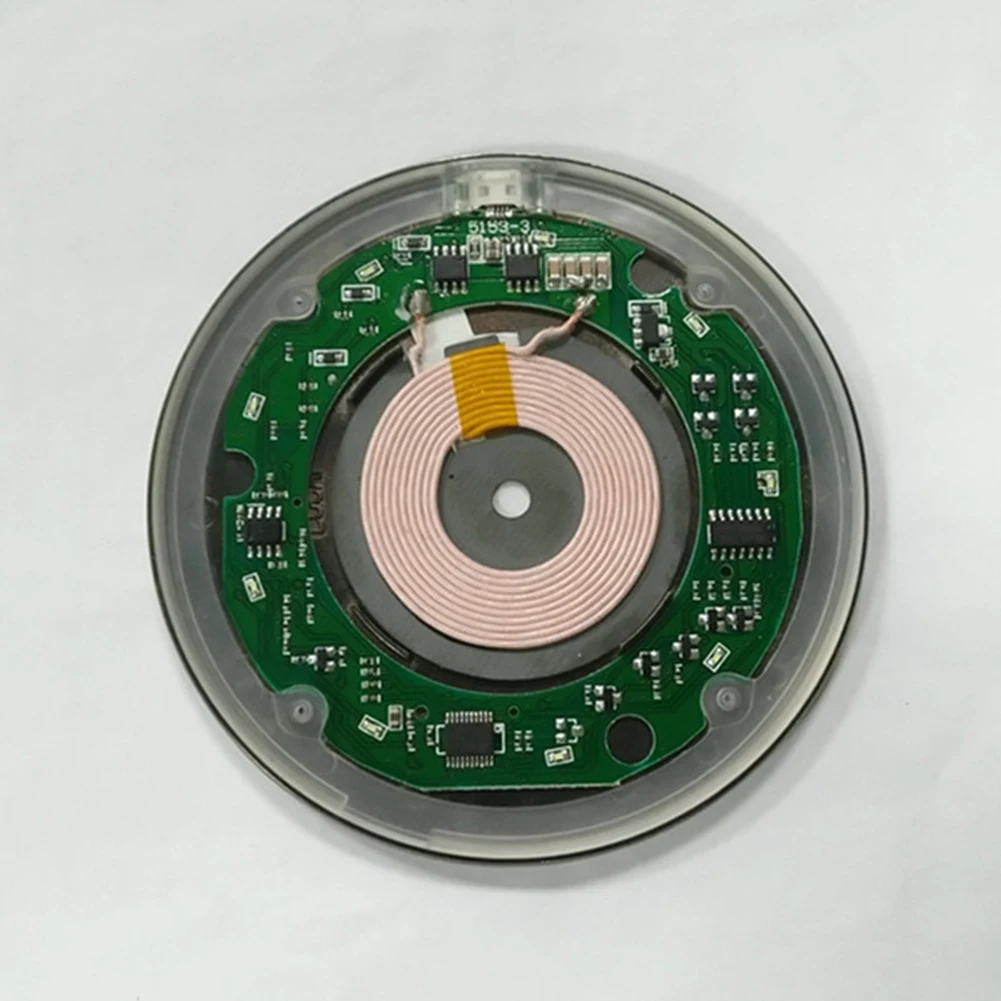

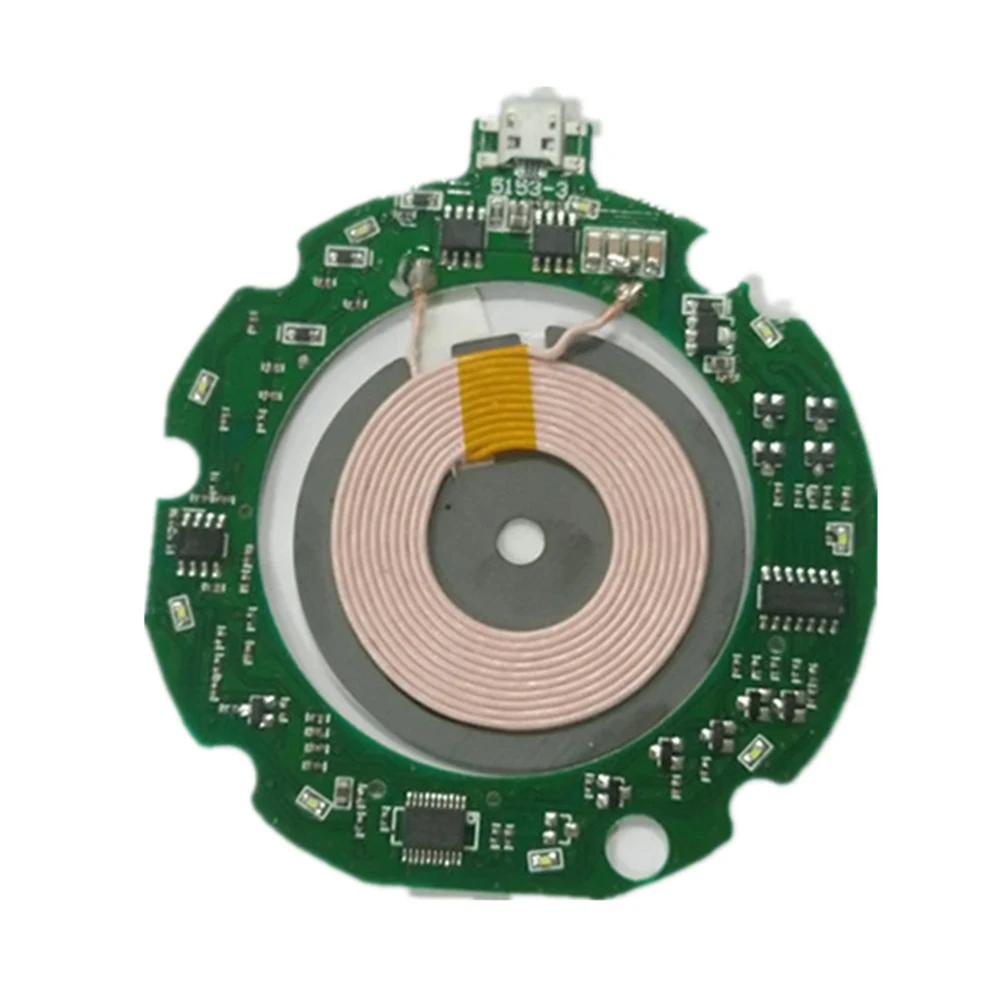

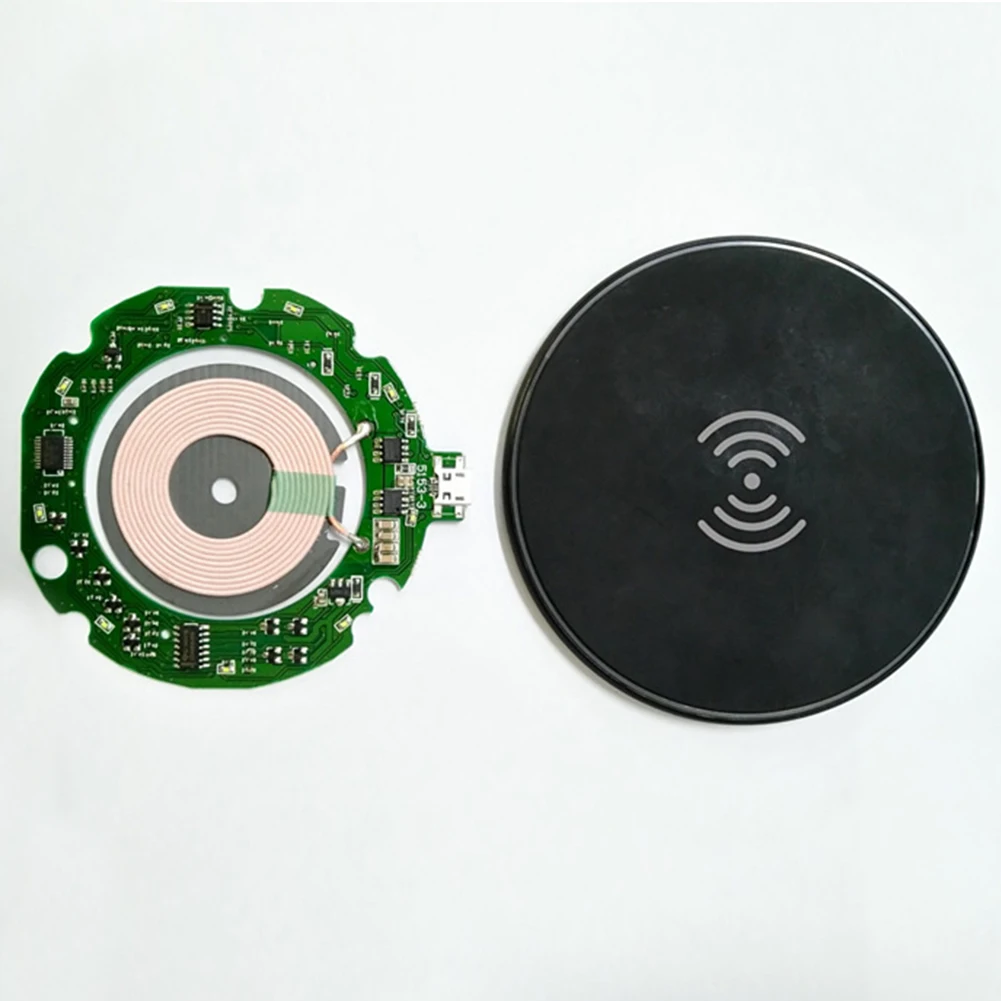

Item type: Wireless Charger PCBA Circuit Board with Coil DIY
Color: green.

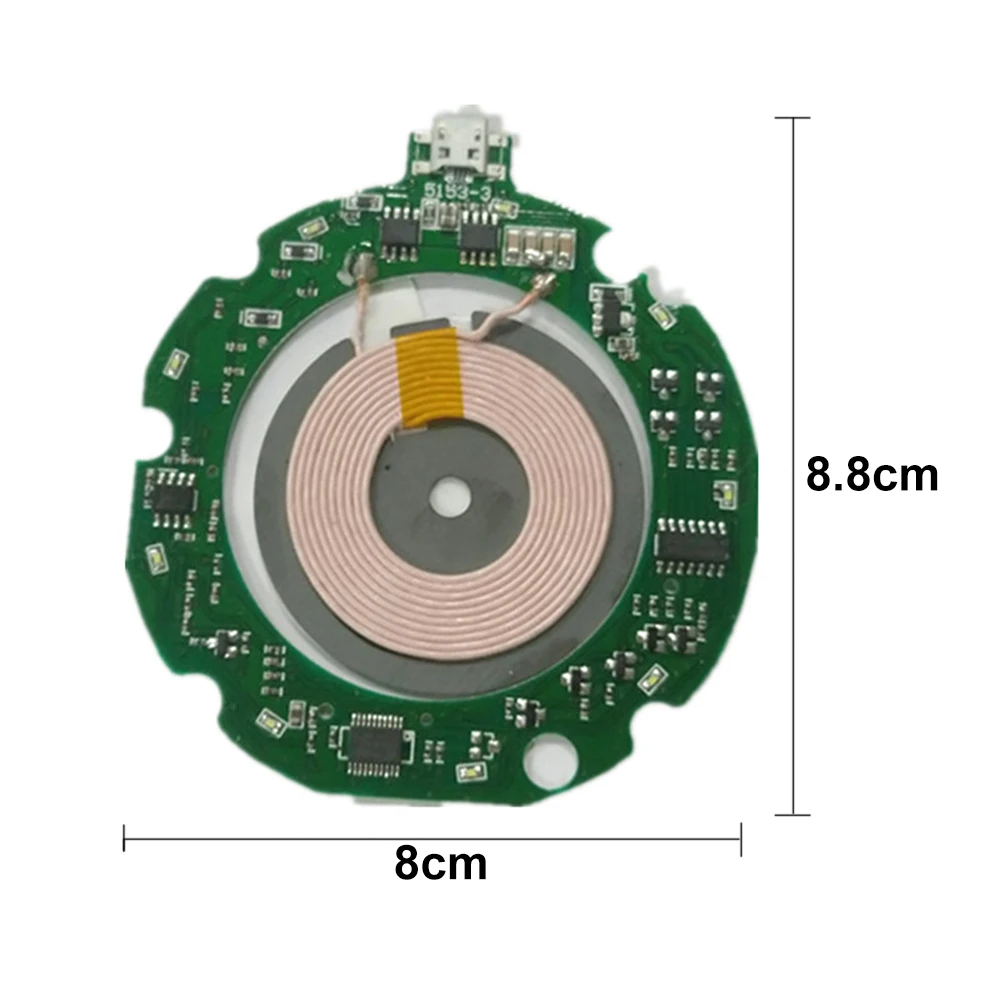

Size: approx. 8.8*8cm
Interface: Micro USB
Standby power: average power is less than 50 mW;
Conversion efficiency: greater than 73 %
Transfer distance: maximum 10mm, recommended transceiver distance 2 mm~4 mm
Product Certification: CE/FCC, compatible with QI.
Standards: Qi wireless charging.
Input voltage: DC9V1.5~2A, over this range of voltage alarm and stop charging;
Output voltage: 9V±0.1V;
Charging current: 1-2A
Charging power: max. 10 W
Over temperature protection: when the temperature is higher than 60 degrees, it will automatically stop charging for 1 minute, and then the temperature is lower, it will re-charge.
Over current protection: when the current is over 2A, it will automatically stop charging to avoid damage the electrical devices.
Certification: CE/FCC, compatible with QI certified standards; Standards: Qi wireless charging standard.

Package includes:
1 x Wireless Charger PCBA Circuit Board with Coil DIY

Notes:
Transition: 1cm=10mm=0.39inch
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
