1Pcs Mega 2560 R3 Ch340 + 1Pcs Ramps 1.4 Controller + 5Pcs A4988 Stepper Driver Module +1Pcs 12864 Controller For 3D Printer K

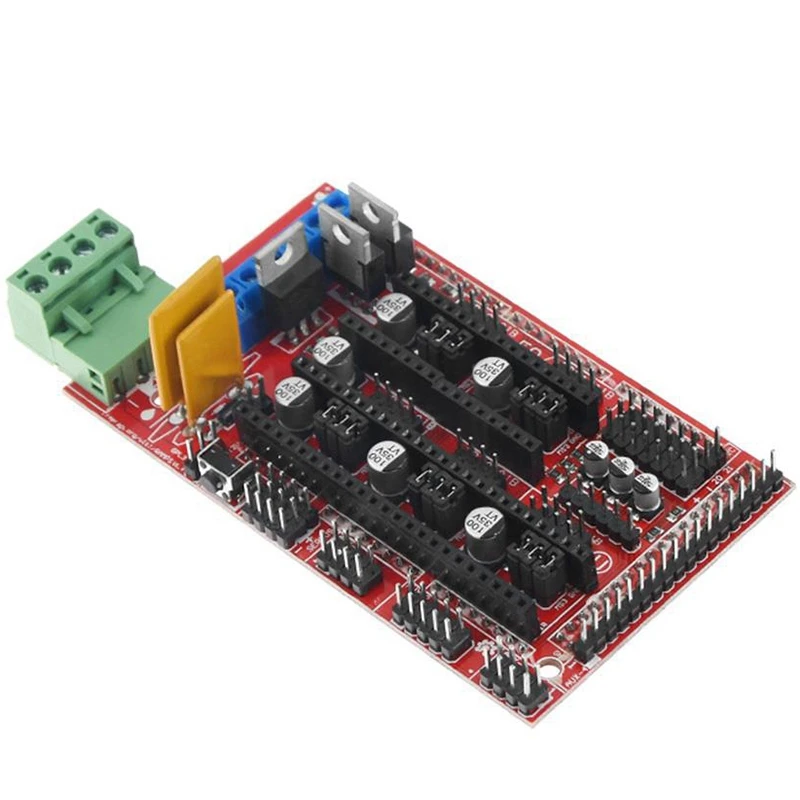

1. Sainsmart RAMPS 1.4
It is a Mega Pololu Shield, or RAMPS for short,designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Mega with. the powerful MEGA platform and has plenty room for expansion. The modular design includes plug in stepper
drivers and extruder control electronics on an MEGA
shield for easy service, part replacement, upgrade- ability and expansion. Additionally, a number of
expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
Color: red + blue
Material: metal + plastic

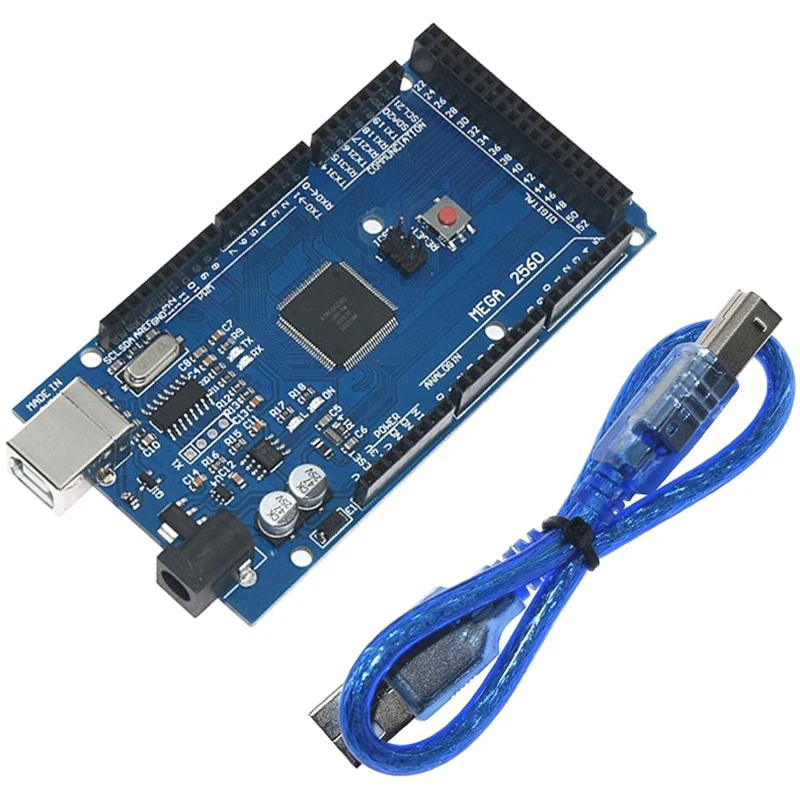

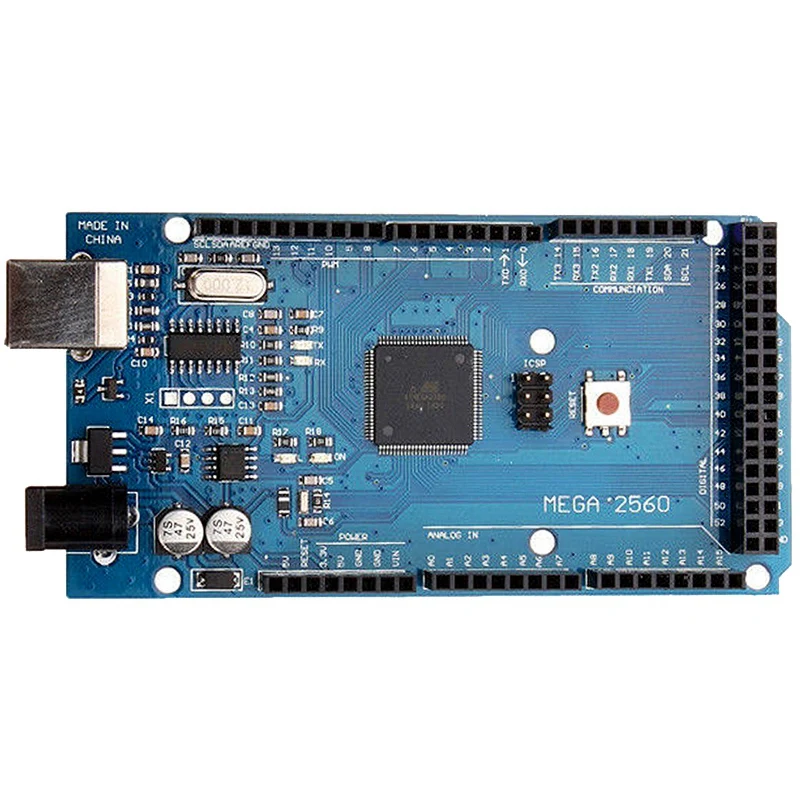

2. Mega 2560
Mega2560 is an ATmega2560 as core microcontroller
development board itself has 54 groups digital I / O
input / output terminal (14 groups do PWM outputs), 16
sets of simulation than the input side, group 4 UARTs
(hardware serial ports), using the 16 MHz crystal
oscillator. With the bootloader, download the program
directly via USB without having to go through other
external writer. Supply part of the optional USB power,
or as an external power using the AC-to-DC adapter and
battery. This development IDE interface is based on
open-source principles, allows you to free download for
use in project work, school teaching, motor control,
interactive works.

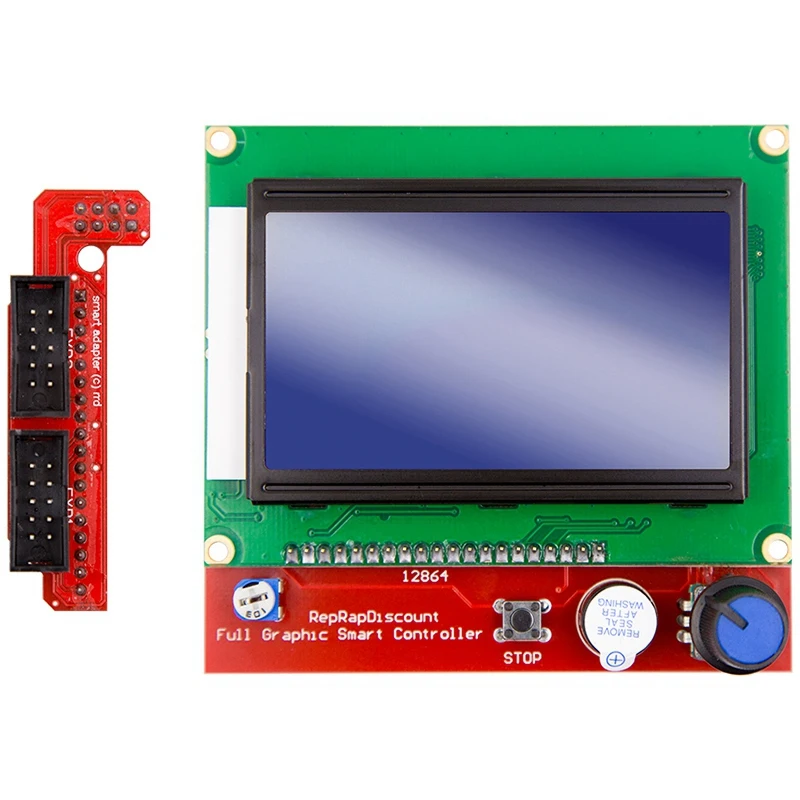

3.Large screen: 12864LCD
1.Integration for SD card in the back, after slicing the
file into the for SD card, you can select the
corresponding files on the LCD.

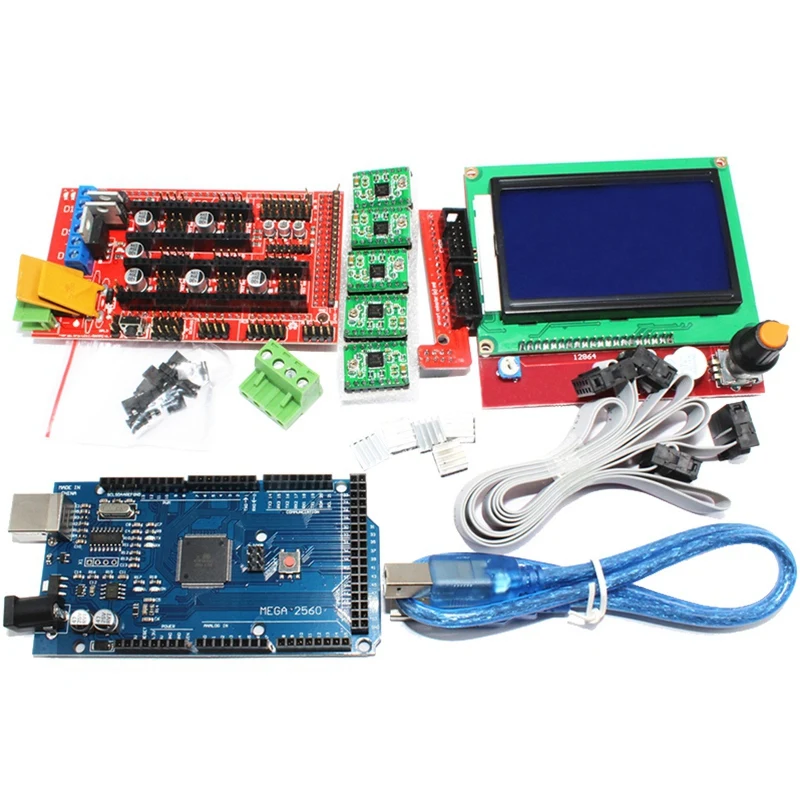

Package Contents:
1pcs Mega 2560 R3 ,CH340G module+usb cable
1pcs RAMPS 1.4 Controller

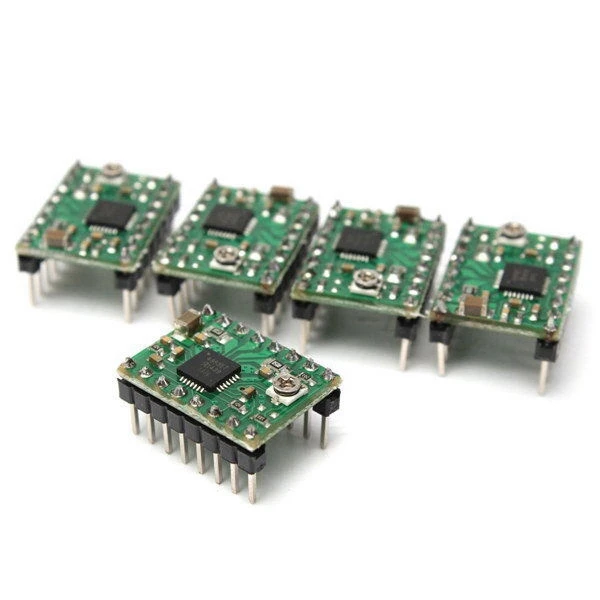

5pcs A4988 Stepper Driver Module(Red green random)
1pcs 12864 controller for 3D Printer kit

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
