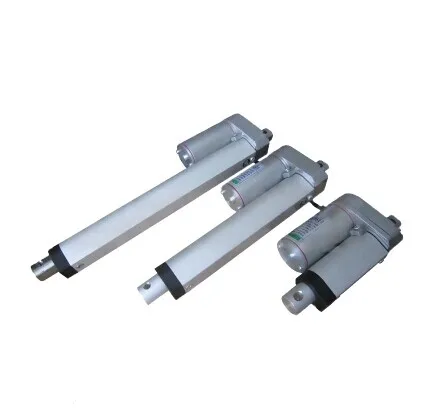

This miniature electric push rod is driven by a DC motor driven screw. It is small in size and versatile, and is widely used in various fields where volume is required. The appearance of the color is different, the built-in is the same.

Stroke, voltage, speed, negative gravity, you can confirm what it is. I know which specification is there. Relatively speaking, the faster the speed, the smaller the thrust. The two are inversely related. If you need additional mounting brackets and power controllers, you can purchase them with us or you can customize them.

Each of the push rods has a travel limit switch at each end. When the telescopic rod runs to the end or reaches the top, it will automatically disconnect the power. The motor will not idling.

The push rod is driven by a DC motor and driven by a screw. The telescopic rod can only be telescopic and does not rotate.

The motor is positive and negative. For example, the positive electrode extends and the negative electrode contracts. You can change the direction of the rod expansion by changing it.

The putter is warranted for one year and non-quality issues do not support returns. Do not disassemble the machine without permission.

In general, the price is only related to the itinerary.

The longer the trip, the higher the price, and the corresponding price for each trip is as follows:

Itinerary: 100mm Speed: 10mm/s Price: 138 yuan

Itinerary: 200mm Speed: 10mm/s Price: 158 yuan

Itinerary: 300mm Speed: 10mm/s Price: 178 yuan

Itinerary: 400mm Speed: 10mm/s Price: 198 yuan

The faster the speed, the smaller the thrust; the slower the speed, the greater the thrust, which is inversely proportional.

178 yuan is the price of 300mm trip. The series of motors has 50, 100, 150, 200, 250, 300, 350, 400.500mm series. The stroke can be customized. For each 50mm increase, the extra 20 yuan will be added. The longer the trip, the higher the price, the longer the trip, the heavier the weight, the corresponding freight is not the same, the direct payment of the need to make up the difference, thank you for your cooperation!

1. Technical parameters.

Rated power: 30W

No-load speed: 5-90mm/s

Rated voltage: DC12v 24V

Output thrust: 10 --- 100kg

Itinerary: 300mm (can be customized for other lengths, our shop often has 100,200,300,400,500,600,700,800,900,1000mm stroke motor supply)

Ambient temperature: -15C°-+60C °

Protection level: IP54

Pusher material: aluminum alloy

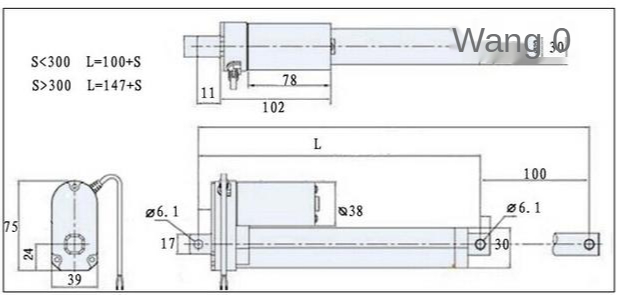

Minimum installation distance (the distance between the two holes before and after the push rod is fully retracted, ie the length of the push rod itself): L (minimum mounting distance) = 100mm + S (stroke);

The distance between the two holes before and after the push rod is fully extended = 100mm + S + S (stroke)

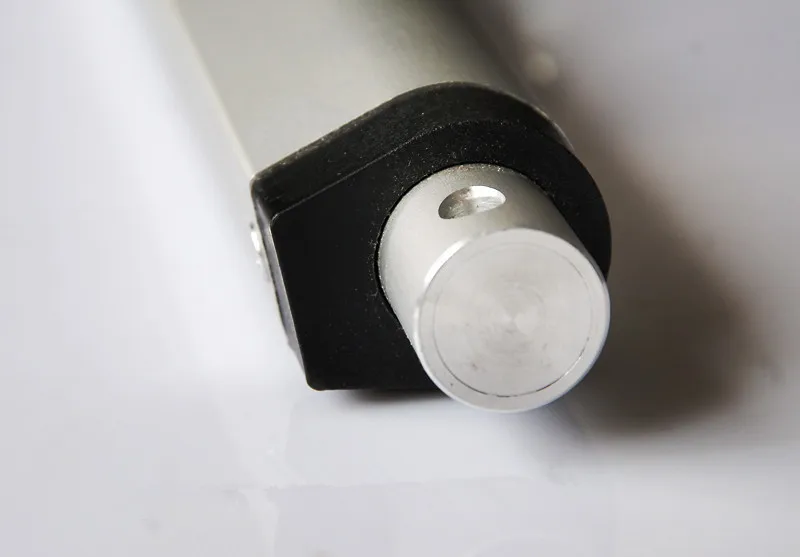

The following is a detailed view of the electric push rod, 100% in-kind shooting. For your reference! The size of the pusher base and the lead of the different strokes are the same, the difference is that the longer the stroke, the longer the length of the telescopic rod and the aluminum profile, and of course the weight will add up. Special note: Because the company has a variety of motor specifications, the thrust parameters are different, we will adapt the motor according to the thrust required by the customer, the height and color will be different, please take the actual object as the standard.

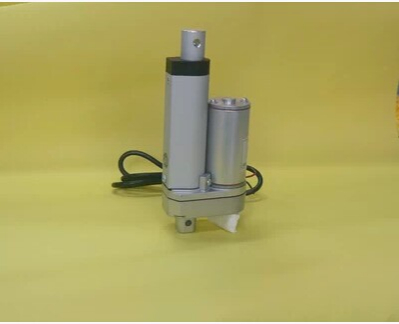

Electric putter front view:

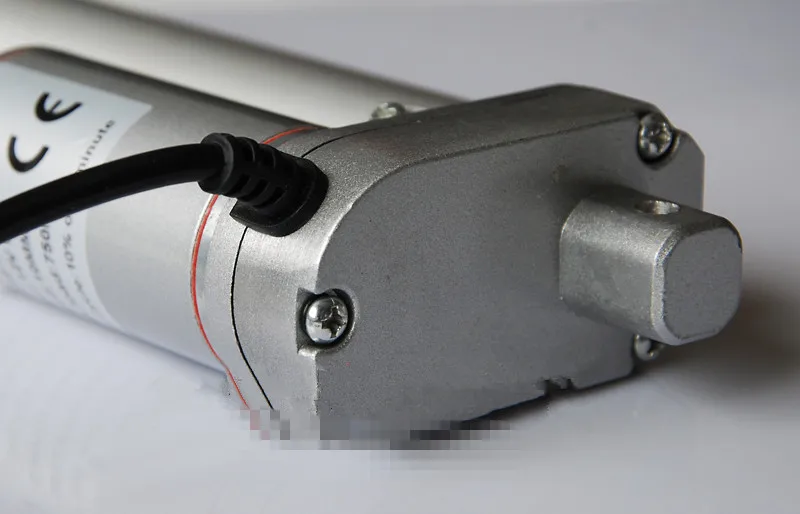

Electric push rod rear view:

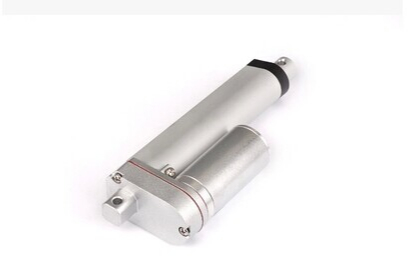

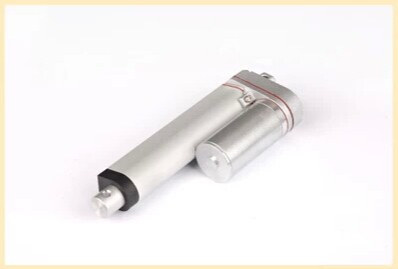

Electric push rod stereo:

We mainly use production putters. If you need extra mounting brackets and power controllers, you can buy them with us or you can customize them.

Product features: compact structure design, light weight, easy installation, convenient operation, low noise, high performance and price ratio

The function of the product: it has the function of pushing, pulling, lifting and lowering other objects.

This series of DC electric push rods are widely used in electric nursing beds, operating beds, traction beds, massage chairs, dental chairs, electric wheelchairs, electric sofas, electric exhibition stands, electric sunroofs, ergonomic furniture and other applications requiring linear motion actuators. Very convenient, widely used in medical, fire, home, electromechanical, chemical, sanitary ware, leisure and other fields.

Every product will be inspected before shipment, and all the putters will be tested 100%. We will not bother to save the tens of seconds. However, because the express route is very violent, there may be chances of winning the prize (although only a few ten thousand chances of damage should not be taken lightly), please try to sign the goods after inspection (appearance).
