EL0002997

Specification:

100% brand new with high quality

Material: Synthetic Material

Size: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2"

Weight: Aprox.13g (with line)

Quantity: 1Pc

Current Parameters:

Forward 30A

Instantaneous peak 40A

Back 20A

Brake 40A

UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)

Voltage support: 4 ~ 8v can be directly on the 2s lithium (7.4V)

Function: forward, reverse, brake

Easy to install, durable.

High-quality metal casting.

Lightweight, small size, easy to carry.

Tips:

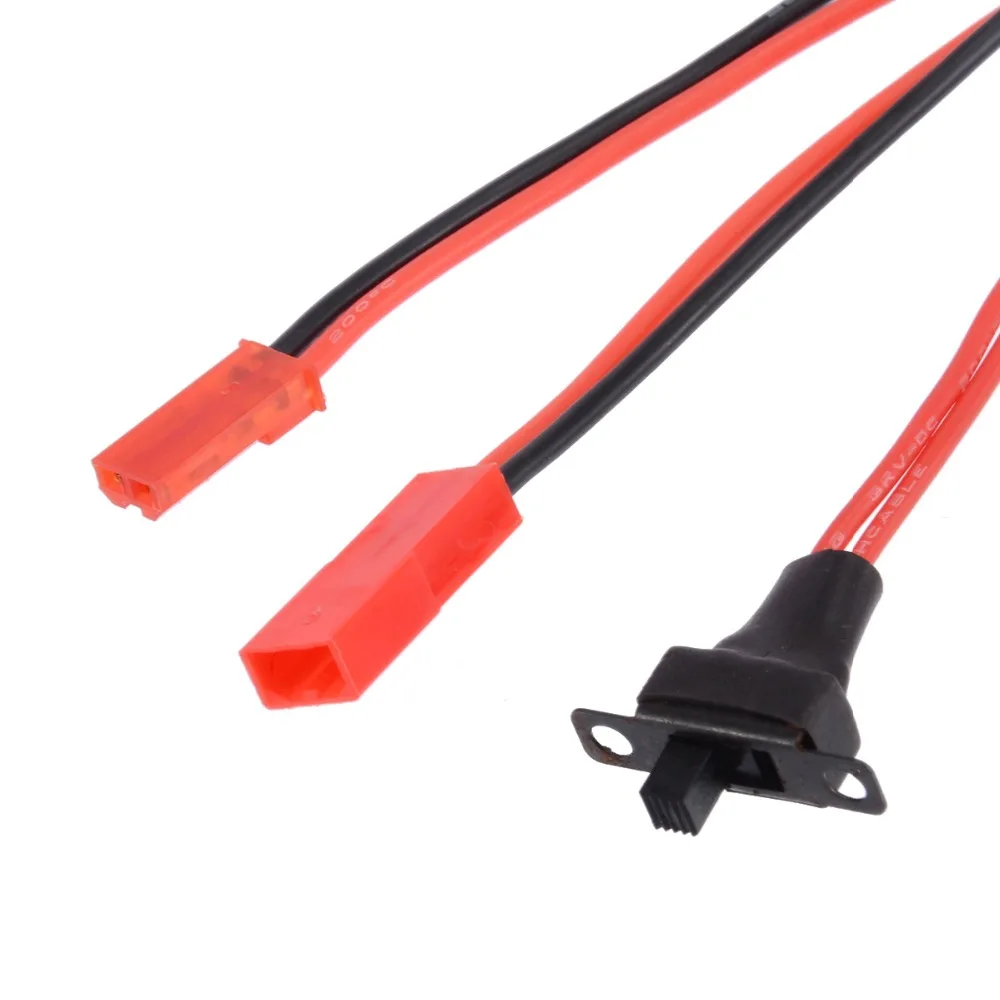

JST header by default, with a switch.

Wiring:

Battery (must dividends positive black and negative)

Motor (regardless of positive and negative)

Black red and white third-line -> receiver CH2 (usually black by the outside, white by stickers)

Adjustment:

ESC is set in the middle of the range, the new control generally need to fine tune the throttle.

The ESC does not light, is the median, throttle trim is controlled TH TRIM.

Package Included:

1 x Brush Motor Speed Controlle

Note:

Please allow minor error due to manual measurement.

The colors may be a little difference for the different monitor display.
