1. It supports 2.4G CCD wired red light one-dimensional bar code scanning.

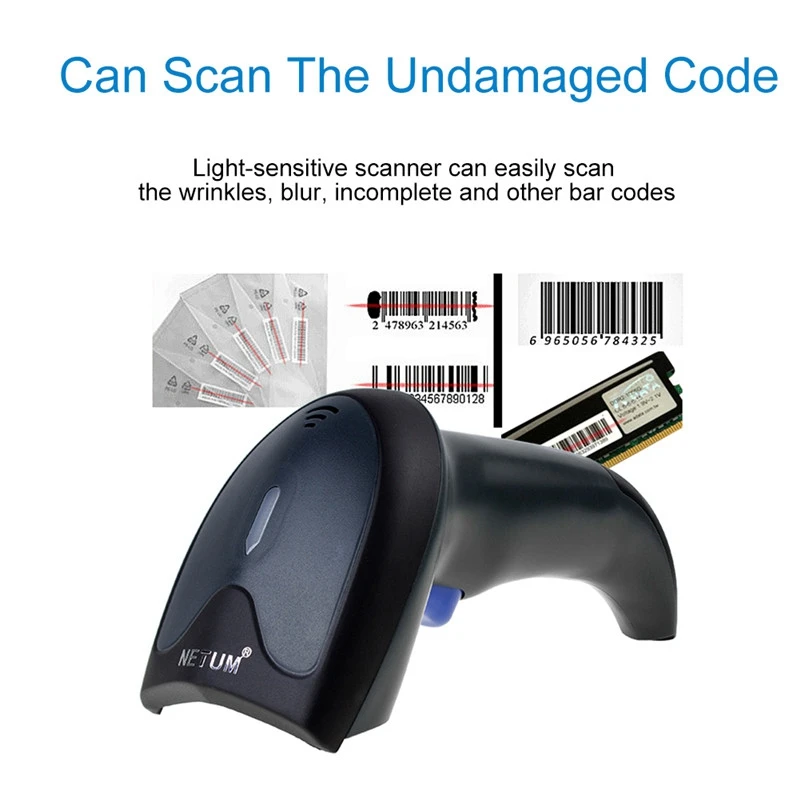

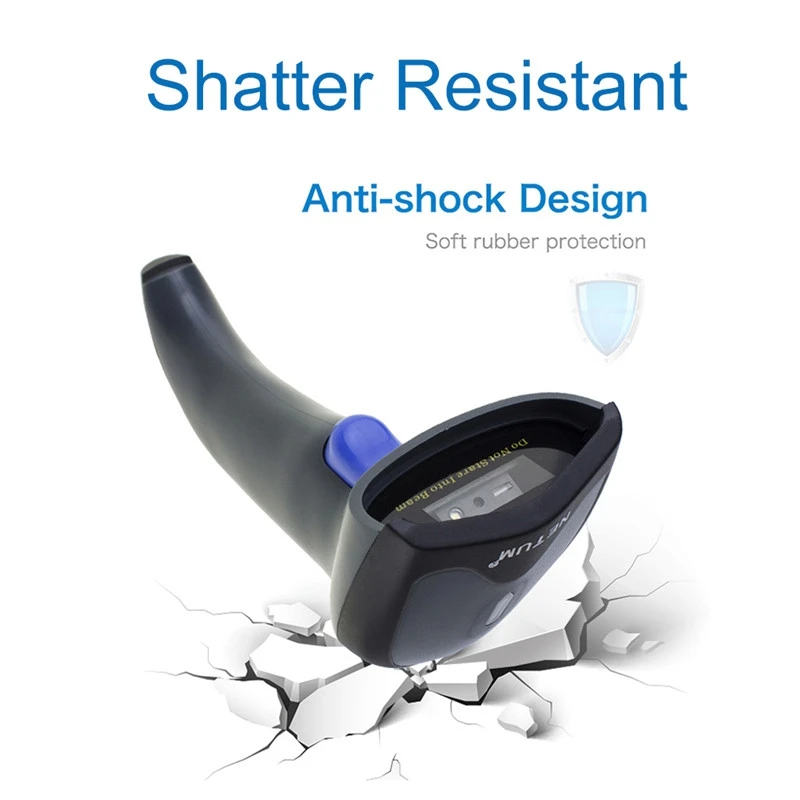

2. It can scan the screen bar code and stained code. Furthermore, it is of high endurance, shatterproof and shockproof.

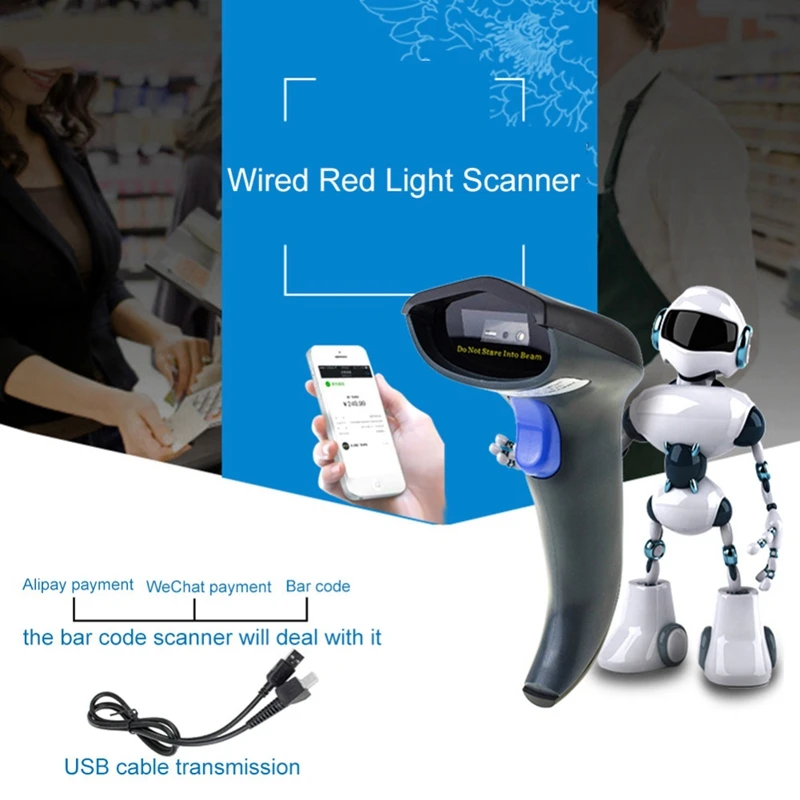

3. All these code scanning-CCD bar code scanning, Alipay payment, and WeChat payment, can be handled by one
scanner. 1. Optical performance: Reading mode: CCD red light. Light source type: LED ( 630NM ). Light source: 265 LUX ( 130nm )Scanning mode: bidirectional scanning. Scanning speed: 200 times / sec
Resolution: 2500. Accuracy: ≥ 5 mil. Printing contrast: ≥ 30%. 2. Operating environment:Operating environment: -10 ° C to 60 ° C. Storage temperature: -20 ° C to 60 ° C. Storage humidity: 5% -90%
material: plastic
3. Electrical characteristics:
Maximum power: 0.494W
Working voltage: (3.3V ~ 4.2V) ± 5%
Maximum current: 130mA
Sharp angle: 34 ° V x 46 ° H ( vertical level )
Scanning angle: ± 65 °, ± 60 °
4. Scanning performance ( Approx. ): ( scan depth of field )
(1 mil = 0.0254 mm)
5mil: 40-105mm / 1.57-4.13 inch
10mil: 10-250mm / 0.39-9.84 inch
15mil: 23-380mm / 0.91-14.96 inch
20mil: 35-490mm / 1.38-19.29 inch
30mil: 30-650mm / 1.18-25.59 inch
5. Decoding capability: EAN-13, EAN-8, UPC A, UPC E, CODABAR (NW-7), Code 39, Code 93, Interleaved 2 of 5,
Standard 2 of 5, Matrix 2 of 5, Code 128, UCC 128, Code 11, China Post.
6. Tip: LED indicator, buzzer
7. Scan mode: hand-held button trigger scan
8. Interface support: RS-232, USB, PS / 2.
9. Size: Length x Width x Height (mm): about 165 * 65 * 90mm / 6.50 * 2.56 * 3.54 inch
10. Wire: about 1.8 m / 5.91 feet
11. Color: black
Waterproof and dustproof Seal rating: IP54
Seismic capacity: 2 meters high free fall
Packing List:
1* scanner
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
