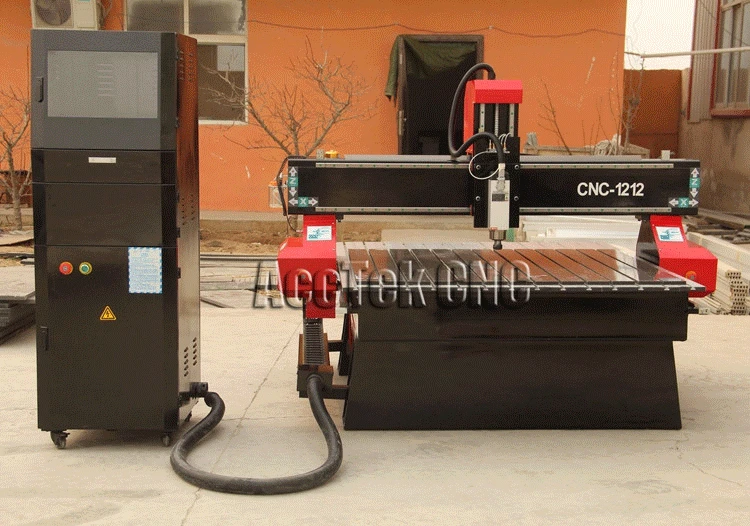

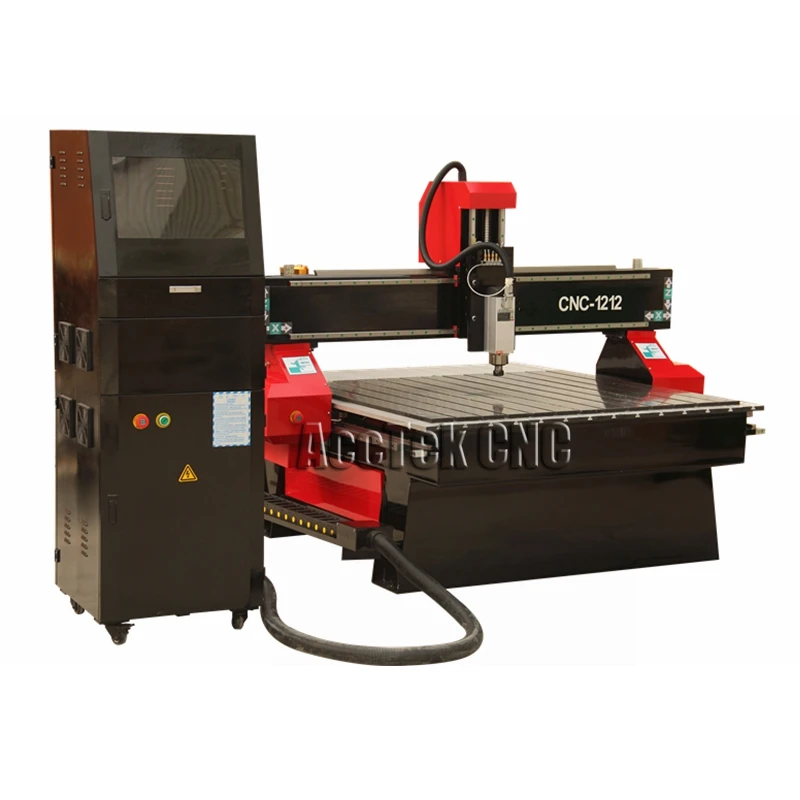

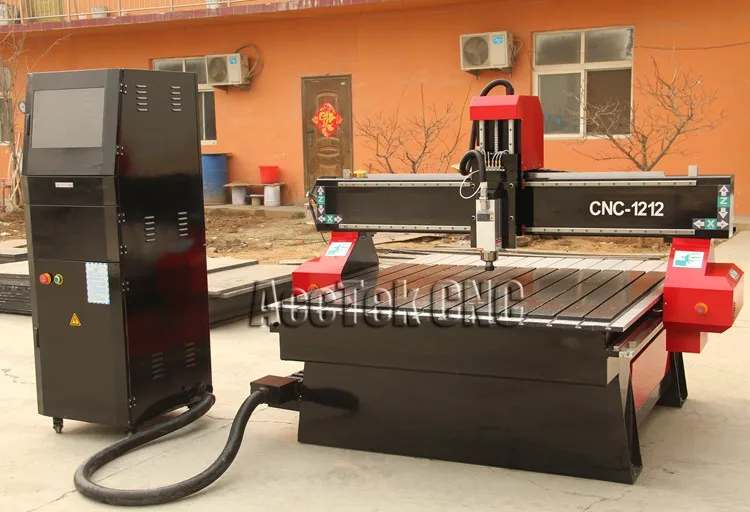

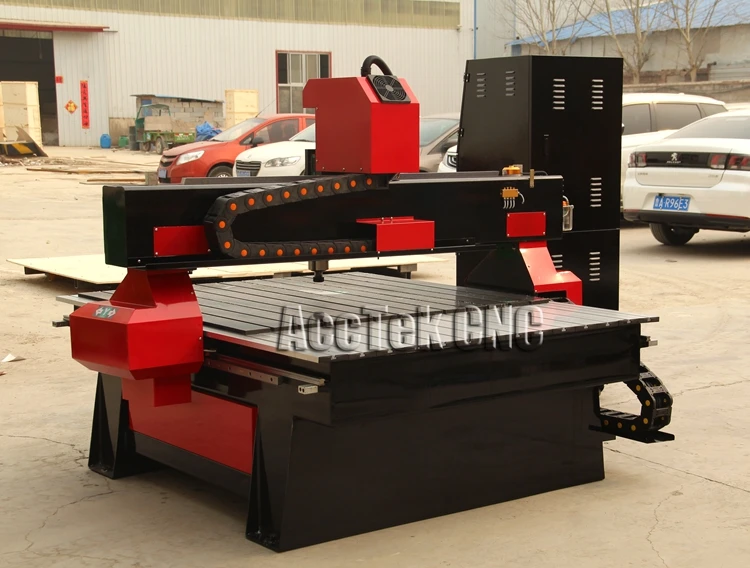

Product Description Aluminum 3d engraving cnc machine 1212 rack transmission cnc router machine AKM1212

- Features of cnc router

1. Thicker square tube bed makes the operation more stable and accuracy.

2. Our machines adopt the T-slot dual-use table, you can use the clips to fix the small-scale materials, which can save the vacuum pump electricity, and you can adopt the vacuum adsorption to fix large-scale material.so the processing is convenient, simple and efficient.

3. High quality Taiwan imported Linear guide has much longer life 10 times of life-time than round guide; It is stable and hard to distort.

4. Professional human control system shows advantages as continuing carving when occurring breakpoint ,off power, processing time can be forecast, back to the origin, and automatic correction function.

5. Double motor for Y axis make the cnc machine work with more strength.

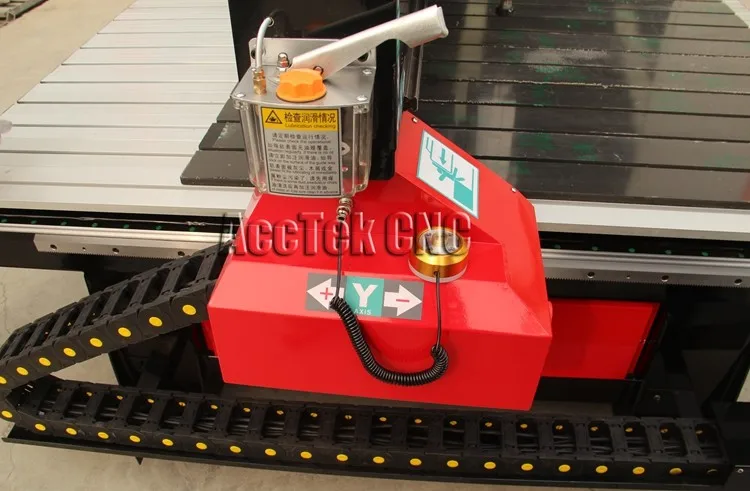

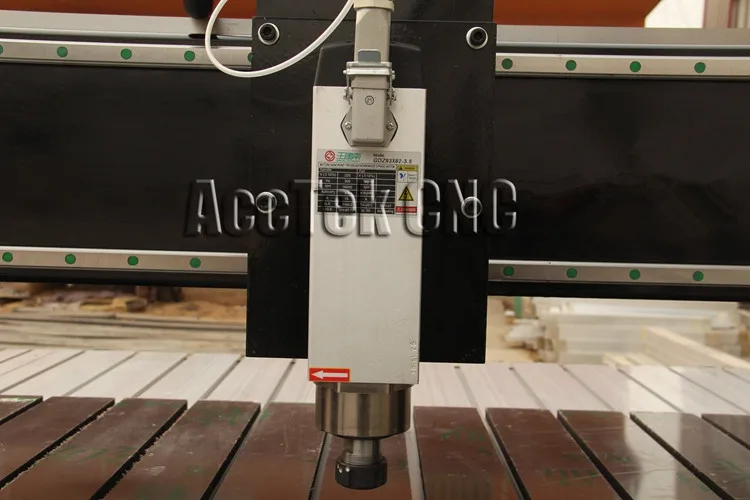

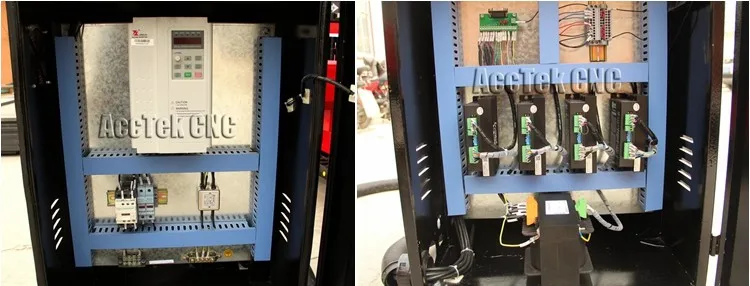

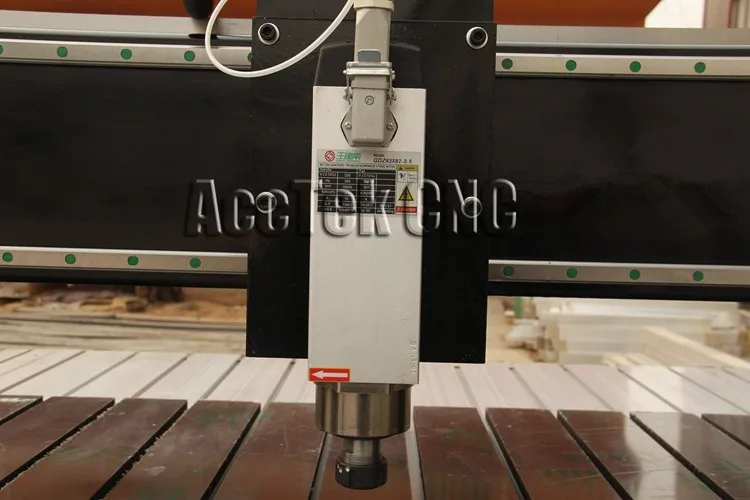

Machine Details >> Air Cooling spindle, the spindle speed 0-18000RPM >>Manual oiling system, Tool sensor, Taiwan Hiwin linear square 20mm rail guide >>Shanghai Fuling inverter, Leadshine stepper motor, Mach3 controller Technical Parameter Working Area 1200*1200*200mm Traveling Positioning Accuracy ±0.03/300mm Repositioning Accuracy ±0.03mm Table T-slot Table  Frame Welded Structure X, Y axis helical rack 1.25M, Hiwin 20# Rail Linear Bearing Z axis Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw Max. Power Consumption (Without Spindle) 2.5kw~3Kw Max. Rapid Travel Rate 33000mm/min Max. Working Speed 25000mm/min Spindle Power Air cooling spindle Spindle Speed 0-18000RPM Drive Motors Leadshine stepper motor Working Voltage AC380V/50/60Hz,3PH (Option: 220V) Command Language G Code Operating System Mach3 control System Computer Interface USB Flash Memory 128M(U Disk) X,Y Resolution <0.01mm Software Compatibility Type3/UcancameV9/Artcam Software Running Environment Temperature 0 - 45 Centigrade Relative Humidity 30% - 75% Sample

- Application materials

1) Mould: wood,wax, wood, gypsum,foams,wax.

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

3) The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.

4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

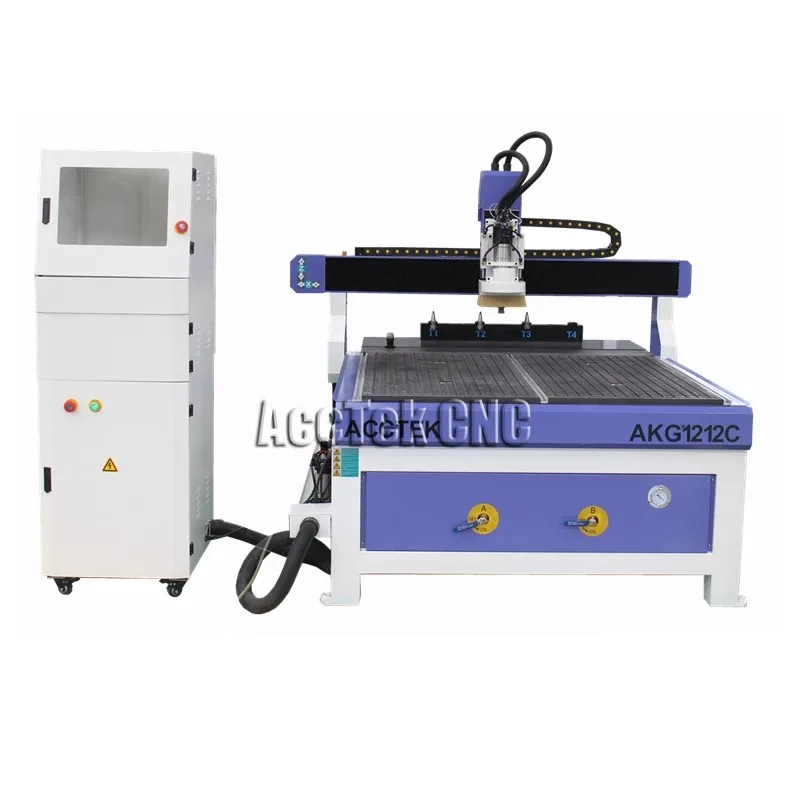

Related Products   AKG1212C ATC cnc router with 4pcs tool changer





Payment & Packing

We accept T/T or Trade Assurance, you can pay 30% in advance,70% before delivery.

*The machine will be produced after received your deposit.

After the machine is ready, we will show you the machine photos and the testing video.

*After you agree, please finish the balance. Finally, we arrange the delivery



*Outside package: Standard marine export plywood case .

*Inner package: Stretch film and plastic film for humidity .

*We can package according to your requests.

Service & Feedback

1.12 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.We will provide the consumable parts at an agency price when you need replacement.

5.24 hours on line service each day, free technical support.

6.Machine has been adjusted before delivery

7.Our staff can be sent to your company to install or adjust if necessary.

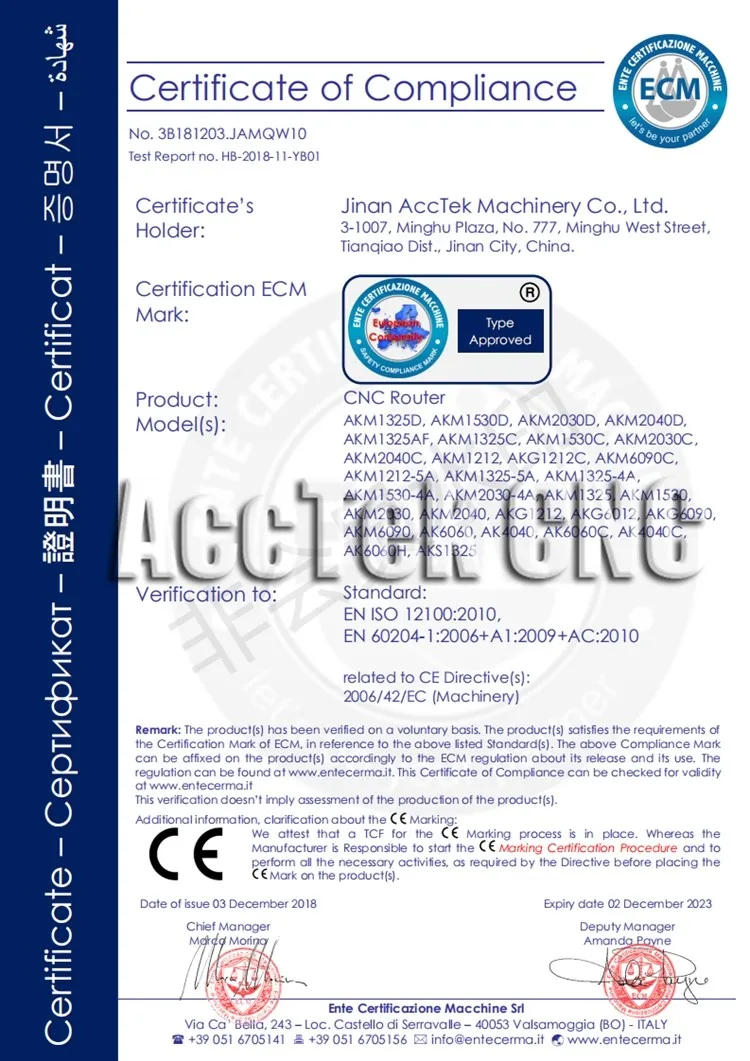

Certifications Contact us
