S036 Outdoor Portable DC Sprinkler Pump With 12M Cooling System 16pcs Mister Nozzles for Mist Umbrella | Дом и сад

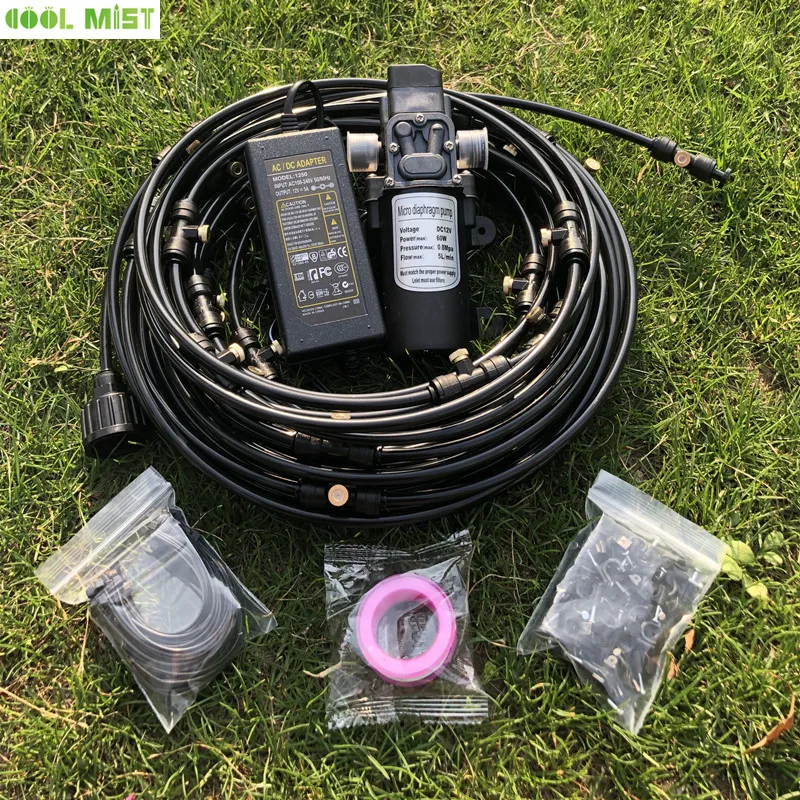

Packing list:

Diaphragm Pump：1piece Power supply :  1 piece Total misting line:12M misting system White female connector: 2 pieces  Mist nozzles: 16 pieces End plug: 1 piece Inlet filter head: 1pcs 40 Saddle clamps 40 cable ties Seal tape: 1 Roll   (all other items in photos and video are for illustration only)       Description:

Nozzle Orifice: Default 0.4mm, you can remark it in your order if you need other size(0.1mm-0.8mm nozzles orifice option)



Nozzle Material: Brass body with stainless steel orifice inside.



Nozzle Thread: 10/24UNC

  Standard water tap adapter: Thread Size - 3/4"

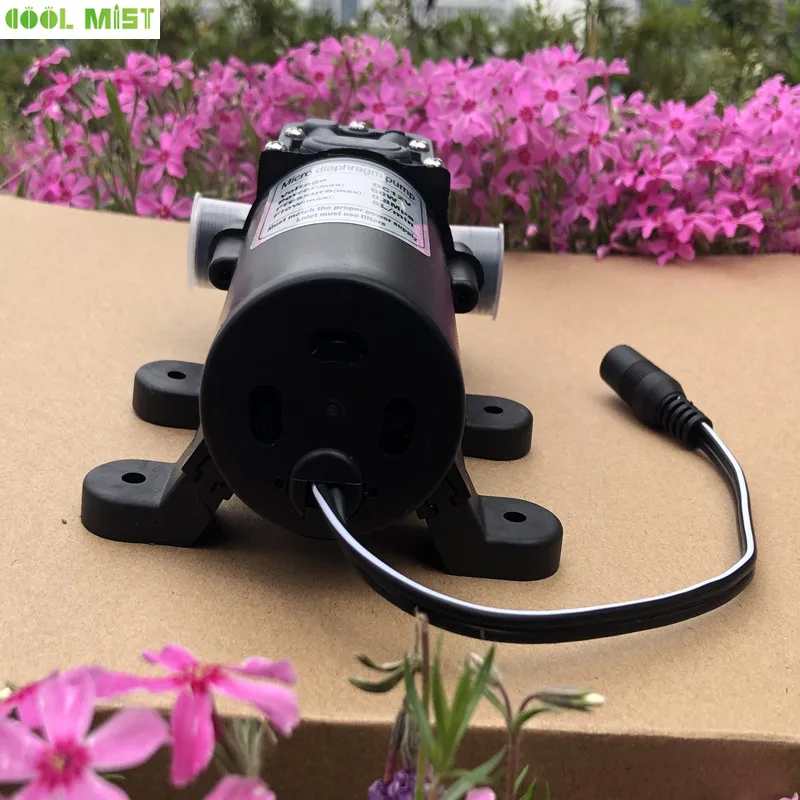

  Mist hose: Food grade material, 1/4" size;   Function:   Cooling, Humidification, dedusting and Garden Micro irrigation.     Details   Pump description:   Temperature------------------0-60 degree celsius Multi-purpose-----------------Home use for garden sprinklers,shower,water taps in the boat,caravan or motor home Agricultural purposes-------spray for farm chemical pesticid corrosion resistant 12vDC Power---------------------------60w Working pressure------------0.8Mpa Flow rate------------------------5L/min Size:------------------------------16.5*10*6cm Rubber bracket can absorb vibration from the pump when working Connector size: 1/4'' pipe   Caution:pump should be used in dry condition,cannot submerge into water

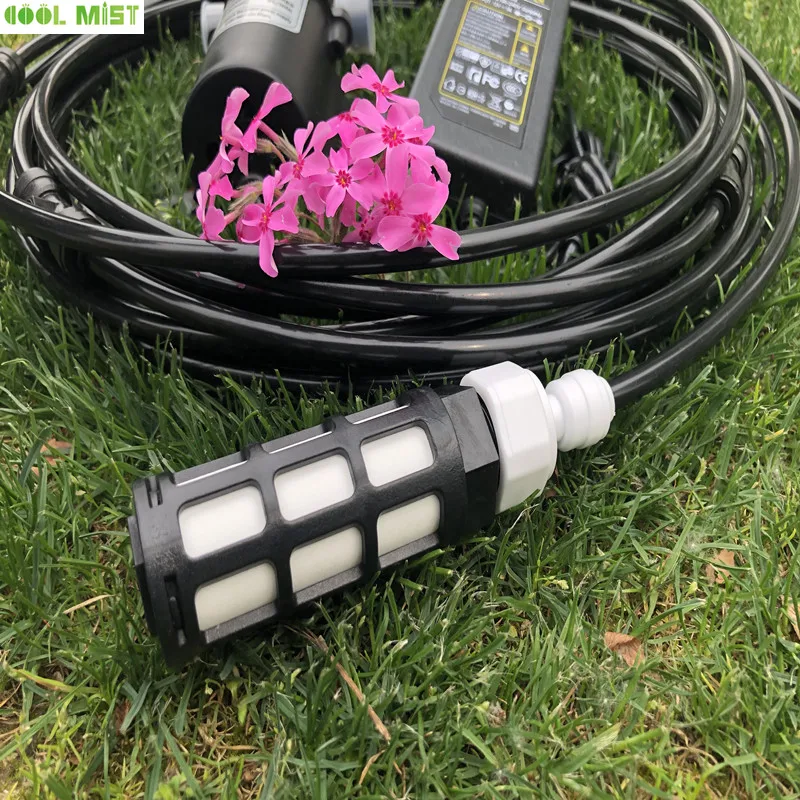

Inlet filter head:

Hose:

Nozzle:

Fitting:

Connector:



120mm length Cable ties and 7mm Clamps:



End plug:



Design Features

  Water inlet port can absorb water by itself then spray mist from nozzles on water outlet,  which can be widely used in factory humidification, cooling, salt spray testing, artificial fog and other humidification sites.       Instruction as below:

Installation Steps:

1. Keep the 3M water inlet totally immersed into the tank.

2. Connect hose and pump with 1/2'' white connectors, note the arrow direction of inlet and outlet on the pump.

3. Connect the power supply to wash the system for 1 minute to purge the system and remove any impurities.

4. Screw the misting nozzles to the Tee fittings, except the last one on the end plug.

5. Turn on the power to wash the system for 2 minutes to insure that the system is fully purged.

6. Turn off the power and install the last nozzle into the fitting with the end plug.

7. Fix the misting line by the cable ties saddle clamps provided.

8. Turn on power then jets will work, enjoy the cooling misting system.

9. Turn off the nozzles, keep them dry and clean when you don't use the misting system for a long time.

Application as below:   Landscaping, cooling, air humidification, spray disinfection, epidemic prevention, deodorizing air purification, etc   Note: Soaking the misting nozzle in cleaner periodically to remove mineral deposits, thus can prolong its lifetime.
