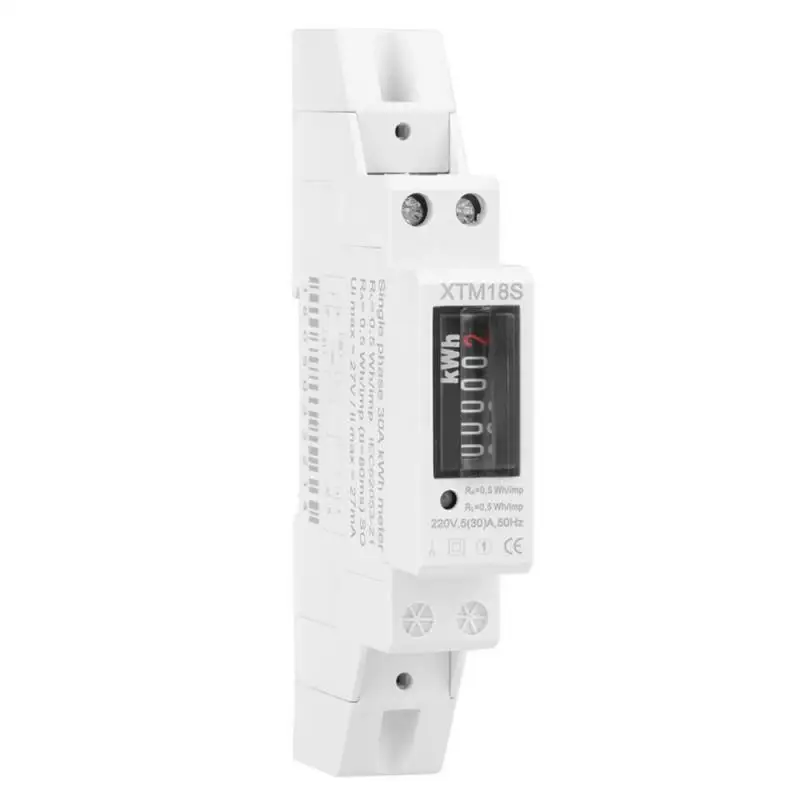

220 В 5 (30) цифровой 1-фазный 2 провод 1P din-рейка Электрический счетчик кВтч

220 В 5 (30) цифровой 1-фазный 2 провод 1P din-рейка Электрический счетчик кВтч

Features:

Single pole width, complying with standard DIN43880

Standard configuration 5+1 digits display (99999.1kWh) by step motor type impulse register.

Standard configuration pulse output passive (polarity), May select distant pulse output passive ( nonpolarity). And contact with all kind of AMR system conveniently, Complying with standard IEC 62053-31 and DIN 43864.

Automatic detection the direction of the flow of load current. And instructions (Only red energy impulse signal when working, If no green instructions power supply, that is meaning the direction of the flow of load current reverse).

Single direction measurement single phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21.

Extension terminals cover, in order to protect to use safety.

Specifications:

Model: XTM18S

Accuracy: Class 1

Voltage: 220V

Current: 5(30)A

Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv

Size: 12 x 6.3cm / 4.72 x 2.4in

Weight: 106g

Outer and mount dimension:

Wiring diagram:

Package included:

1 x  DIN-Rail Electric Meter

1 x Manual
