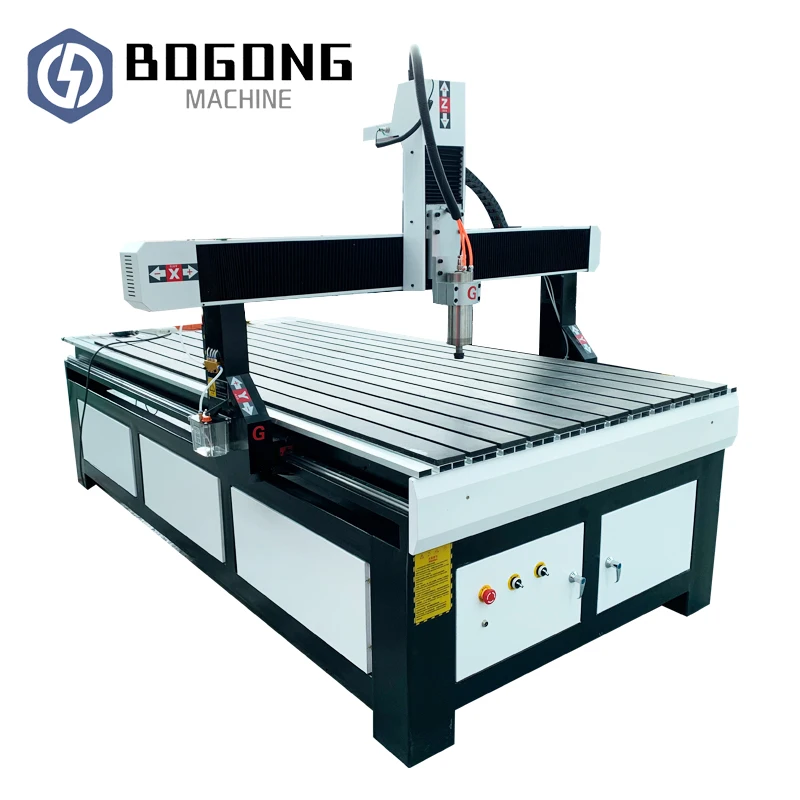

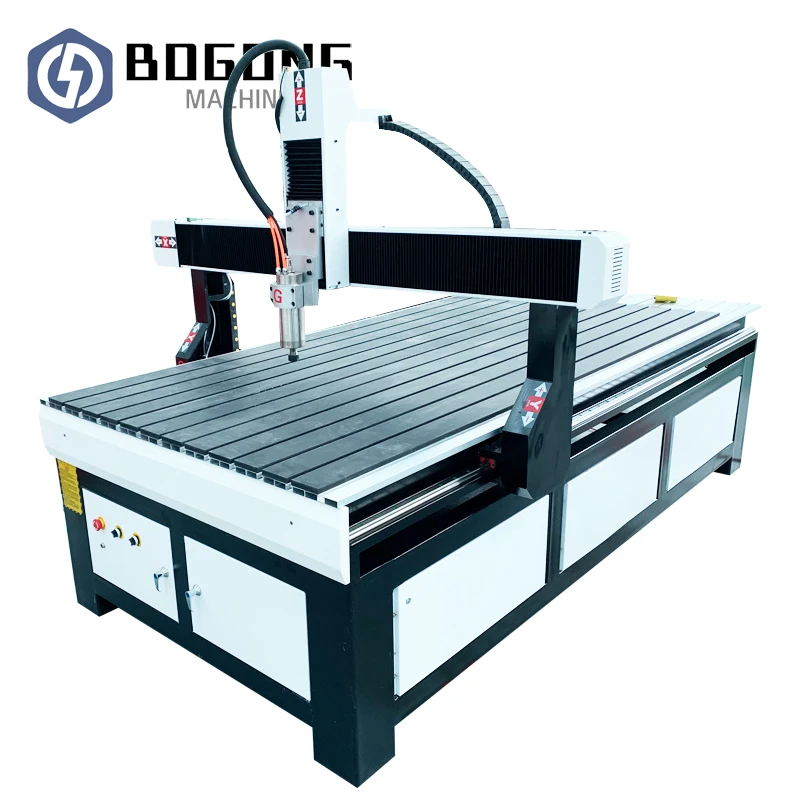

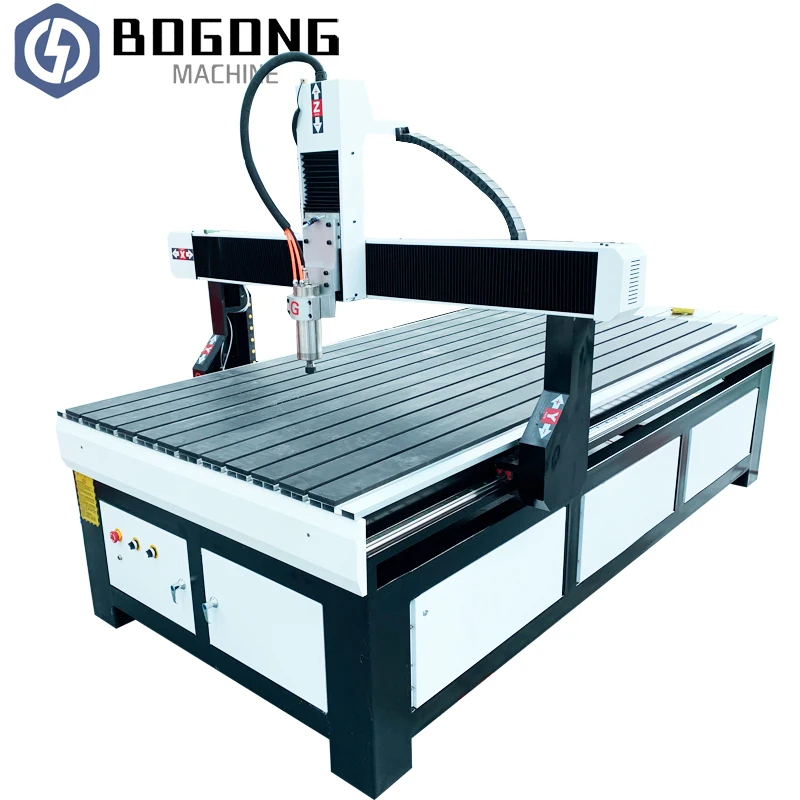

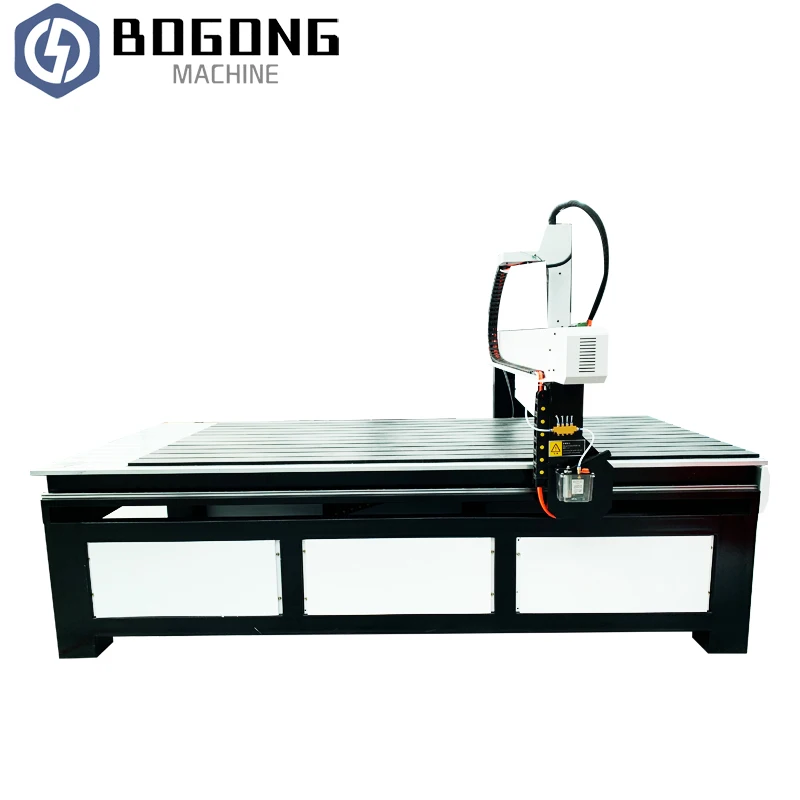

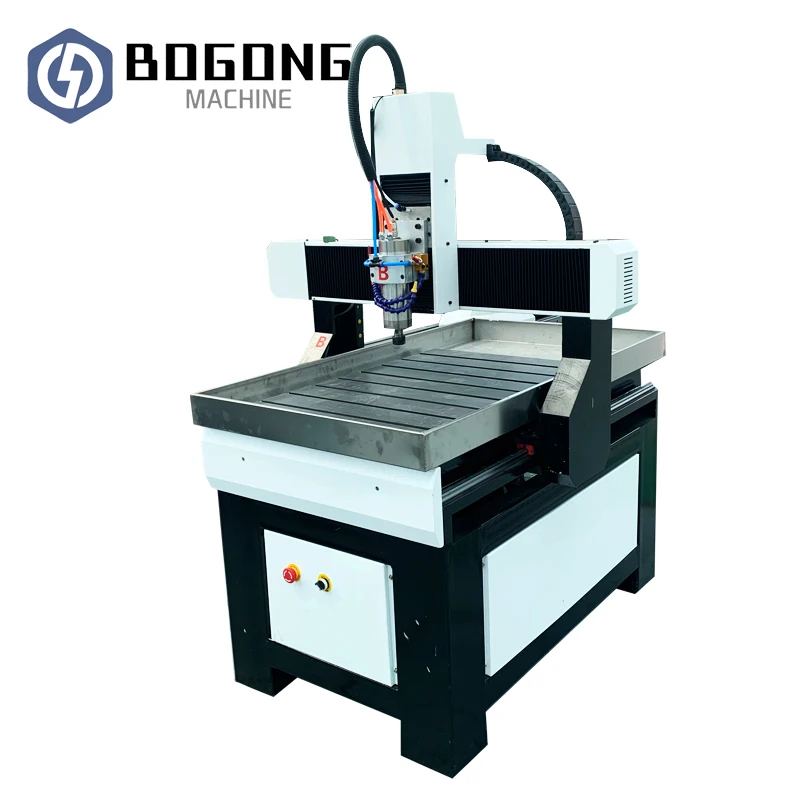

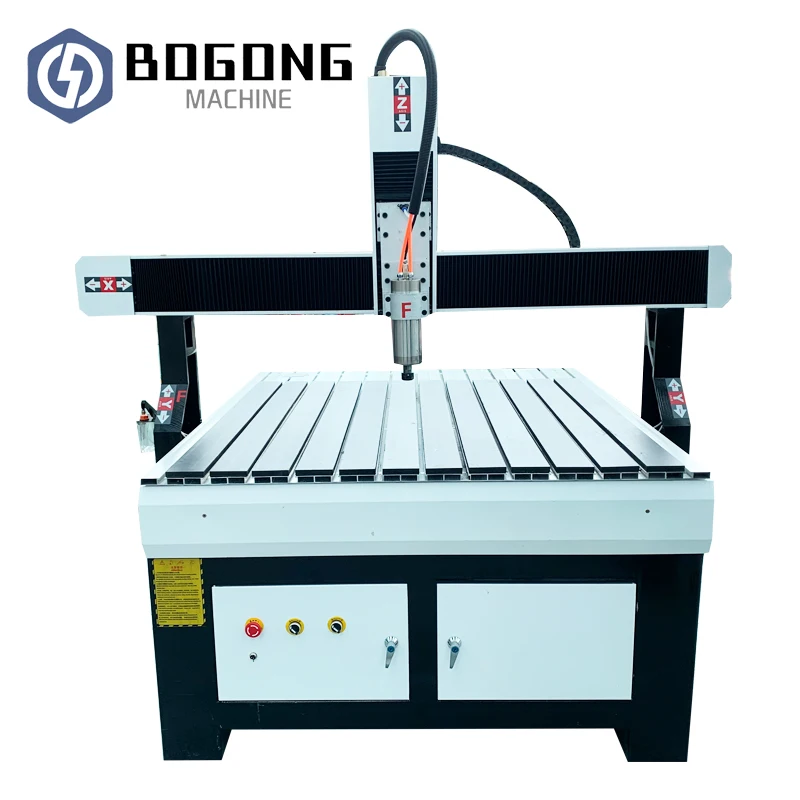

Good Quality Multi Spindle ATC CNC Wood Router Kitchen Cabinets Machine / 6090 1390 Price | Инструменты

Good Quality Multi Spindle ATC CNC Wood Router Kitchen Cabinets Machine / 6090 1390 Price | Инструменты

Rack and pinion transmission for large stroke, high precision, large torque  transmission.CNC machine tool

well  known water cooling spindle,high concentricityand verticality,high ,precision,long life
time steady working,easy to ,start up.

Imported high-precision ball screw

which moving smoothly, to ensure the machine's high precision.
Linear Square Guide Rails from Germerny

Double bags dust collector to clean dust in time,Keep the air clean

Woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, wooden doors, paint doors, screens, window processing technology, shoe polisher, game cabinets and panels, Mahjong table, computer assisted processing tables and panel furniture products.

Advertising industry: advertising signs, sign making, acrylic cutting, plastic molding, a variety of advertising and decorative products.

Mold industry: carving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic board, PVC pipe, wood and other non-metallic mold.

Other industries: various large relief carving, shadow carving, widely used in craft gift industry.

Technical parameters

Model

BG-6090

X, Y Working size

600*900mm

Z feed Height

150mm (200 mm Higher is optional)

Table Surface

Vacuum or T-slot Combined

X, Y Structure

Rack and Pinion Drive, Hiwin Linear Square Guide Rail

Z Structure

Hiwin Linear Square Guide Rail and Ball Screw

Max. Power Consumption

(Without spindle) 2.0Kw

Max. Rapid Travel Rate

33000mm/min

Max. Working Speed

25000mm/min

Spindle Power

5.5 KW air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

servo motor and drivers

Working Voltage

AC220V/50/60Hz

Command Language

G code

Control System

SYNTEC

X,Y,Z repositioning Accuracy

±0.01mm

X,Y Resolution

<0.01mm

Software

Mach 3 control, NC-Studio or DSP controller are optional

Running Temperature

0 degree - 45 degree

Relative Humidity

30% - 75%

Special Feature for Wood Engraving Machine

1) Using Professional Dust Collecting System (for Cutting Wood) and Vacuum System (for absorbing objects)

2)Advanced digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine

3) The three axes use linearity square guide rail and drive which could meet different cutting demand and has high cutting precision.

4) Unique intelligent calculation fully develops the potential of the electric machinery and leads to high speed processing, the synchronization of curves and straight lines, smoother curves and race speed at 12m/min.

5)  Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them

6)  This model uses domestic-leading PCI controlling system. It uses imported square shape guide rail and the transmission is steady. It adopt high-precision level gear transmission, the maximum speed can reach 30m/m. It can engrave the graph of 1.5*1.5mm clearly.

1. Beforesale: We will try to know your requirement about our cnc router specificationand what kind of work you will do.Then we will offer our best solution for your requirement. Then it can confirm each customer can get their real needed machine

2.During production: We will send photos of machines during making. So customers can know more details about the procession of making their machines and give them suggestions.

 3. Before shipping: We will take delivery photo and confirm the specification of order to avoid the mistake. Machine will be adjusted before it is delivered.

 4.After shipping: We will check when the machine arrive your sea port and approximate date of arrival. So customers can know when it will arrive and make enough preparation.

 5.After arrival: We will confirm with customers if machine is in good condition and see if any spare parts missing.

 6.About teaching: Here are some manual and video about how to use machine, if you have questin about it, we will have professional technicist to help you install and teach how to use through skype, calling , video or eamil.

 7. About warranty: We offer 1 year warranty, replace parts for free, no human reason.

 8. Service in longterm: We hope every customer can use our machine easily and have a fun of it. If you haveany problems of machine in 2 or 3 , 5 years, you can contact us. We will always here waiting for you.

Customer feedback

1.Can I get a machine according to my own requirements?

Sure.We accept OEM and ODM as your requirements.

 2.I am a new machine operator. Do you provide training?

Yes. We supply overseas after-sale service.

 3.My machine is broken. Can you repair it for me?

Yes. We have free traning online.

If there is big trouble with your machine in the warrenty time, we can repair it.

 4.What's the quality of your machine?

Our machine adopts heavy lathe bed, and each part is processed by CNC

machining center, which greatly improves the accuracy of machine operation.

5:How long is the delivery time of this cnc Router machine?

For standard machines, it would be 7-15 days;

For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

6: What mode of payment for this CNC Router machine?

T/T, 50% deposit and the balance 50% should be paid before shipment.

7: If some problems happened to this cnc Router machine during warranty period, what should i do?

We will supply free parts in machine warranty period if machine have some problem. While we  also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.

 BOGONG Machinery specializes in the research and development of fiber laser cutting, laser marker, CO2 laser machine, CNC machine etc, and provides solutions of corresponding automatic system technologies. The company keeps long term and good cooperation with famous laser companies in Germany, USA, Japan and Italy, and domestic laser institutes, ensuring the synchronous development of laser process system of BOGONG MACHINERY with the latest international technologies. The products of BOGONG are distributed to Singapore, Indonesia, India, Malaysia, Thailand, Korea, Japan, USA, Hong Kong, Taiwan, Vietnam, England, France, etc. We also have established perfect technical support and sales service network in more than 50 countries and areas.

 1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
