3d foam board cutting machine |

3d foam board cutting machine |

3d foam board cutting machine

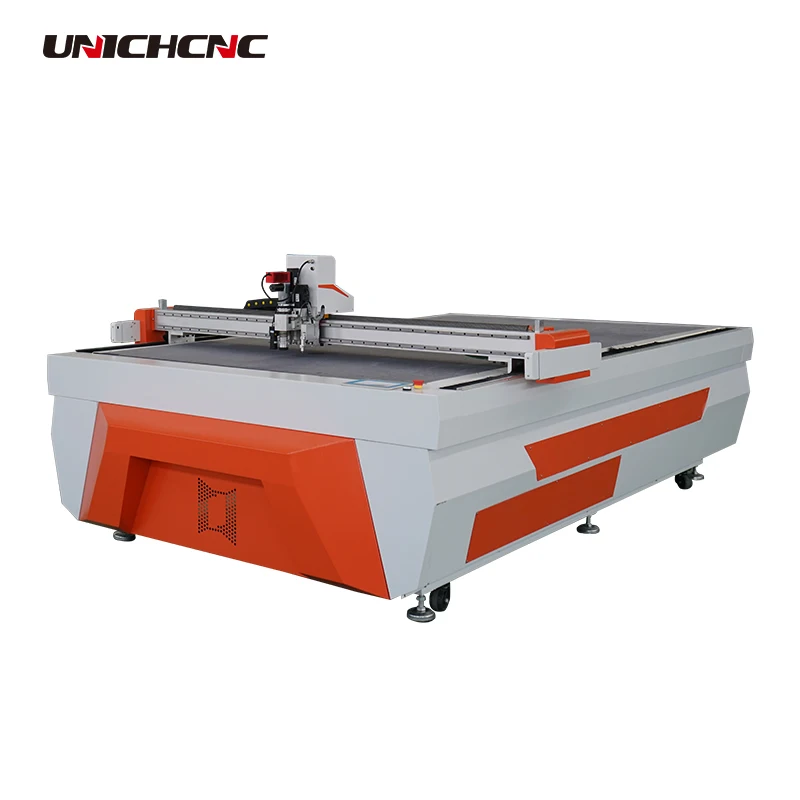

Features :Automatic Oscillating Knife Flatbed Fabric Cutting Machine Plotter Cutter for Corrugated Cardboard

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

Model

LXZ-1625

LXZ-1618(1325optional)

  LXZ-1625 (auto feeding)

Working area

2500×1600mm

LXZ-1618(1325,optional)

  LXZ-1625 (auto feeding)

Machine size (mm)

3450×2300×1250

2550*2300*1250

 3600×2300×1250

Rated power

11KW

    11KW

Fixed mode

flat plate table

Auto feeding type table

Multifunctional head

Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.

Tool configuration

Multiple cutting knives

Safety device

 Using infrared sensors,  responsive, safe and reliable.

translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

≤22mm(according to different cutting materials)

Cutting materials

Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber

 Repeated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Digital servo motor, linear guide, synchronous belt, ball screw)

Instruction system

HP-GL compatible format

Voltage

380V±10%

Other configuration

Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump

------------------------------------------------------------------------------------------------------------------------------------------------------------------------

1.2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

2.Lifetime maintenance free of charge.

3.Free training course at our plant.

4.18 hours on line service and email each day, free technical support.We will reply you in 24 hours after receive your problem of the machine.

5.Machine has been tested and adjusted before delivery.We will take machine photos and make machine working image for you ,after getting your agreement ,then we will book a ship.

6.Provide technical services to the door(We have professional engineers to offer machine installation commissioning and maintenance) if customers pay the charges of ticket.

7.if you have any problem during your use.you need our technician to judge

where the problem is and help you to solve it. We can provide team viewer

and skype with cam till all of your problems solved.

1).Q: I am not sure if this machine suitable for my work?

A: Don't worry, just tell me your working materials, max working area and
cutting thickness, then I will recommend you the most suitable machine for you.
2).Q:I am worrying about the service and operation of your machine?
A: Don't worry, if there is anything wrong with your machine within the
guarantee time, we will change a new one for you. And we will provide with the
English operation manual and video for your reference.
3).Q: How much will it cost shipping to my country?
A:Please tell me your nearest port or your location,then i will confirm to our forwarder.
Then I can tell you how much it will cost.
4).Q: Are you factory or trading company?
A:We are factory, which manufactures, with 14 years experience in this area.
Welcome to visit our factory whenever.
