Магнитострикционный жидкостный уровнемер Miran RS485 Output MTL4 360 мм-800 мм для нефтяных резервуаров, взрывозащищенный преобразователь.

Магнитострикционный жидкостный уровнемер Miran RS485 Output MTL4 360 мм-800 мм для нефтяных резервуаров взрывозащищенный преобразователь.

after the payment please extend the process time 10 day more for my side , it is customized product , need more time to do it

1. Out put logic: N means the value will increase when the magnetrings move from clectronic box to the end s means the value will decrease when the magnet rings move fromelectronic box to the end ,S so you need N OR S ?

2 0-5V 0-10V 4-20mA RS485 four outputs which you need ?

3 .c: Waterproof cableP: Waterproof avigationH: Hirschmann plugyou need c or P or h ???

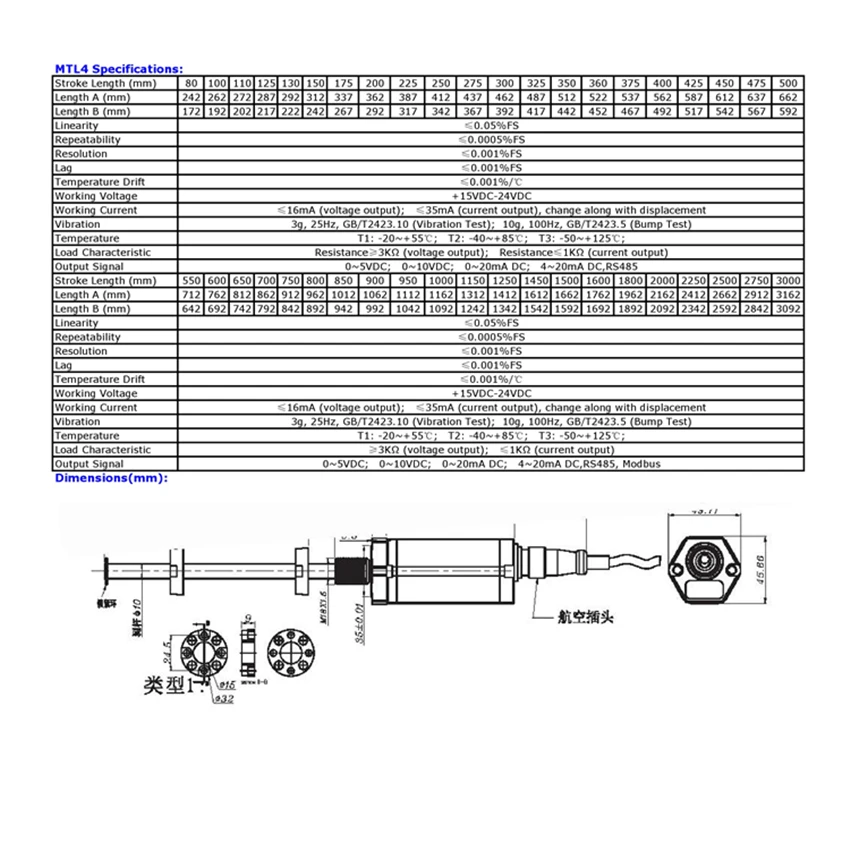

Model Number:MTL4 Magnetostrictive Liquid Level Sensor

Output Type:Analog Sensor

DIY Supplies:Electrical

Item:MTL4 Magnetostrictive Liquid Level Sensor

Measurement Stroke:360mm-800mm

Linearity:0.05%FS

Resolution:0.001mm

Repeatability:0.001mm

Protection Degree:IP66

Temperature:-50 degree centigrate~+125 degree centigrate

Very Long Life:100x10^6 Cycles

Power Supply:24VDC

Max Speed:10m/s

Product Description

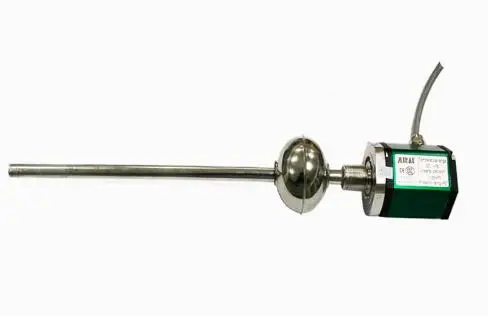

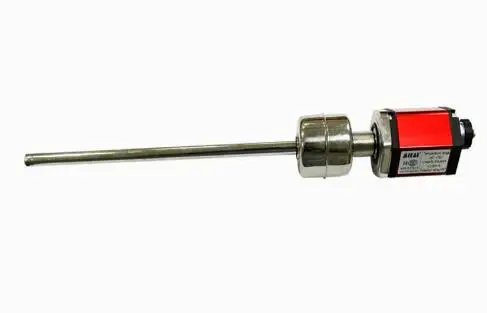

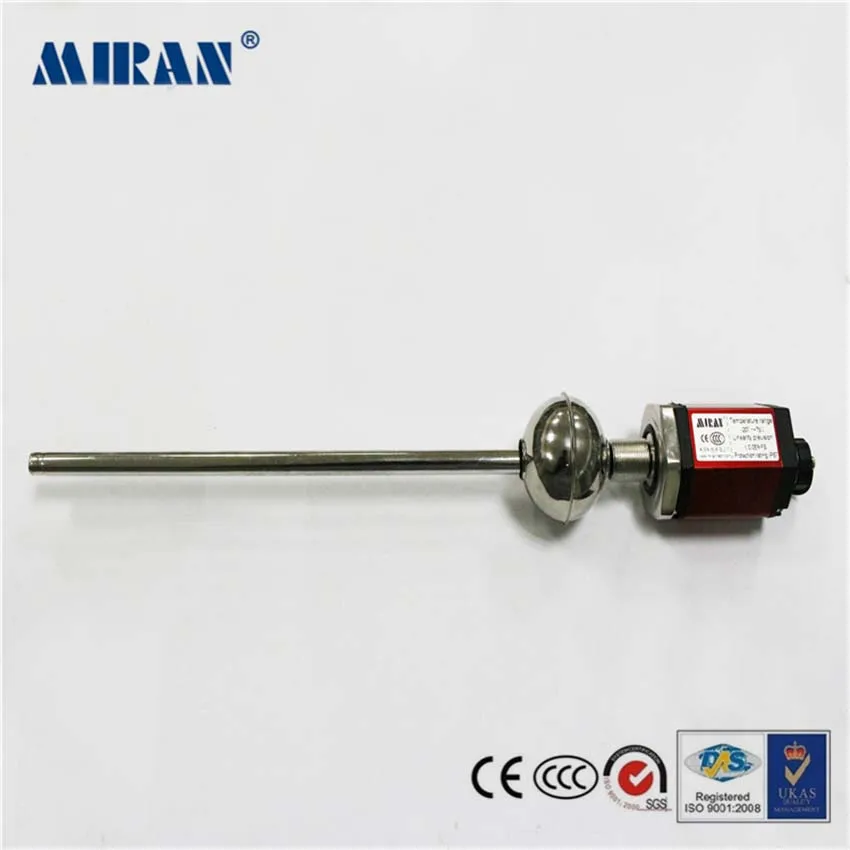

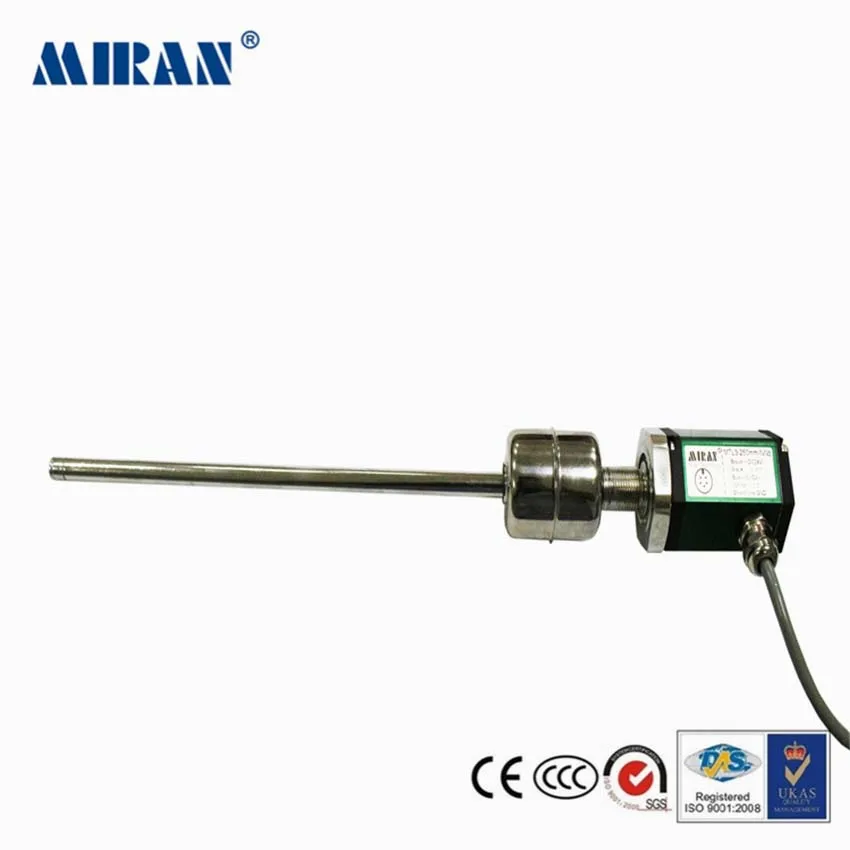

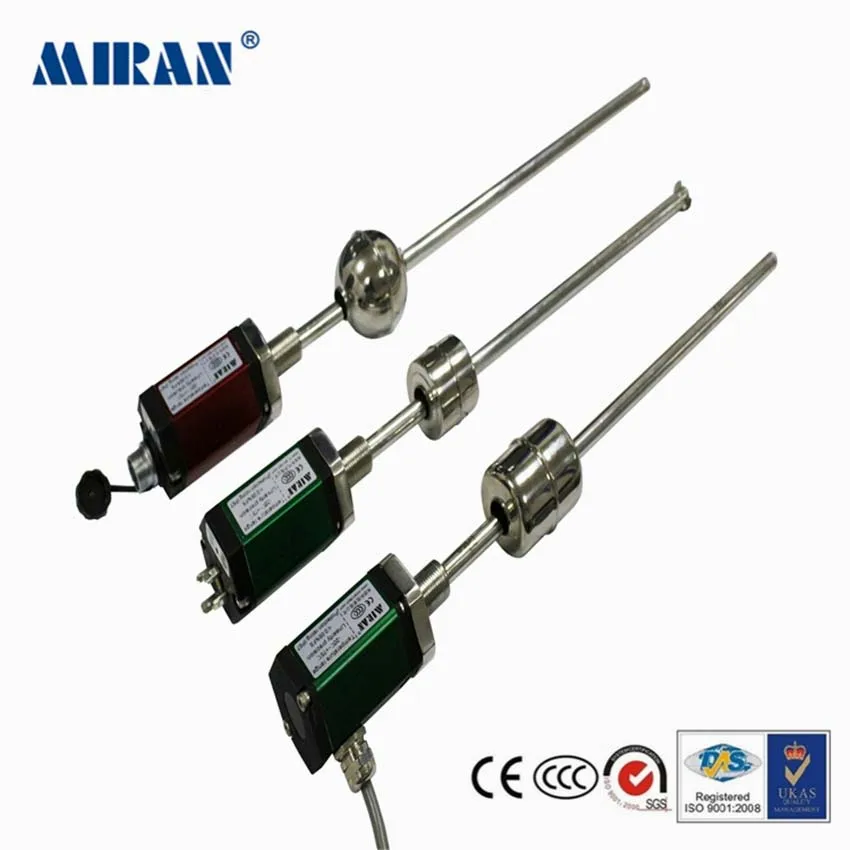

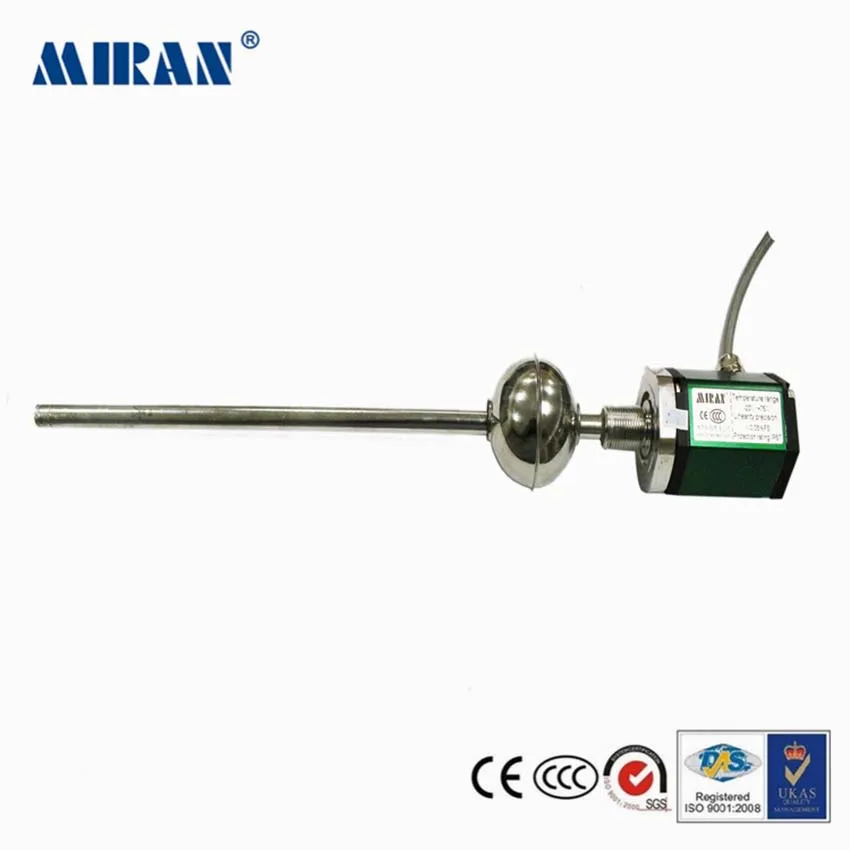

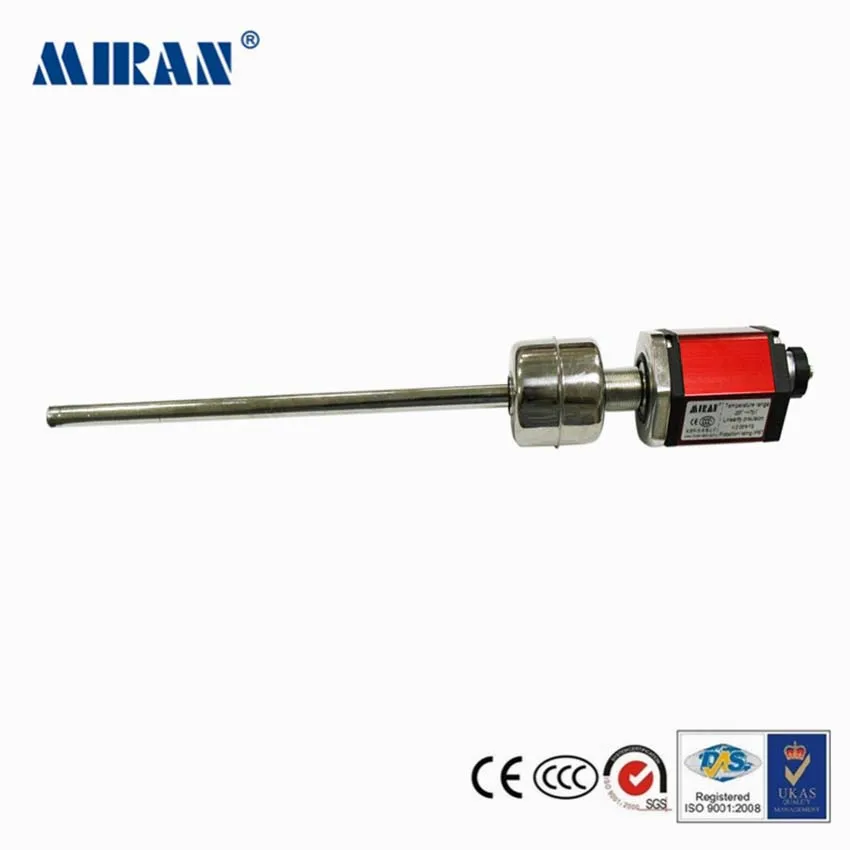

Miran RS485 Output MTL4 360mm-800mm Magnetostrictive Liquid Level Sensor for Oil Tank Explosion-proof Liquid Level Transducer
