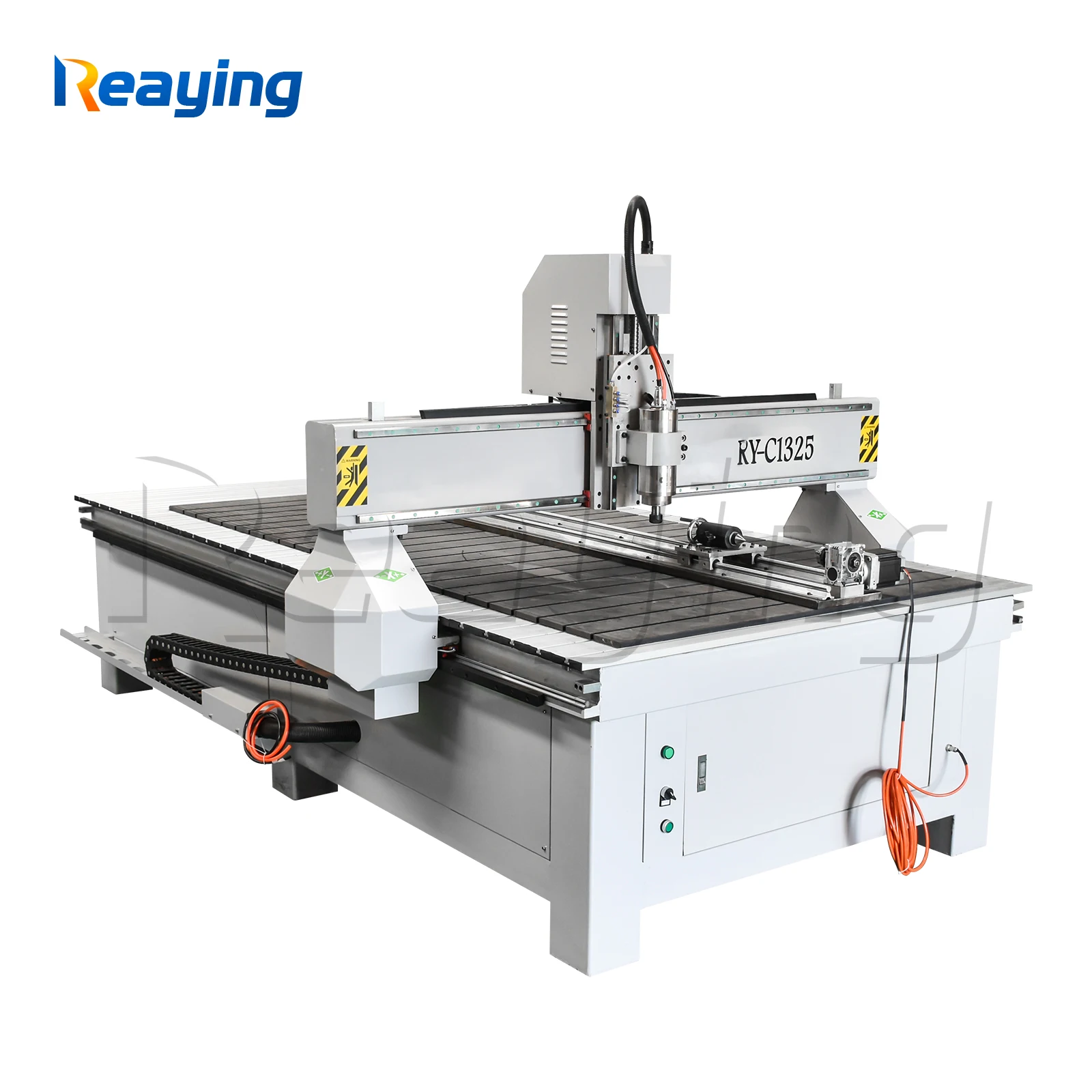

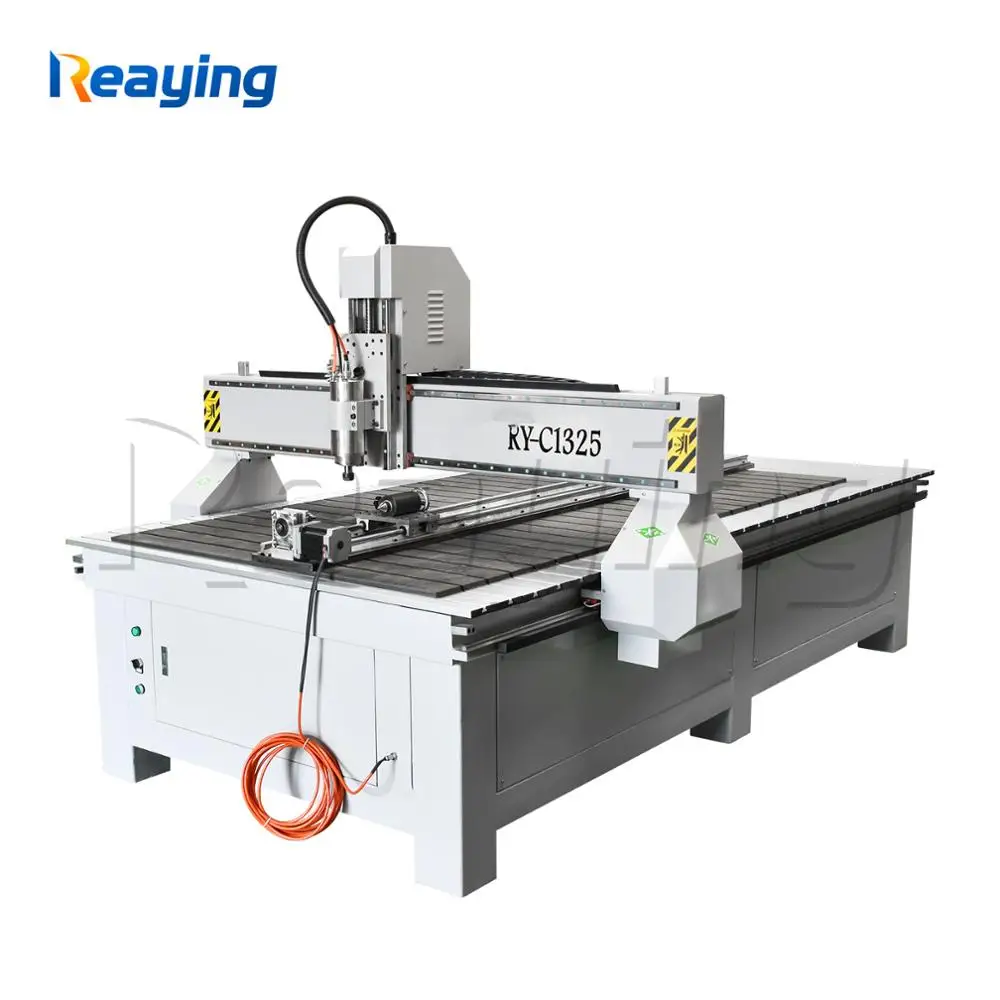

3KW wood CNC router machine woodworking aluminum engraving cutting machine 1300*2500mm

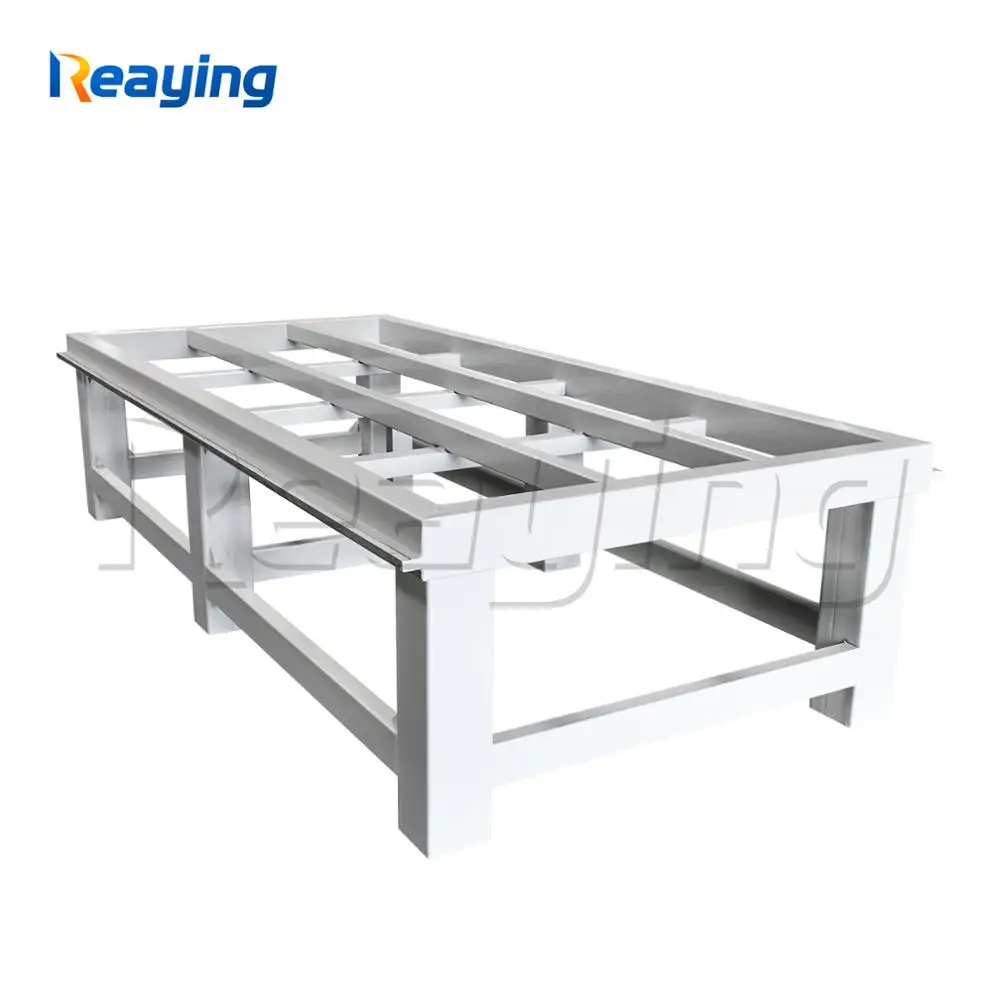

1.The lathe is founded by high-quality steel that ensures the high stability ,all the three axises are using imported straight-quadrate rails.

2.Y axis uses double-motor in-phase drive that ensure the machine equality and smoothly running.

3.Using high accurate pinion and rack transmission. The highest speed is 20m/min. It can clearly engrave the 1mm small word.

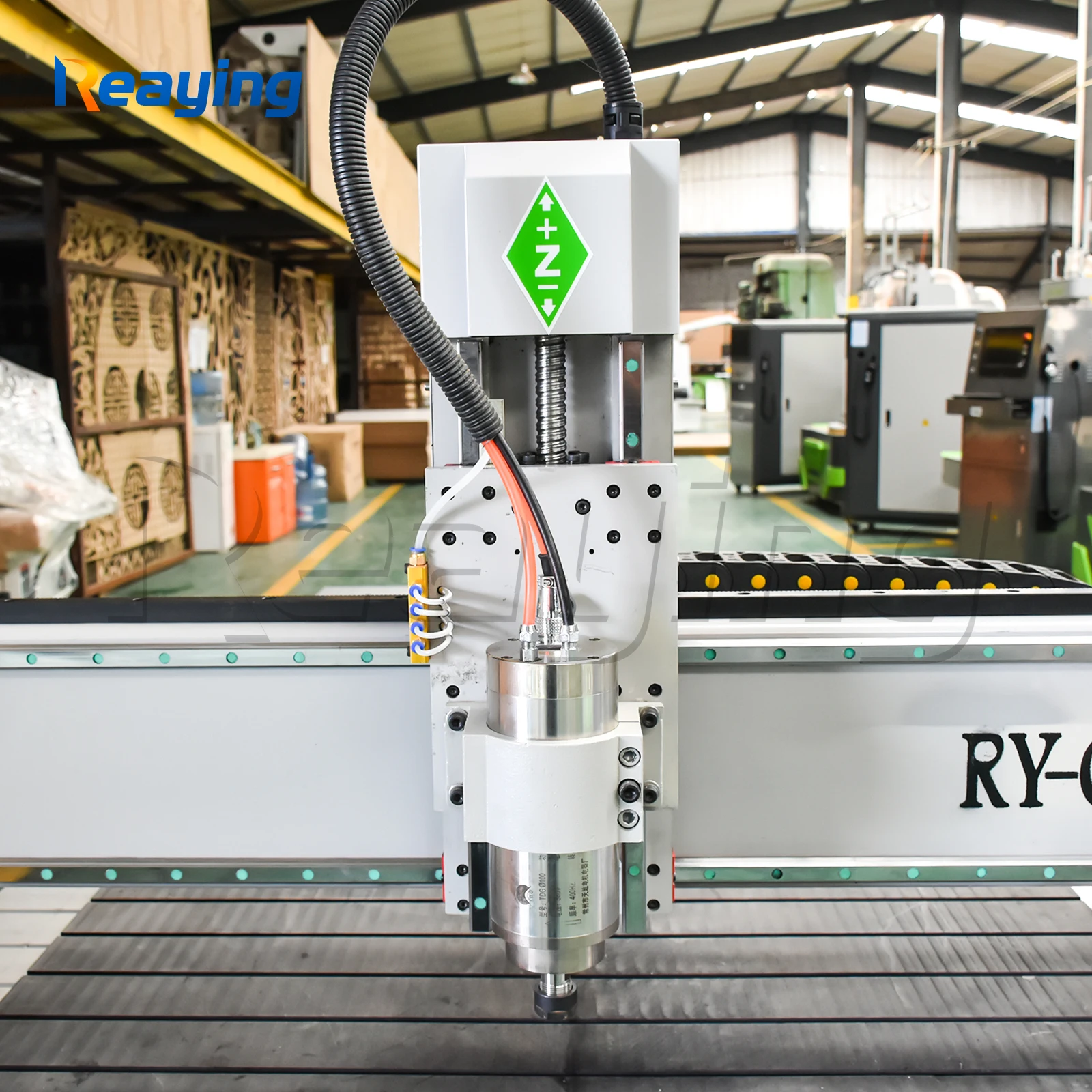

4.Spindle adopts 3 KW water-cooling motor made in china, which is very powerful and with  little noise .It can work continuely without maintaining.

5.Intelligent protection for working table that can prevent misuse or software errors from damaging the surface. Its protection of step beyond the boundary avoids crashing while design area beyond processing area.

6.Advanced industrial controlling system is compatible to many dictate formats that can  operate after accident or next day processing so it is very convenient.

Model

RY-C1325

Working Size

1300*2500mm

Table Structure

T-slot +PVC Table

Working delicacy

0.025mm

Speed

MAX Rotating Speed :24000 rpm/min

MAX Working Speed :25 m/min

Spindle Power

3.0KW Water Cooling Spindle

Spindle Speed

0-24000r/min

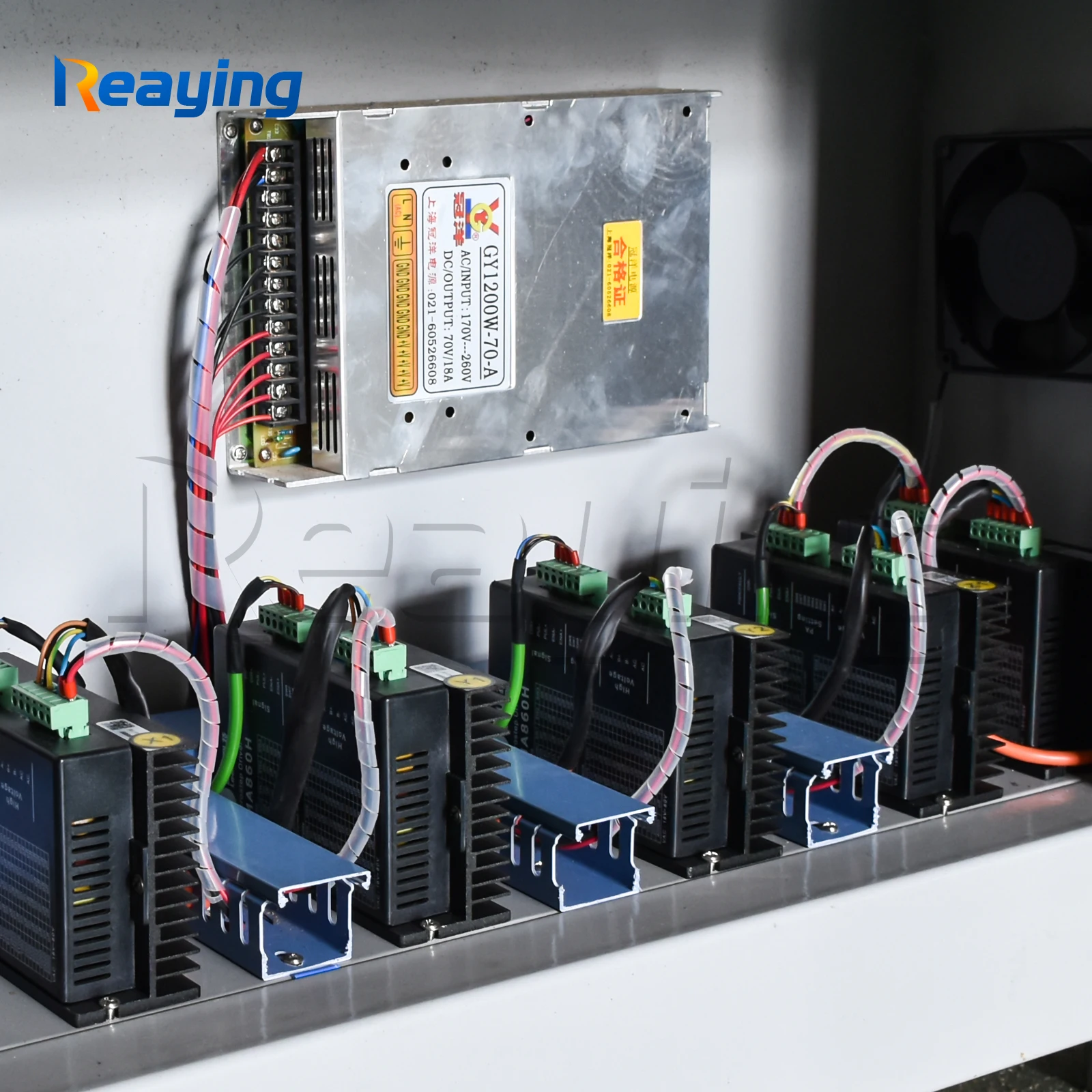

Driving System

Stepper Motor

Working Voltage

380V/220V optional

Operating System

NC STUDIO Handle

Option

Spindle Power: 3.2KW/4.5KW Spindle

Table Structure: Vacuum Table

Driving System: Servo System

Operating System: DSP A11E Controller

Wood, solid wood, particle board, acrylic, plexiglass, MDF, plastic, copper, aluminum, etc

This machine is mainly used in furniture making industry, furniture decoration industry,wood craft industry,wood decoration industry and automotive tooling industry,etc

1. Wood furniture industry

Doors; Cabinets; Tables; Chairs.

Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Billboard

Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.

4. Artwork and Decoration

wood crafts; gift box; jewelry box

5. Others

Relief sculpture and 3D engraving and Cylindrical object.
