STC-3018 AC 220V 12V 24V C/F Digital Dual Thermometer Temperature Controller Thermostat Incubator Thermoregulator | Инструменты

STC-3018 AC 220V 12V 24V C/F Digital Dual Thermometer Temperature Controller Thermostat Incubator Thermoregulator | Инструменты

RM1307731645732117

Features:
1.Automatic conversion of refrigeration and heating mode
2.Control mode of return difference;Temperature display resolution 0.1
3.Multiple alarm mode selection
4.Support temperature correction and support for power loss (the parameters of the sudden power failure are still valid
5.Application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc

Specifications:
Display Type:Digital
Temperature sensor: NTC 10K
Senor length:1.0m
Temperature measuring range: -55 ° C ~ 120 ° C /  -66°F~248°F
Resolution: 0.1 ° C
Accuracy:±1° C
Power supply: 110-220VAC 50/60Hz,  12V DC , 24V DC(Please choose power supply when ordering)
Power consumption: <3W
Storage temperature: -30 ° C ~ 75 ° C
Relative humidity: 20% ~ 85% (No condensate)
Relay contact capacity: 10A/240VAC; Heat 10A/240VAC

Long press UP button 3 seconds from °F to ° C

Instruction:

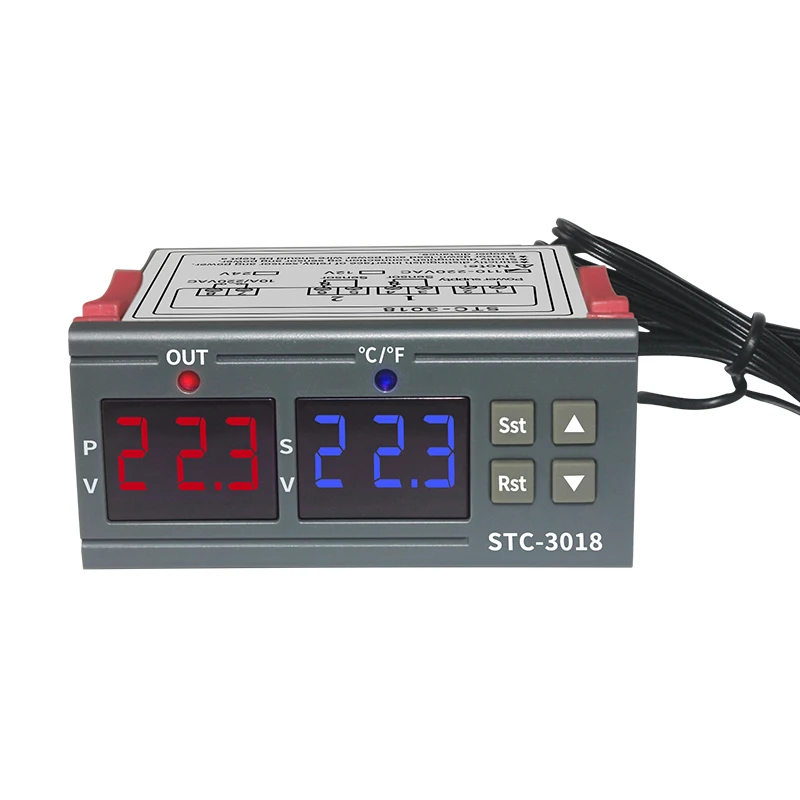

Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.
Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.

Code Instruction:

 Code

 Function

Set Range

Default

Start or Stop Temperature

-55~120°C/-67~248°F

0°C/68°F

P0

Working mode

H

H/C

P1

Difference set value

0.2-10

2

P2

High temperature alarm value

-55~120°C/-67~248°F

80°C/176°F

P3

Low temperature alarm value

-55~120°C/-67~248°F

-55°C/-67°F

P4

Temperature calibration value

-10.0°C~10.0°C

0

P5

Compressor delay time

0-60Min

0

P6

Display mode

C/F

C

Notice:The first group of probes is used by default, and 2 is the standby probe. If the contact of probe 1 is not good, the display temperature will flash, and the temperature of the second group of probes will be automatically detected, which can be controlled by the second group of probes

Package:
1X Temperature Controller
1X Waterproof Sensor 100cm

you also can separate buy a 500CM sensor
