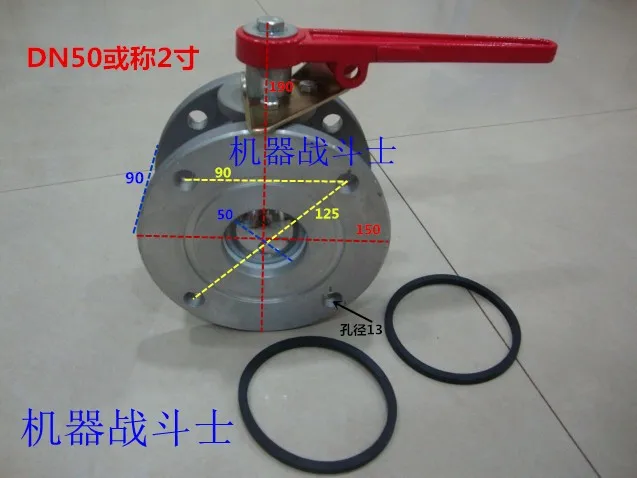

JACK GD is produced and elaborated.It's a great, durable, practical, 2 inch/DN50 round flange ball valve. Carefully built, exquisite workmanship, reliable sealing, use protection! The main material is aluminium alloy, with a brief outline: the total length of the valve body is 86.5 mm, and the total length of the valve body with a belt is 90 mm. The flange has an outer diameter of 150 mm and a thickness of 13 mm. Flange installation hole diagonal hole spacing 125 mm, parallel hole spacing 90 mm, installation hole diameter 13 mm, circulation hole diameter 50 mm. 2.8KG

Our shopkeeper is a professional computer tanker machine repair, from a family of petroleum machinery accessories.Proficient in electronic circuit control principle and mechanical work of tanker and other machines, rich field experienceDeeply understand the actual needs and use of friends! Recommend this high quality baby specially! Easy for friends to use! When you encounter difficulties and puzzles in installation and use, or at gas stations, you can directly contact the tanker, and there will be solutions and assistance!

Brief physical pictures:

Methods and effects in use (pictures derived from buyer's actual use and shopkeeper's work practice):

Be sure to keep the rotation direction before using, so as to avoid inconvenience caused by misalignment and sprain the handle. If the tanker is parked for a long time or not used in winter, please discharge the liquid in the tank in advance to avoid freezing and cracking of the valve body. Suitable for oil trucks, oil depots, etc.

Medium gasoline, diesel oil, kerosene, etc., nominal pressure 0.4 MPa, shell test pressure 0.6 mpa, sealing test pressure 0.45 MPa.

Aluminum alloy main case, PTFE surface seal, oil-resistant rubber stem seal, cast steel handle, chrome plated steel stem 45. Use temperatures - 30 to 55 degrees Celsius.

It can be guaranteed and maintained for life, but due to the slight profit, the freight is paid by the buyer, please forgive me!

Special attention: because the products are sold at par price, the profit is thin! Please contact me by telephone or Internet before you take a picture of your baby. It's better to wait until you have consulted the express delivery or the exact price of logistics before making payment. Avoid errors! Thank you for your support!
