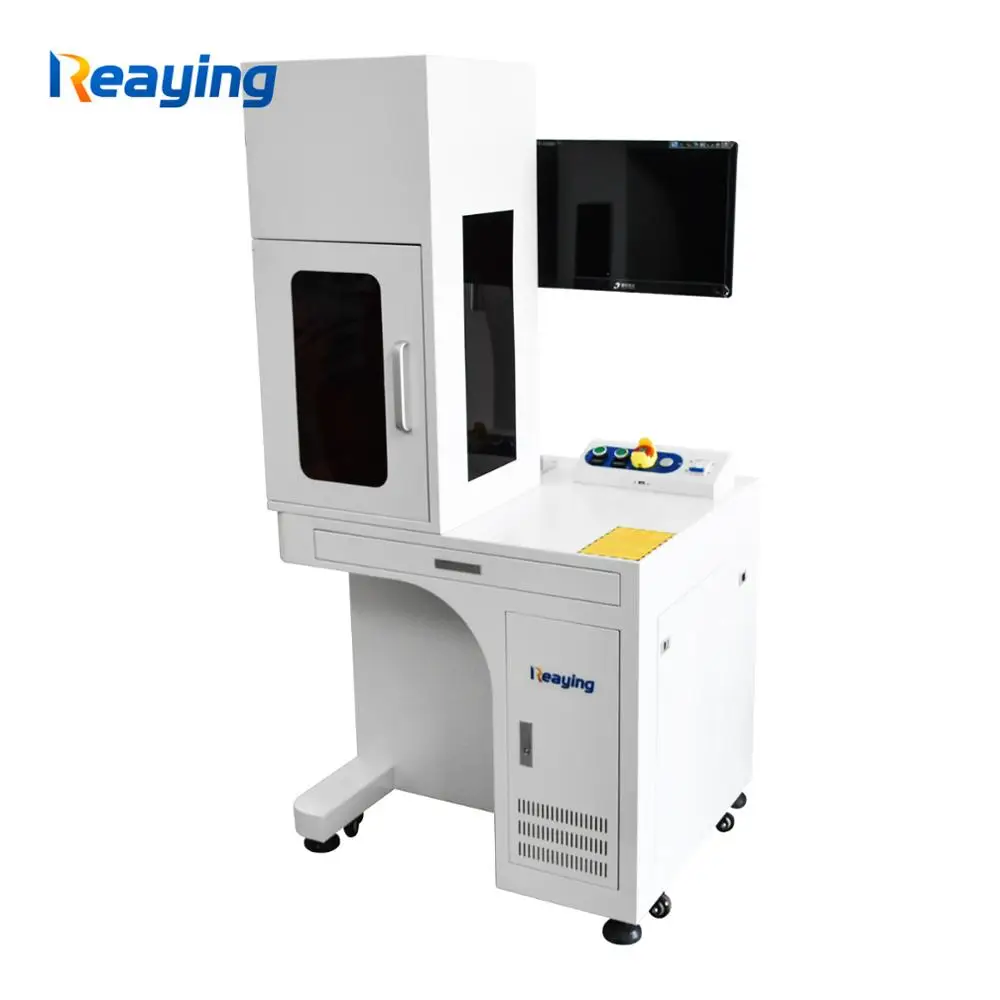

20W 30W 50W 100W Desktop fiber laser marking machine engraving tools with Raycus generator | Инструменты

20W 30W 50W 100W Desktop fiber laser marking machine engraving tools with Raycus generator | Инструменты

1. Wide application: high tech for both metal and non metal marking engraving.

2. Great performance: Identical marking quality with high speed.   (up to 7000mm/s speed )

3. Long lifetime: Adopt China best quality advanced fiber generator, we guarantee we use genuine laser source, the life time could up to 100,000 hours.

4. Low consumption: It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times co mpared with YAG laser. Using cost is really cheap.

5. Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.

6. Easy operation: The machine is very easy to use, and even the fresh man can use it well.

Model

RY-F20A

Laser power

20W/30W/50W optional

Working  Area

110*110mm(150*150mm/200*200/300*300mm optional)

Cooling Mode

Air Cooling

Laser Wavelength

1064 nm

Frequency of pulse

20-100 KHz

Marking Depth

≤0.3 mm

Marking Speed

≤7000 mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability Accuracy

±0.001 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date, bar code, etc

Operation System

Microsoft Windows XP or Windows 2000

Control Software

EZCAD Control Software

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc

.

Unit Power

≤0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

≤ 90%, no fog

Dimensions(L*W*H)

85 x 74 x 153 cm

Power supply requirements

110V/220V optional

Optional

Rotary device/2D work table/ double red dot light

Warranty

24 months

​

Purpose: suitable for marking and engraving, hardware tools, knife tools, kitchenware, plastic products, computer keyboards, integrated circuits, packaging for bottles and cans, glass frames, faucets and sanitary ware, and other products.

1、 Serial numbers and logos on plastic products, electrical enclosures, and other electronics products.

2、Metals and surfaces: stainless steel, copper, aluminum, oxidation, phosphorylation, electroplating, commonly used for the laser marking of hardware, daily necessities, electrical cladding, cell phone cases(e.g. iPhone, iPad), jewelry(e.g.ring), medical tools etc.
