Easily connect your arcade controllers right into your PC or PS/3 with this DIY kit!  The PC PS/3 to Arcade Controller USB Interface PCB (sometimes referred to as a xin mo board or ipac controller) makes it easy to connect your arcade Player 1 and Player 2 buttons/joystick (included in this DIY Kit)into any Windows based computer(under windows 98SE/XP/2000/Vista/Windows 7/Windows 8 system). Once connected, the Windows based PC will automatically connect and install the appropriate driver and will show as a dual joystick device with 30 input registers (2 Joysticks Up/Down/Left/Right & 22 buttons or switches). Then load in your favorite game or MAME (Multiple Arcade Machine Emulator) game emulator and enjoy!

This device is NOT an keyboard emulator and will not interfere with not computer keyboard inputs/operations. The PC PS/3 to Arcade Controller USB Interface PCB will be auto-detected and configured as a dual joystick controller (under windows 98SE/XP/2000/Vista/Windows 7/Windows 8/PS3 system). A great alternative to the expensive I PAC (I-PAC) keyboard encoder device!


Description:

(1)  ZIPPYY Joystick

The Zippyy classic style joystick is a great choice for a versatile, inexpensive joystick.  Easily adjustable between 2, 4, and 8 way. You can play the classics or the fighting games by simply shifting a plate on the bottom of the joystick.

Features:

All round easy to use arcade joystick

Unique handle design makes it ideal for metal control panels

Microswitches use quick connectors or solder the wires direct to the terminals

Adjustable between 2/4/8 wayComes complete with 4 microswitches to detect on/off position

0.187in microswitch connector

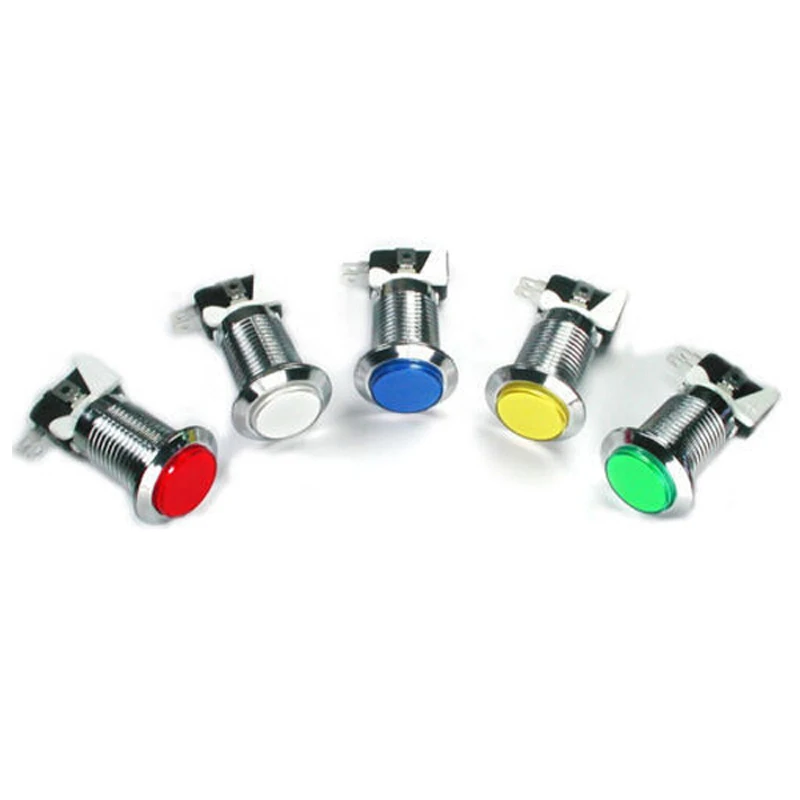

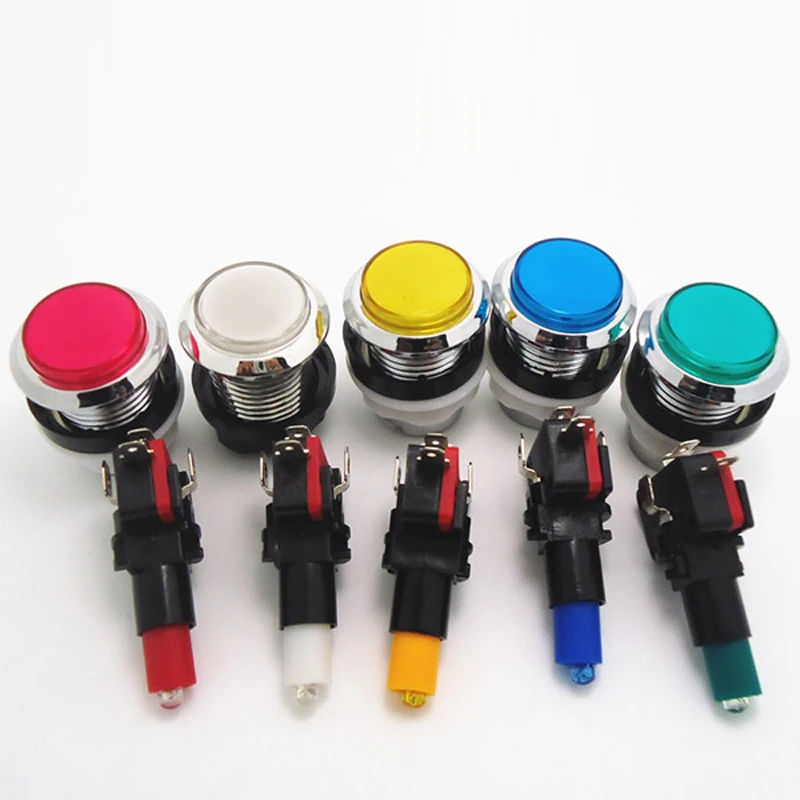

(2)  12V Chrome Plated Illuminated Push Buttons (LED buttons in short)

Chrome Plated illuminated push button comes with 12V LED lamp, fixing ring & built-in microswitch. Use as replacements for existing machines or new arcade projects. It have differnet colors lighted. Light your arcade machines more beautiful.

Features:

(1) Fits all wood or metal control panels

(2) Low profile

(3) High-Efficiency LED (powered by +12VDC) with integral wide diffuse

(4) Bayonet-fit LED housing

(5) Look great when they are not illuminated, Fabulous when they are

Specifications:

Arcade game button, led push buttons, standard push button 28mm.

(1) 0.187in microswitch connector

(2) 0.250in LED Connector

(3)10,000,000 cycle microswitch reliability

(4) Color: Green/White/ Red/Yellow/Blue

(5) Pushbutton mounts in 24mm size hole, Pushbutton surface diameter 33mm

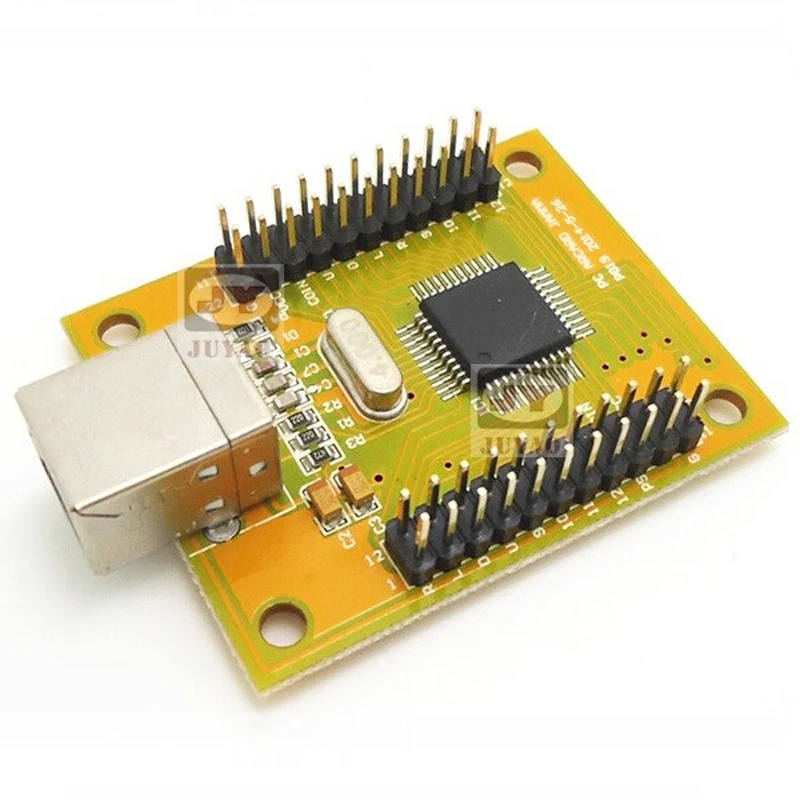

(2)  JY-2 Two Player Arcade controller to MAME PC PS/3 USB Interface Encoder

Features:

Plug & Play USB Device (Auto detected as Dual Joystick Controller)

It supports PC(under windows 98SE/XP/2000/Vista/Windows 7/Windows 8 system)and PS/ 3

Connects up to 2 Player Controls (2 Joysticks / 20 Buttons)

Button Turbo and PS 3 are available

Small footprint PCB Layout

Free to connect to coin acceptor on desktop

Interface wires with 0.187" Quick Disconnects attached

Interface wires with 0.187" Quick Disconnects forLED lighting attached

Interface wires are 18" in length (for control panel widths up to 3 feet)

Connection:

Test:   (Test on Win7 as an example)

1. Please plug USB wire from main board to computer.
2. Control Panel-> hardware and sound-> Devices and Printers

3. Please click mouse right, and choose “Game controller settings”.

4. Please click either option for testing.

5. Testing Panel

When click button, the button corresponded will be lighted on computer.

When click joystick, the point of view will be lighted correspondingly.

Button Turbo :
Turn on function turbo-
    Please hold on button Turbo, and press a button which needs to be functional.
Turn off function turbo-
    Please hold on button Turbo, and press the button again which needs to be non-functional.
Note: only button 1-button 8 can be set up for turbo.

Button PS:
Button PS works only with PS 3 for returning to menu.
It is a button as usual when it works with PC.

Please Note:
* By default, RetroPie does not detect player 2 controls. You will first need to enable this if you intend to use this board with RetroPie.
Simply Google "How to get Xin-Mo Dual Arcade Working with RetroPie" to find forum support on how to do this.(Our board have the Button PS function when work with PS3 than Xin-Mo encoder)

Size:

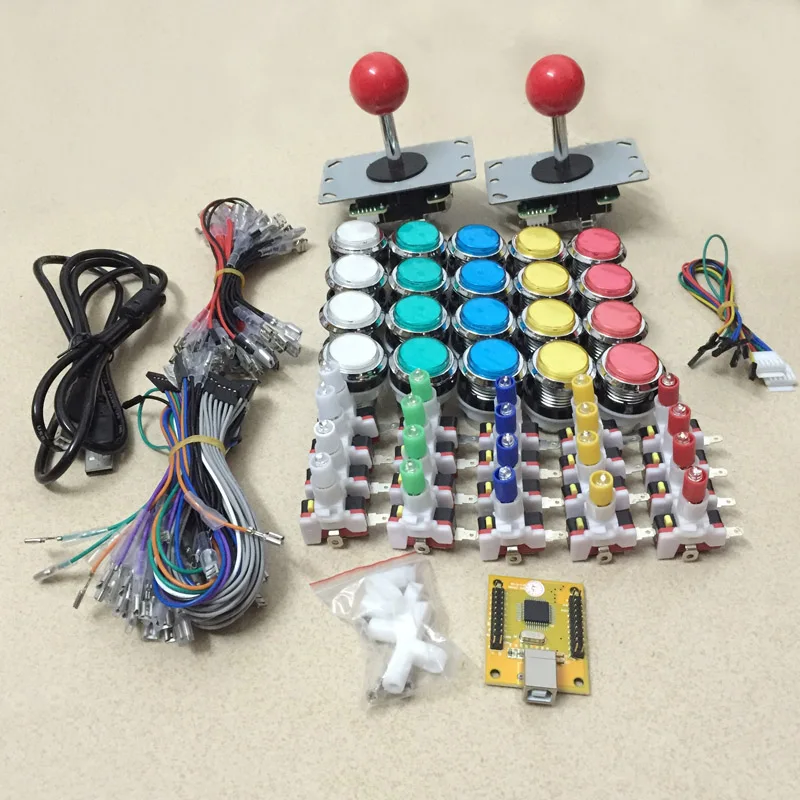

This DIY Kit Including:

Details:

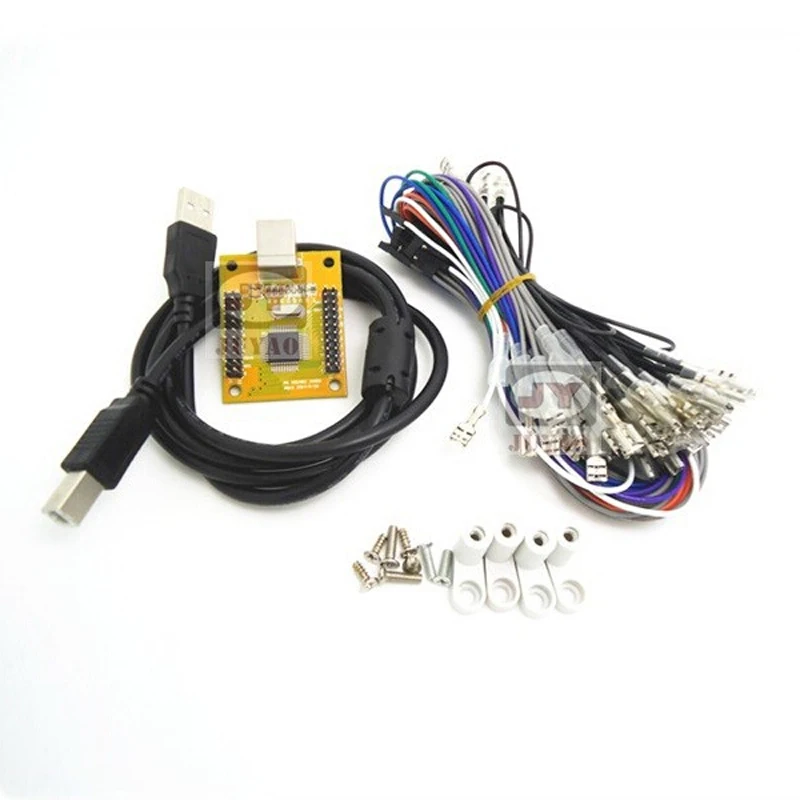

One Kit JY-2 USB Interface Encoder, which contains

Two pcs ZIPPYY Joystick  (Default short handle, please inform us if you need other color topballs Or if you long shaft handle )

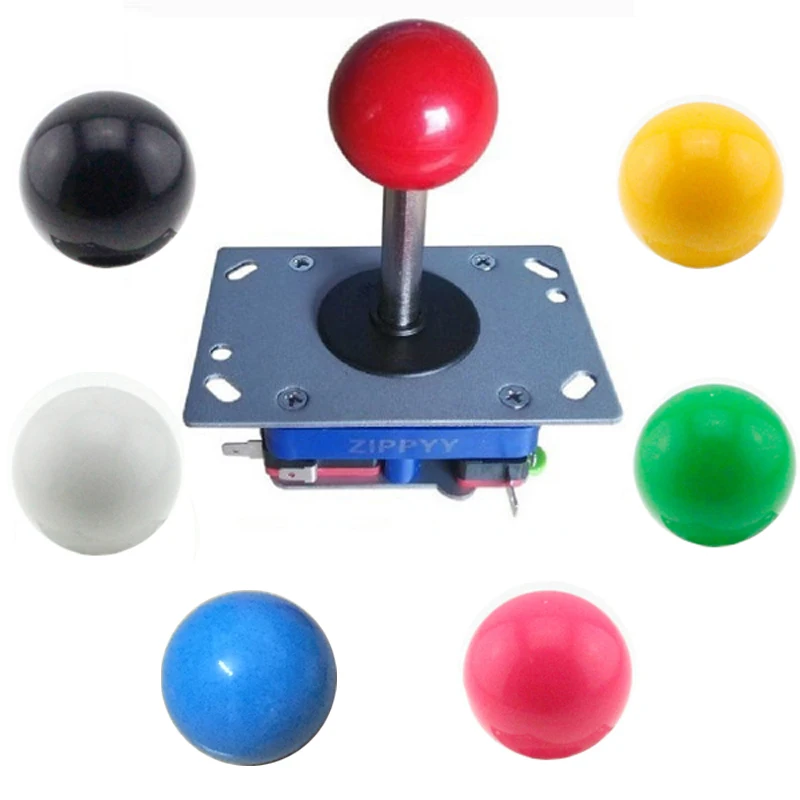

Colors for ZIPPYY Joystick topball available:

20 pcs Chrome Plated illuminated push button with Microswitches (please inform us if you need other colors, the quantity and the colors )

1 unit LED lighting cables to JY-2 USB Interface Encoder
