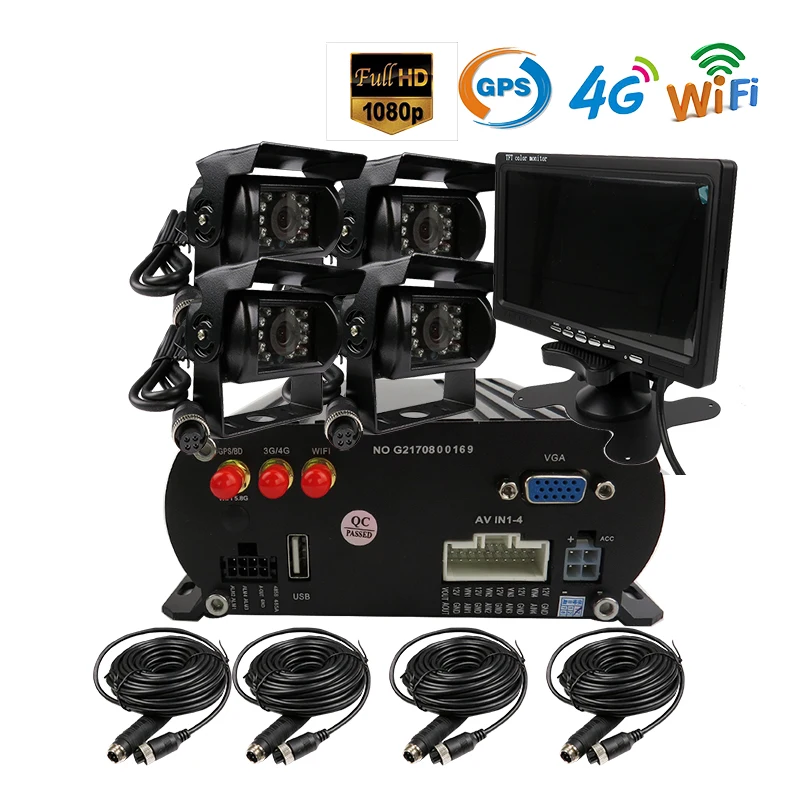

Free Shipping 4 CH WIFI GPS 4G 1080P AHD 2TB HDD Car DVR MDVR Video Recorder Phone Remote Monitor Rear View Camera 7" VGA | Автомобили

4 Channel AHD Vehicle Digital Video Recorder  Supports Up To 512GB SD, 2TB HDD Built-in GPS, 4G Module ,  WIFI Module, 1080P 4CH AHD



Main Features



Car DVR



H.264 video compression. 4CH 1080P HD AHD MDVR, It works with all AHD cameras, More Clearer.  4 Channel 1080P AHD real-time recording (1080N/720P /960H/D1/CIF for selection) Support video searching function so that we can easily get files of a certain period. Support realtime playback, as well as review the video on computer Support remote control and mouse operation. Equipped with high-speed video recording at 30fps per channel. Recording video can be overlaid with date/ time, plate number etc.. Optional file packing time to meet your real requirement. Support wide range of voltage input from 12V to 32V.  Support real time monitor from phone and PC. VGA output. Support 4G remote monitor, Support wifi remote monitor. Output 12VDC 3A for external devices. Support 2 SD card, and (256G*2) Supports 1 2TB HDD, 2.5 inch Super-capacitor to protect the date when abnormal power Support auto recordng , manually recording , alarm recording , fire off recording. Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours) Support 8CH alarming inputs and 1CH independent alarm output (open/close door, brake, back up, motion detection etc). Support upgrad via SD card or USD slot. Support OSD menu. Video playback, speed and GPS track playback. Built in GPS Module, Record GPS track and speed.  Eight channel 4pin connector video and audio input, one channel AV connector video and audio output

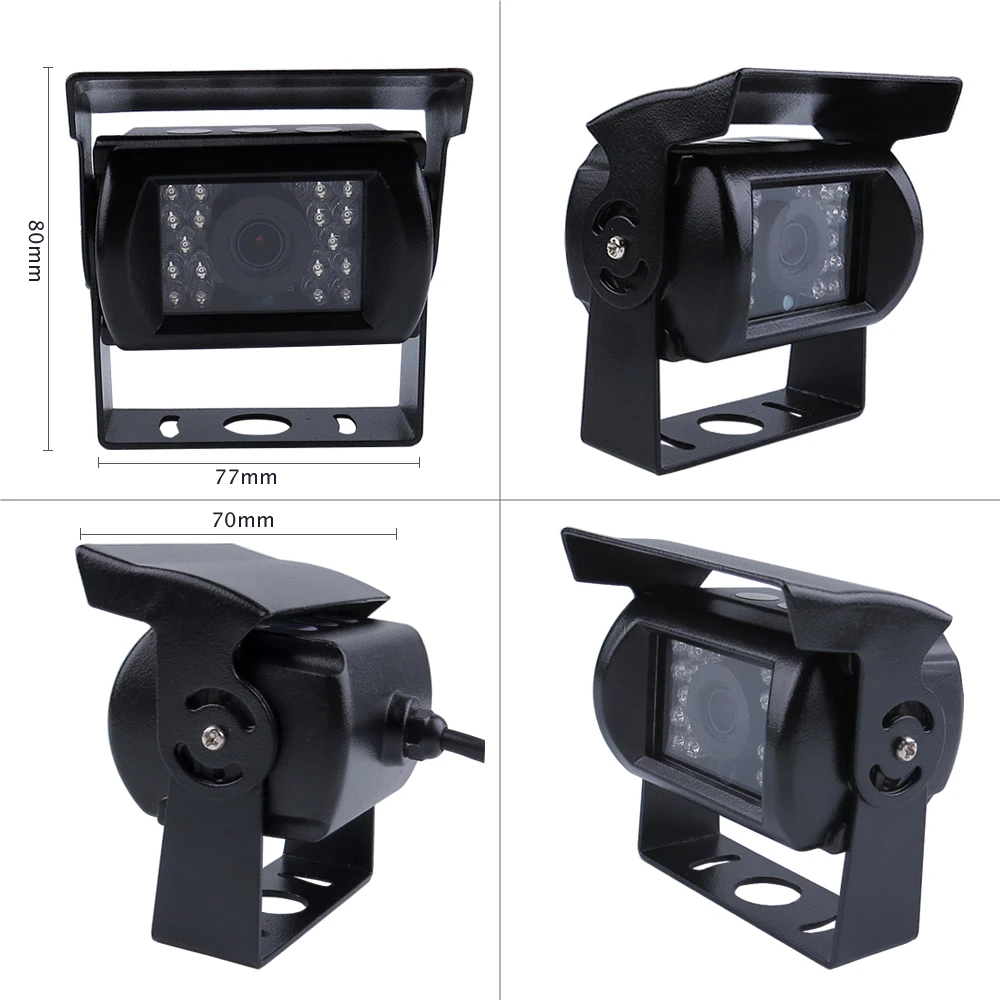

Car Camera Top quality camera. Easy and safe to mount. 4 Pin connectors for easy installation. 18 infrared LED for night vision AHD 1080P camera high resolution, with infrared illumination at night. Details







Functions







More Products   Specification   Project Specification Feature System Lanuage English Operate System OSD menu Video Video Input 4 Channel Video Input ,1.0Vp-p,75 Video Output 1 Channel RCA Video Output ,1.0Vp-p,75, 1 Channel VGA Output Video Display 1,4 channel display Compression H.264 Main profile Video System NTSC, PAL Audio Audio Input 4 Channel Audio Input Audio Output 1 Channel RCA Audio Output Record sound and video synchronized recording Video resolution 1080N/720P /960H/D1/CIF Expansion Interface Storage Support  SD Card up to 128G, support 2 SD card. Supports 2TB HDD. Alarm Input 4-level input<4V Low level alarm, >4V high level alarm Alarm output 2-level output, 5V and 12V output Serial interface 1 RS232 & 2 RS485

4G

WIFI

4G

WIFI

Support, support phone and PC remote view Software PC playback analyze the car information when the video playback on PC I/O 0-4V Low voltage alarm >4V High voltage alarm Key singal >5V key on <4V key off Power Power input DC12V ~ 36V Power Output DC12V 3A Power consumption about 20W Common Size 280x230x70mm Weight 2.6kg Operating Temperature -25 degree~ +65 degree

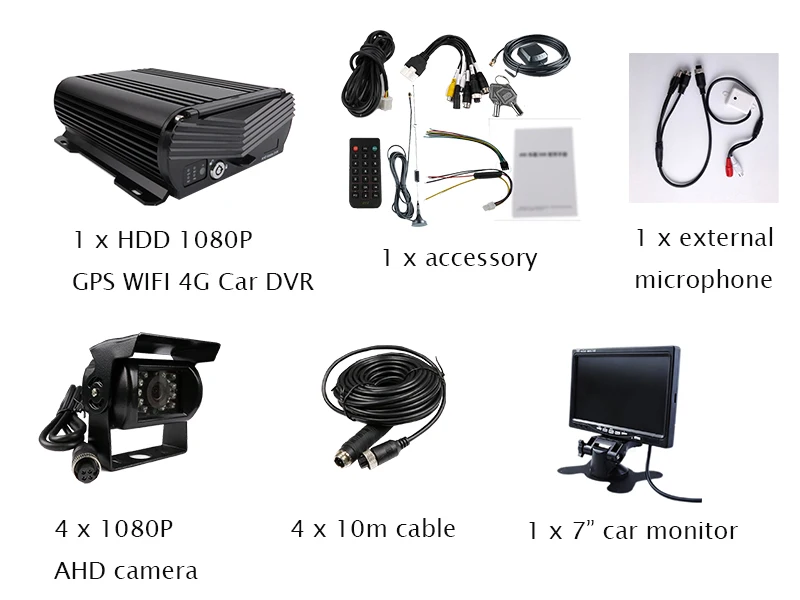

Package
